Brand: SENOR
Model: HORQ/60DS-M6
Type: Fork Bracket with Thermal Break for Continuous Ceilings

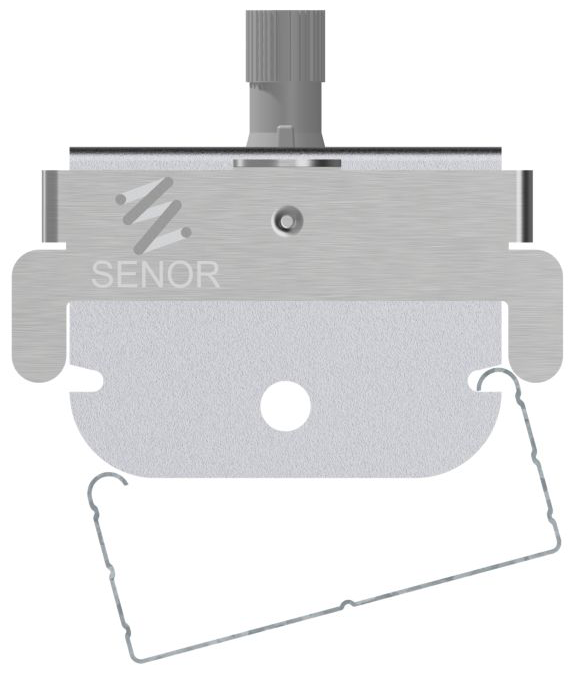

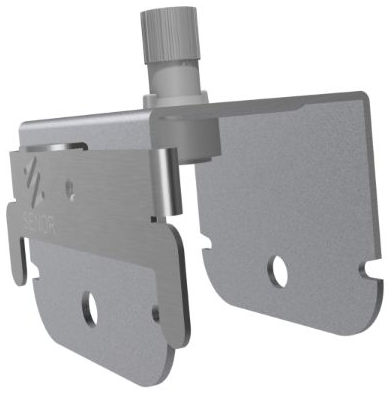

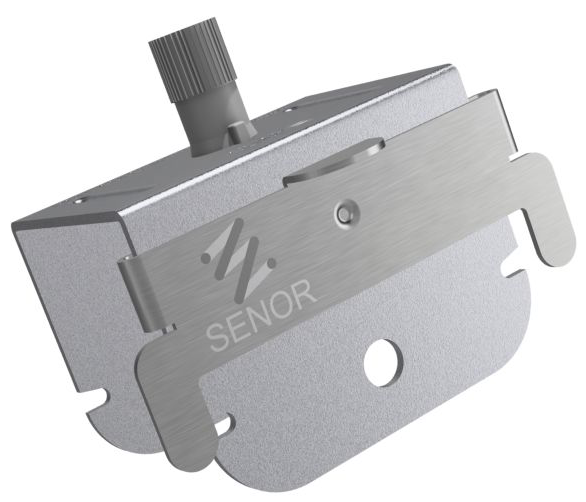

Description: HORQ 60 DS is a high-quality fork bracket made of galvanized steel, designed for suspending continuous plasterboard ceilings with 60 mm profiles. Manufactured from DX51D + Z275 MAC steel with a thickness of 1.5 mm, it provides exceptional strength and reliability.
The integrated polypropylene bushing with wide nut allows quick leveling while simultaneously breaking the thermal bridge — preventing the transfer of heat, cold, and condensation formation.

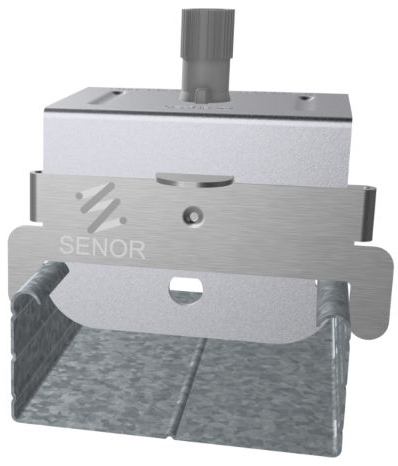

The locking device (DS) securely fixes profiles such as TC60, RIGI 60, Maestra CD 60/27, T-60, or similar, without risk of displacement.
Advantages:
- Fork shape for easy and quick installation into the profile
- Locking device (DS) securely fixes the profile without movement
- Polypropylene bushing with thermal break prevents heat and cold transfer
- Prevents condensation caused by temperature changes
- Non-conductive (polypropylene insulation)
- Allows easy and quick leveling
- Breaking load ≥ 280 kg – exceptional load capacity
- Steel thickness 1.5 mm (DX51D + Z275 MAC)
- ISO 9001 certified
3D View: Explore in 3D HERE

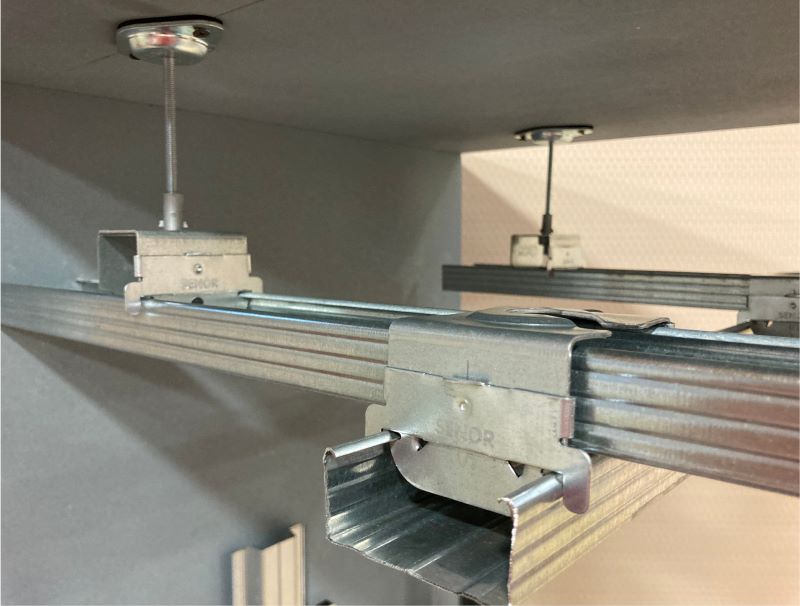

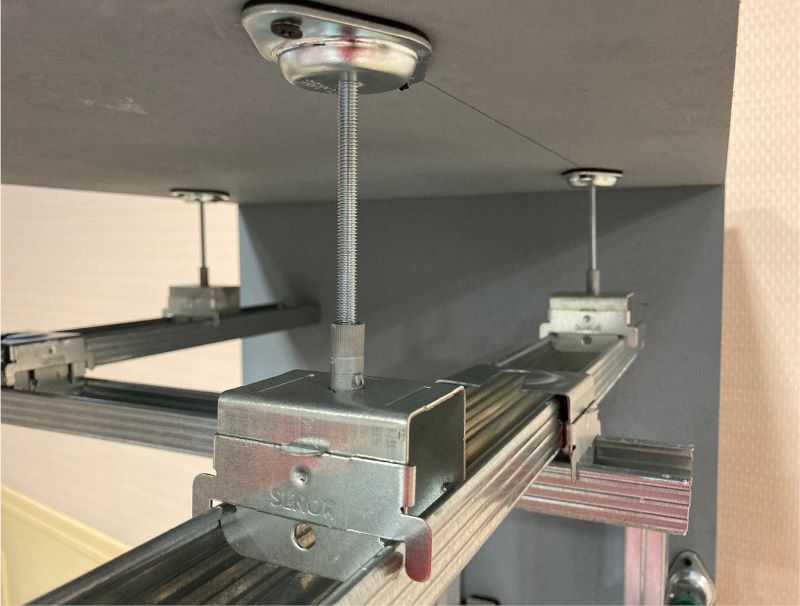

Application: Designed for installation of continuous suspended plasterboard ceilings with 60 mm metal profiles. Suitable for residential and public buildings, hotels, offices, and all projects where reliable and fast ceiling suspension with thermal break is required.
