Brand: Supersound
Model: DT 34-C30-LD

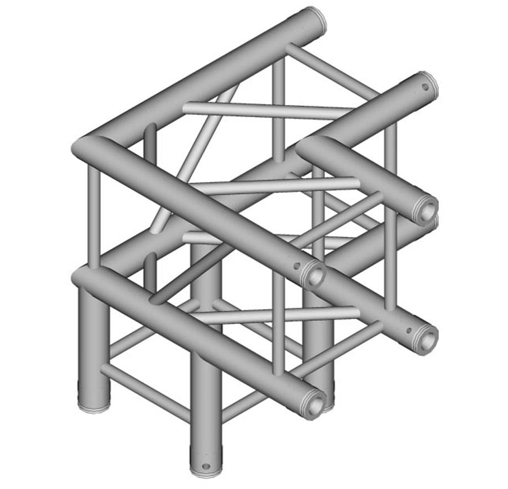

Type: Aluminum corner
Description:
With high load capacity and low weight.
Designed for quick and seamless construction, standard-sized, conical angles.
The pipes are 50 mm. High grade aluminum. Wall thickness 2 mm.
The clamps are 20 mm in diameter and 2 mm wall thickness.
Specifications:
Diameter main tube: 50 mm
Thickness of the wall of the main pipe: 2 mm
Diameter brackets: 20 mm
Wall thickness of the brackets: 2 mm
Alloy: EN-AW 6082 T6 (AlMgSi1)
Connection: conical angles bolted and bus
Includes: 8 conical angle, 16 bolts, 16 splints.
Manufactured to DIN 4112, DIN 4113-1
