Brand: Guil
Model: DDO/TQN290
Type: Corner box for connecting square aluminum trusses
Note: The price includes the connectors for three corners

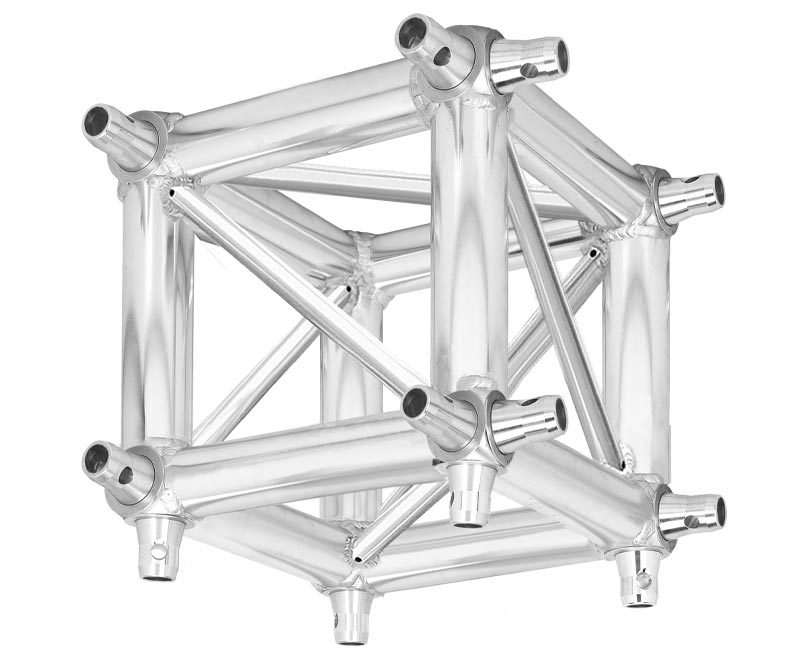

Description: Three-sided box measuring 29 x 29 cm for joining a square truss made of aluminum (alloy: EN-AW 6082 T6) and TIG welded for maximum strength.
This useful and versatile element offers multiple configurations with a 290 x 290 mm square truss without the need for additional elements.
The corner of the DDO/TQN290 three-sided box allows multiple configurations to be created using as many sides of the cube (2, 3) as needed. By simply screwing more connectors (ref. UTR-07) to the selected additional side, more usable sides can be added as required by your setup.
Technical characteristics:
Dimensions: 29 x 29 x 29 cm
Main pipes: Ø 50 x 2.5 mm
Material: Aluminum
Alloy: EN-AW 6082 T6
Net weight: 7.25 kg (without connectors)
SAFETY:
DDO/TQN290 box hex angles are tested according to the following standards:
DIN EN 1990 (EUROCODE 0)
DIN EN 1991-1-1 (EUROCODE 1)
DIN EN 1993-1-1 (EUROCODE 3)
DIN EN 1999-1-1 (EUROCODE 9)
DIN EN 1090-1
DIN EN 1090-2
DIN EN 1090-3
Application: Multi-functional square aluminum truss connection box corner.
