Brand: GUIL
Model: PTA5-T 50 x 50 mm
Type: Podiums for Stage
Description:

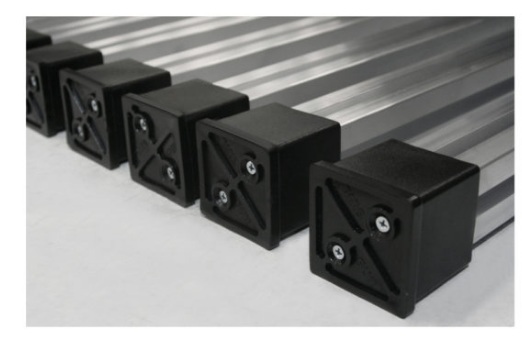

Telescopic legs with an external square profile of 50 x 50 mm, manufactured with extruded aluminium with special injection moulded rubber terminals which are non-marring and non-skid ensuring a perfect fit to any surface.
Its telescopic system allows different heights with just one set of legs (adjustable millimetre by millimetre) and ensures a perfectly levelled stage when setting up on uneven surfaces (ramps, stairs, outdoor terrain, etc.).

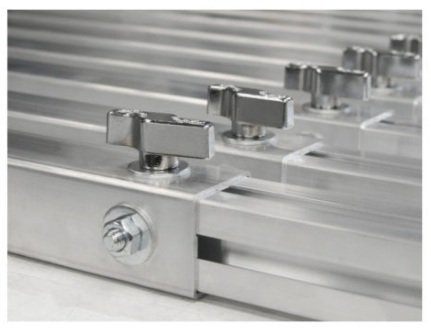

The leg height is blocked with a double locking system. Once the desired height is achieved the leg is secured with a metallic pressure knob, then, as an added safety measure legs are blocked with a nut and bolt, firmly locking the legs in position.
TM440, TM440XL & TM300 decks have a quick and easy leg attachment method. Aluminium leg sockets hold legs firmly in place with a metallic pressure knob (ergonomic design).
Technical Characteristics:

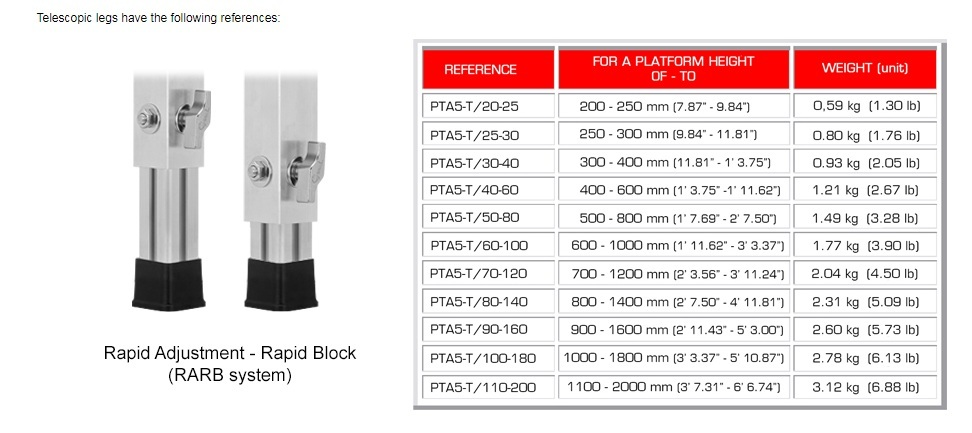

Reference: PTA5-T / 40-60
For platform height from / to: 400-600mm
Weight: 1.21kg
Adjustable: Yes
Main tubes: 50 x 50 mm
Material: Aluminum
For easy manoeuvrability, GUIL manufactures the following adaptors:
– Set of four castors to fit to telescopic legs Ref. CQR/5.
– Set of four telescopic legs with wheels, Ref. PCR/5.
Note: GUIL also manufactures other types of 50 x 50 mm legs; ask for the price of the legs that best fit your requirements:
– Fixed height legs (ref. PTA5-F)
– Fixed height legs with leveller (ref. PTA5-N)
– Telescopic legs with leveller (ref. PTA5-D)
– Telescopic legs with a locking pin and leveller (ref. PTA5-P)
IMPORTANT:
From Ref. PTA5-T/70-120 & higher:
For every 4 telescopic legs ordered 1 stainless steel leg-to-leg clamp connector Ref. TMU-04 is included
Application:Podiums for scenes
