Brand: LED SPEKTAR
Model: LED outdoor display P16

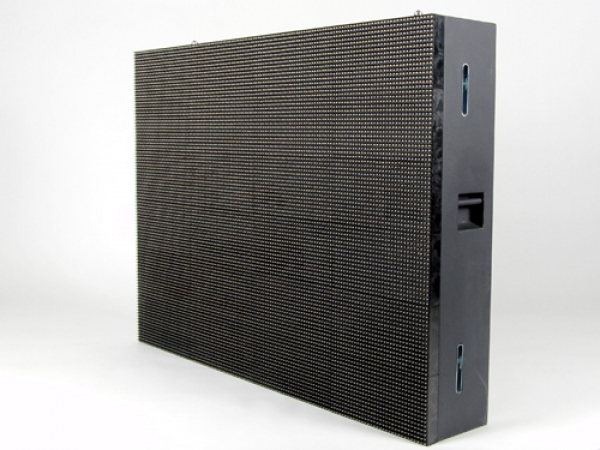

Type: Fixed installation Outdoor LED DIP RGB display
Description: The external LED displays offered by LED SPEKTAR have high brightness and frequency, which ensures crystal clear picture of the picture. The use of first-class LED chips brand SILAN ensures long life of LED display and clarity even in direct sunlight. The return on investment is fast due to their widespread use.
Technical specifications: P16 LED outdoor display
Pixel Pitch: 16 mm.
Pixel density: 3906pix / m2
Type of LED: DIP 1R1G1B-SILAN
Wavelength of the LEDs: R: 620-630 / G: 520-530 / B: 466-475
Luminous intensity of the LEDs: R: 415-490 / G: 1880-2225 / B: 415-490
Viewing Angle: H 110 °, V50 °
Brightness: ≥7500cd / m2
Control method: Static constant current
Colour Depth: RGB 16384 grade / each
Refresh rate (Hz): ≥1920-3840Hz
Frame Rate (Hz): ≥60Hz
Adjusting the brightness manually, automatically, SPC
Module Size (mm): 320x320mm
Module Resolution (pixel): 20x20

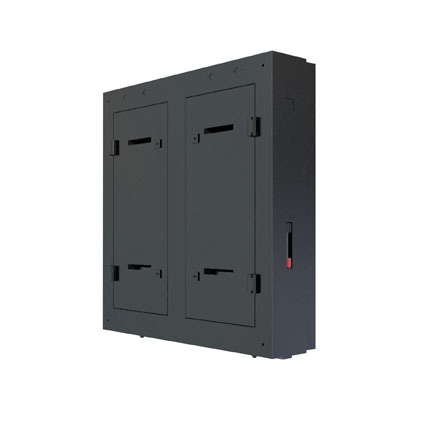

Size of cabinet (mm): 960x960mm
Display Resolution of the Cabinet (pixel): 60x60
Most good viewing distance: 16- 50m. (Depending on screen size)
Material of cabinet: steel with optional aluminum
Cabinet Weight (kg): 38 kg.
Voltage (V): AC 220V / 110V / 50Hz
Max. Power consumption: 680W / m2
Average power consumption: 300W / m2
IP grade: FrontIP65, RearIP54
Temperature / humidity during operation: -20 ° ~ 50 °, 10 ~ 90% RH
Storage temperature / humidity: -40 ° ~ 60 °, 10 ~ 90% RH
Life (Normal Temp): ≥100000 H
Control: Linsn
Control distance 120 m (RJ 45 cable); 500m- 10km (optichnen cable)
Supported devices: DVI, DVD, HDVD, video camera
Compatible standards: CCC? CE

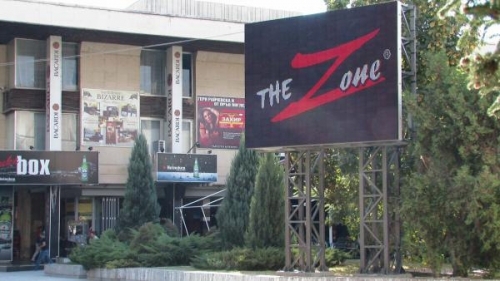

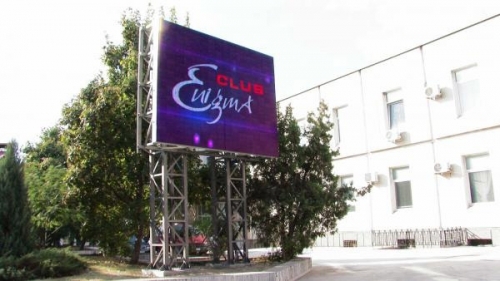

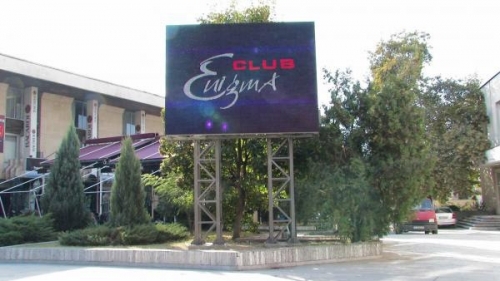

Applicable places: For fixed installations, mobile media, outdoor advertising, stadiums, banks, shopping centers, airports, train stations, information centers.
