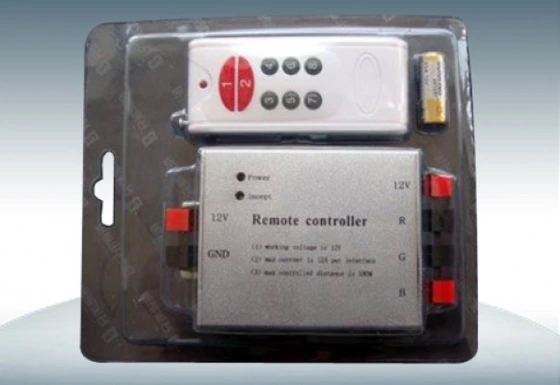

Brand: LED SPEKTAR
Model: LC 2009 002
Type: LED RGB Controller
Description: Wireless RGB LED controller operating voltage - DC12V, on / off and dimmer function, nominal power 288W, CE certificate.
Specifications:
Operating temperature: -20-60 ° C
Supply voltage: DC12V
Size: L100 * W64 * H24 mm
Package size: L170 * W148 * H36 mm
Weight: 0154 g
Gross weight: 0.228 g
Output: Three channel open output
Connection mode: Common anode
Operating Current Max: 8A each color
Maximum output power: 288W
The controller can control the effect of the light source.
The controller can control 11 types of effects.
The connection is more convenient using audio connectors.
Function keys:
Key1: on / off (in any condition)
Key2: pause (for graduation)
KEY3: acceleration (mode - automatically changes)
KEY4: delay (mode - automatically changes)
KEY5: higher brightness mode (single color and automatically changes)
KEY6: lower brightness mode (single color and automatically changes)
KEY7: correcting a change of color
KEY8: adjustment of switching to automatic mode
Description of connection / b]:
The left side of product connect 12V, GND respectively connect the DC12 + and DC12-, in the right part of the product is associated with 12V anode light source. R, G, B connect to the respective signal lines of red, green, blue.
Application: pixels ice bars
