Brand: LED SPEKTAR
Model: 8.93mm

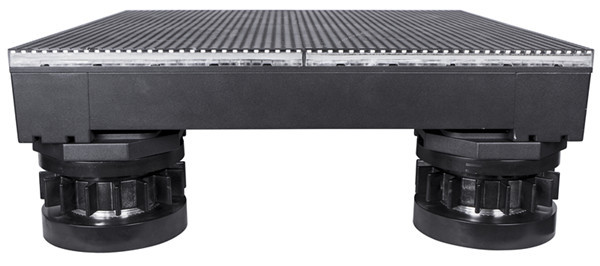

Type: Outdoor LED Dance Podium
Technical parameters:
Pixel Pitch: 8.93mm
LED Configuration: SMD3535-N SMD3535-H
Pixel Density: 12544/m²
Unit Resolution: 56 * 56
Module Resolution: 28 * 28
Scanning Mode: 1/4
Brightness (cd/m²): ≥4000 ≥5000 (H)
Refresh Frequency: ≥800Hz ≥1200Hz ≥2000Hz
Power Consumption (max/avg) (W/pc): 180/60
Gray Scale: ≥12bit ≥14bit ≥16bit
Unit Size (mm): 500(W) * 500(H) * 82(D)
Unit Weight: 13 kg
Module Size (mm): 250 (W) * 250 (H)
Loading Capacity/sqm: 2000 kg
View Angle: H120° / V120°
IP Level (front/rear): IP54 / IP65
Control System: NOVA / DBSTAR / LINSN
Working temperature: -30°С — +50°С
Operating Humidity: 10 - 90% RH
Application: Advertisment companies, TV shows, Malls, clubs, exhibitions, casinos etc.
