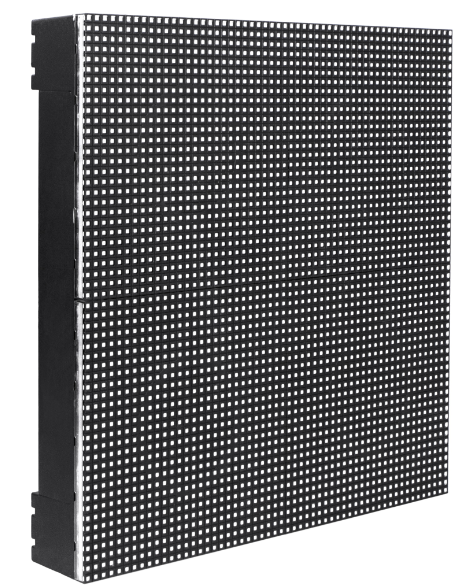

Brand: LED SPEKTAR
Model: 6.25mm
Type: Outdoor LED Dance Podium
Technical parameters:
Pixel Pitch: 6.25mm
LED Configuration: SMD2727-N / SMD 2727-H
Pixel Density: 25600/m²
Unit Resolution: 80 * 80
Module Resolution: 40 * 40
Scanning Mode: 1/8
Brightness (cd/m²): ≥3000 ≥4000 (H)
Refresh Frequency: ≥800Hz ≥2000Hz
Power Consumption (max/avg) (W/pc): 180 / 60
Gray Scale: ≥12bit ≥16bit
Unit Size (mm): 500(W) * 500(H) * 82(D)
Unit Weight: 13 kg
Module Size (mm): 250(W) * 250(H)
Loading Capacity/sqm: 2000 kg
View Angle: H120° / V120°
IP Level (front/rear) IP54 / IP65
Control System: NOVA / DBSTAR / LINSN
Working temperature: - 30°С — + 50°С
Operating Humidity: 10-90% RH

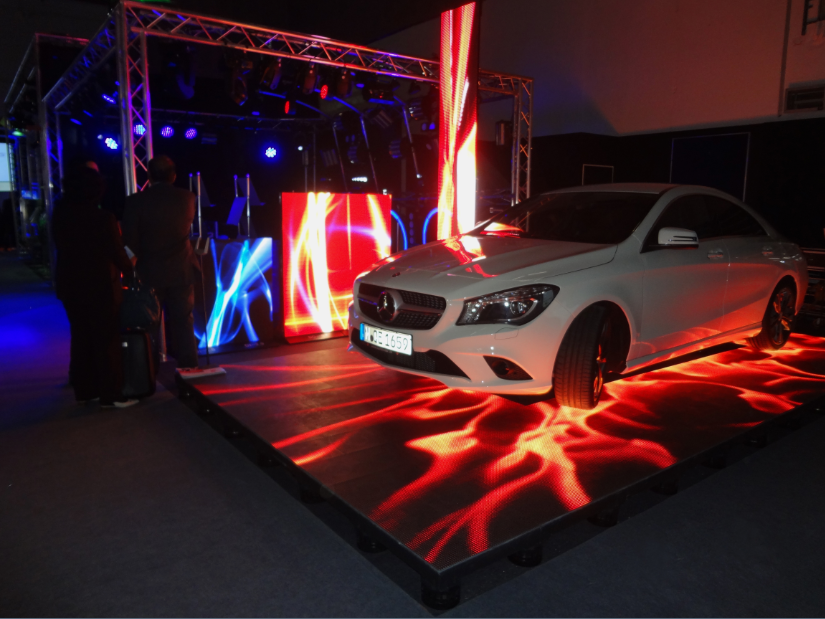

Application: Advertisment companies, TV shows, Malls, clubs, exhibitions, casinos etc.
