Brand: LED SPEKTAR
Model: 10.42mm

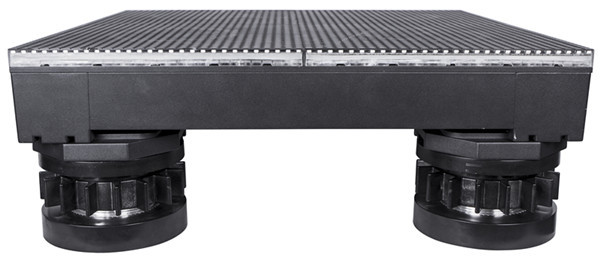

Type: Outdoor LED Dance Podium
Technical parameters:
Pixel Pitch: 10.42mm
LED Configuration: SMD3535-N / SMD3535-H
Pixel Density: 9216/m²
Unit Resolution: 48*48
Module Resolution: 24*24
Scanning Mode: 1/4
Brightness (cd/m²): ≥2800 ≥3800(H)
Refresh Frequency: ≥800Hz / ≥1200Hz / ≥2000Hz
Power Consumption (max/avg) (W/pc): 150/50
Gray Scale: ≥12bits / ≥14bits / ≥16bits
Unit Size (mm): 500(W) * 500(H) * 82(D)
Unit Weight: 13 kg.
Module Size (mm): 250(W) * 250(H)
Loading Capacity/sqm: 2000 kg
View Angle: H120° / V120°
IP Level (front/rear): IP54 / IP65
Control System: NOVA / DBSTAR / LINSN
Working temperature: - 30°С — + 50°С
Operating Humidity: 10 - 90% RH
Application: Advertisment companies, TV shows, Malls, clubs, exhibitions, casinos etc.
