Brand: Senor
Model: Microcellular BEC-5
Type: Composer tape

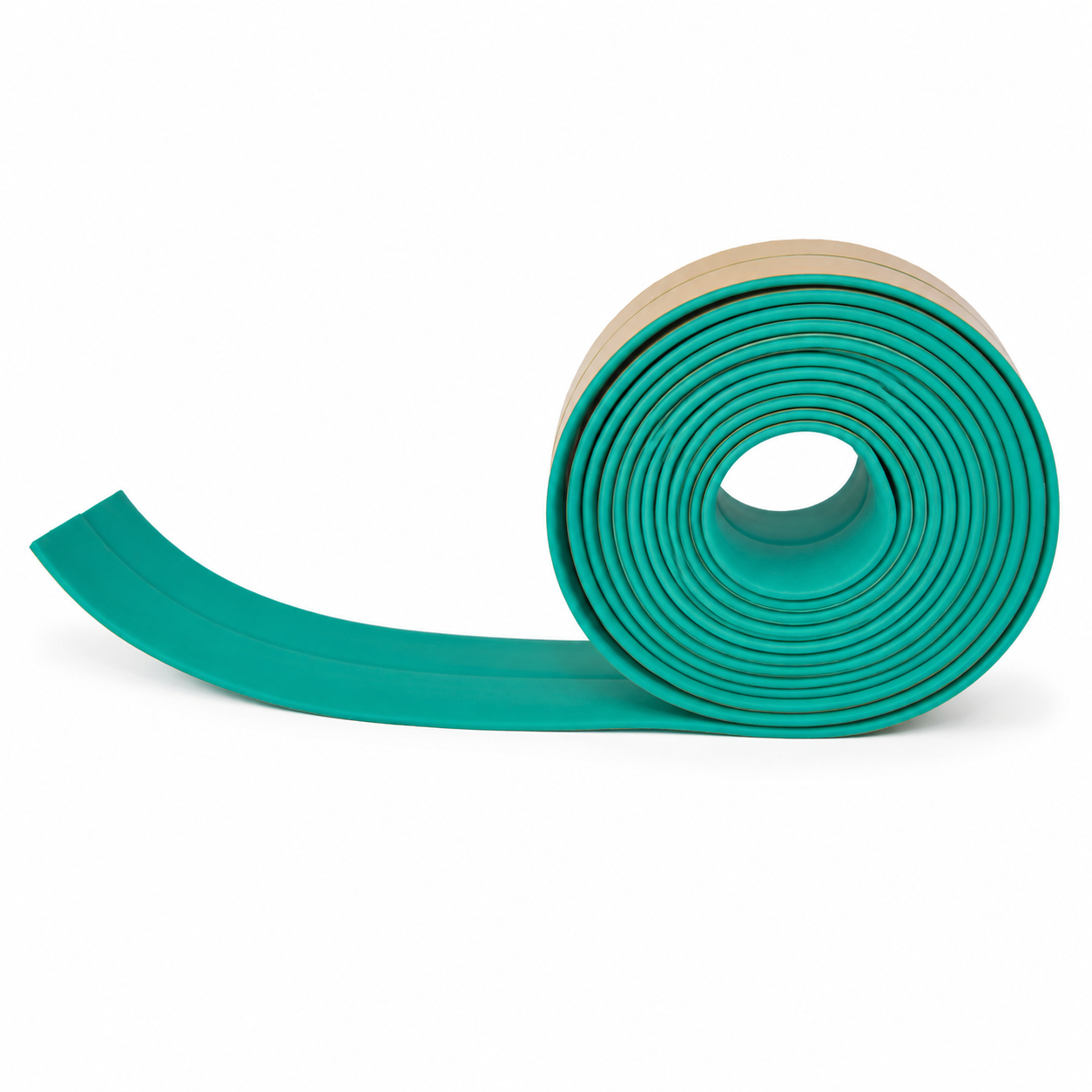

Description: Self-adhesive elastic adhesive tape 4mm thick. The tape serves to break the acoustic "bridge" between sound insulation and bypass roads. The tape is made of porous, soft and elastic material. The closed cell structure has many more advantages than the other artificial materials used for sound insulation of walls, floors and ceilings.
Technical specification:
Thickness: 4mm
Width: 50 mm
Density: 98kg / m3
Shore Hardness: 30 Shore A
Compression resistance / kPa:> 11
Usage limits: -70 ° C to + 130 ° C
Coefficient of thermal conductivity at 23 ° C (± 2 °) C: <0,039 W / m ° C
Thermal resistance:> 0.48 m2 C / W
Vapor permeability coefficient: µ 3500
Water absorption: 0.34% by volume
Fire resistance: No self-burning. It does not release droplets. It belongs to the group of non-combustible materials.
Methodology No. M-011-240 / 2004
Recommended for:
Interrupts the transmission of bypass noise. Used to separate sound insulation for floors, walls and ceilings.
Application:
The strap serves as an elastic link without allowing noise to be transmitted between:
- profiles and gypsum boards in gypsum board systems.
