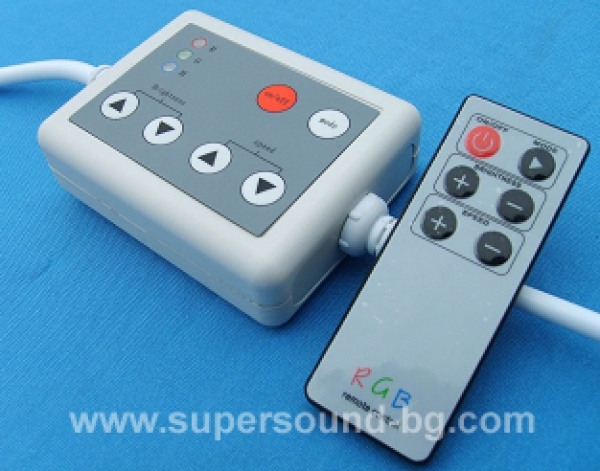

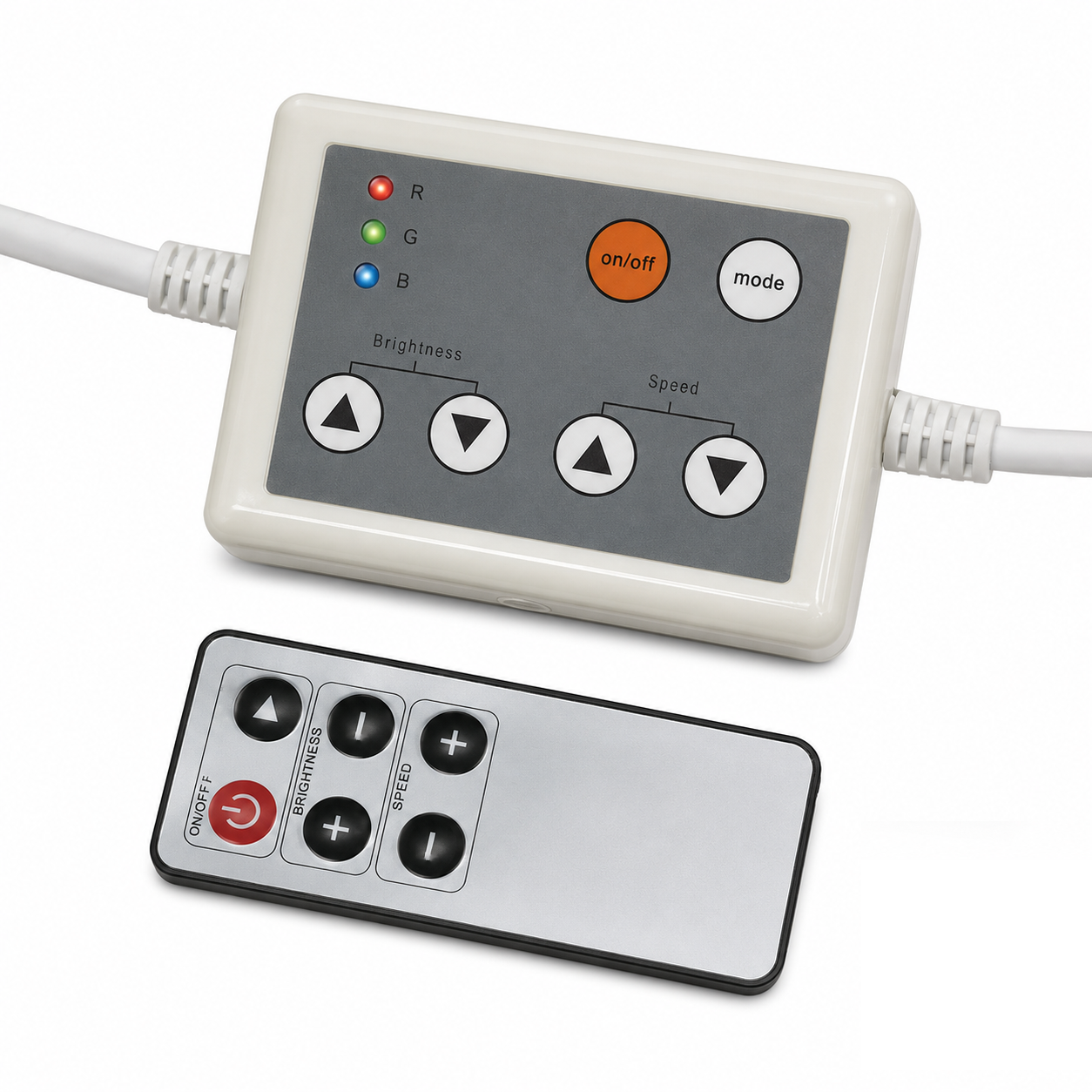

Brand: LED SPEKTAR
Model: LED RGB infrared controller
Type: LED RGB infrared controller
Description: 6 button RGB infrared controller whose source of light is LED. Synchro indicator light and fail memory for various functions and advantages such as low price, easy connection and simplicity of use. Strobo flash and other effects, you can adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.
Specifications:
Supply voltage: DC5V, 12V, 18V, 24V (specify the required voltage on orders)
Operating temperature: -20-60 `C
Output: 3 channels
Power Output: 5V

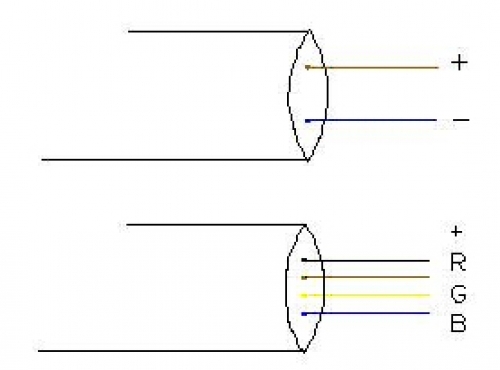

Connecting mode: common anode

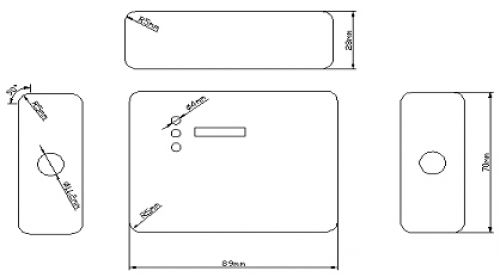

Size: L89xW70xH28 mm
Package size: L160xW95xH51 mm
Weight: 0150 g
Tare weight: 0.180 g
Function buttons on the controller:
Button 1: Turn on / off

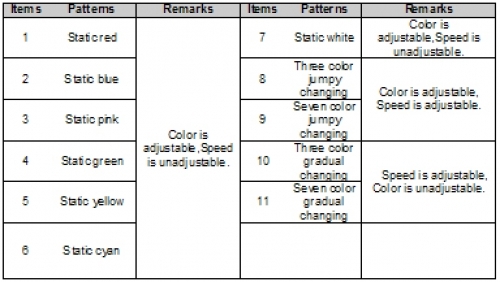

Button 2: Pattern function key, you can select a different mode change
Key 3: For the control of increasing the brightness of the output signal
Button 4: For the control of reducing the brightness of the output signal
Button 5: To control the increase rate of the output signal
Button 6: To control the reduction rate of the output signal
Application: LED interior design.
