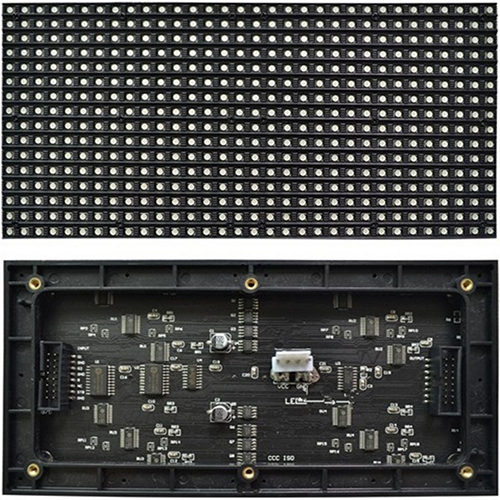

Brand: LED SPEKTAR
Model: N3
Type: Indoor SMD
Technical specification:
Pixel Pitch: 3mm
Module size: 192*192mm
Pixel density: 111 111 dots/m²
LED Configuration: 1R1G1B
LED encapsulation: SMD2121
LED: NationStar
Resolution of the module: 64*64 dots
Module Max. Power: 19.4W
Optimal viewing distance: ≥3m
Optimum viewing angle: H 140° / V130°
Max. power consumption: 584W/m²
Cabinet size: 576*576mm
Resolution of the Cabinet: 192*192 dots
Weight screen: 28kg/m²
Driving method: 1/32 Scan Constant Current
Brightness: ≥800cd/m²
Frame frequency: ≥60Hz
Refresh rate (Hz): ≥1200Hz
Operating environment: Temperature: -20°C~ + 50°C, Humidity: 10% ~ 90%RH
IP Protection: IP30
Operating voltage: AC110V/220V ±10%
Percentage of defective pixels: <0.0001
Lifespan of LEDs: ≥ 10,000 hours
Application: Advertisment displays for indoor usage.
