Brand: GUIL

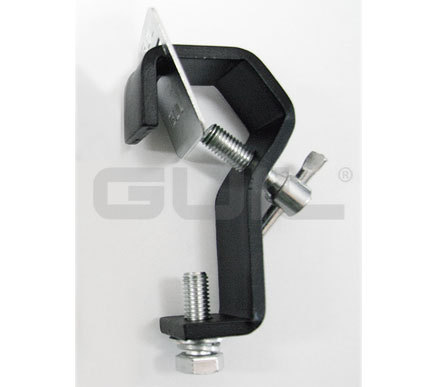

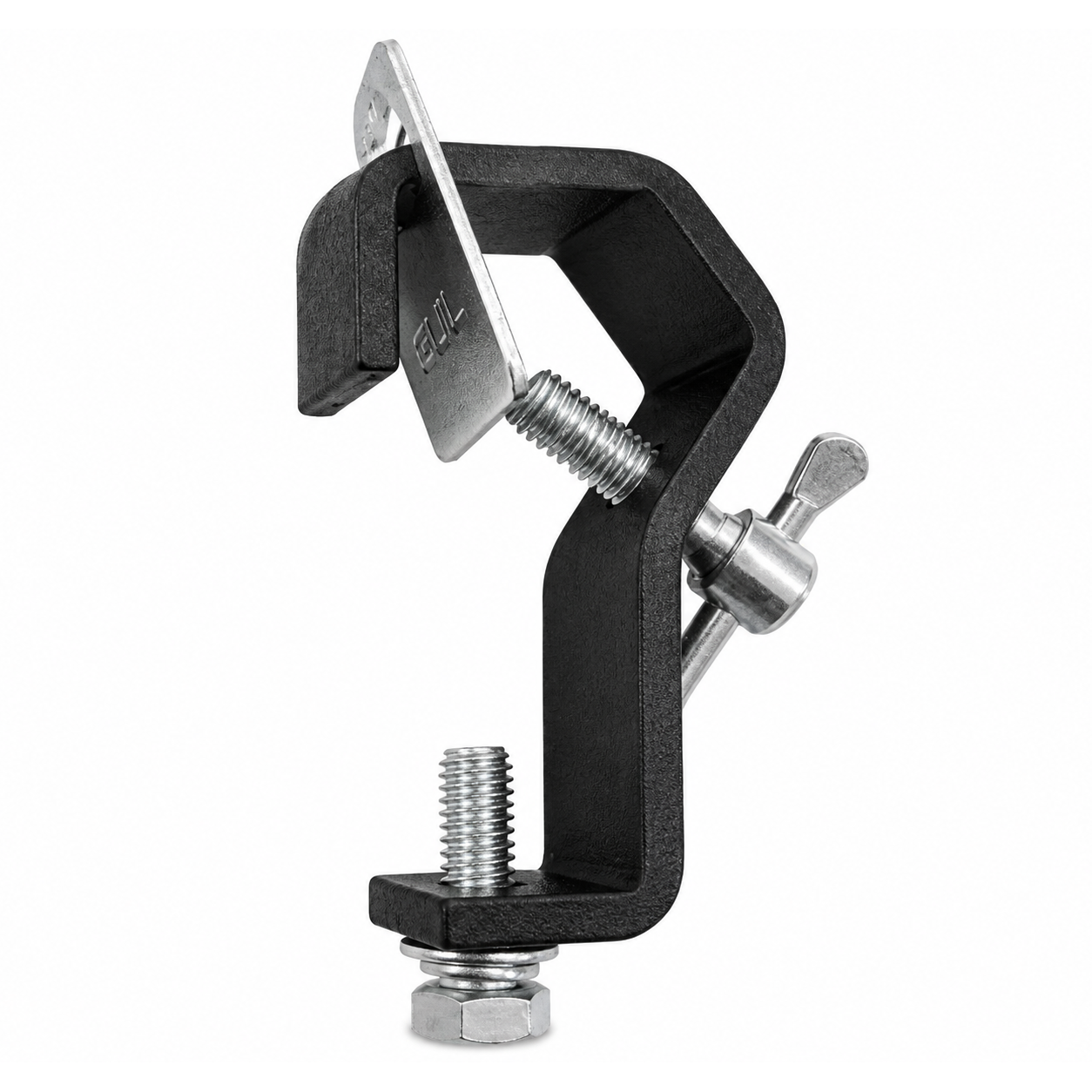

Model: GF-08/S
Type: Clamps
Description:
- Designed to be used on tubes with an external diameter of 20 to 35 mm.
- GF-08/S is an extremely strong clamp manufactured with high quality steel (30 mm wide x 6 mm thick) and finished in a textured, black, anti-scratch powder coating.
- Provided with a protective steel plate (45 x 53 mm) preventing damage to tubes and trussing.
- To be used for vertical loads only.
- Pressure T-bar screw: M10 x 30 mm.
- The load is secured with a hexagonal bolt: M10 x 20. mm
Technical Parameters:
Maximum load: SWL 75 kg
Net weight: 0.35 kg
Color: Black
For diameters of 20 - 35 mm
Model: Profile: 30 x 6 mm
Material: Steel
