Brand: GUIL
Model: GF-01
Type: Clamps
Description:
- Designed to be used on tubes with an external diameter of 30 to 50 mm.

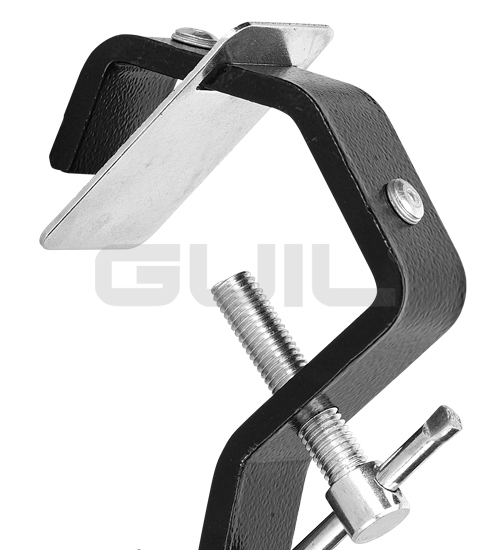

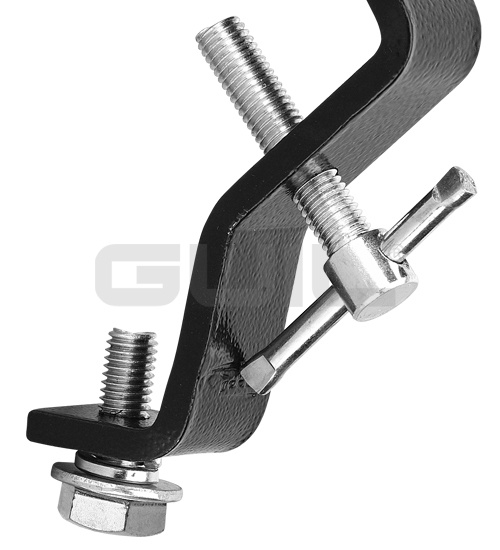

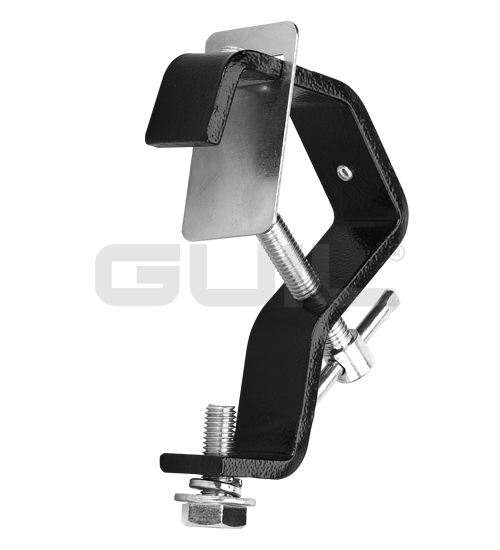

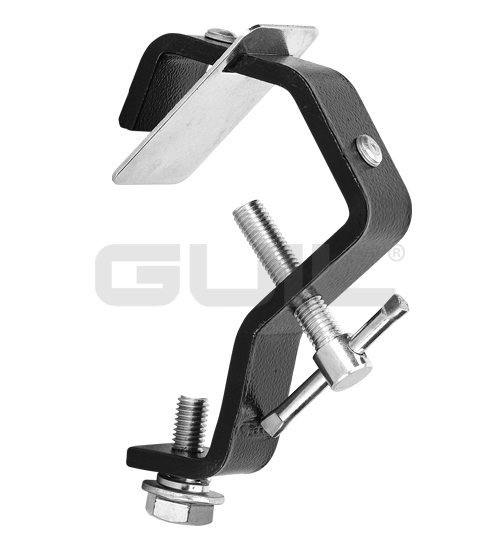

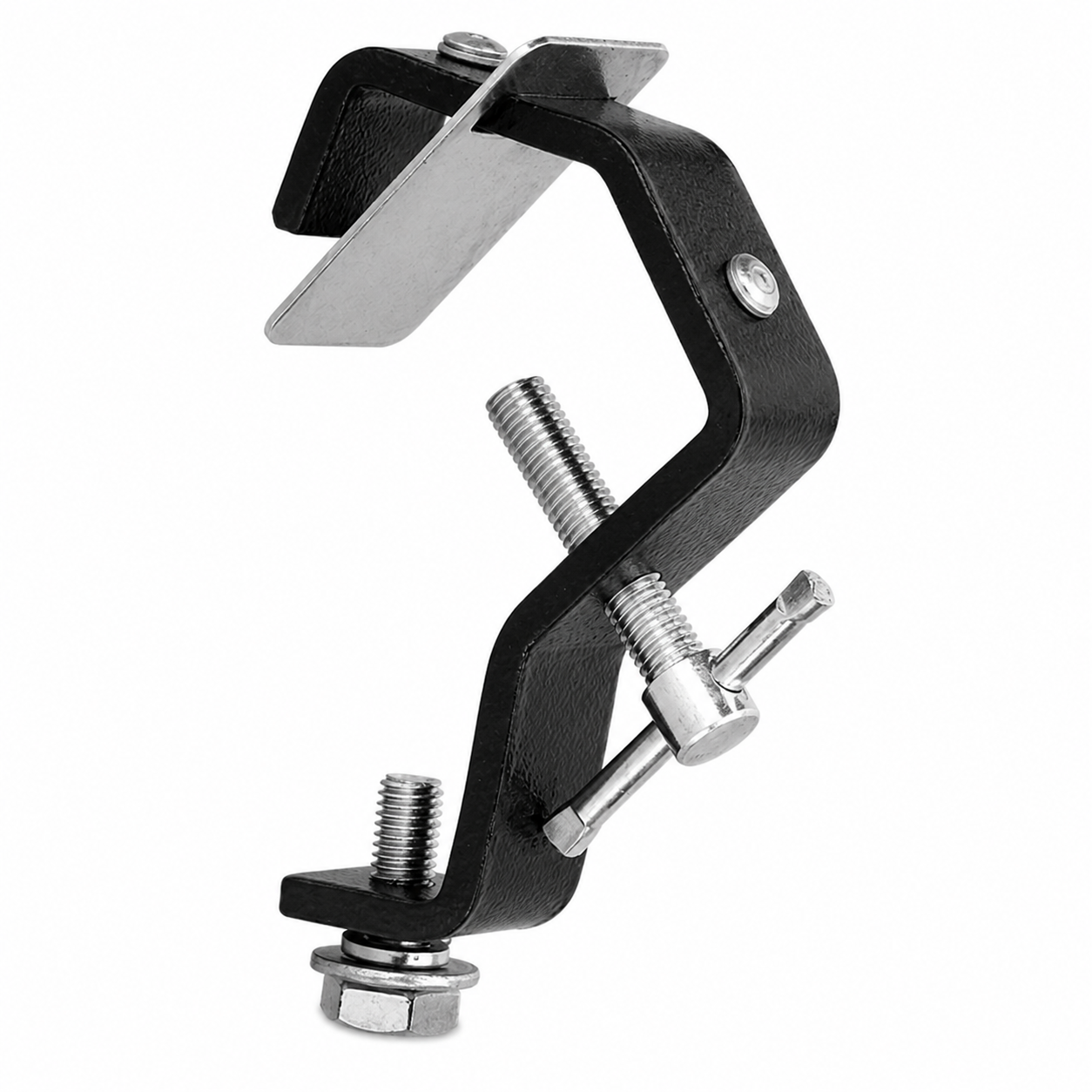

- GF-01 is an extremely strong clamp manufactured with high quality steel (30 mm wide x 7 mm thick) and finished in a textured, black, anti-scratch powder coating.
- Provided with a protective steel plate (45 x 60 x 1.5 mm) preventing damage to tubes and trussing.
- To be used for vertical loads only.
- Pressure T-bar screw: M10 x 50 mm.
- The load is secured with a hexagonal bolt: M10 x 30 mm
Technical Parameters:
Maximum Load: SWL 75 kg
Net Weight: 0,42 KG
Colour: Black
For Diameters of: 30 - 50 mm
Model: Profile: 30 x 7 mm
Material: Steel
Application:
