Brand: KV2 Audio
Model: EX6
Type: High Quality 2-way Active Speaker
Description:

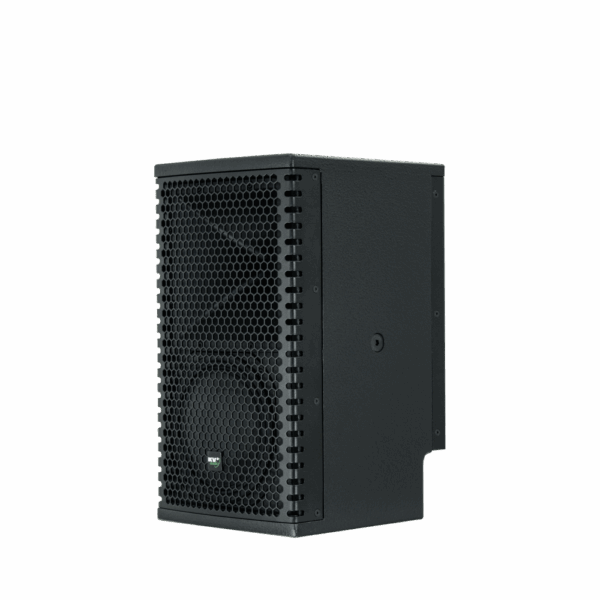

The EX6 is a very high quality compact speaker system producing a 2-way full range solution, which defies its size. With amazing clarity for musical reproduction, the EX6 is perfect for discreet installations or audio visual presentations where sound quality is paramount but size also matters.
The EX6 features state of the art components including NVPD compression driver, 6" woofer and complete on-board control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX6’s amplifier module.
Technical characteristics:
Features:
- Professional, Baltic birch construction with wear resistant polymer coating
- 117dB sustained output, 120dB peak with very high dynamic range and low noise floor
- 200W of total power with complete on-board speaker management system
- 180W high efficiency, current enhancing, switching low frequency amplifier
- Very high quality 20W, low IM distortion, Class AB, high frequency amplifier with transformer
- balanced output
- Compact design allows use with high pass filter to adjust equalization and phase response
- Wide dispersion 100° H x 100° V horn
- New patent pending 1.75" (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure
- 6" woofer with revolutionary Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity

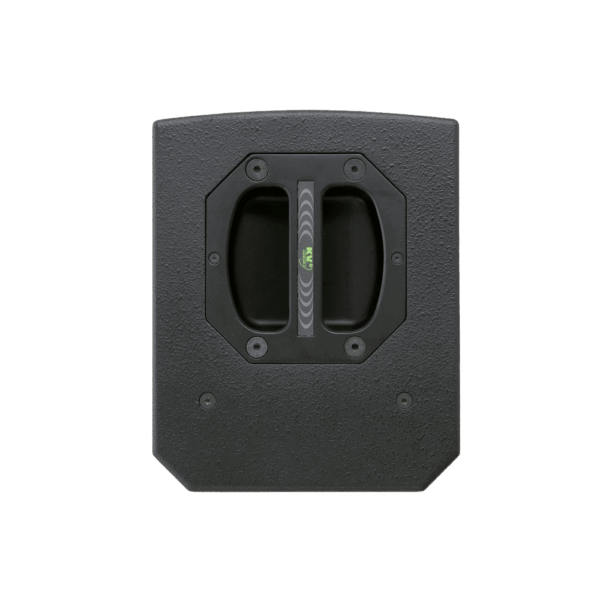

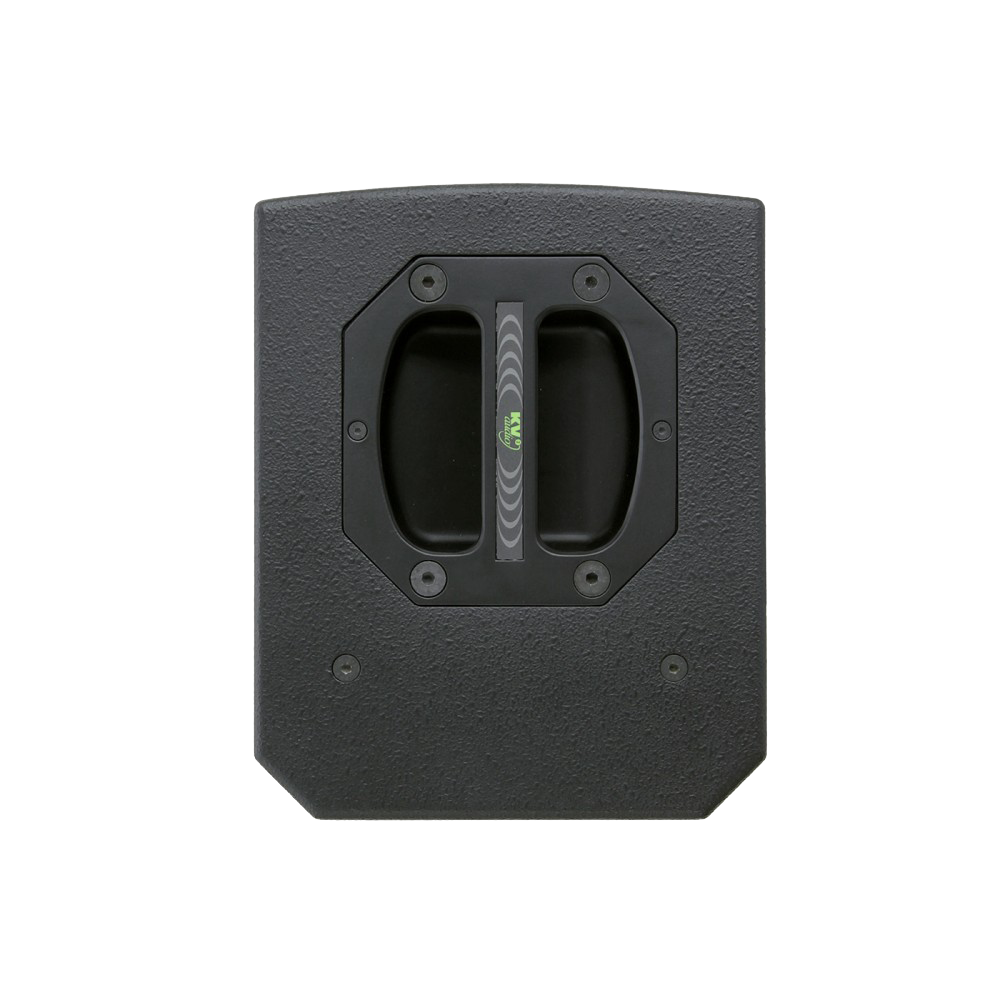

- Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, Omnimount™ bracket point and four M6 points
- Additional side and bottom M10 points for flexible bracket, rigging, and installation options
- Easy fix pole mounting accessory fastens into the back of the unit
- LED indicators for signal present, limiter, thermal condition and power ON status
System Acoustic Perfomance:
Max SPL Long-term: 117dB
Max SPL Peak: 123dB
-3dB Response: 68Hz to 20kHz
-10dB Response: 62Hz to 28kHz
Crossover Point: 2.0kHz
High Frequency Section:
High Horn Coverage Horizontal /Vertical: 100° x 100°
Throat Exit Diameter /Diaphragm Size: 1" / 1.75"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
High Frequency Amplifier Specification:
Type Class: AB Push-Pull
Rated Continuous Power: 20W
Distortion: <0.05%
Operating Bandwidth: 2.0kHz to 28kHz
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter /Design: 6" / 1.75" /Trans Coil
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low Frequency Amplifier Specification:
Type: High Efficiency Switching
Rated Continuous Power: 180W
Distortion: <0.05%
Operating Bandwidth: 62Hz to 2.0kHz
Signal Input:
Input Sensitivity: 1V RMS
Input Impedance: 20 kΩ
Power:

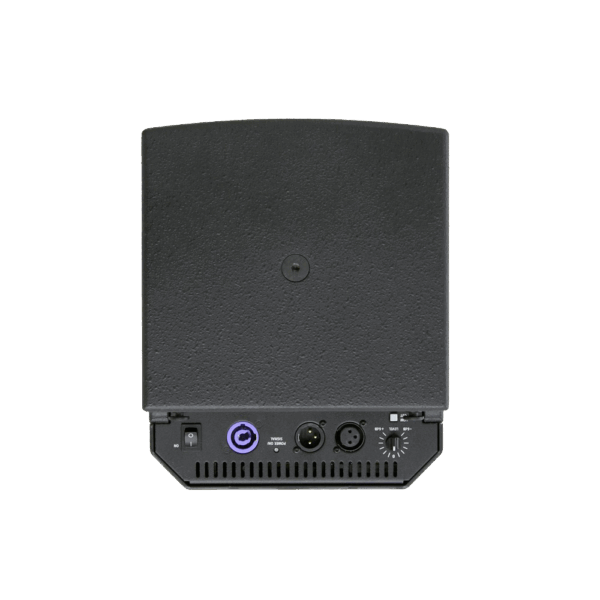

Power Connector: Neutrik PowerCon®
Operating Voltage Range: 100 to 120V @ 60Hz | 230 to 250V @ 50Hz |
Recommended Amperage: 2.5A 115V | 1.25A 230V
Cabinet:
Cabinet Material: Baltic birch
Handles: 1
Pole Mount: Optional - Stand Adapter EX6
Color: "Orange peeled" Matt Black or any RAL

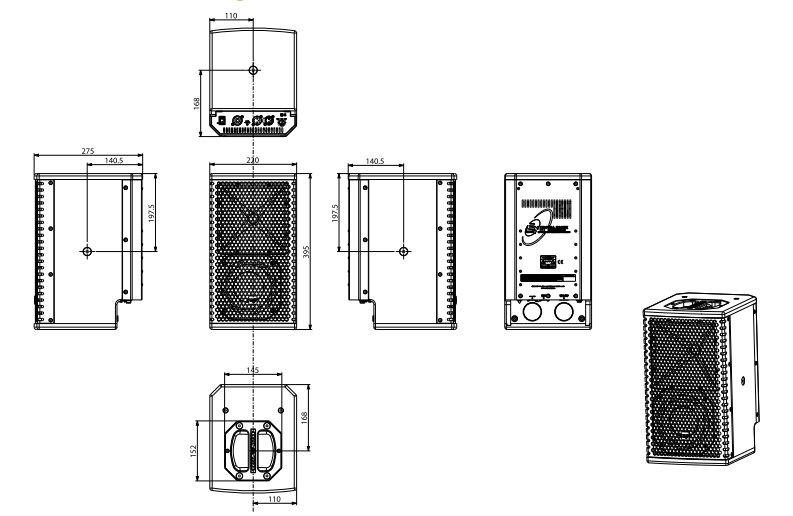

Physical Dimensions:
Height: 395 mm (15.55")
Width: 220 mm (8.66")
Depth: 274 mm (10.78")
Weight: 12 kg (26.4lbs)
Product code:
KVV 987 139 - EX6 230V
KVV 987 138 - EX6 115V
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Specifically designed for reproduction of recorded music in near field applications
● Suitable in Fixed installations as full range stand-alone or with subwoofers ● Excellent peripheral re-enforcement for main KV2 systems ● Portable PA for Multi-Media applications ● Compact floor monitoring solutions ● Domestic and Professional studio monitoring
