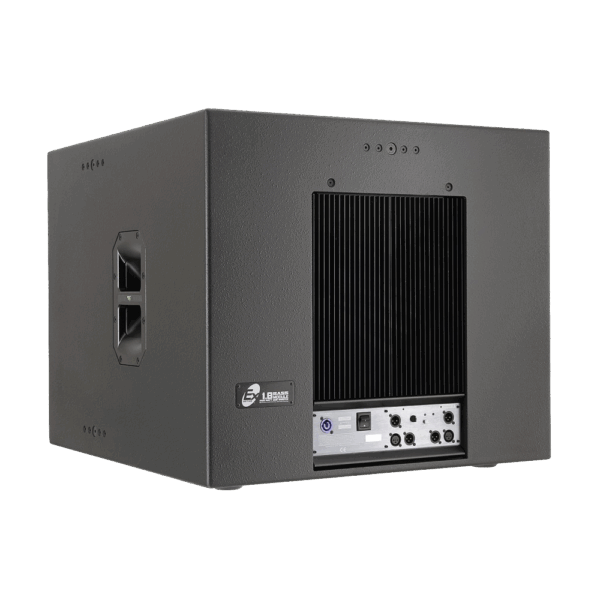

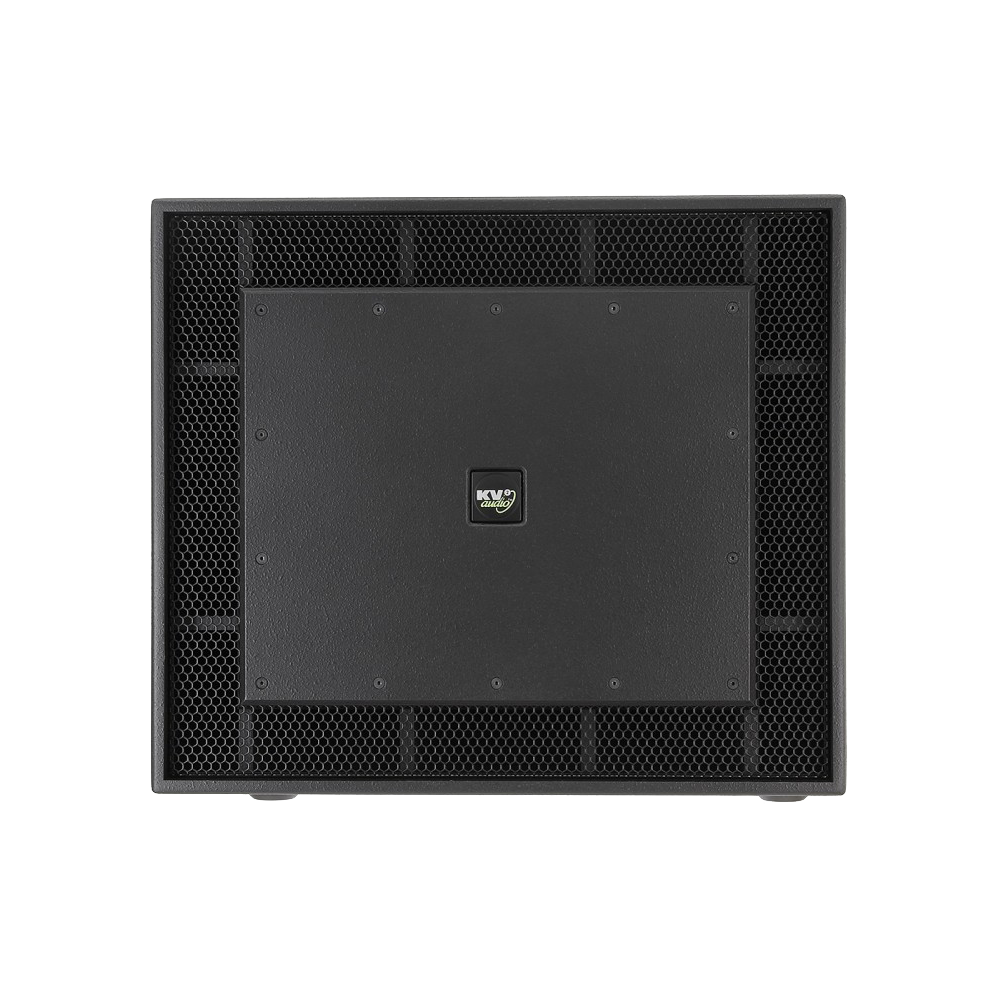

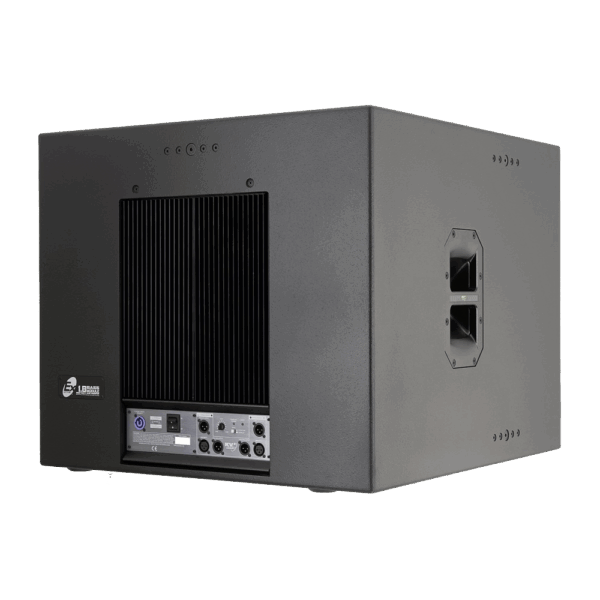

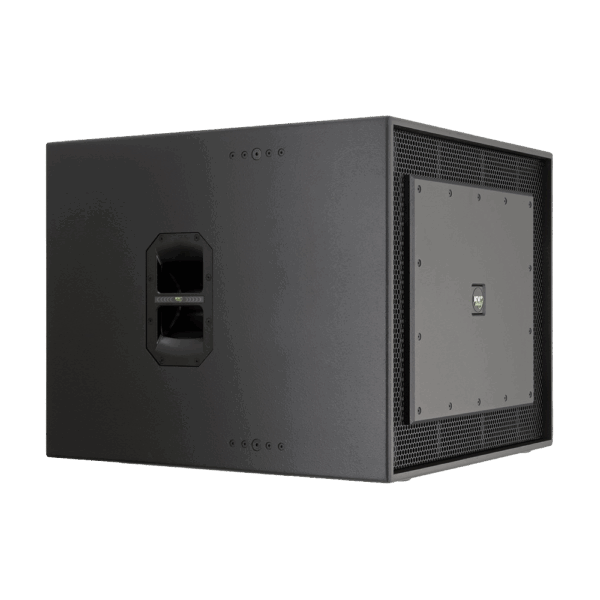

Brand: KV2 Audio
Model: EX1.8
Type: Active subwoofer system
Description:

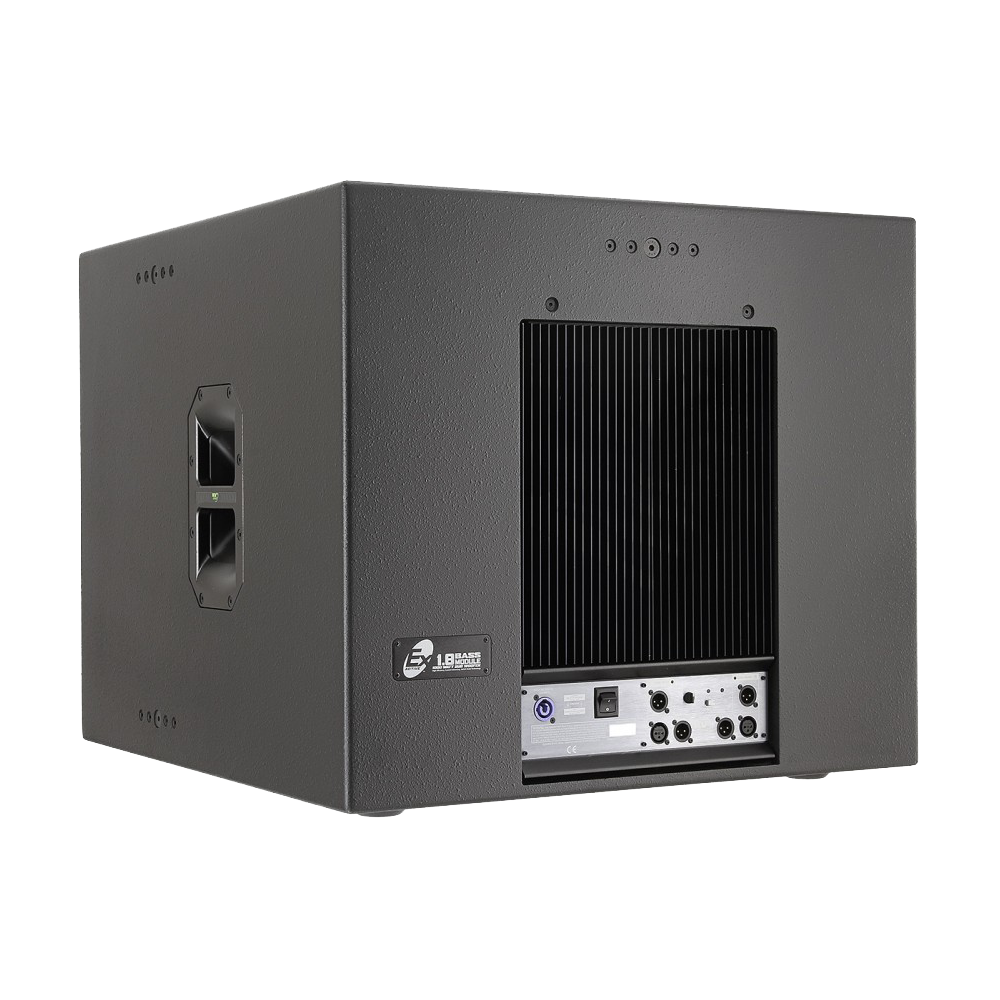

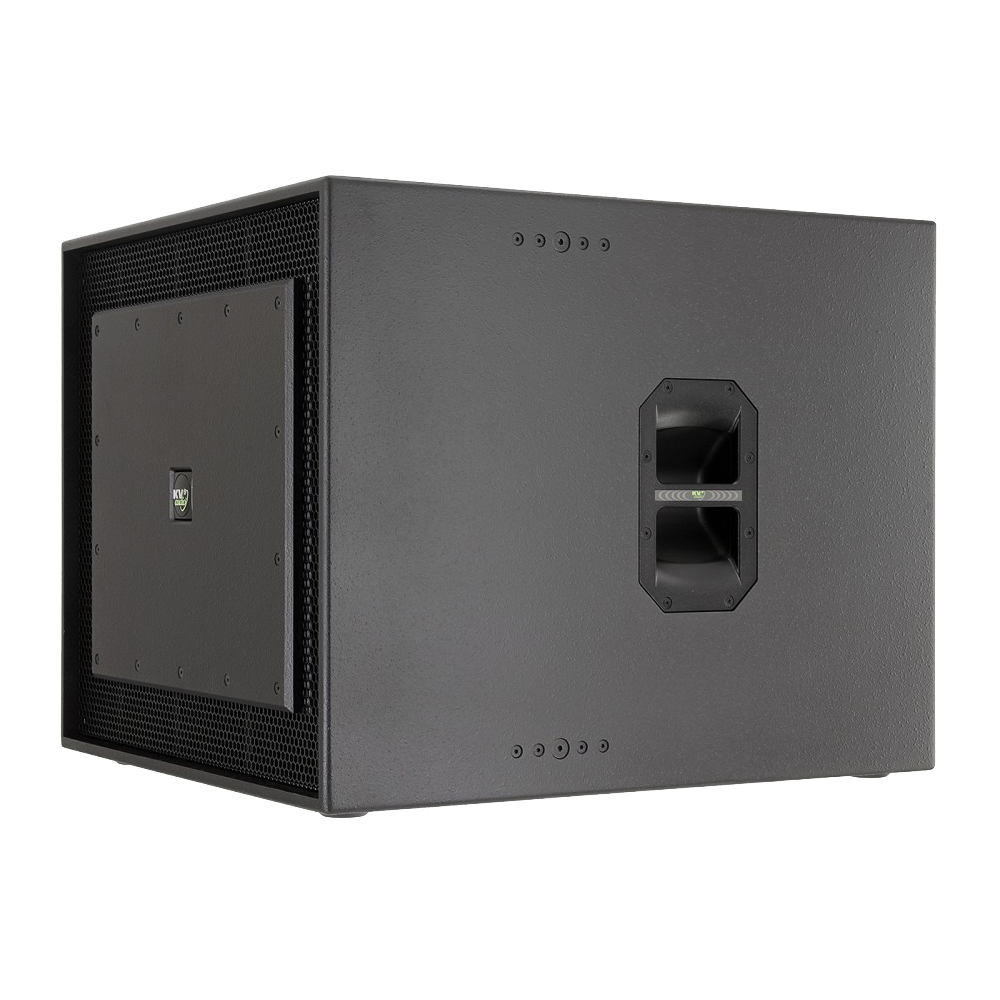

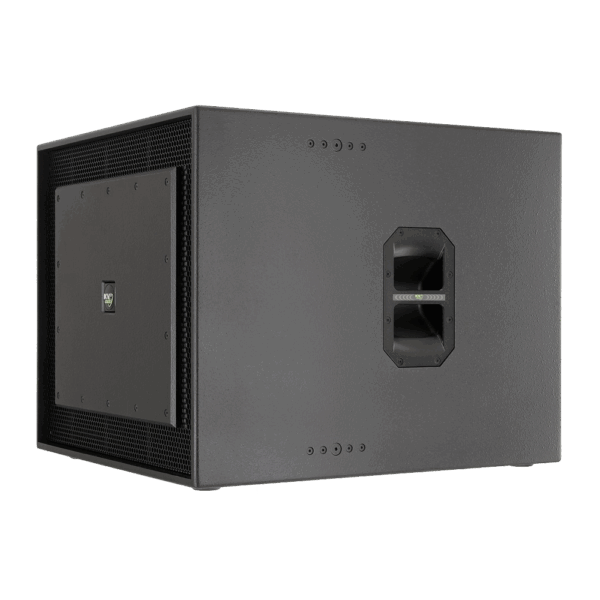

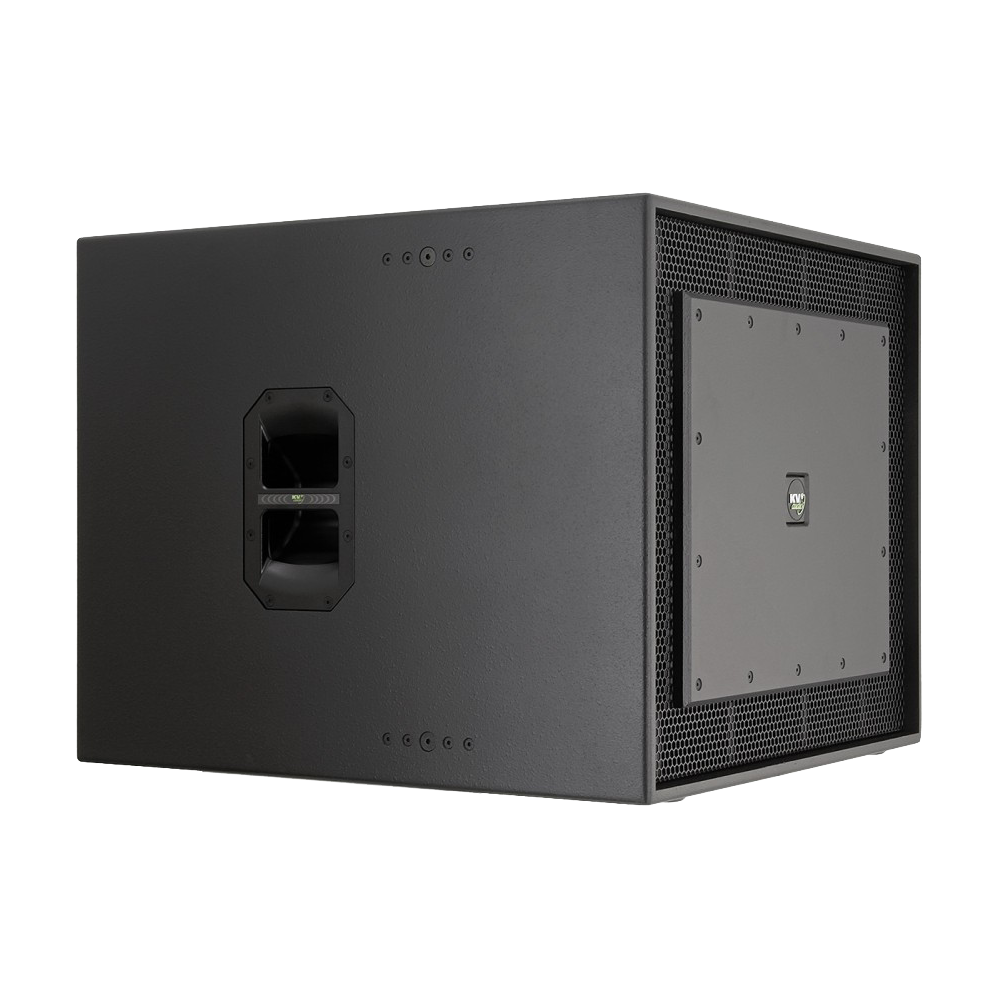

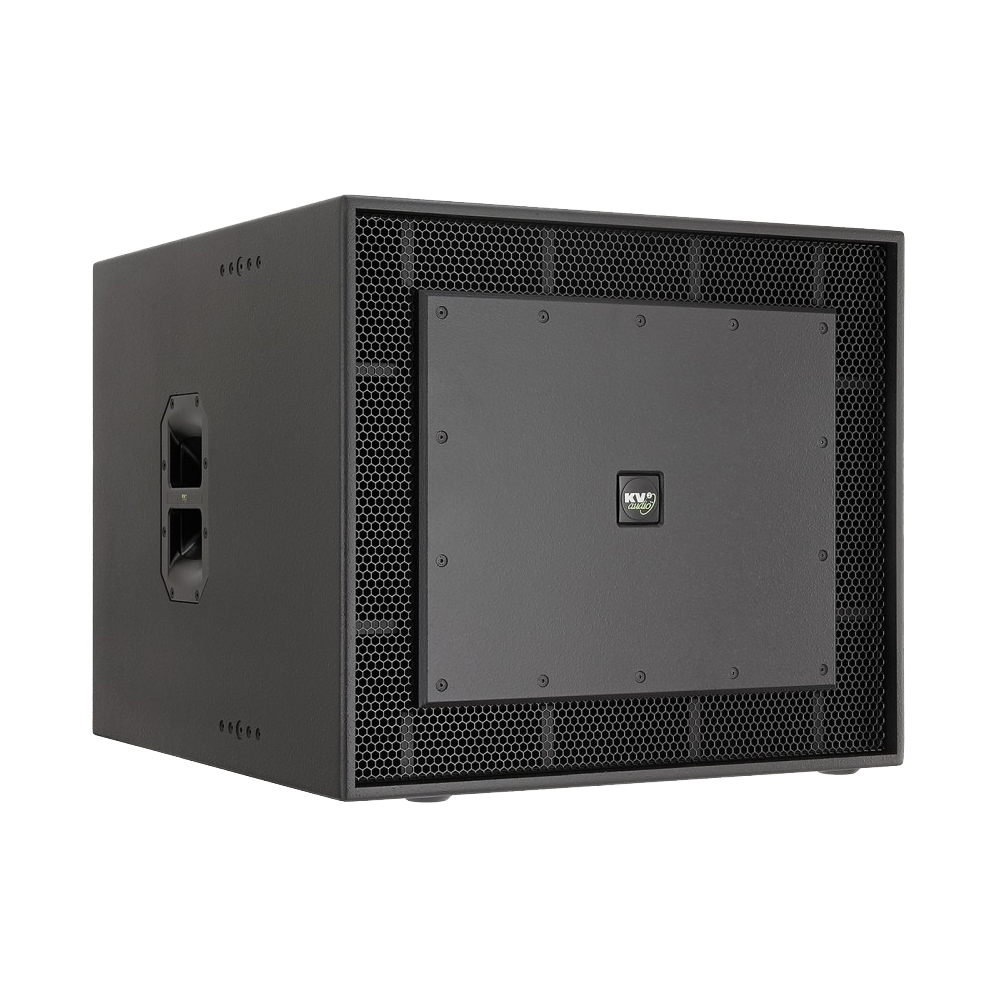

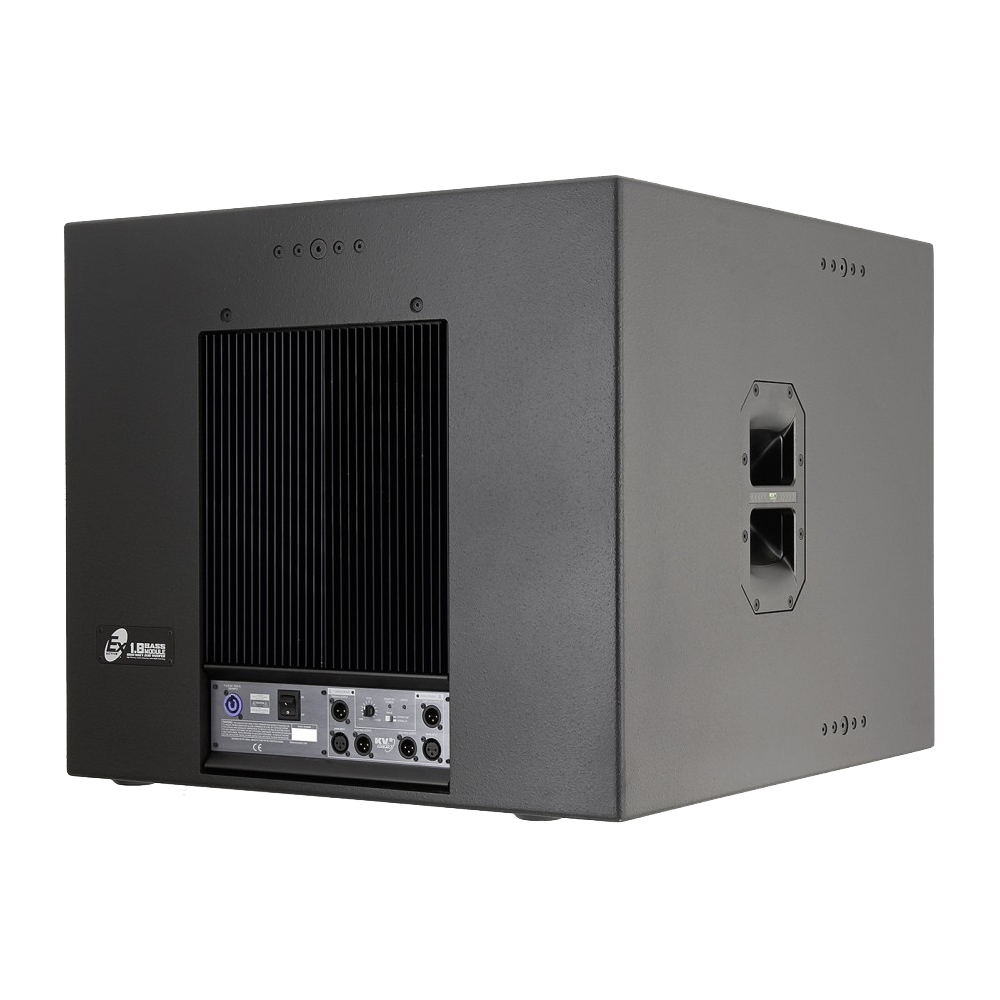

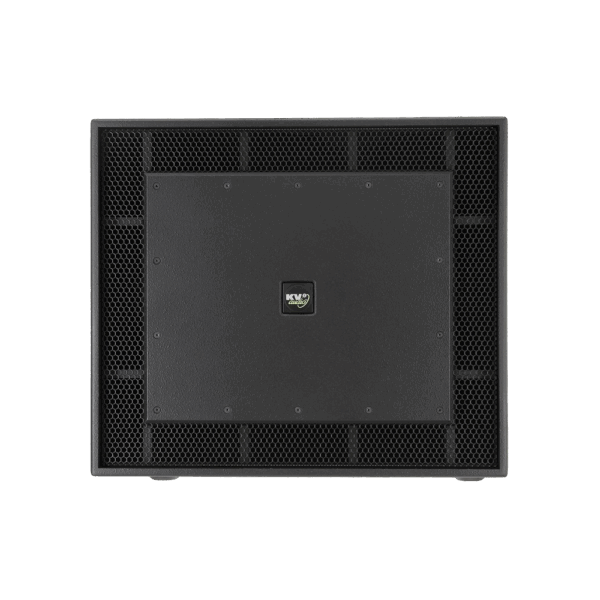

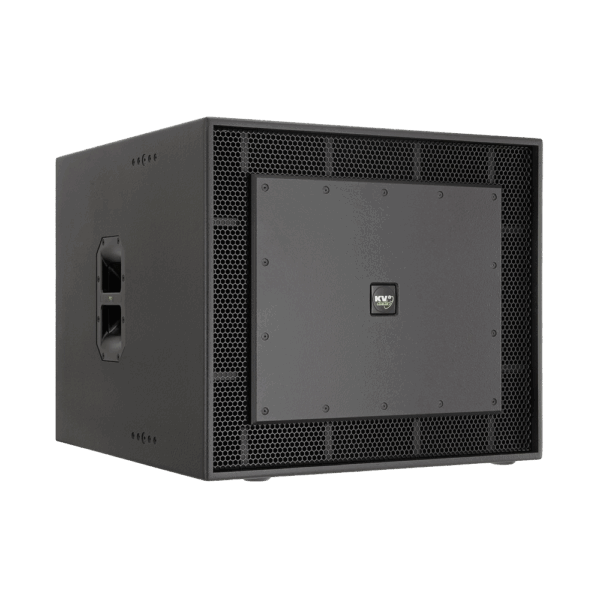

The EX1.8 is a high output single 18" subwoofer housing a revolutionary VHD technology neodymium woofer. The EX1.8 features an impressive 1000 watts of power courtesy of KV2 Audio’s switching amplifier technology and provides a very firm foundation on which to build a powerful EX system, or as a standalone subwoofer for any existing system.
Technical characteristics:
Features:
- Professional, Baltic birch construction with wear resistant polymer coating
- 131dB sustained output, 134dB peak
- 1000W high efficiency, current-enhancing, switching, low frequency amplifier
- Complete on board subwoofer management including equalization, crossover filters, amplifier overdrive protection, output level and phase controls
- Excellent reproduction of bass frequencies with high transient content at high output levels
- Stereo or Mono inputs with through signal outputs and 120Hz High Pass outputs 18" high output, low frequency woofer driver with 4" (100 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structure

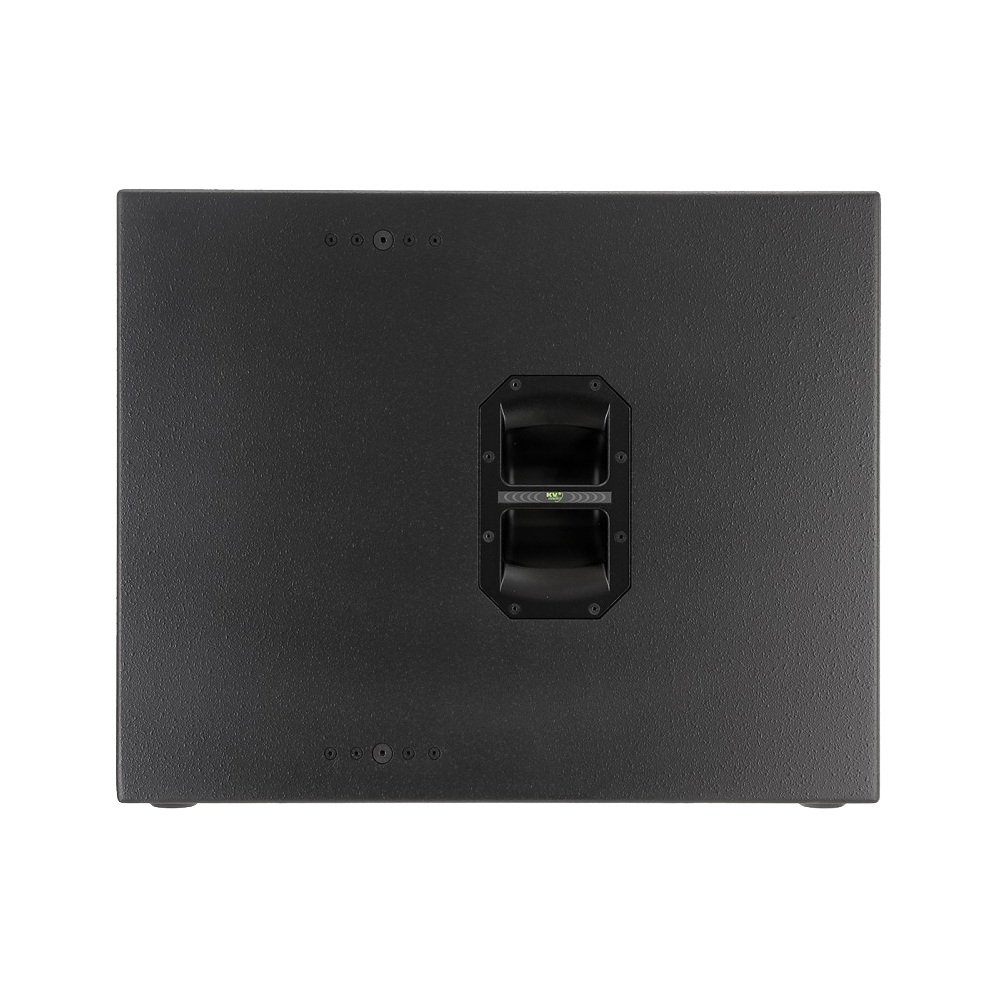

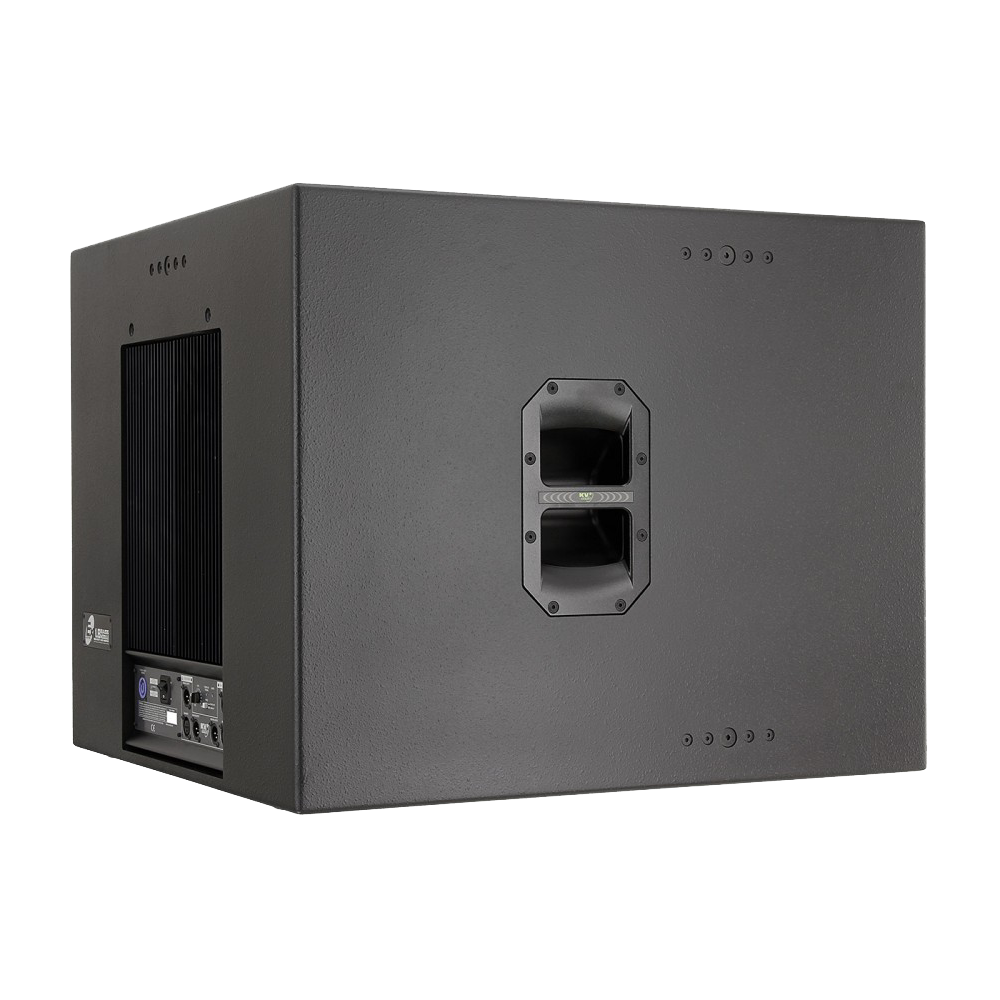

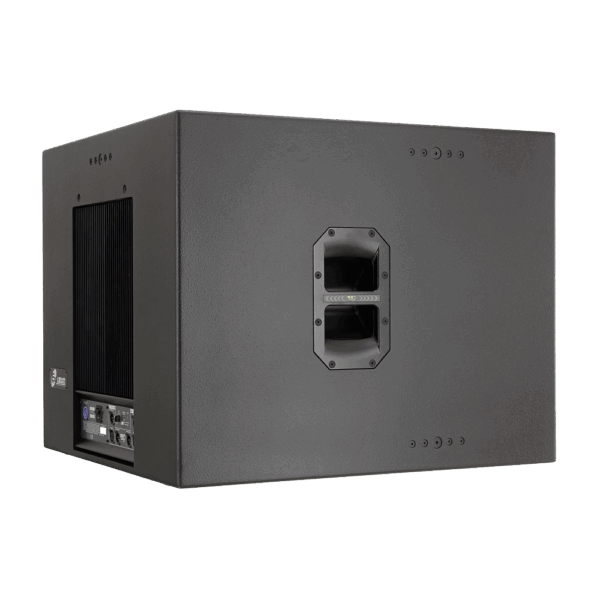

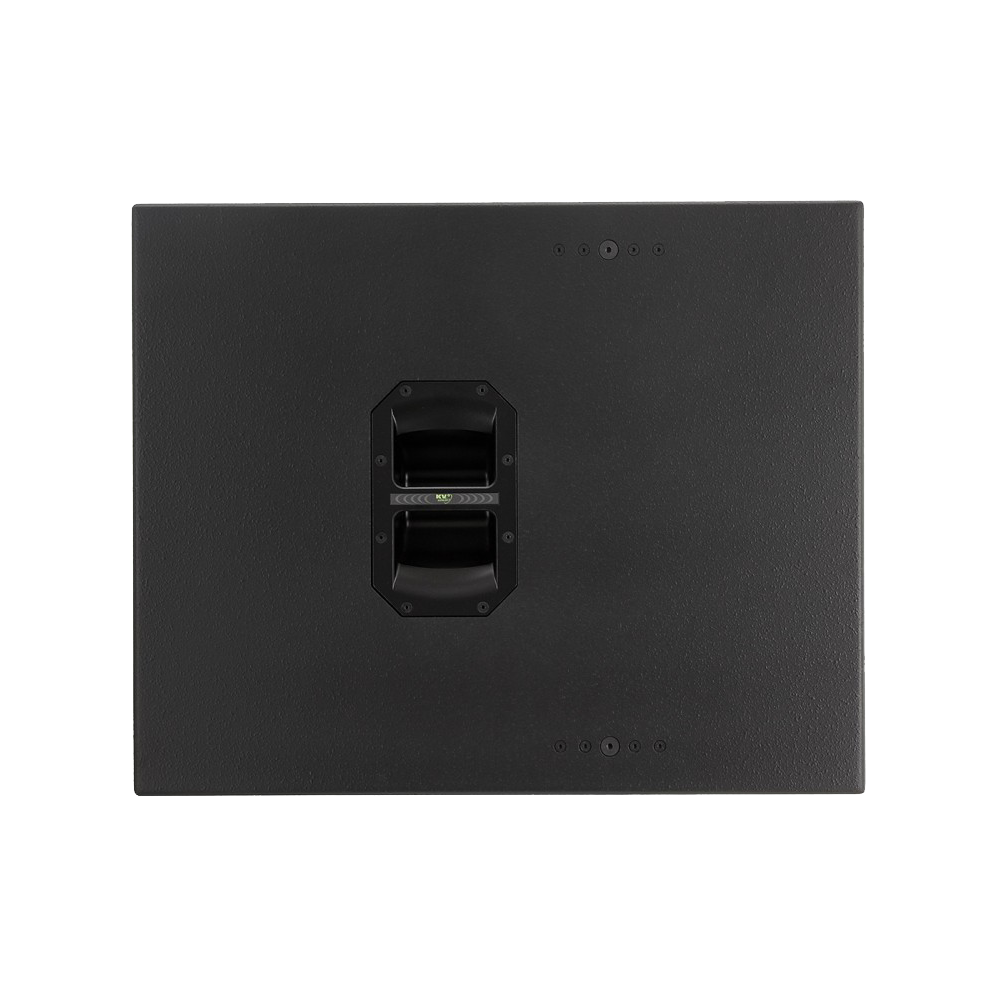

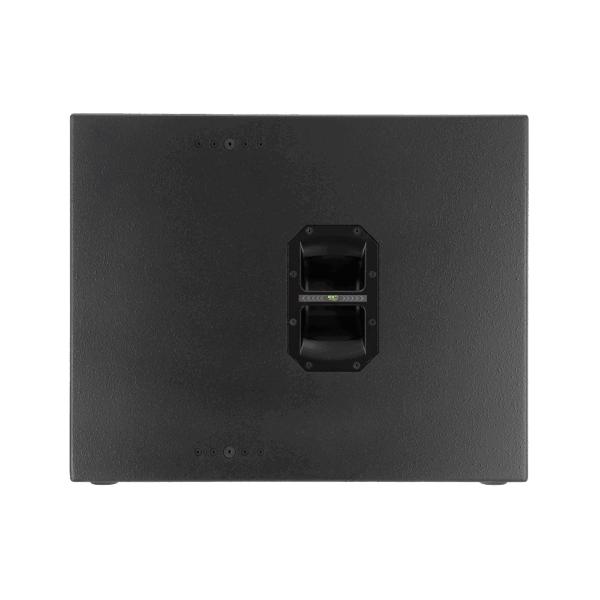

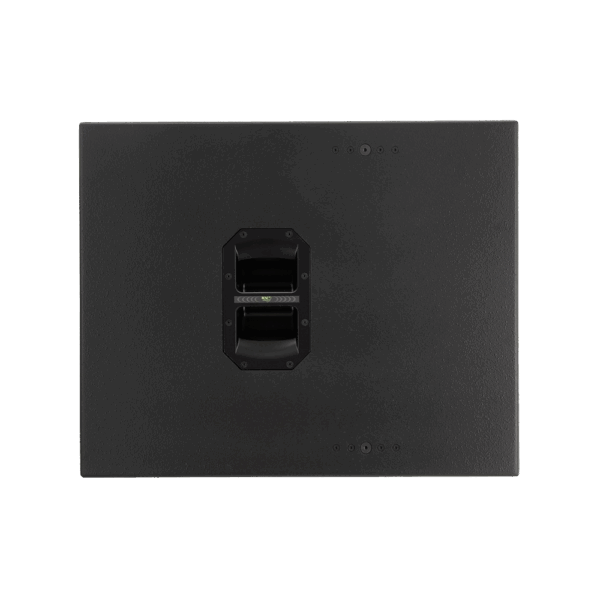

- Two recessed side handles for simplified handling and carrying

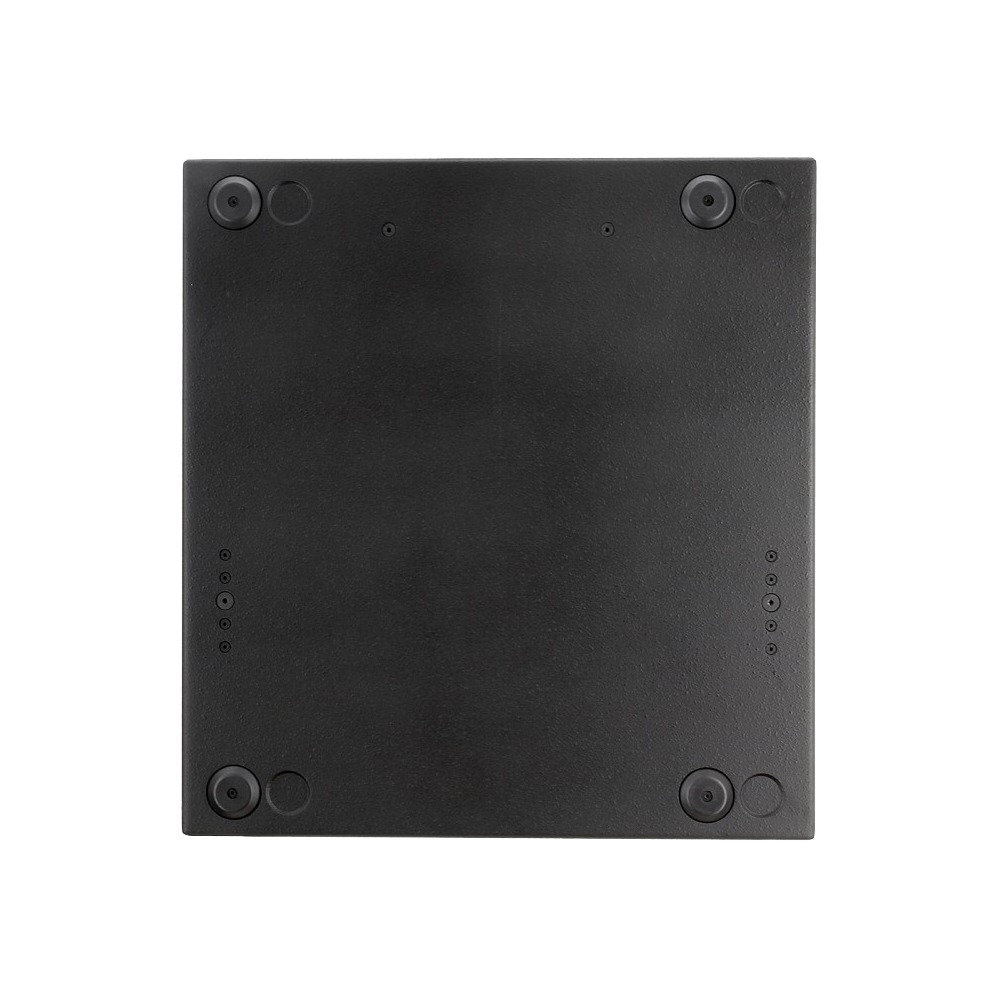

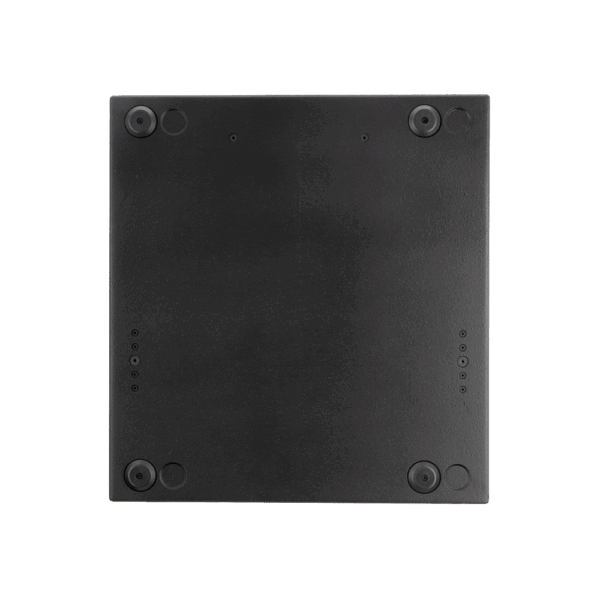

- Acetyl copolymer, high impact, low friction feet are located on two sides allowing lock-in and easy cabinet movement
- Five internal corner braces with four M10 suspension points
- M20 top hat for pole mounting applications
- LED indicators for signal present, limiter, thermal condition and power ON status
System Acoustic Perfomance:
Max SPL Long-term: 131dB
Max SPL Peak: 137dB
-3dB Response: 30Hz to 125Hz
-10dB Response: 27Hz to 125Hz
Crossover Point: 125Hz
Low Frequency Section:
Acoustic Design: Asymmetrical Bandpass
Woofer Size / Voice Coil Diameter / Design: 18" / 4" / Inside Outside
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low Frequency Amplifier Specification:
Type: High efficiency, Low frequency, Current-enhancing switch mode
Rated Continuous Power: 1000W
Distortion: <0.05%
Signal Input:
Input Channels: 2
Input Sensitivity: 1.0V RMS
Input Impedance: 20 kΩ
Signal Output:
Output Channels: Mid/High, Through
Features:
Level Control: -6 to +6dB
Phase: 0° / 180°
RMS Limiter: YES
Indicators Power: ON/Thermal, Limiter
Power:
Power Connector: Neutrik PowerCon®
Operating Voltage Range: 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage: 10A 115V | 5A 230V | 5A 250V
Cabinet:
Cabinet Material: Baltic birch
Handles: 2
Pole Mount: M20
Color: "Orange peeled" Matt Black or any RAL

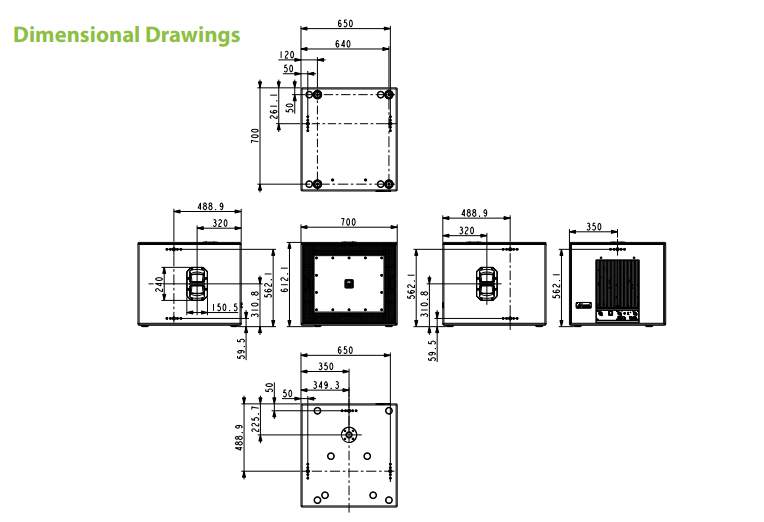

Physical Dimensions:
Height: 612 mm (24.1")
Width: 700 mm (27.56")
Depth: 750 mm (29.5")
Weight: 65 kg (143.3lbs)
Product code:
KVV 987 223 - EX1.8 250V
KVV 987 007 - EX1.8 230V
KVV 987 008 - EX1.8 115V
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Specifically designed to accompany any of the EX range as a true full range option
● High powered portable PA ● Fixed installations ● Scalable into larger systems
