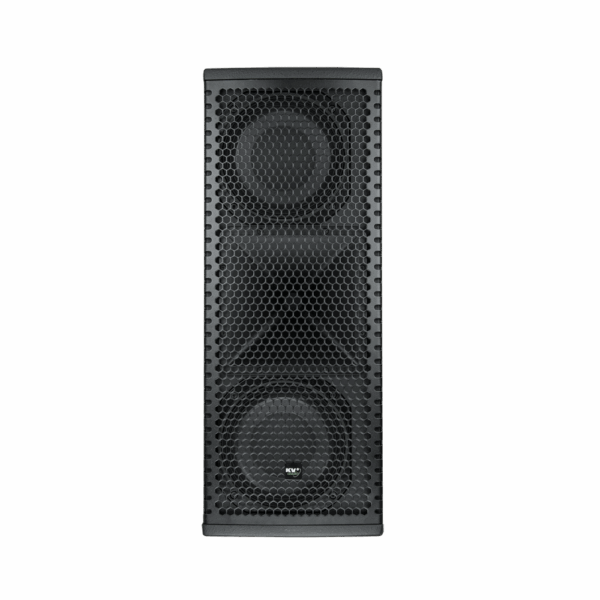

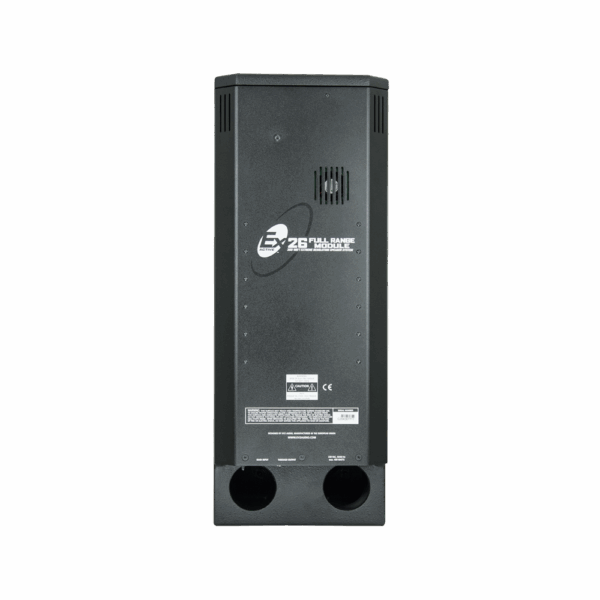

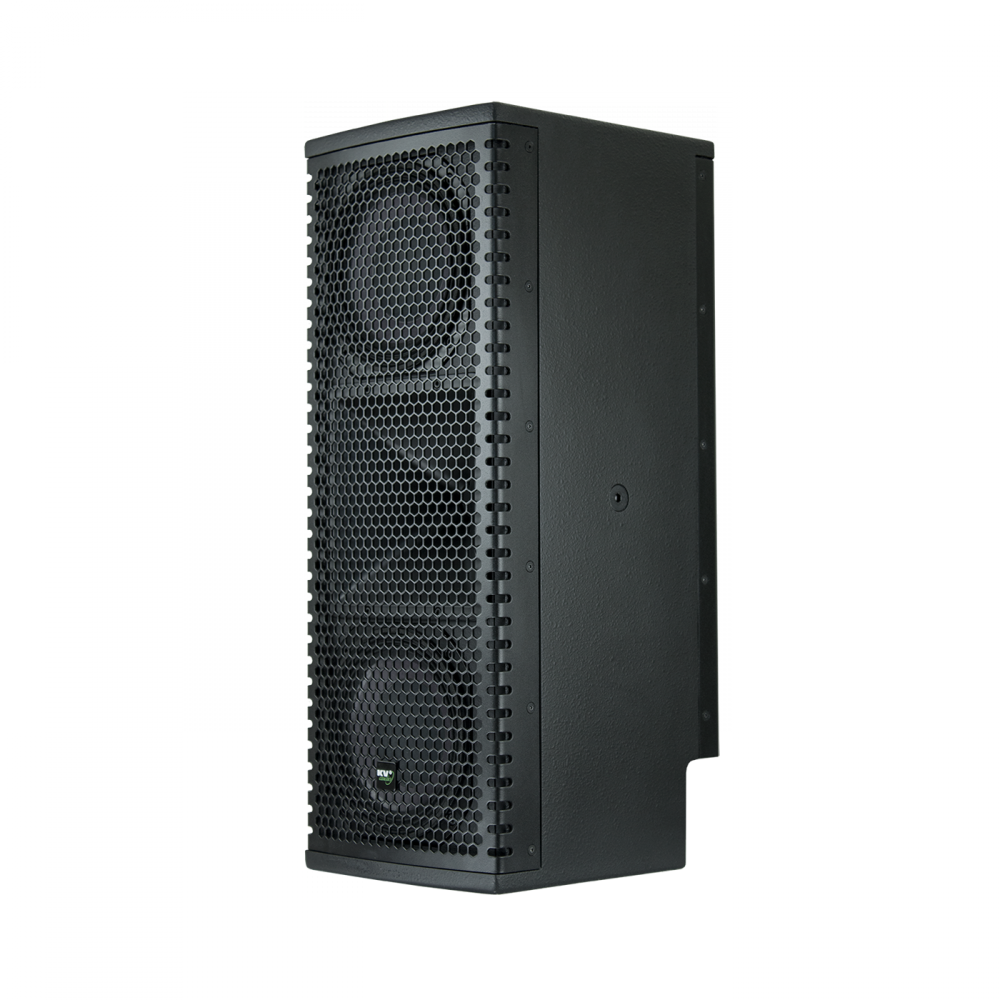

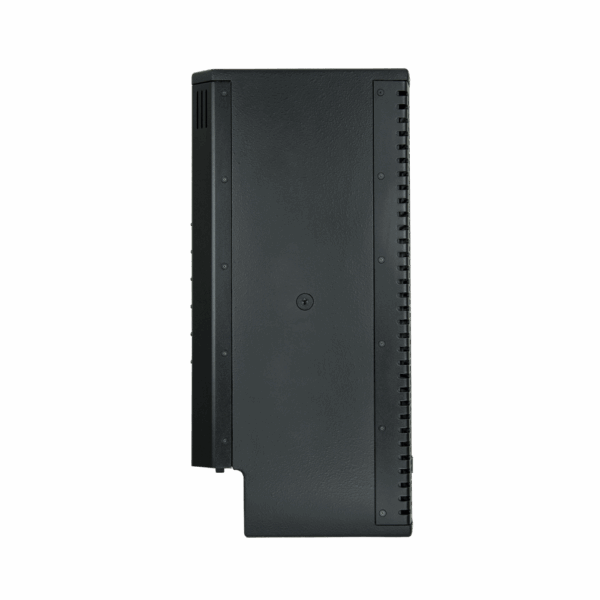

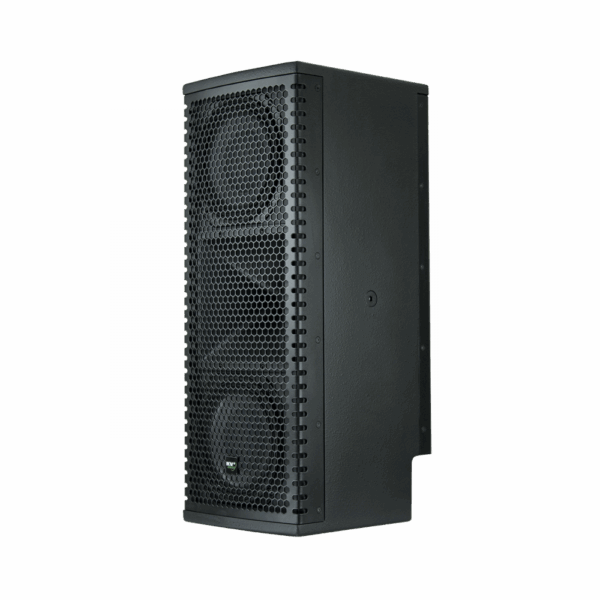

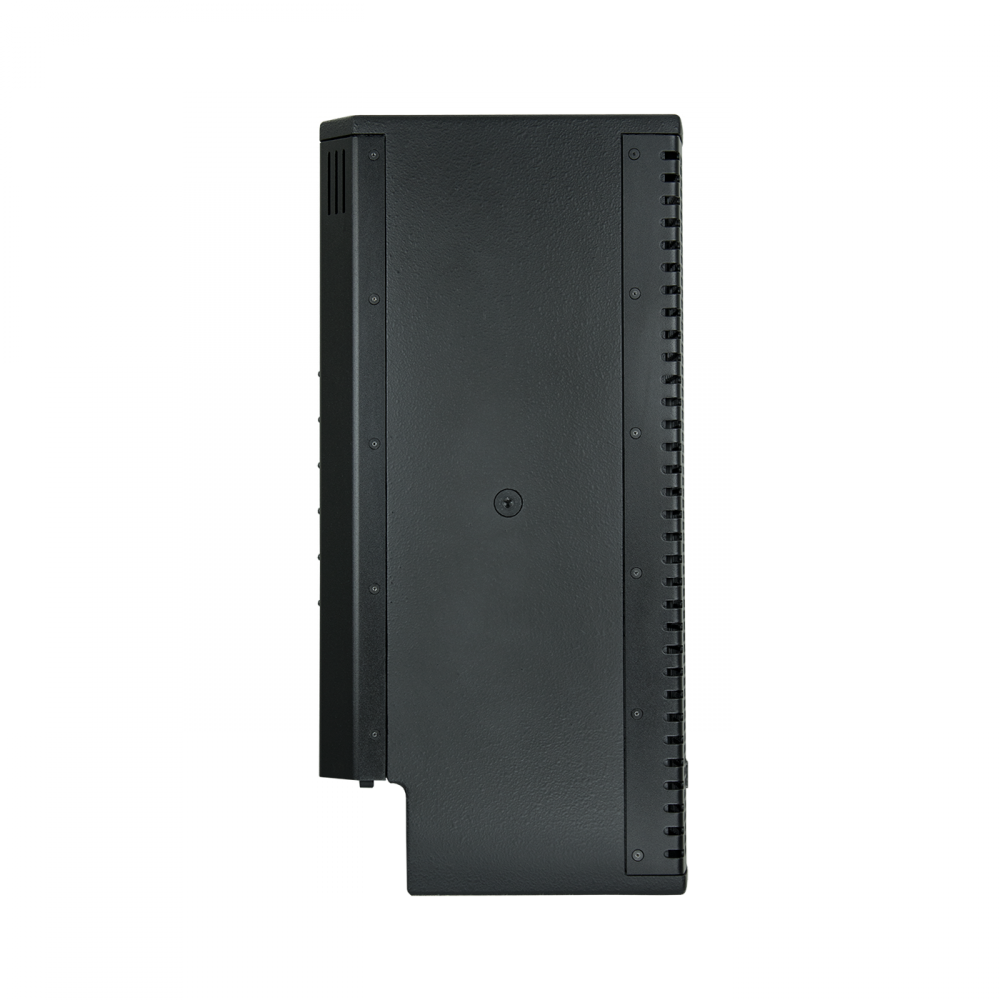

Brand: KV2 Audio
Model: EX26
Type: High Quality 2-way Active Speaker
Description:
The EX26 is a unique Loudspeaker unit that provides superb vocal intelligibility and high quality musical reproduction. Its 100 x 100 degree horn provides for wide, even coverage making it ideal for audio visual presentations, churches, meeting rooms and various other applications where high quality speech reproduction is required. The EX26 makes an ideal under balcony fill speaker when used in a horizontal orientation.
Technical characteristics:
Features:
- Professional, Baltic birch construction with wear resistant polymer coating
- 124dB sustained output, 127dB peak with very high dynamic range and low noise floor
- 370W of total power with complete on-board speaker management system
- 350W high efficiency, current enhancing, switching low frequency amplifier
- Very high quality 20W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
- Compact low profile cabinet design allows for use as a front fill or in under balcony applications with high pass filter to adjust equalization and phase response
- Wide dispersion 100° H x 100° V horn
- New patent pending 1.75" (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure

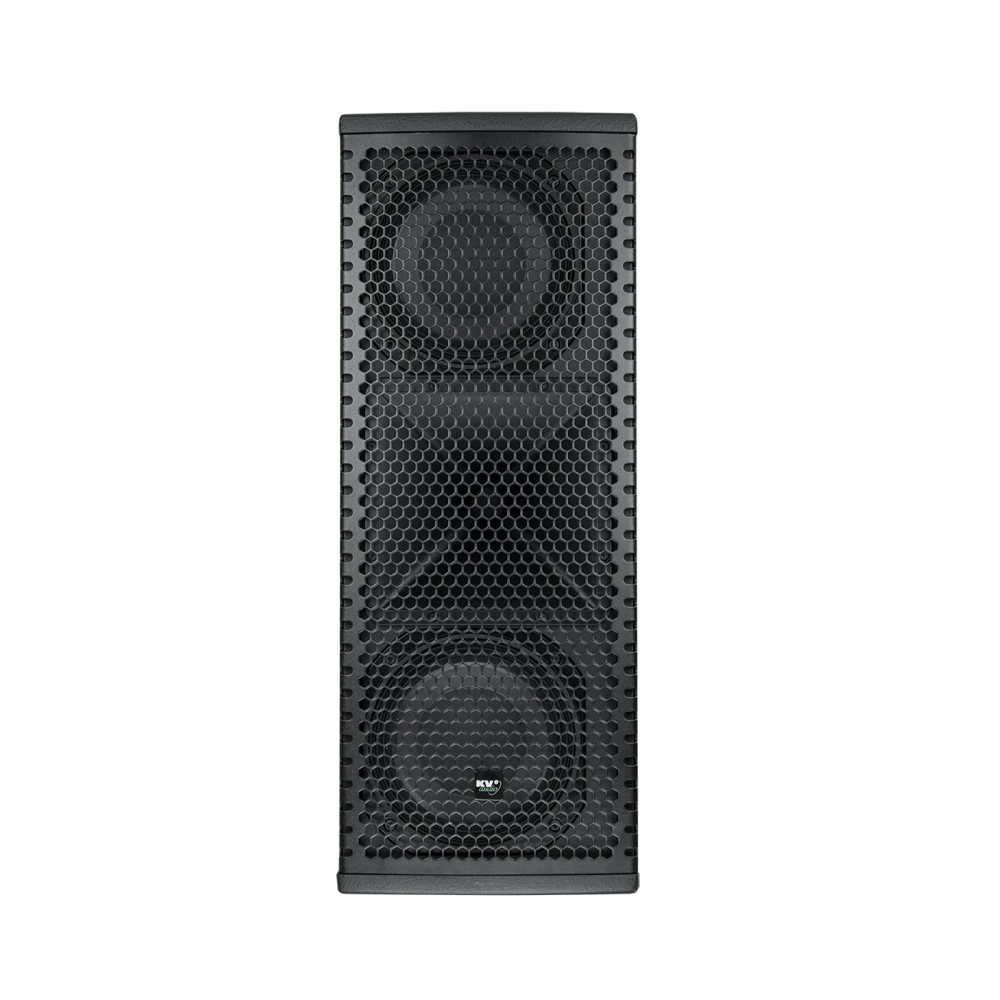

- Two 6" woofers feature neodymium magnetic motor structures that dramatically increase force, lower distortion and provide increased frequency response linearity

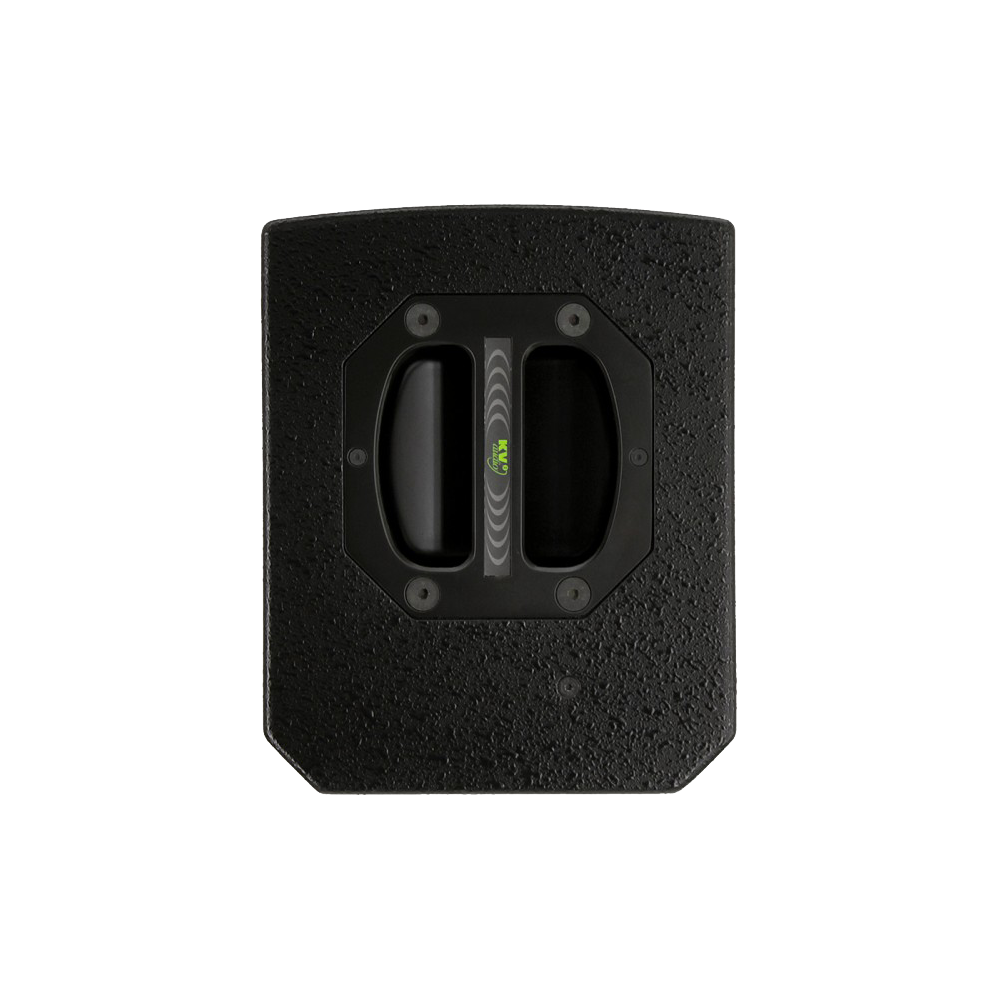

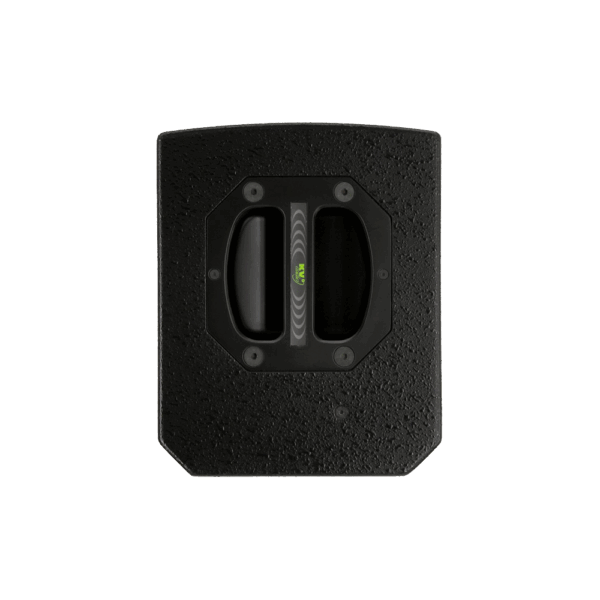

- Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, Omnimount™ bracket point and four M6 points
- Additional side and bottom M10 points for flexible bracket, rigging and installation options

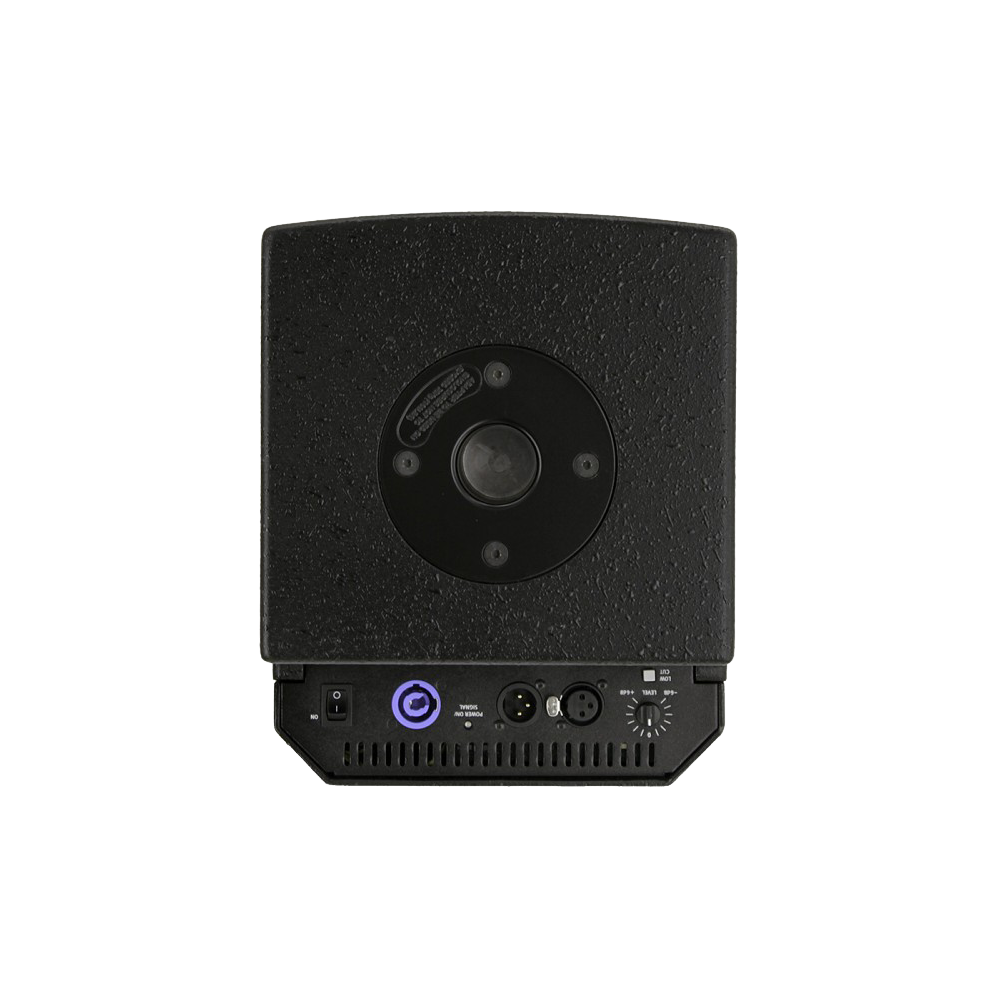

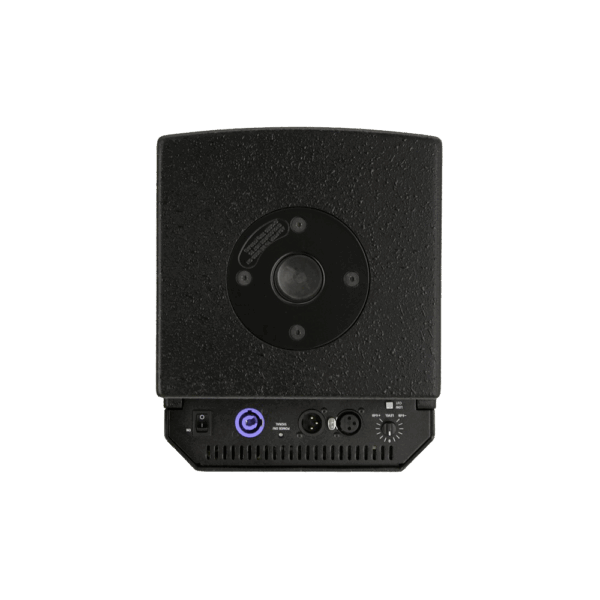

- "Top-hat" pole mount fitted at the base of the cabinet
- LED indicators for signal present and Power ON status
System Acoustic Perfomance:
Max SPL Long-term: 124dB
Max SPL Peak: 130dB
-3dB Response: 80Hz to 20kHz
-10dB Response: 65Hz to 28kHz
Crossover Point: 2.5kHz
High Frequency Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 100° x 100°
Throat Exit Diameter / Diaphragm Size: 1" / 1.75"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
High Frequency Amplifier Specification:
Type: Class AB Push-Pull
Rated Continuous Power: 20W
Distortion: <0.05%
Operating Bandwidth: 2.5kHz to 28kHz
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design: 6" / 1.75"
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low Frequency Amplifier Specification:
Type: High efficiency, Current-enhancing switch mode
Rated Continuous Power: 350W
Distortion: <0.05%
Operating Bandwidth: 68Hz to 2.5kHz
Signal Input:
Input Sensitivity: 1V RMS
Input Impedance: 20 kΩ
Power:
Power Connector: Neutrik PowerCon®
Operating Voltage: Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage: 3.15A 115V | 1.6A 230V
Cabinet:
Cabinet Material: Baltic birch
Handles: 1
Pole Mount: 35 mm
Color: "Orange peeled" Matt Black or any RAL

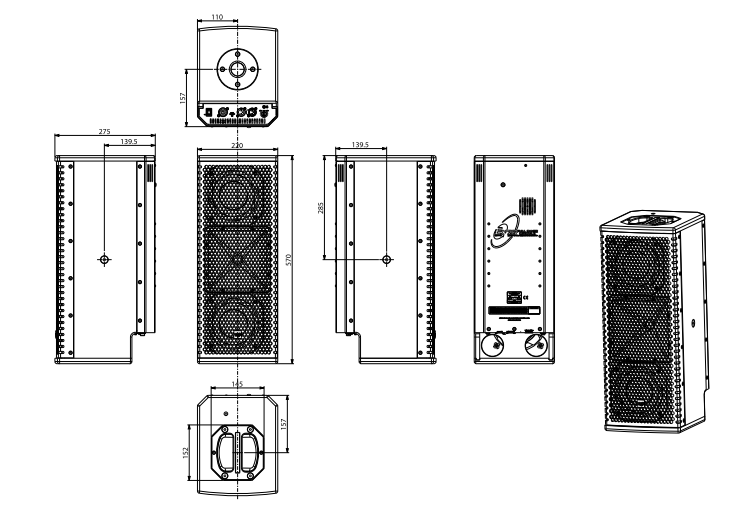

Physical Dimensions:
Height: 570 mm (22.44")
Width: 220 mm (8.66")
Depth: 274 mm (10.78")
Weight: 16 kg (35.2lbs)
Product code:
KVV 987 164 - EX26 230V
KVV 987 165 - EX26 115V
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Purposely designed as a stand-alone unit for extremely high quality vocal reproduction and output
● Church and houses of worship ● Conference and presentations ● Front of stage and balcony infill ● Full range portable PA when used with subwoofers for larger Multi-Media applications and small live music applications
