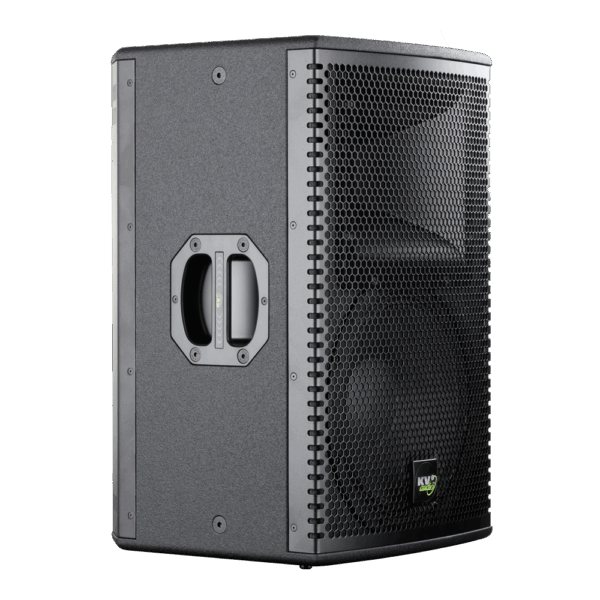

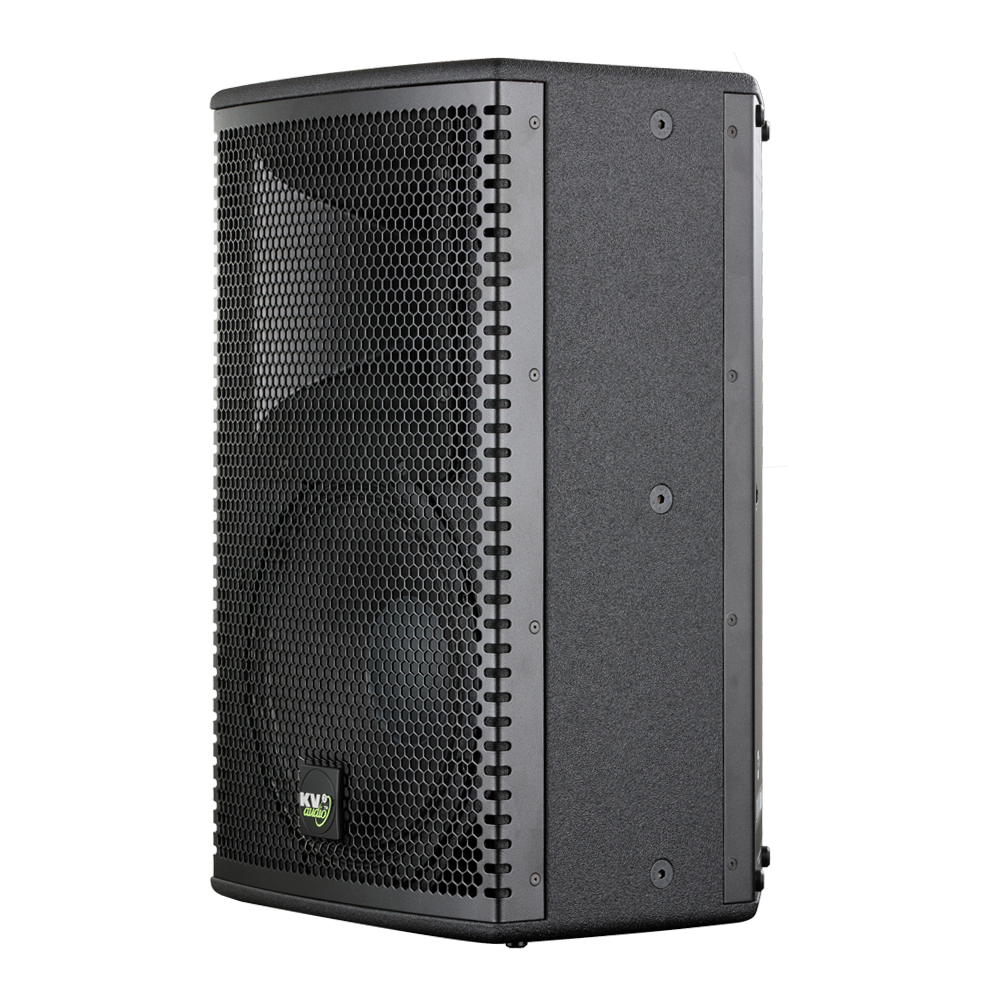

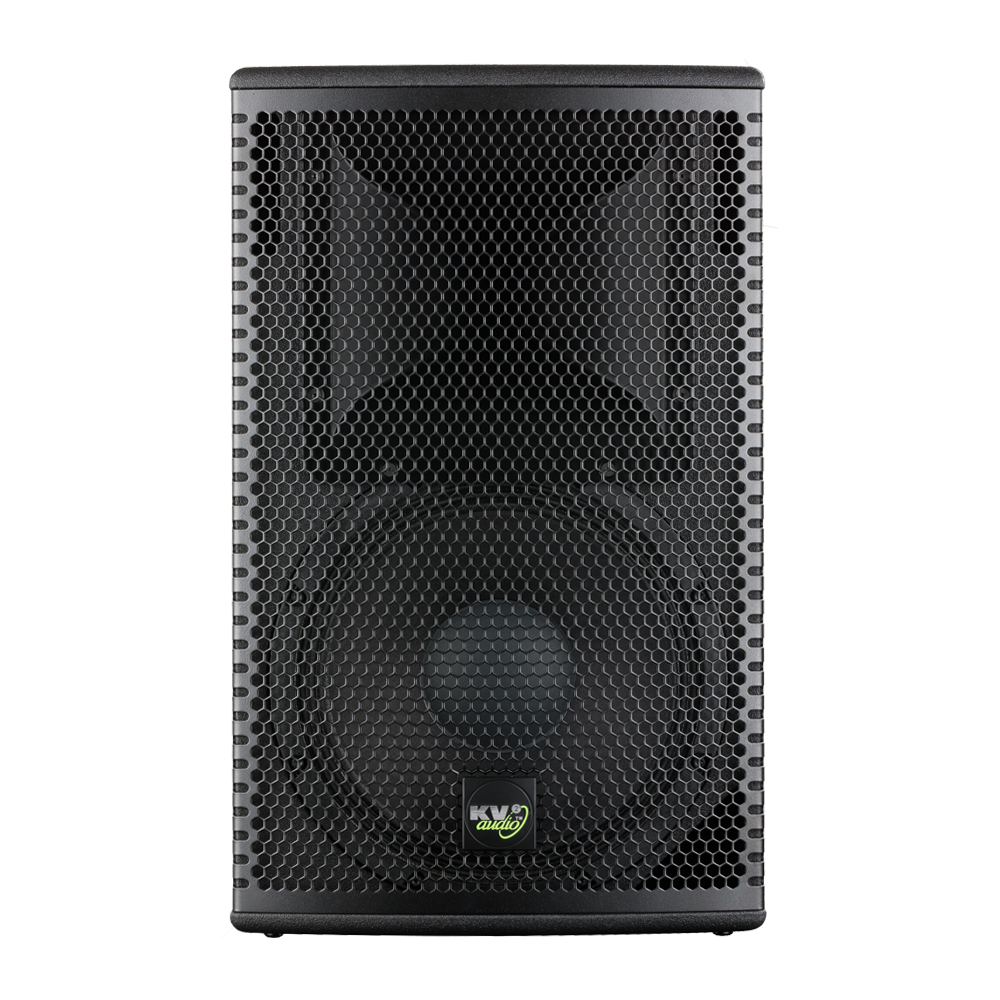

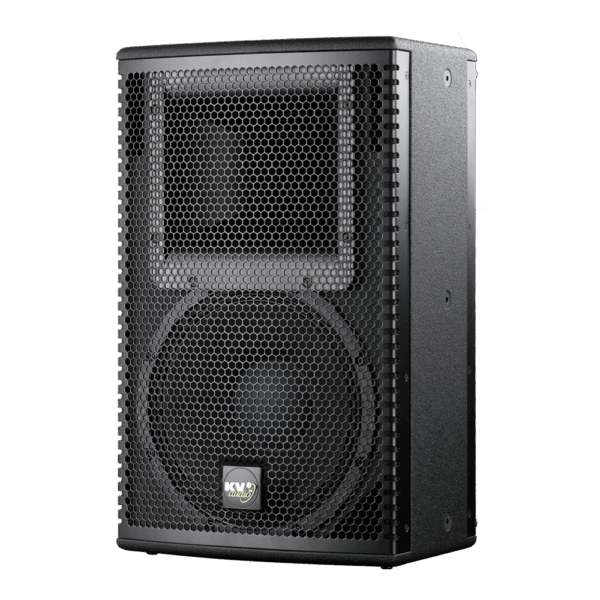

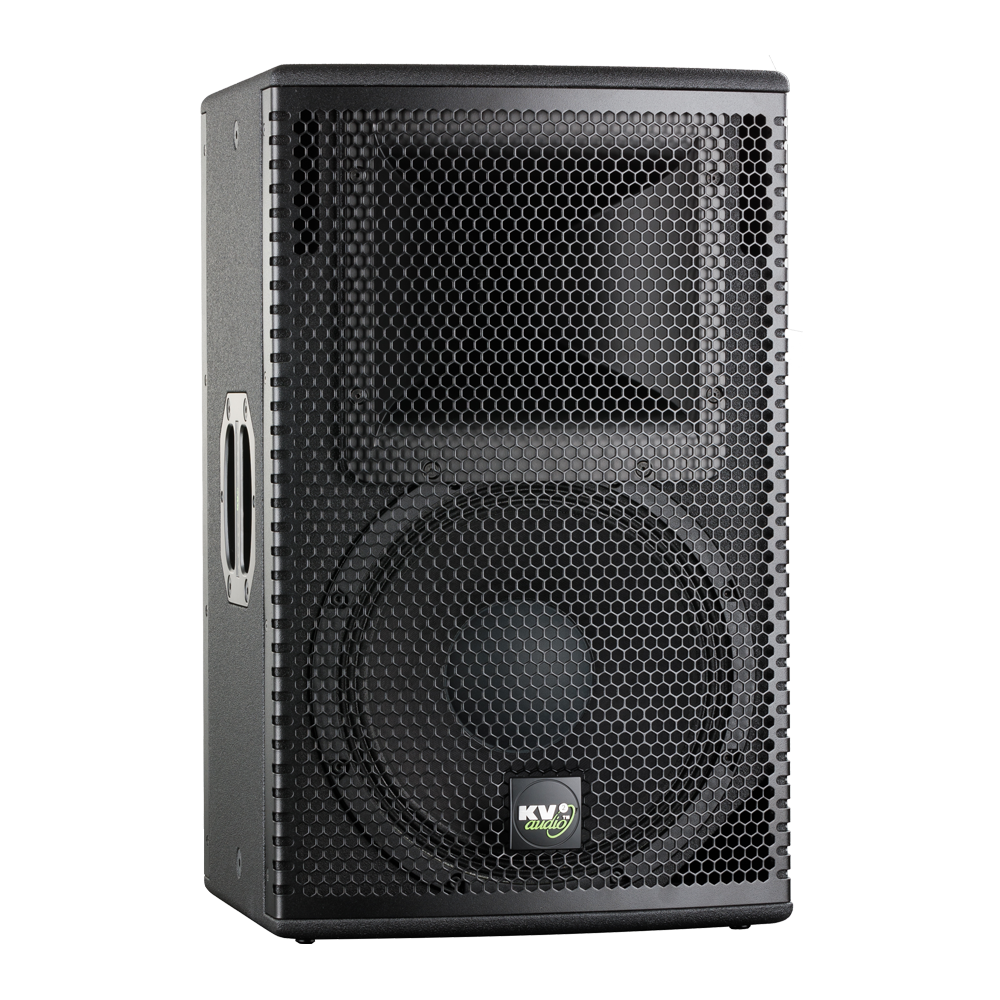

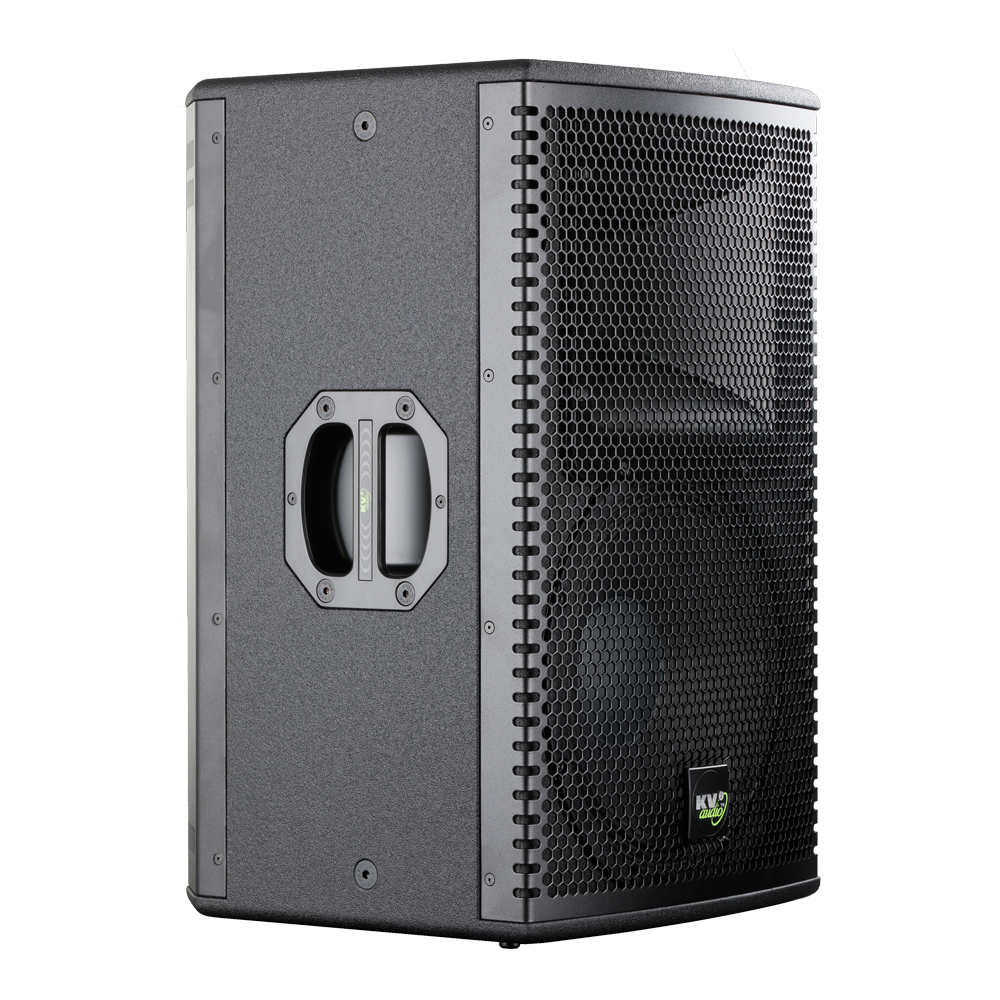

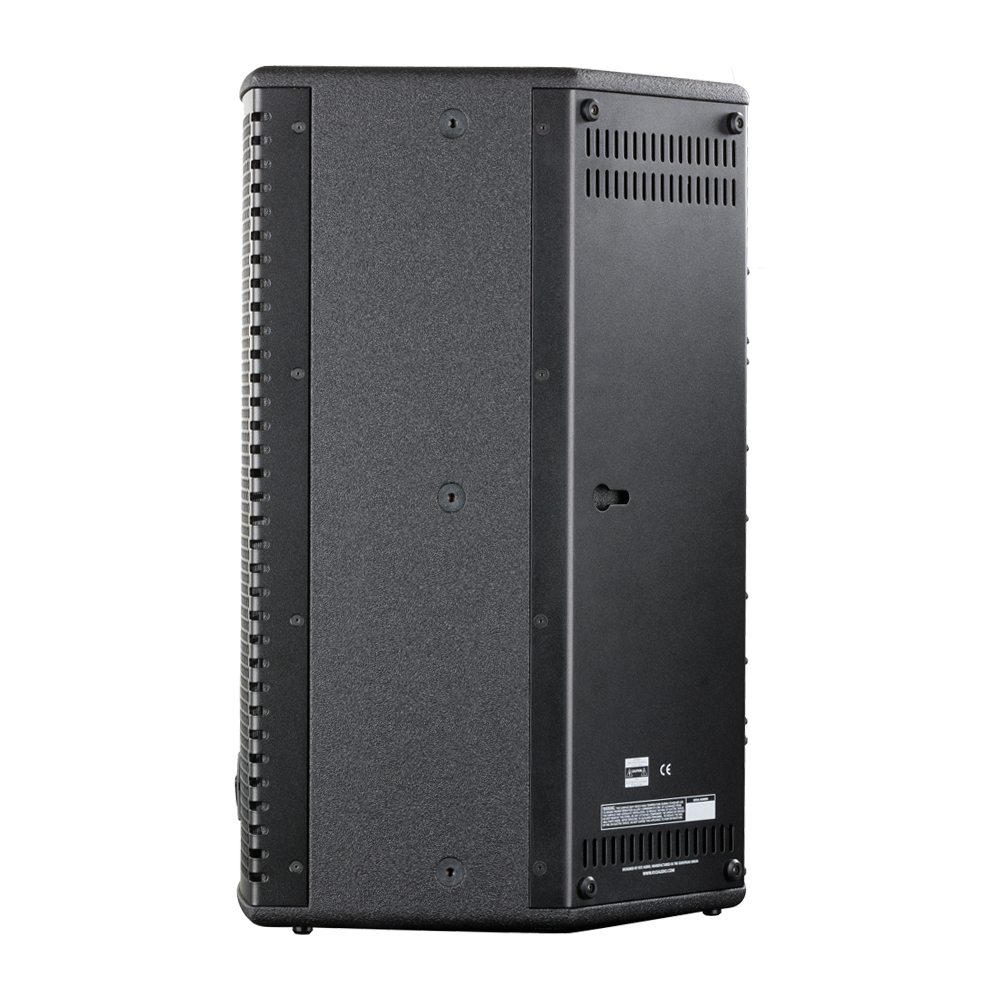

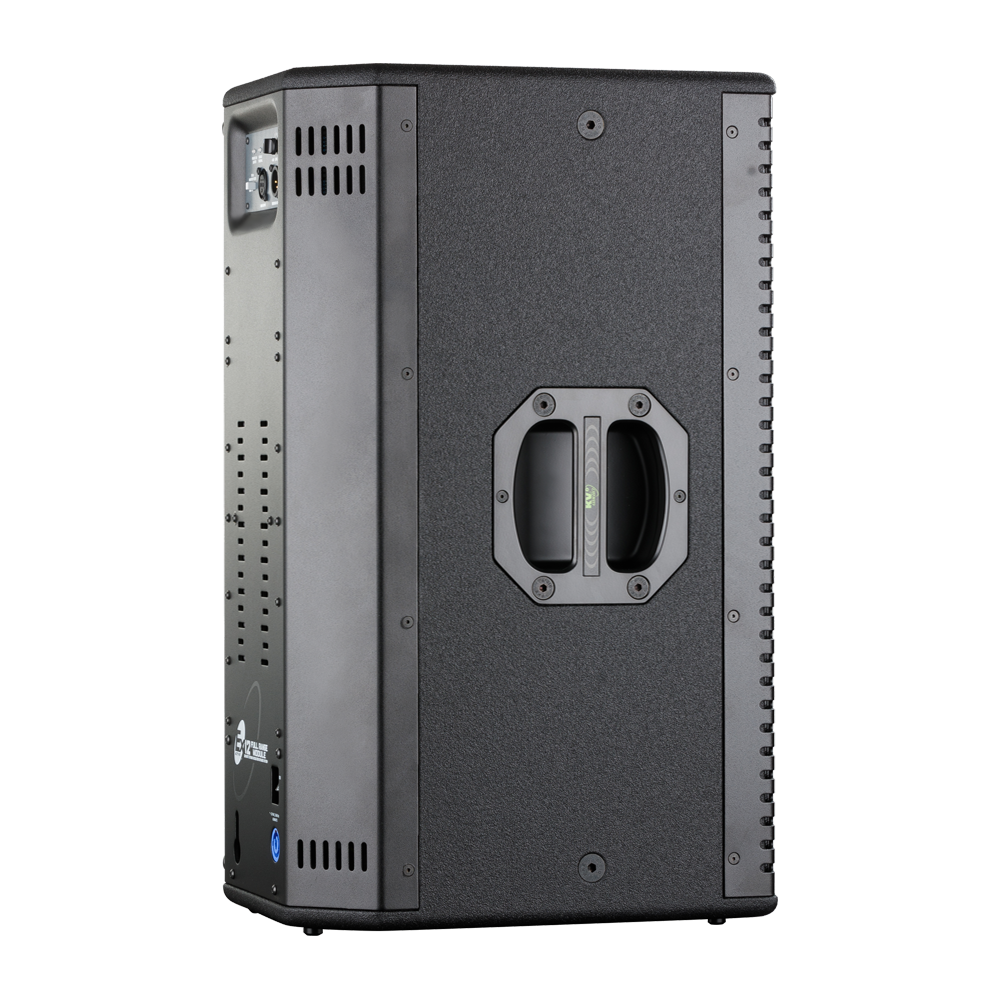

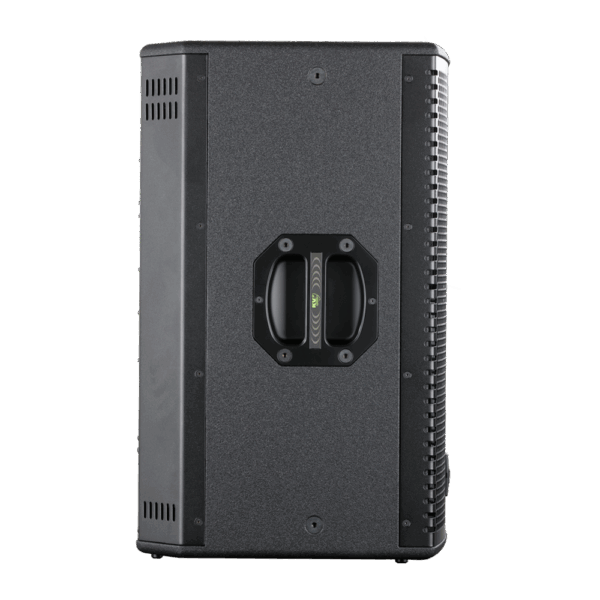

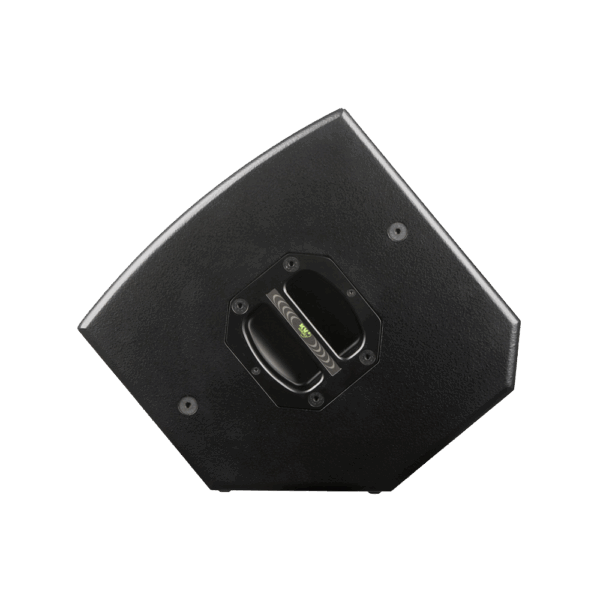

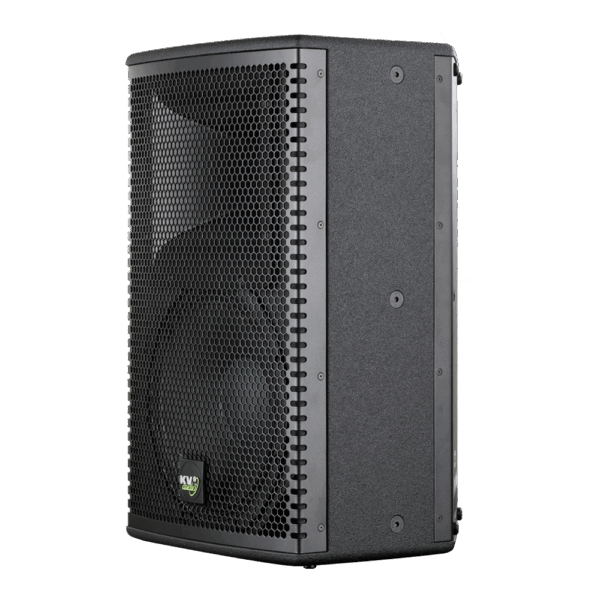

Brand: KV2 Audio
Model: EX15
Type: High Quality 3-way Active Speaker
Description:

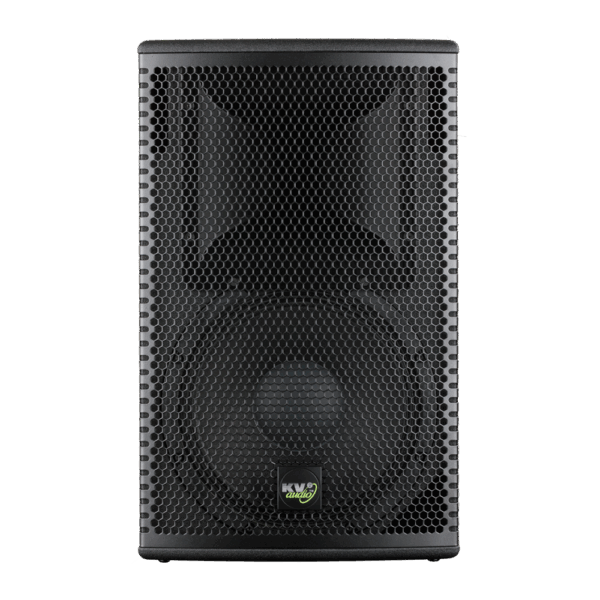

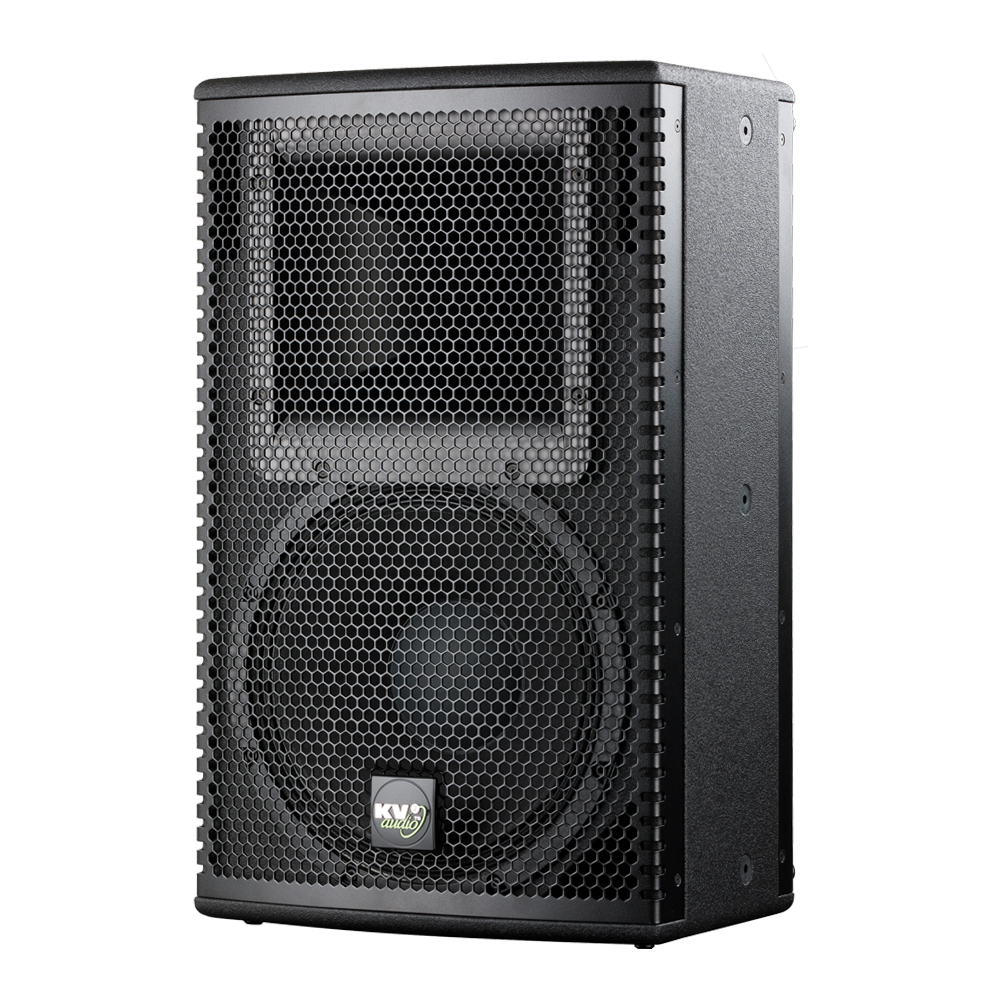

The New EX15 introduces a three way design to the successful EX loudspeaker range. Incorporating a unique coaxial 15" transducer with a 1.75" Nitride Titanium Compression Driver, while many coaxial speakers struggle in their attempt to cover the entire frequency range, the EX15's coaxial driver is only required to deliver the low and high frequencies. This leaves the all important mid range to a dedicated horn loaded 6" neodymium speaker, allowing the 15" to deliver accurate and deep bass, an area in which it excels, rather than trying to also reproduce a compromised mid range above its natural frequency window for optimum speed and dynamic musical performance. The EX15's unique approach, featuring 1000W of dedicated Tri-amplified electronics, provides an extremely natural, truly full range sound from a compact yet powerful package that out performs many speakers twice its size.
Technical characteristics:
Features:
- Unique coaxial 15” transducer with a 1.75” Nitride Titanium Compression Driver on a wide dispersion horn covering low and high frequencies
- 6” neodymium speaker mounted on a large 80 x 60 degree horn covers mid range
- 1000W of dedicated Tri-amplified electronics
- Compact Three way Full range solution
- Extremely natural full range sound from a compact yet powerful package, that out performs many speakers twice its size
System Acoustic Perfomance:
Max SPL Long-term: 129dB
Max SPL Peak: 135dB
-3dB Response: 44Hz to 18kHz
-10dB Response: 38Hz to 22kHz
Crossover Point: 500Hz, 2.7kHz
High Frequency Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 80° x 60°
Throat Exit Diameter / Diaphragm Size: 1" / 1.75"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
Protection: RMS Limiter
High Frequency Amplifier Specification:
Type: Class AB Push-Pull
Rated Continuous Power: 50W
Distortion: <0.05%
Operating Bandwidth: 2.7kHz to 22kHz
Mid Range Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 80° x 60°
Woofer Size / Voice Coil Diameter / Design: 6" / 1.5"
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Protection: RMS Limiter
Mid Frequency Amplifier Specification:
Type: High efficiency, High Power Bandwidth
Rated Continuous Power 100W
Distortion <0.05%
Operating Bandwidth 500Hz to 2.7kHz
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design: 15" / 4"
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Protection: RMS Limiter
Low Frequency Amplifier Specification:
Type: High efficiency, Current-enhancing switch mode
Rated Continuous Power: 850W
Distortion: <0.05%
Operating Bandwidth: 38Hz to 500Hz
Signal Input:
Input Sensitivity: 1.0V RMS
Input Impedance: 20 kΩ

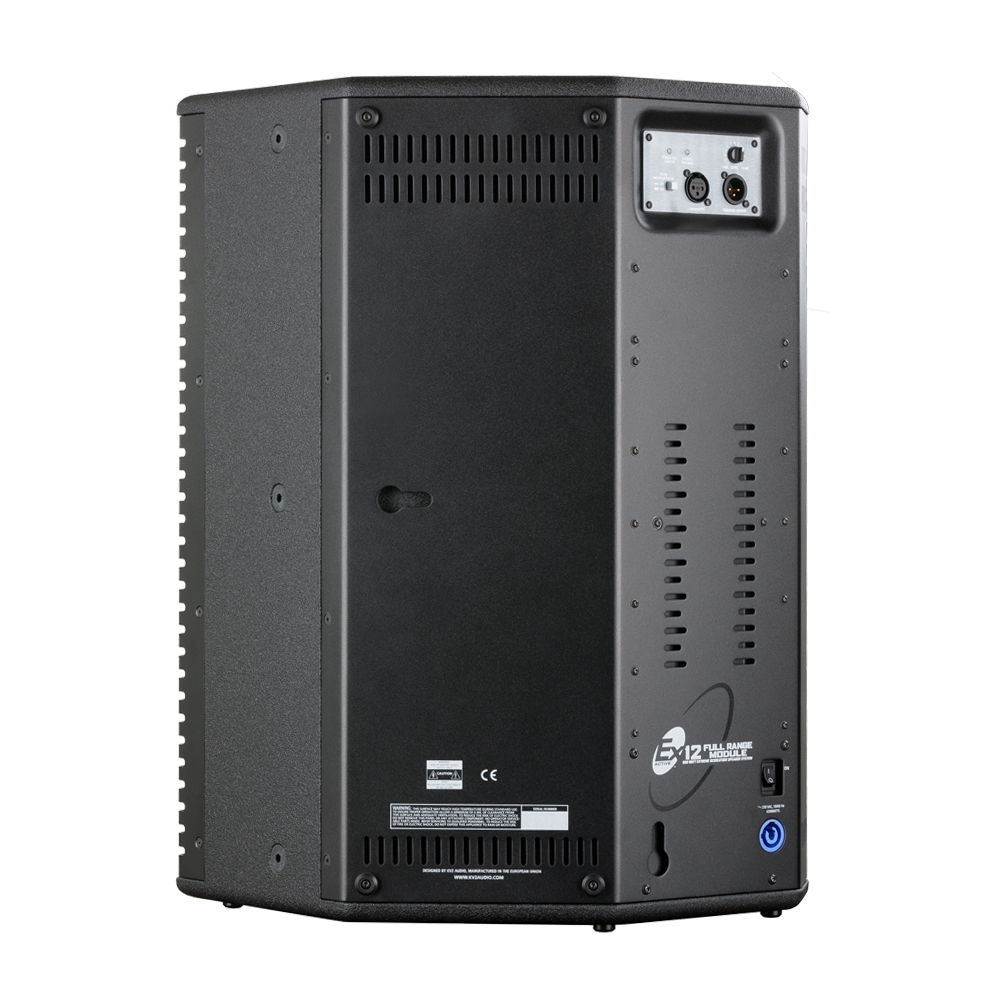

Power:
Power Connector: Neutrik PowerCon®
Operating Voltage: Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage: 8A 115V | 4A 230V | 4A 250V
Cabinet:
Cabinet Material: Baltic birch

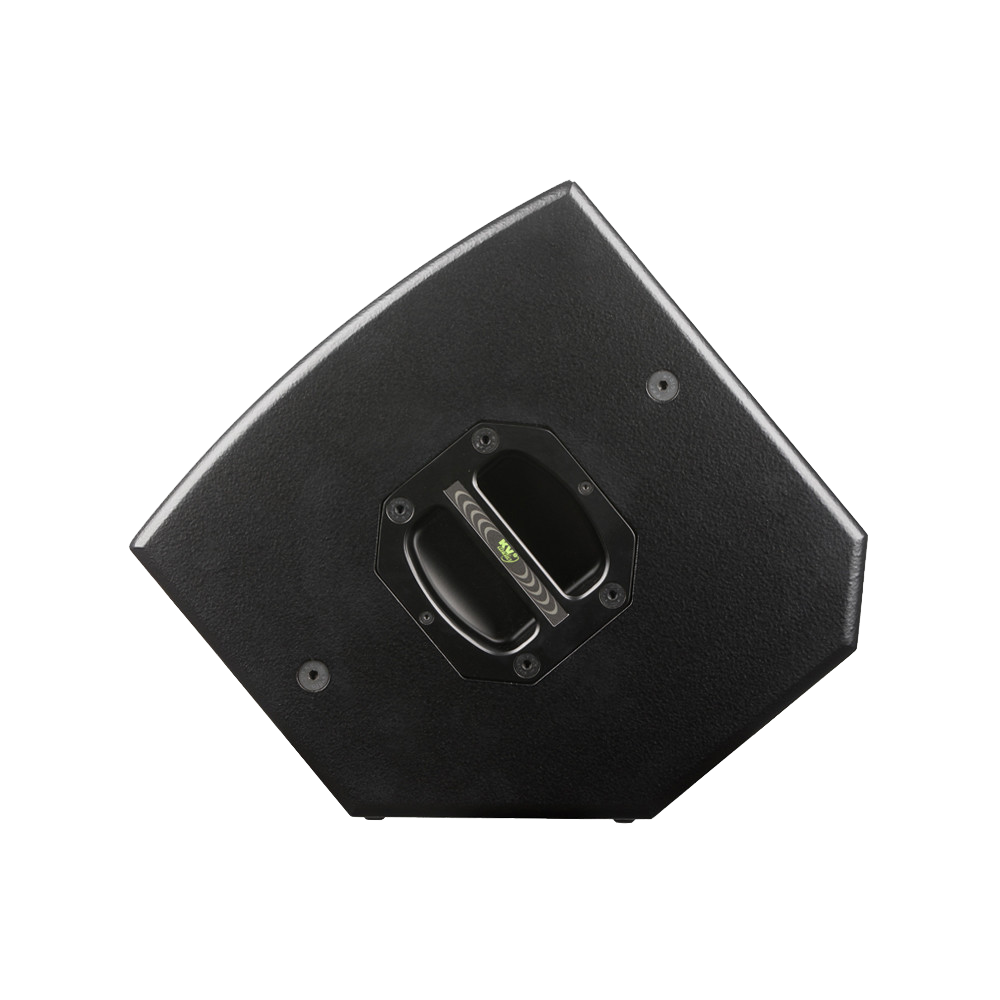

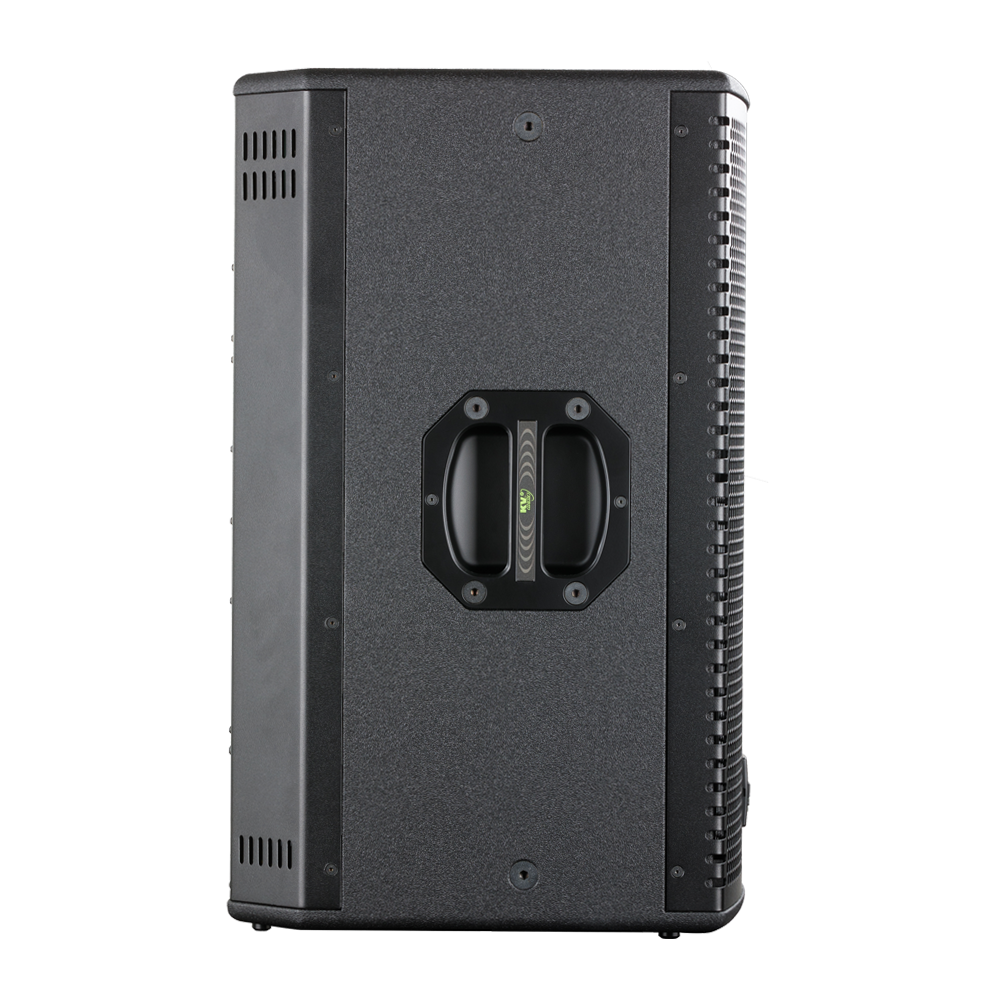

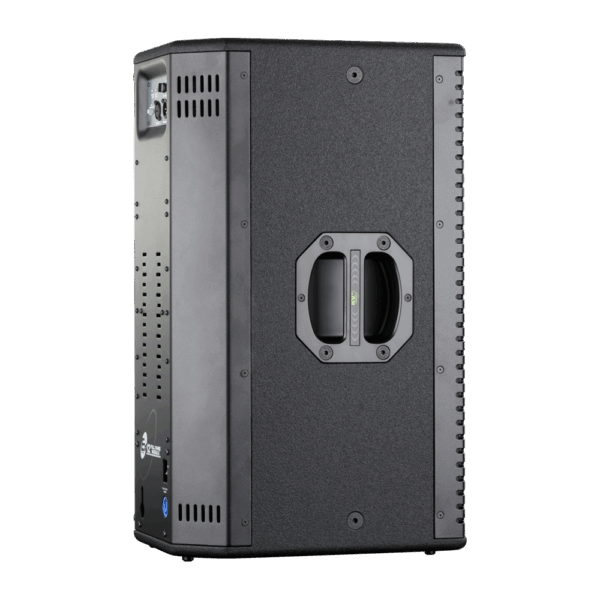

Handles: 3

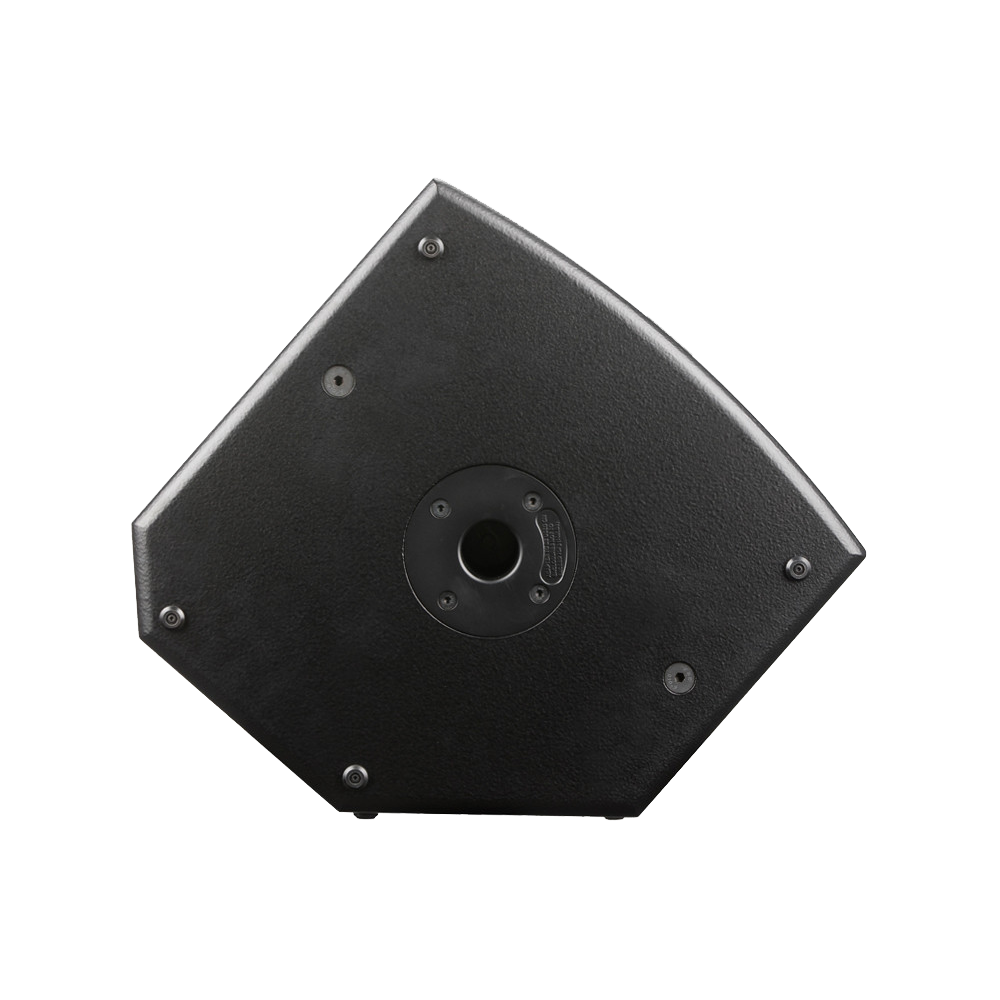

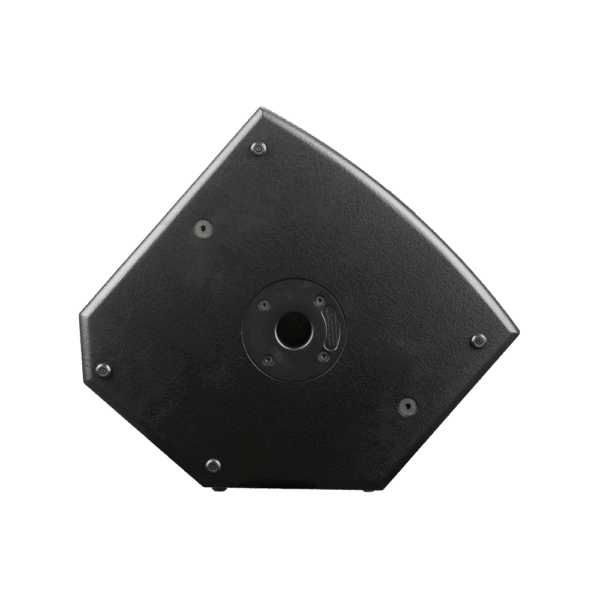

Pole Mount: 35 mm
Color: "Orange peeled" Matt Black or any RAL

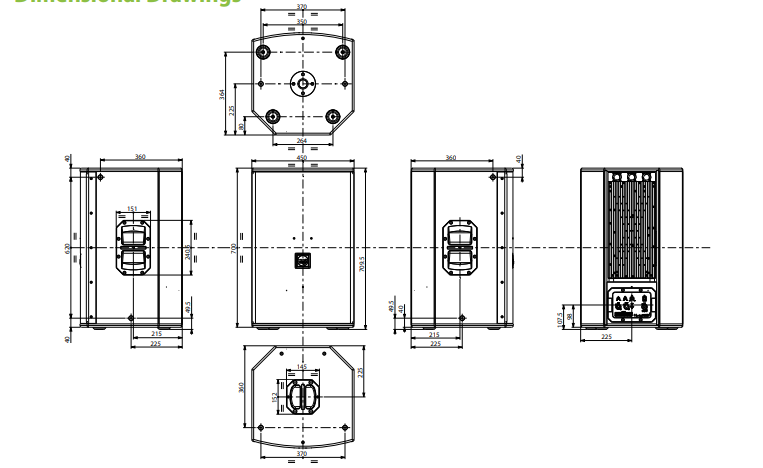

Physical Dimensions:
Height: 700 mm (27.55")
Width: 450 mm (17.71")
Depth: 450 mm (17.71")
Weight: 43 kg (94.8lbs)
Product code:
KVV 987 267 - EX15 (230V)
KVV 987 266 - EX15 (115V)
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Designed for the highest quality vocal and full range live performance in medium size applications

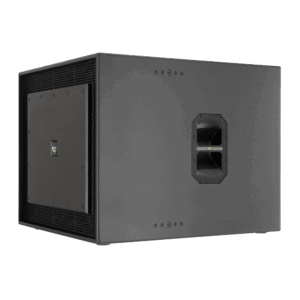

● Suitable for medium to large conference, Theatre and small to medium scale concerts ● Scalable from stand alone to full range large systems incorporating EX subwoofers ● Fixed installations ● Stage monitoring
