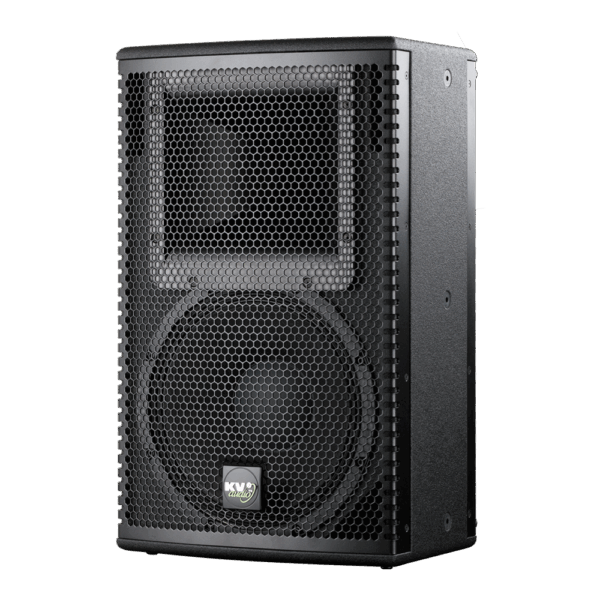

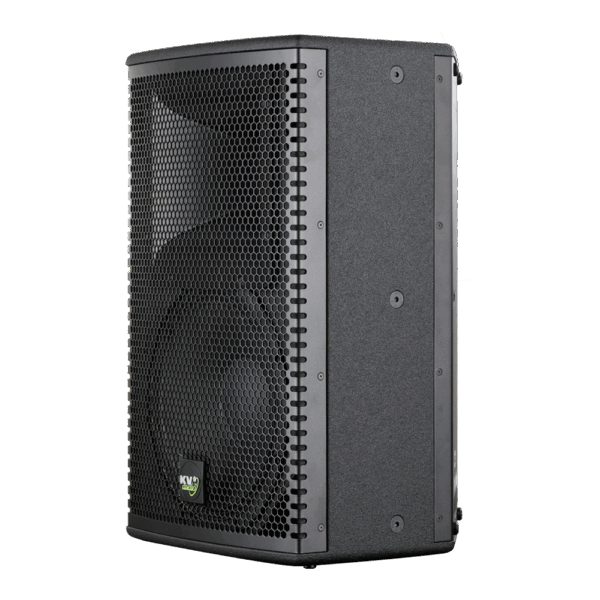

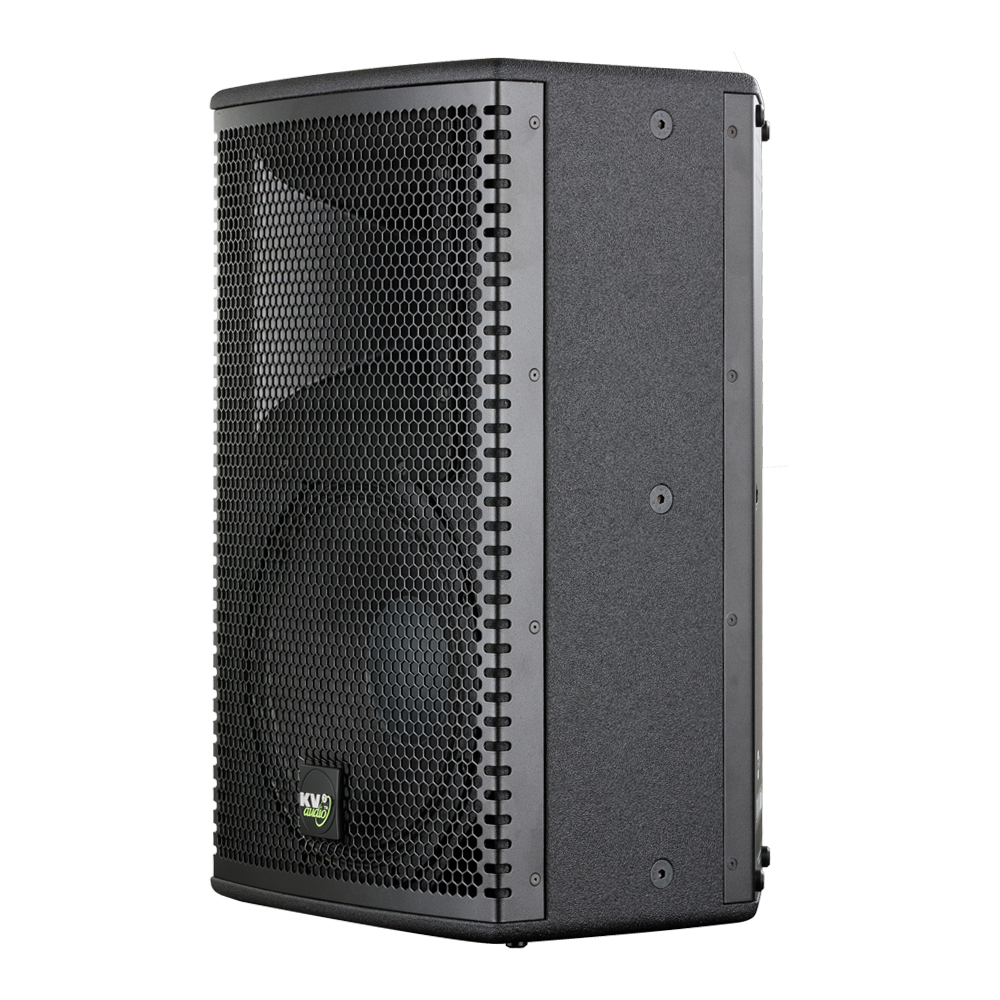

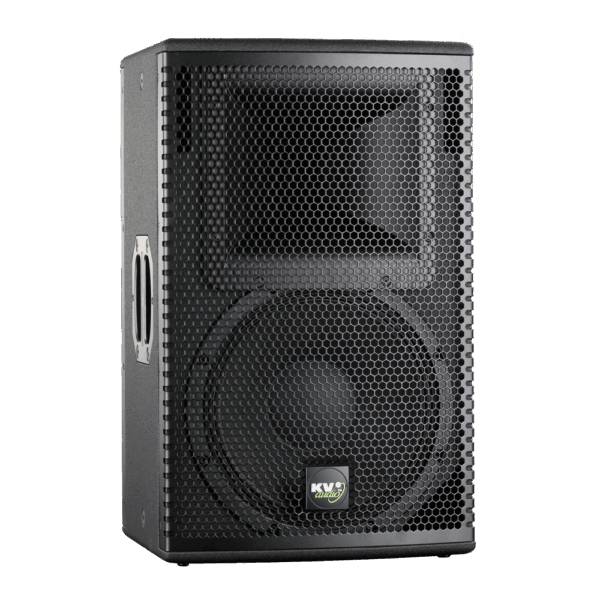

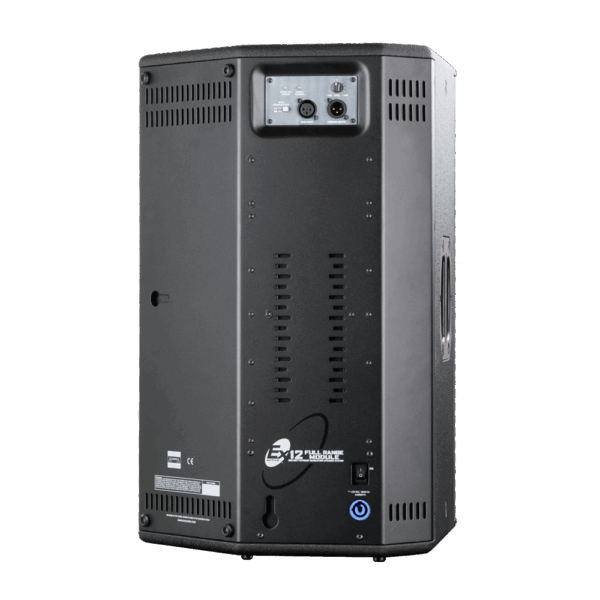

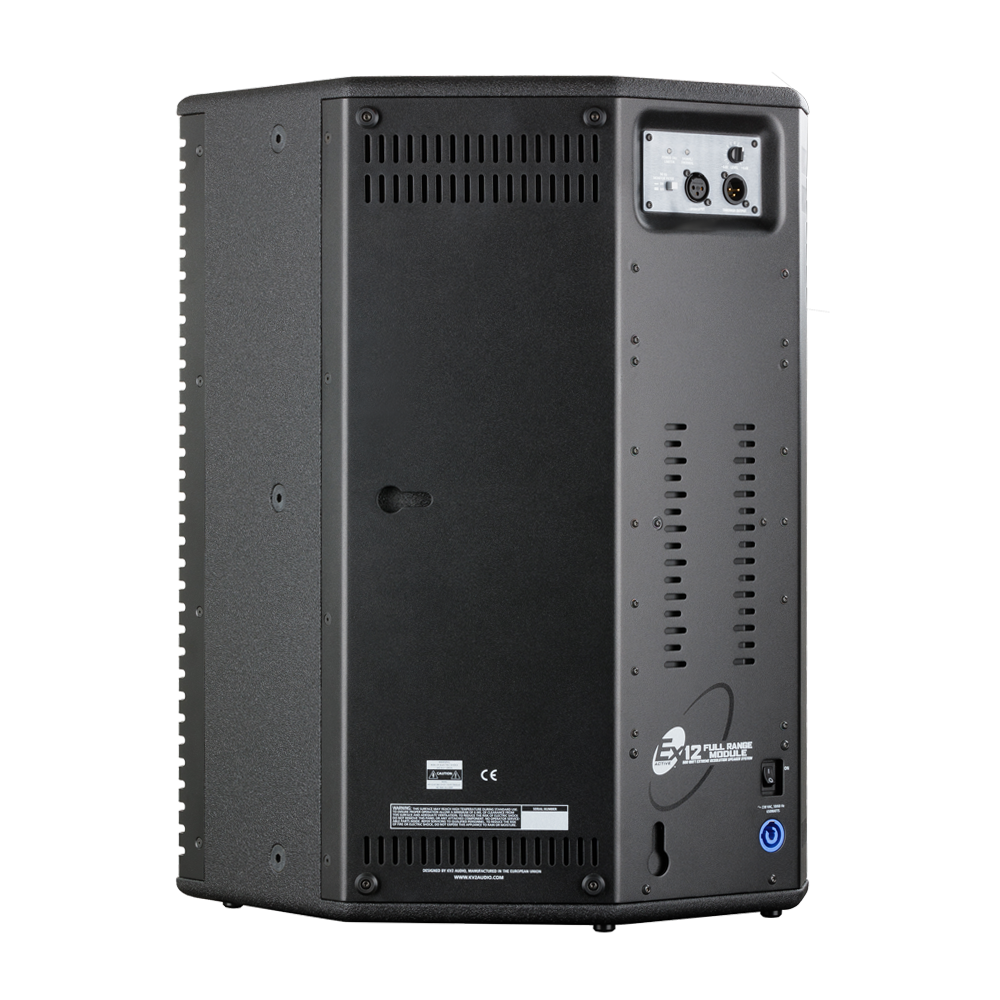

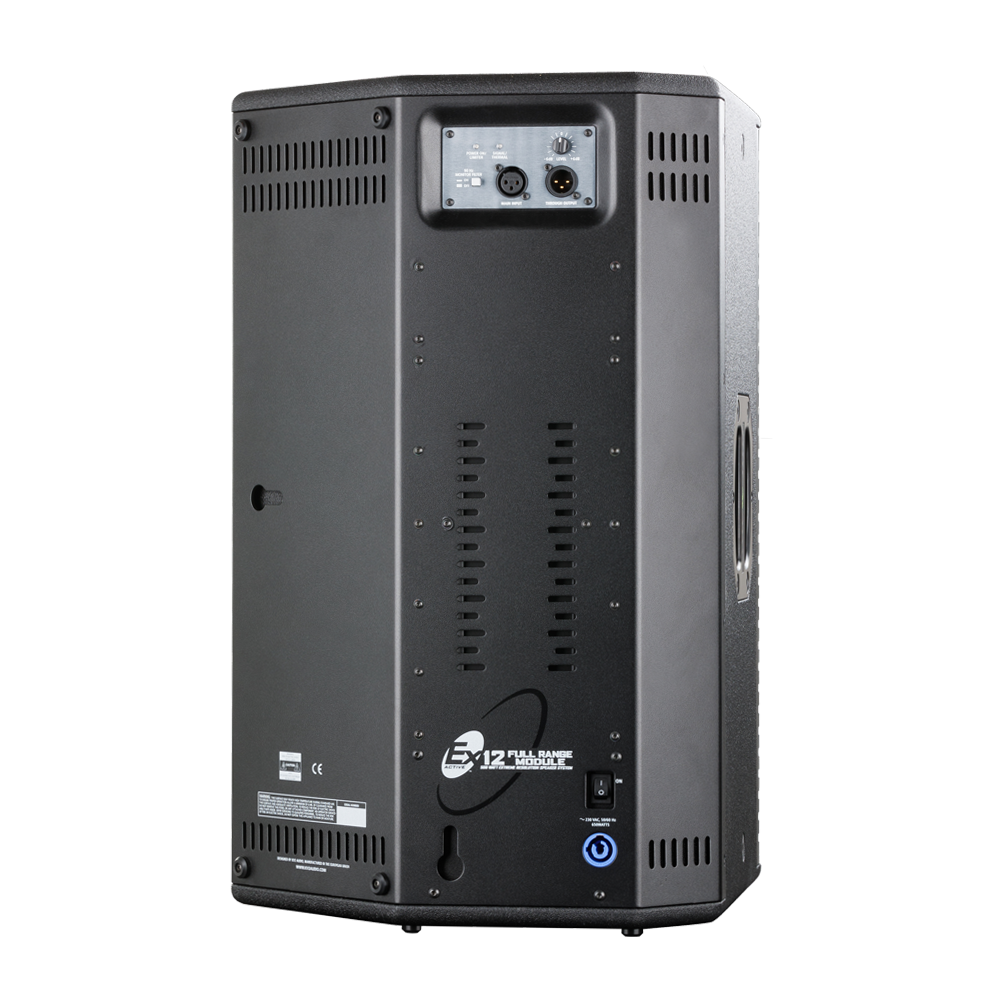

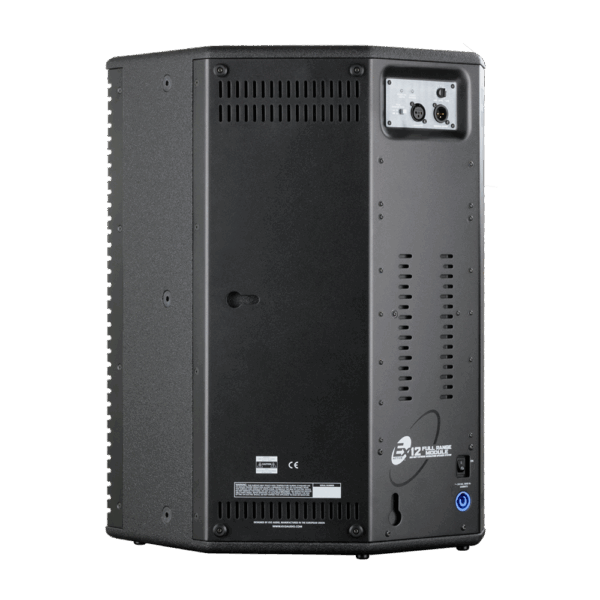

Brand: KV2 Audio

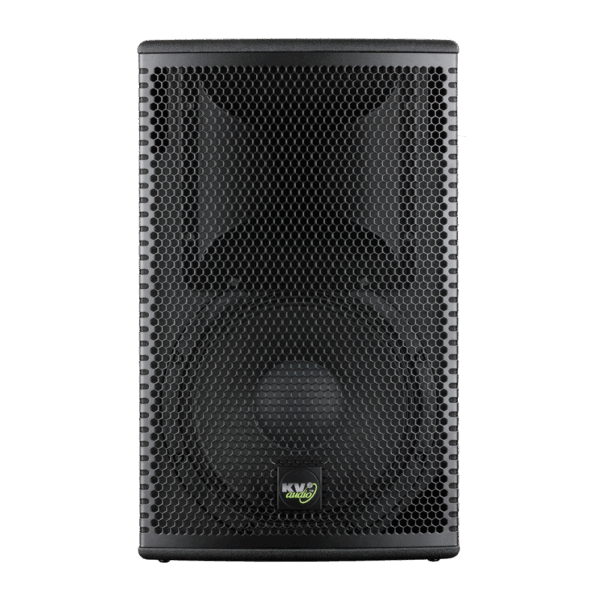

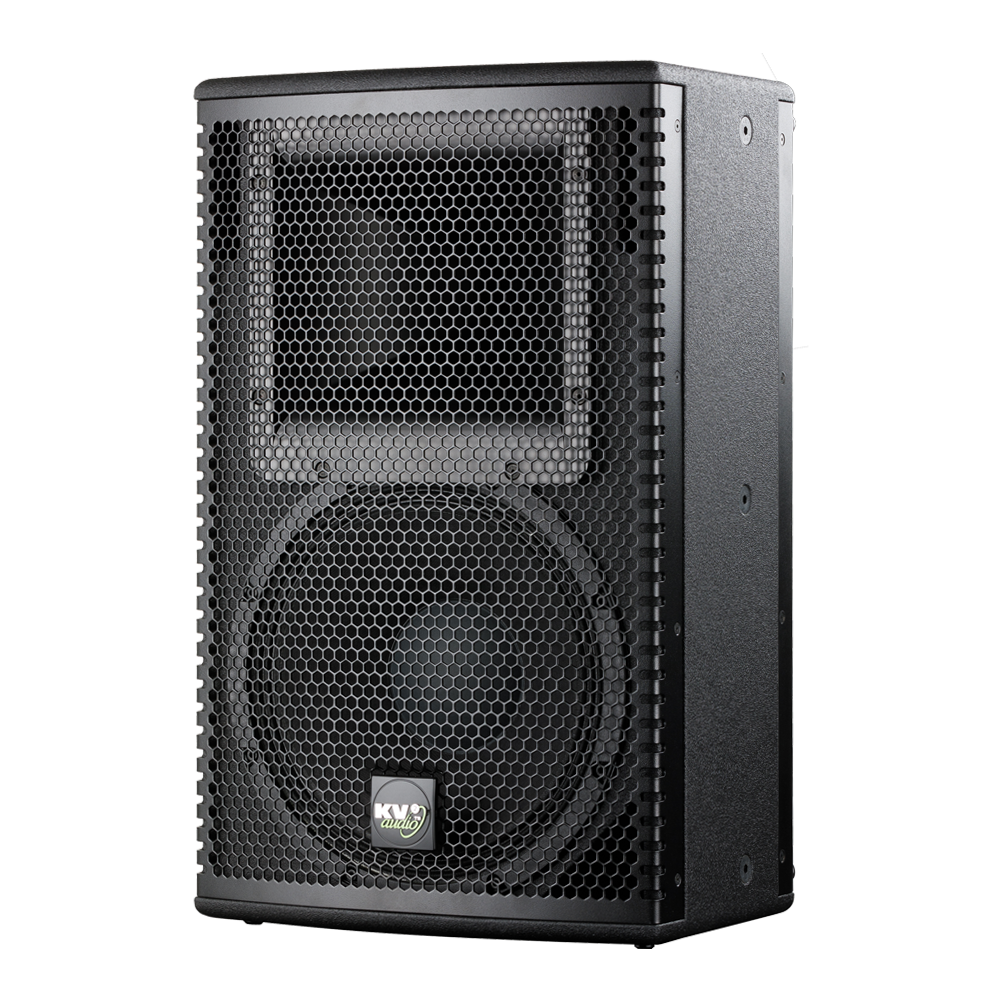

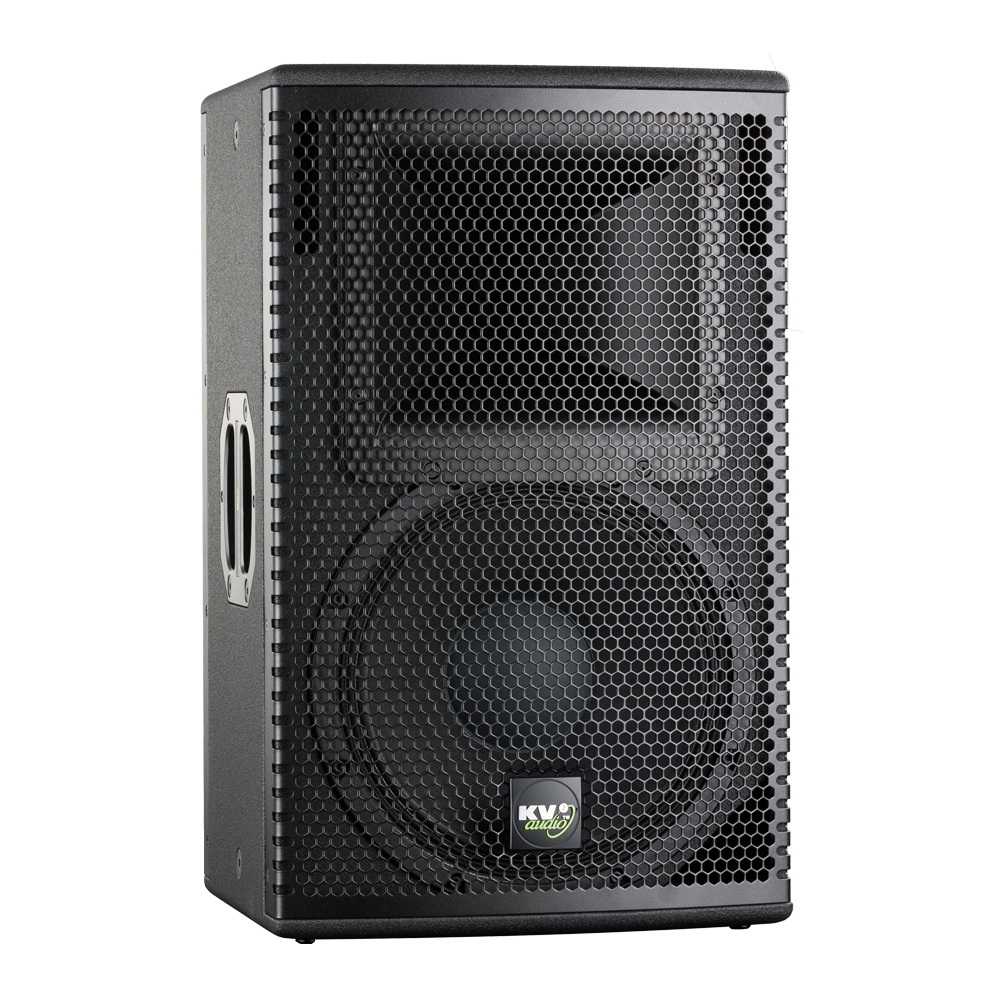

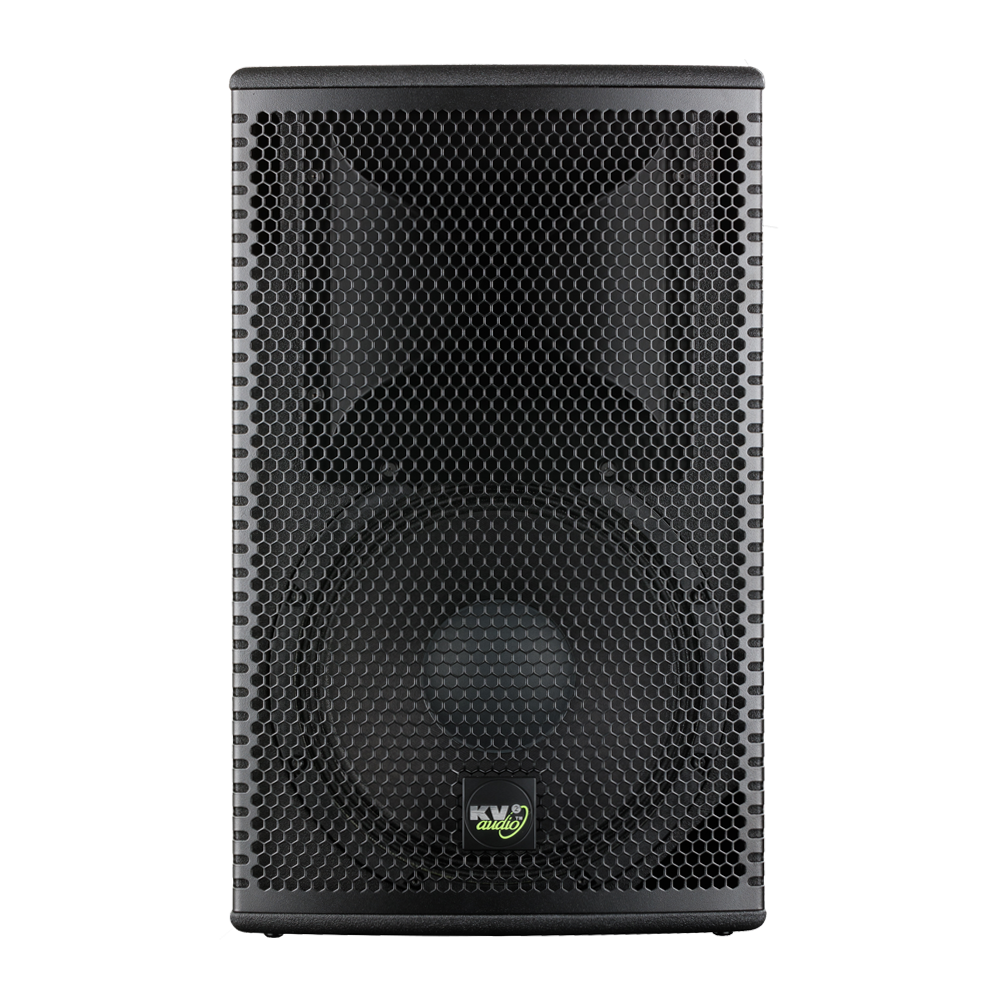

Model: EX12
Type: High Quality 2-way Active Speaker
Description:
The EX12 further builds on the success of the EX6 and EX10 by implementing the revolutionary 3" NVPD large format compression driver found in our flagship VHD range of products. This makes for one of the most perfectly balanced and accurate, compact, 2-way active boxes available on the market today. Complete onboard control courtesy of electronic crossovers, phase alignment, equalization and speaker protection are all integrated into the EX12’s amplifier module.
Technical characteristics:
Features:
- Professional, Baltic birch construction with wear resistant polymer coating
- 127dB sustained output, 130dB peak with very high dynamic range and low noise floor
- 500W of total power with complete on-board speaker management system
- 450W high efficiency, current enhancing, switching low frequency amplifier
- Very high quality 50W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
- Compact asymmetrical trapezoidal design allows for use in stage monitor or under balcony applications with high pass filter to adjust equalisation and phase response
- Wide dispersion 80° H x 40° V horn
- New state of the art 3" (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
- 12" woofer with revolutionary Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers
- distortion and provides increased frequency response linearity

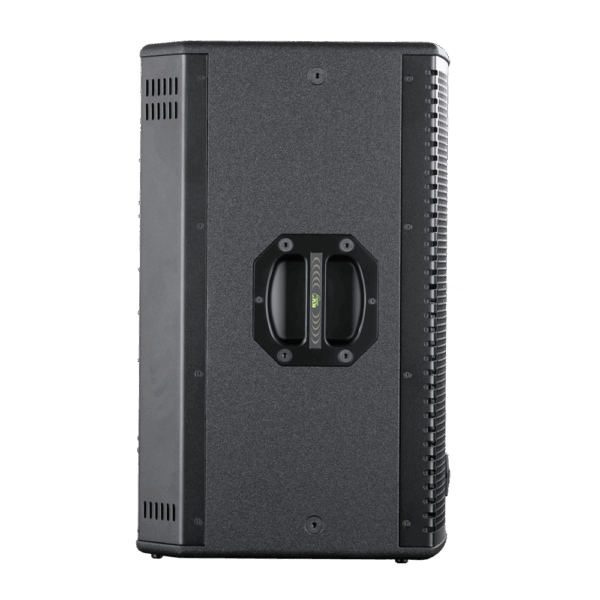

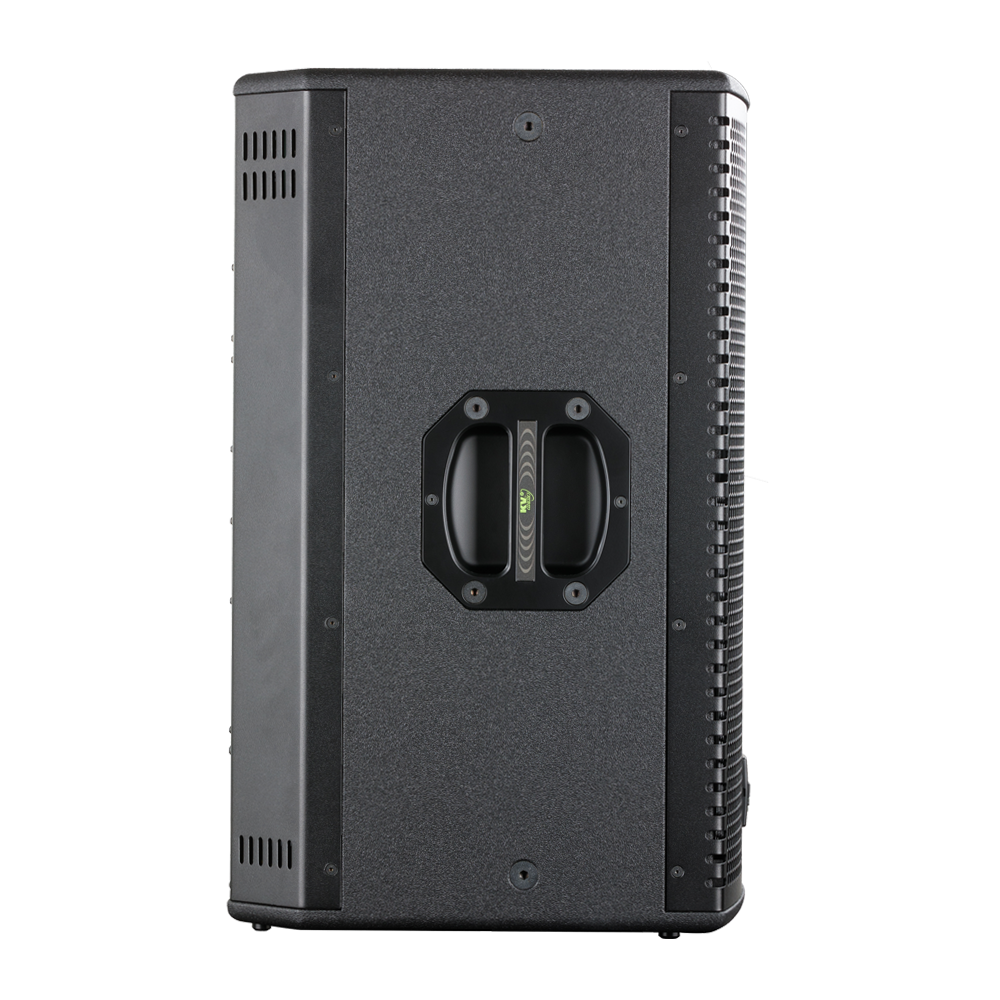

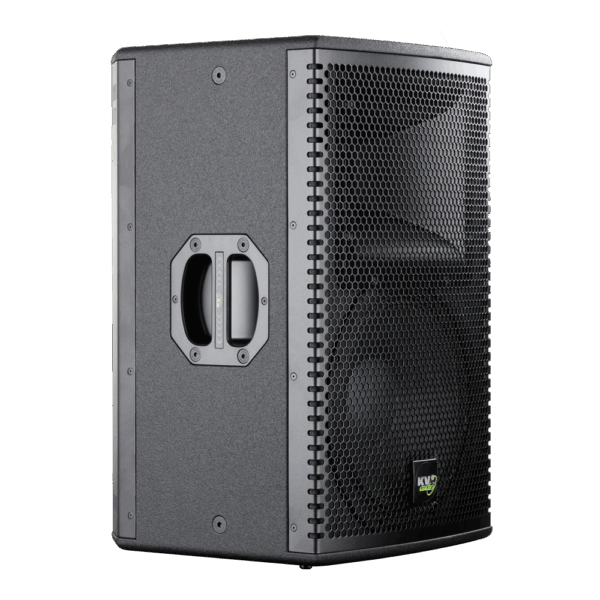

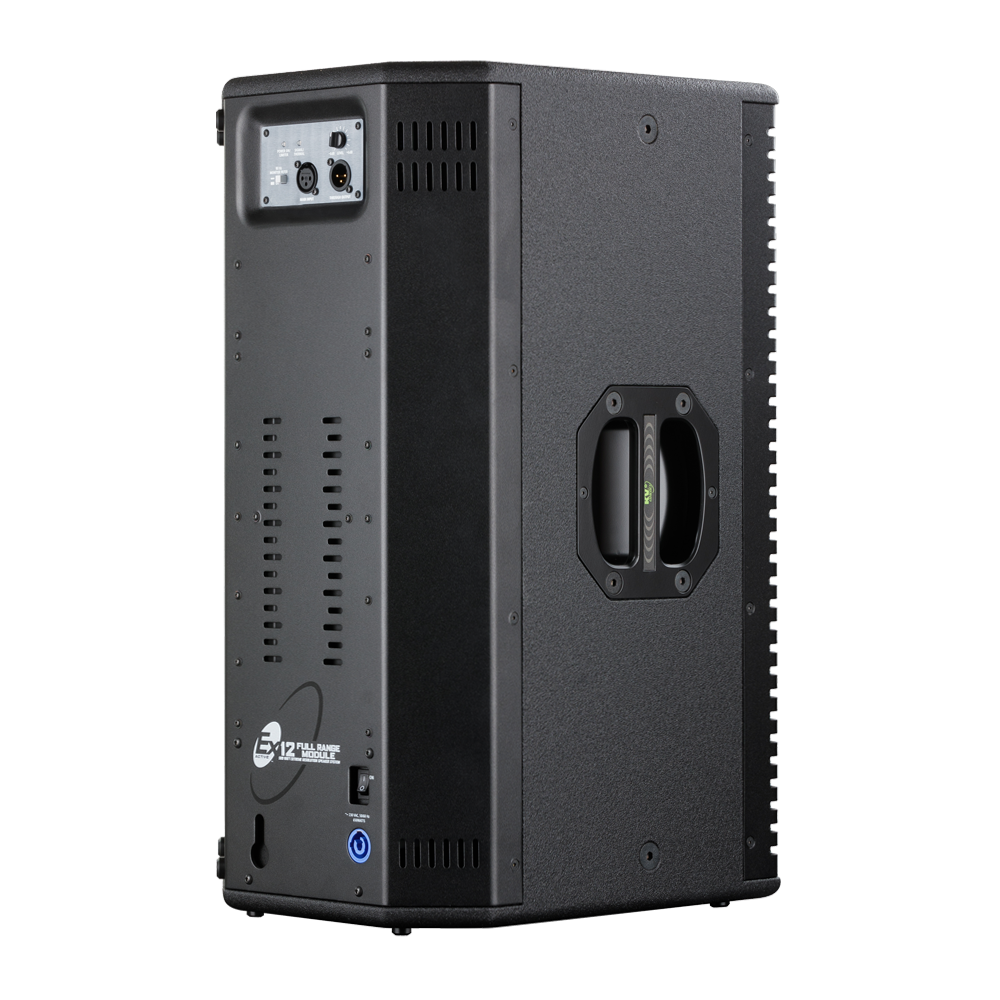

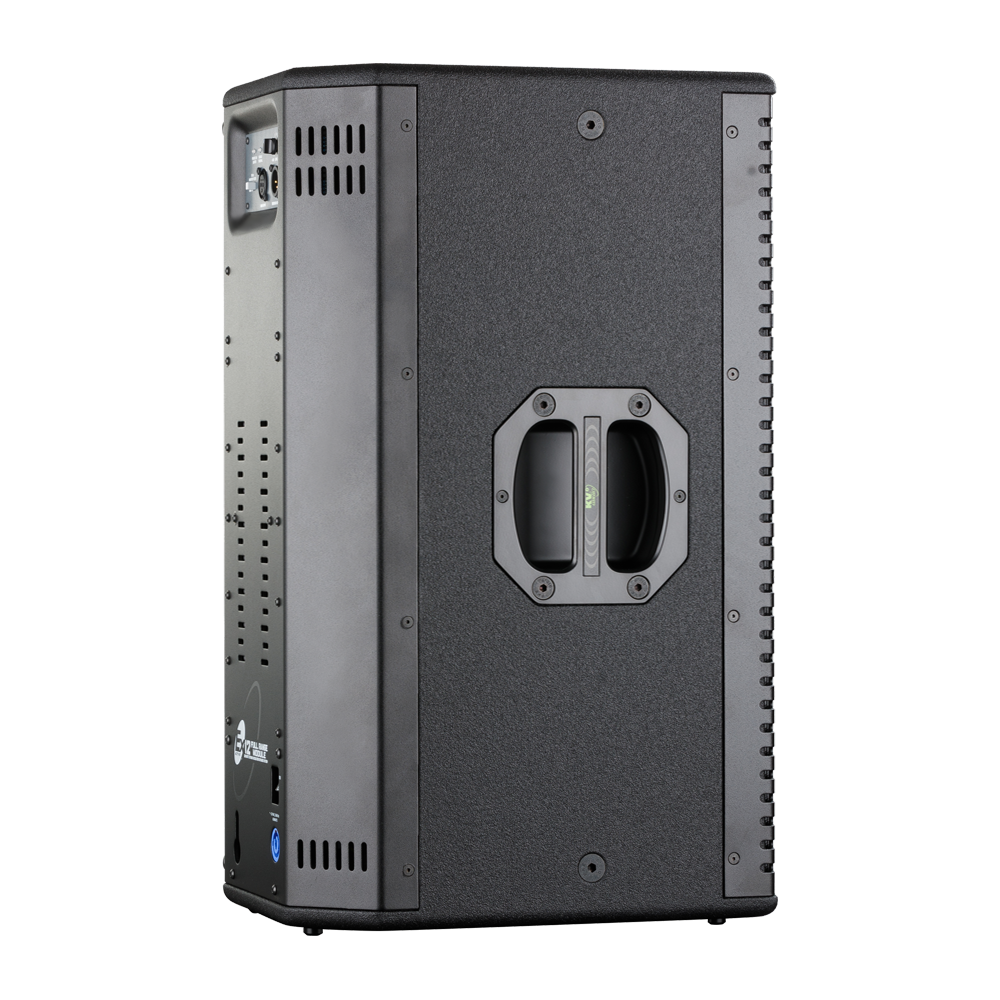

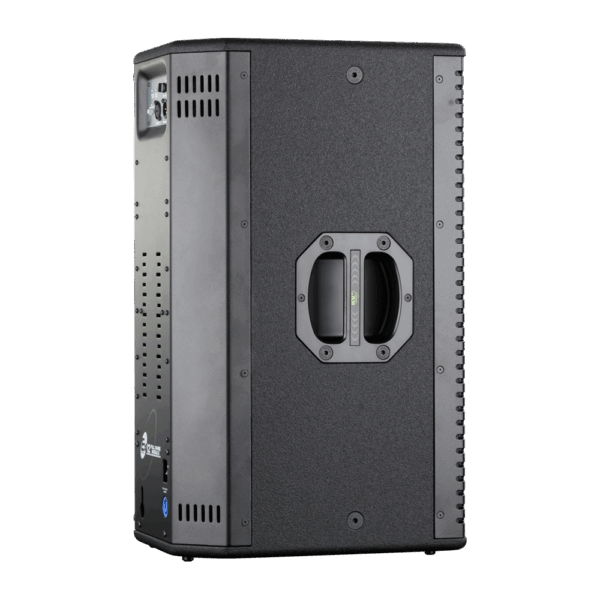

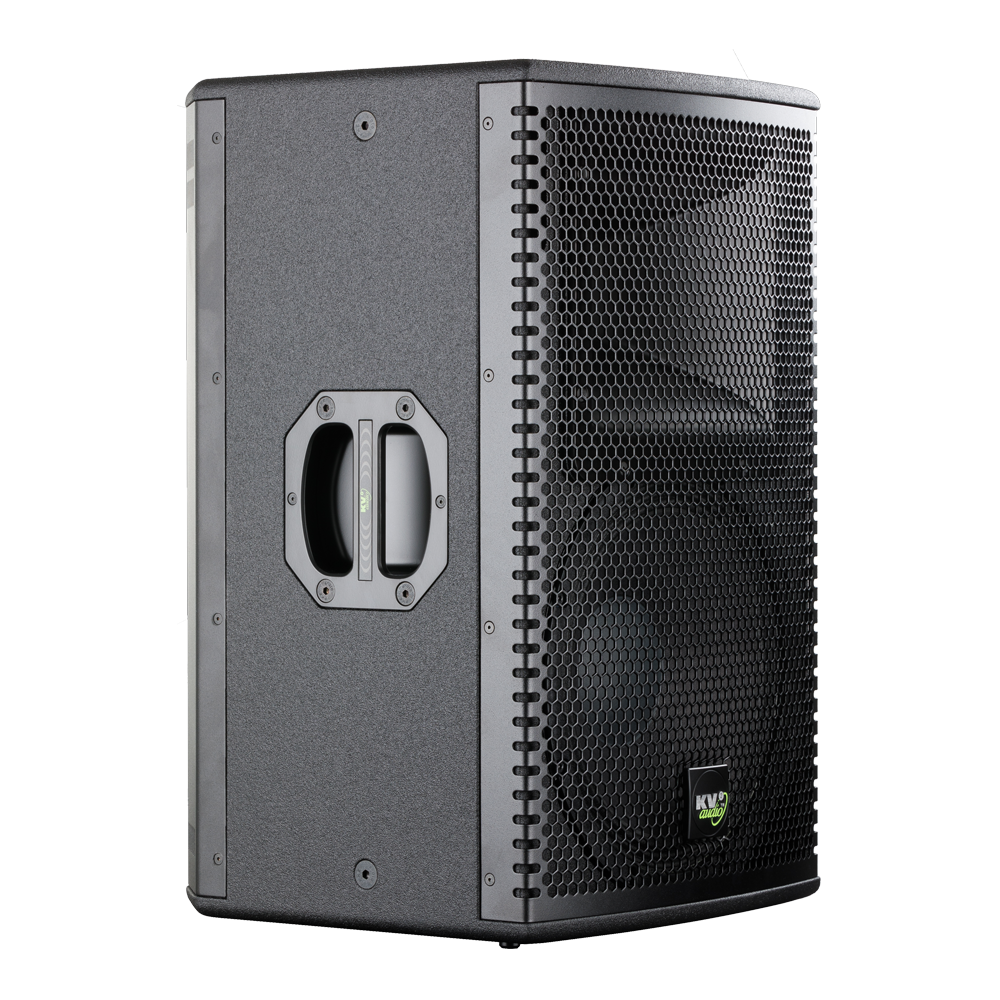

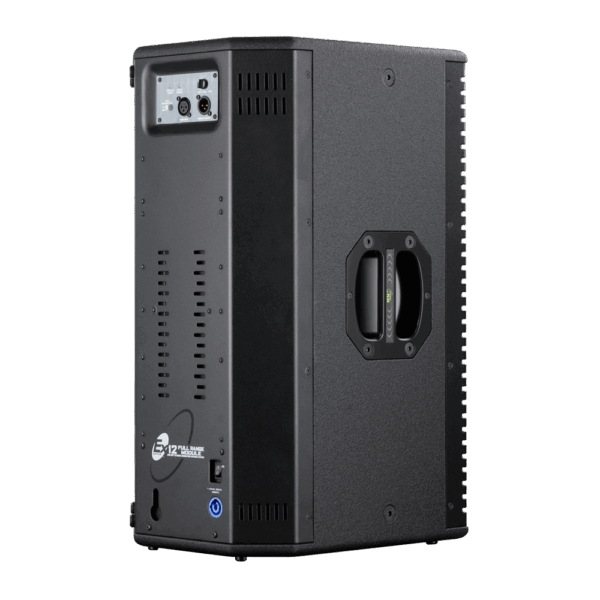

- Proprietary top and side handle designs for simplified handling and carrying, integrates one M10 hang point, OmniMount™ bracket point and four M6 bracket points
- Ten additional M10 suspension points for flexible rigging and installation options

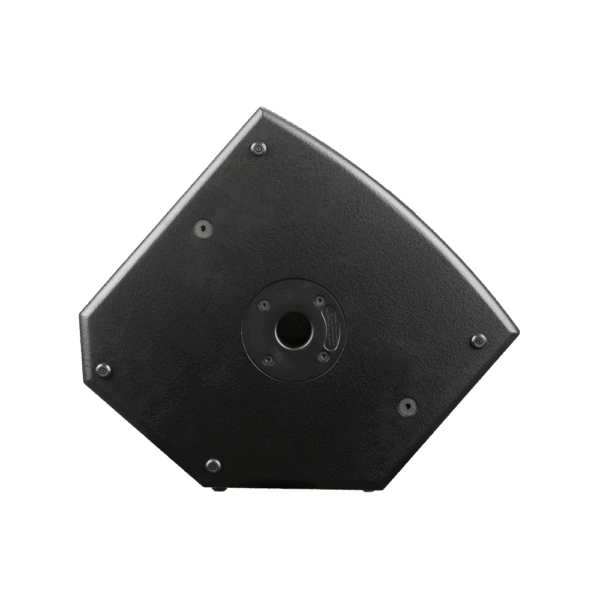

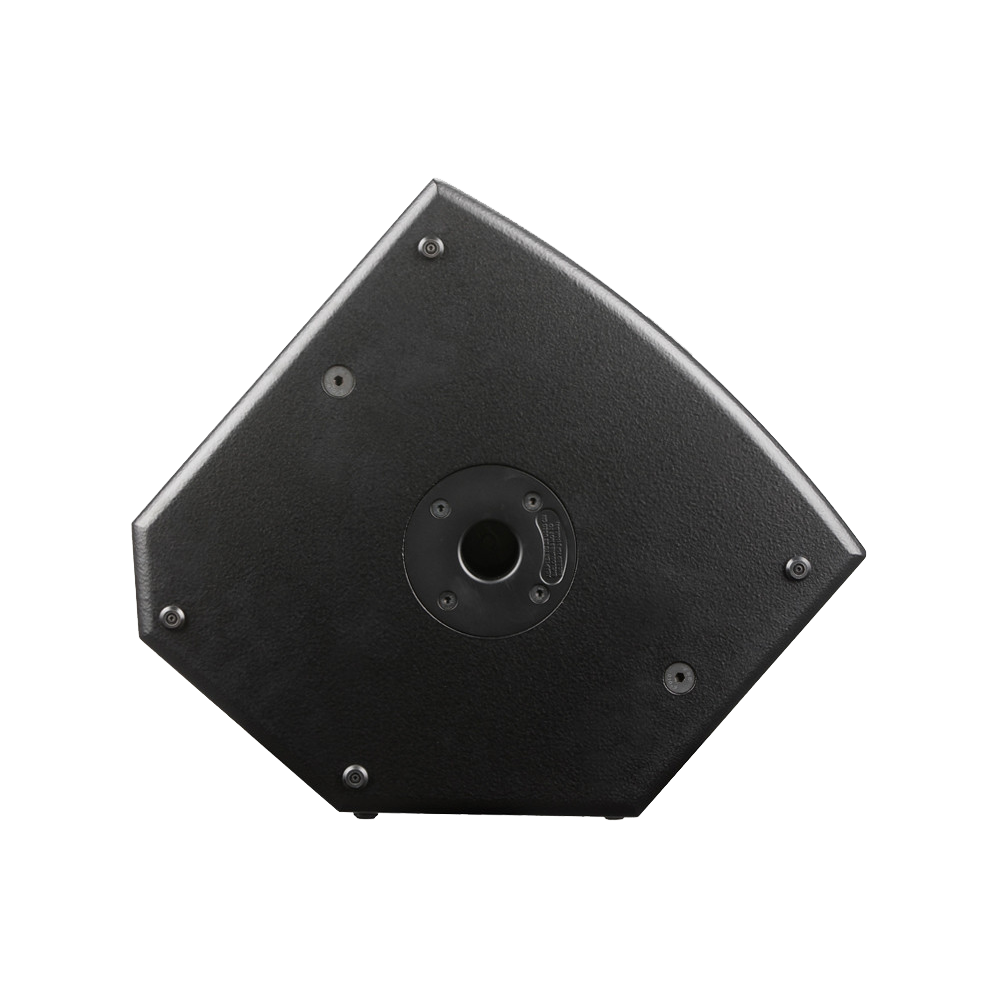

- Top hat for pole mounting applications
- LED indicators for signal present, limiter, thermal condition and power ON status
System Acoustic Perfomance:
Max SPL Long-term: 127dB
Max SPL Peak: 133dB
-3dB Response: 55Hz to 22kHz
-10dB Response: 45Hz to 30kHz
Crossover Point: 1.1kHz
High Frequency Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 80° x 40°
Rotatable Horn: NO
Throat Exit Diameter / Diaphragm Size: 1.4" / 3"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
High Frequency Amplifier Specification:
Type: Class AB Push-Pull
Rated Continuous Power: 50W
Distortion: <0.05%
Operating Bandwidth: 1.1kHz to 30kHz
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design: 12" / 3.0" / Trans Coil
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low Frequency Amplifier Specification:
Type: High efficiency, Current-enhancing switch mode
Rated Continuous Power: 450W
Distortion: <0.05%
Operating Bandwidth: 45Hz to 1.1kHz
Signal Input:
Input Sensitivity: 1.0V RMS
Input Impedance: 20 kΩ
Power:
Power Connector: Neutrik PowerCon®
Operating Voltage: Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage: 6A 115V | 3A 230V | 3A 250V
Cabinet:
Cabinet Material: Baltic birch
Handles: 2
Pole Mount: 35 mm
Color: "Orange peeled" Matt Black or any RAL
Physical Dimensions:
Height: 596 mm (23.46")
Width: 368 mm (14.49")
Depth: 368 mm (14.49")
Weight: 29 kg (63.8lbs)
Product code:
KVV 987 095 - EX12 250V
KVV 987 059 - EX12 230V
KVV 987 060 - EX12 115V
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Designed for the highest quality vocal and full range live performance in medium size applications
● Suitable for medium to large conference, Theatre and small to medium scale concerts ● Scalable from stand alone to full range large systems incorporating EX subwoofers ● Fixed installations ● Stage monitoring
