Brand: KV2 Audio
Model: EX10
Type: High Quality 2-way Active Speaker
Description:

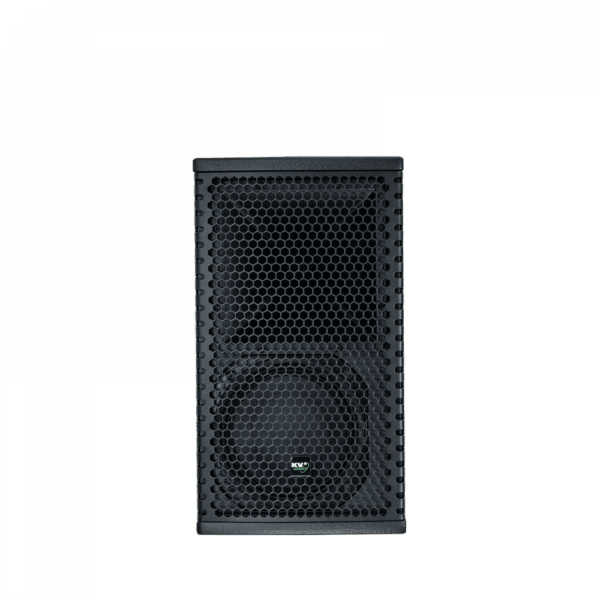

The EX10 is a very compact 2-way, high-output, full range active speaker system. Despite its 10" woofer and remarkably small footprint it successfully takes on many larger 12" models and is favored by audio visual and rental companies all over the world for its sheer quality and tremendous output. On-board electronics ensure fast, easy set up and complete control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX10’s amplifier module.
Technical characteristics:
Features:
- Professional, Baltic birch construction with wear resistant polymer coating
- 126dB sustained output, 129dB peak with very high dynamic range and low noise floor
- 500W of total power with complete on-board speaker management system
- 450W high efficiency, current enhancing, switching low frequency amplifier
- Very high quality 50W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output

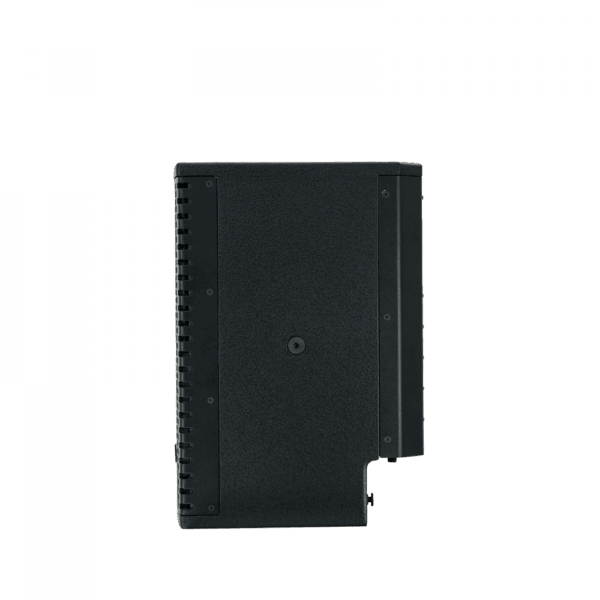

- Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor or under balcony applications with high pass filter to adjust equalization and phase response
- Wide dispersion, 100° H x 80° V rotatable horn
- 1.75" (44 mm) Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure
- 10" woofer with revolutionary Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
- Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmniMount™ bracket point and four M6 bracket points
- Four additional M10 suspension points for flexible rigging and installation options
- Top hat for pole mounting applications
- LED indicators for signal present, limiter, thermal condition and power ON status
System Acoustic Perfomance:
Max SPL Long-term: 126dB
Max SPL Peak: 132dB
-3dB Response: 65Hz to 20kHz
-10dB Response: 55Hz to 28kHz
Crossover Point: 1.6kHz
High Frequency Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 100° x 80°
Rotatable Horn: YES
Throat Exit Diameter / Diaphragm Size: 1" / 1.75"
Diaphragm Material: Titanium
Magnet Type: Neodymium
High Frequency Amplifier Specification:
Type: Class AB Push-Pull
Rated Continuous Power: 50W
Distortion: <0.05%
Operating Bandwidth: 1.6kHz to 28kHz
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design: 10" / 2.5" / Trans Coil
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Low Frequency Amplifier Specification:
Type: High efficiency, Current-enhancing switch mode
Rated Continuous Power: 450W
Distortion: <0.05%
Operating Bandwidth: 55Hz to 1.6kHz
Signal Input:
Input Sensitivity: 0.775V RMS
Input Impedance: 20 kΩ
Power:

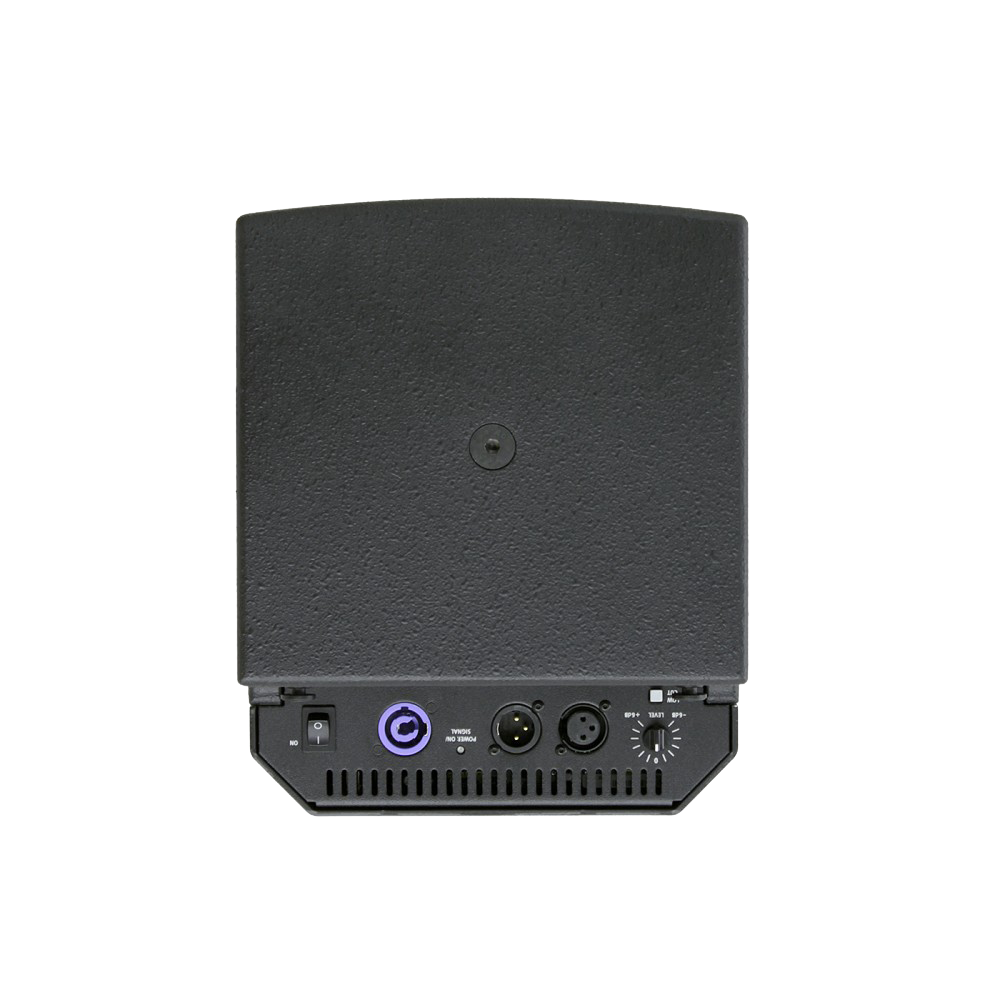

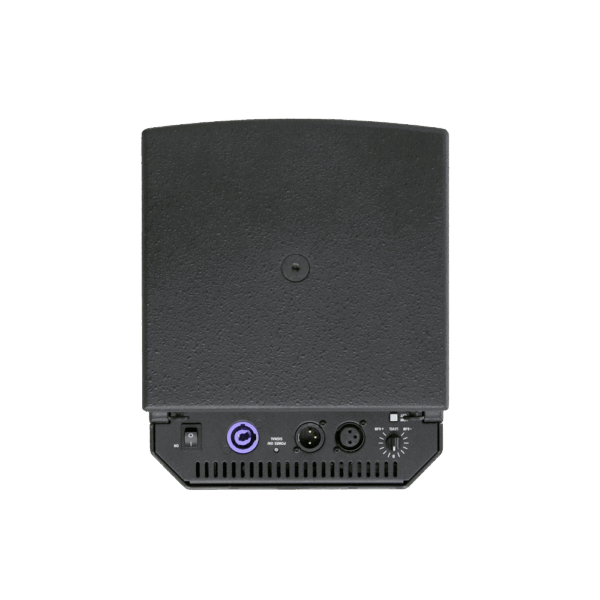

Power Connector: Neutrik PowerCon®
Operating Voltage: Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage: 6A 115V | 3A 230V | 3A 250V
Cabinet:
Cabinet Material: Baltic birch
Handles: 1
Pole Mount: 35 mm
Color: "Orange peeled" Matt Black or any RAL
Physical Dimensions:
Height: 514 mm (20.23")
Width: 310 mm (12.20")
Depth: 326 mm (12.83")
Weight: 22 kg (48.4lbs)
Product code:
KVV 987 097 - EX10 250V
KVV 987 011 - EX10 230V
KVV 987 012 - EX10 115V
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Specifically designed for high quality, high output multi-tasking, portable music playback and live performance in small applications
● Full range stand-alone solution or scalable to larger capabilities with subwoofers for large conference, meetings and small to medium performance venues ● Multi-purpose fixed installations ● Personal monitoring ● Infill for larger main KV2 Audio systems
