Brand: KV2 Audio
Model: ESD8
Type: Passive 2 way speaker
Description:

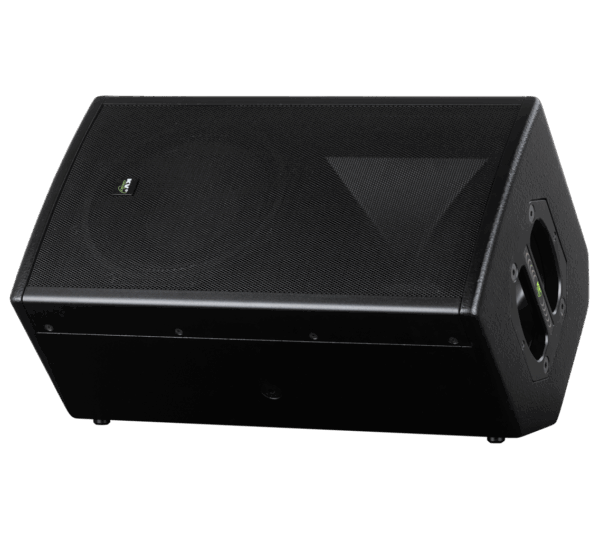

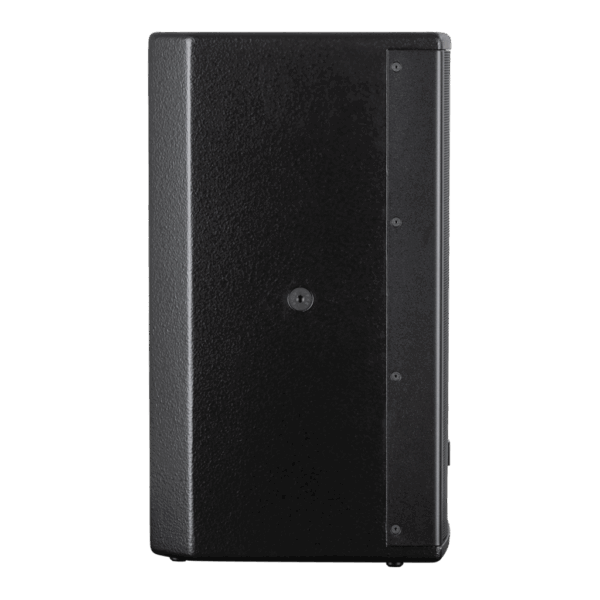

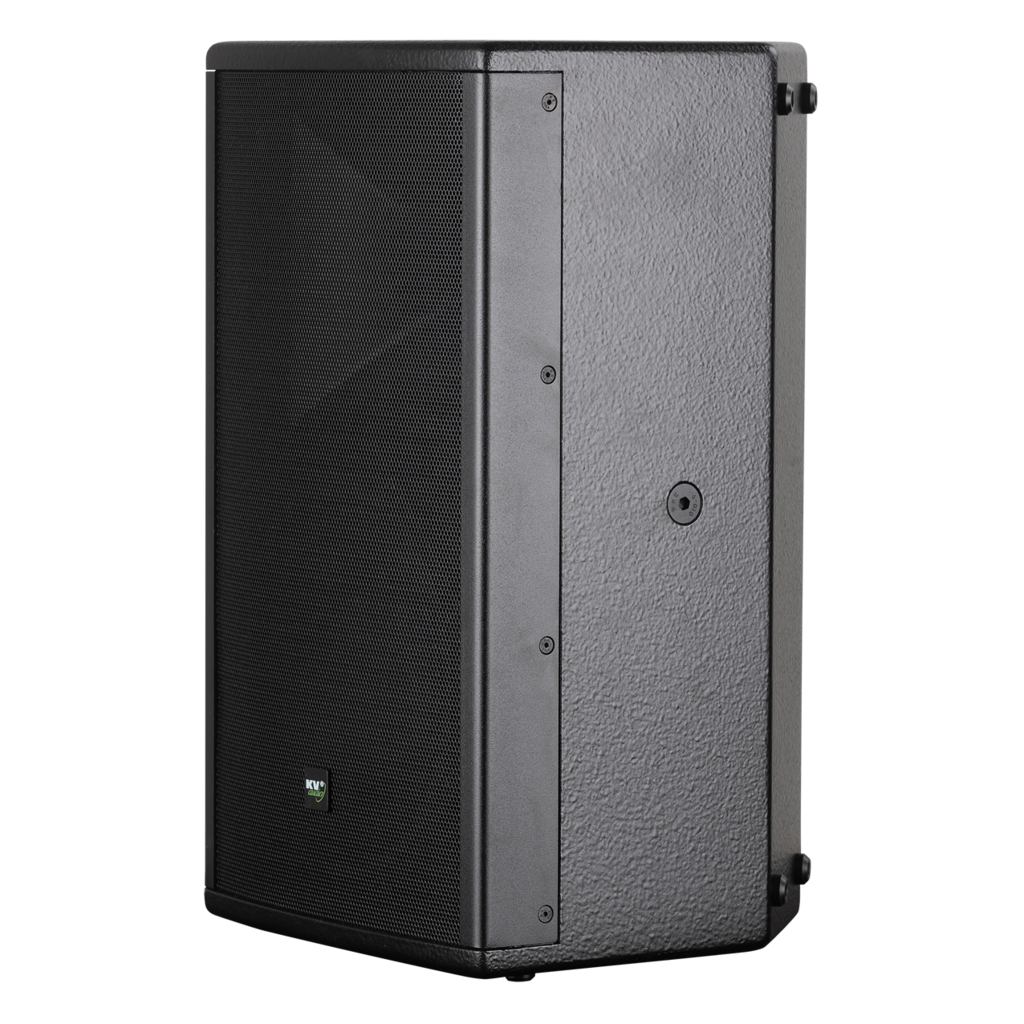

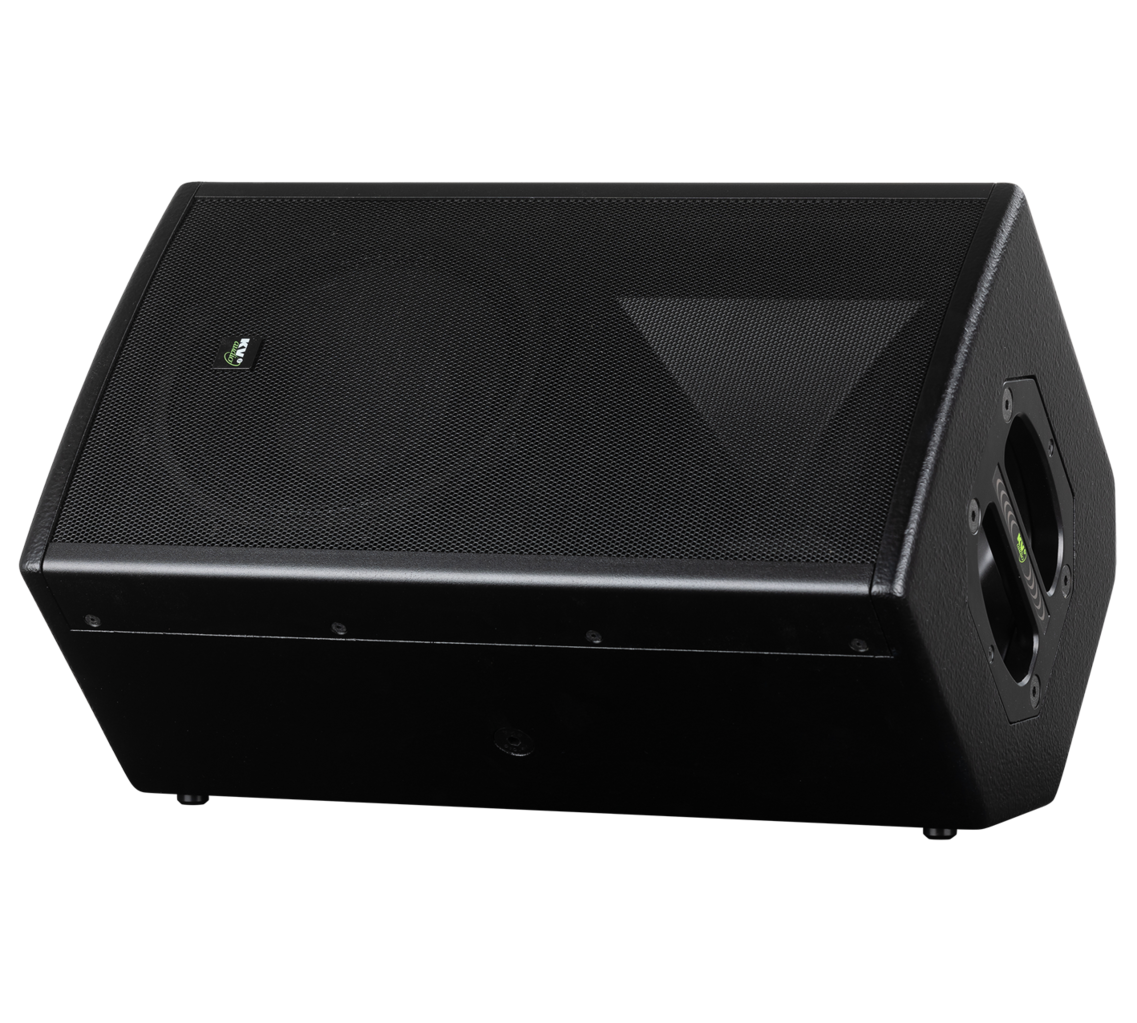

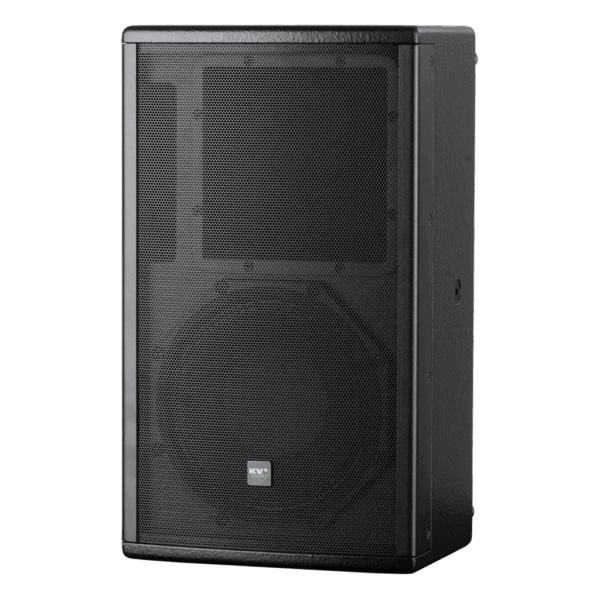

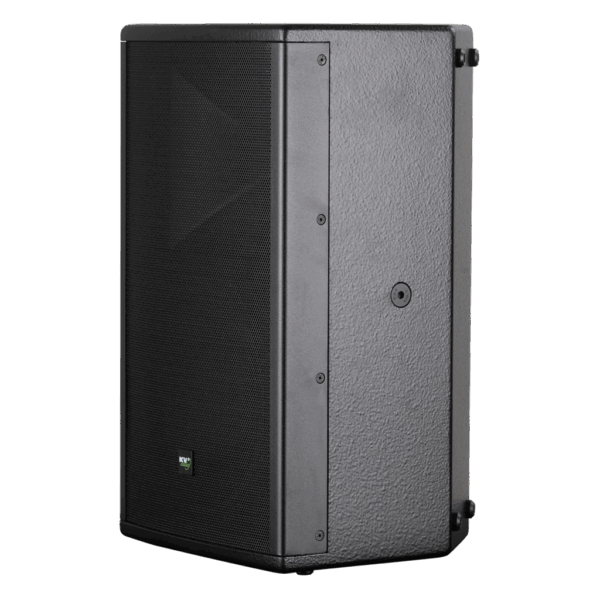

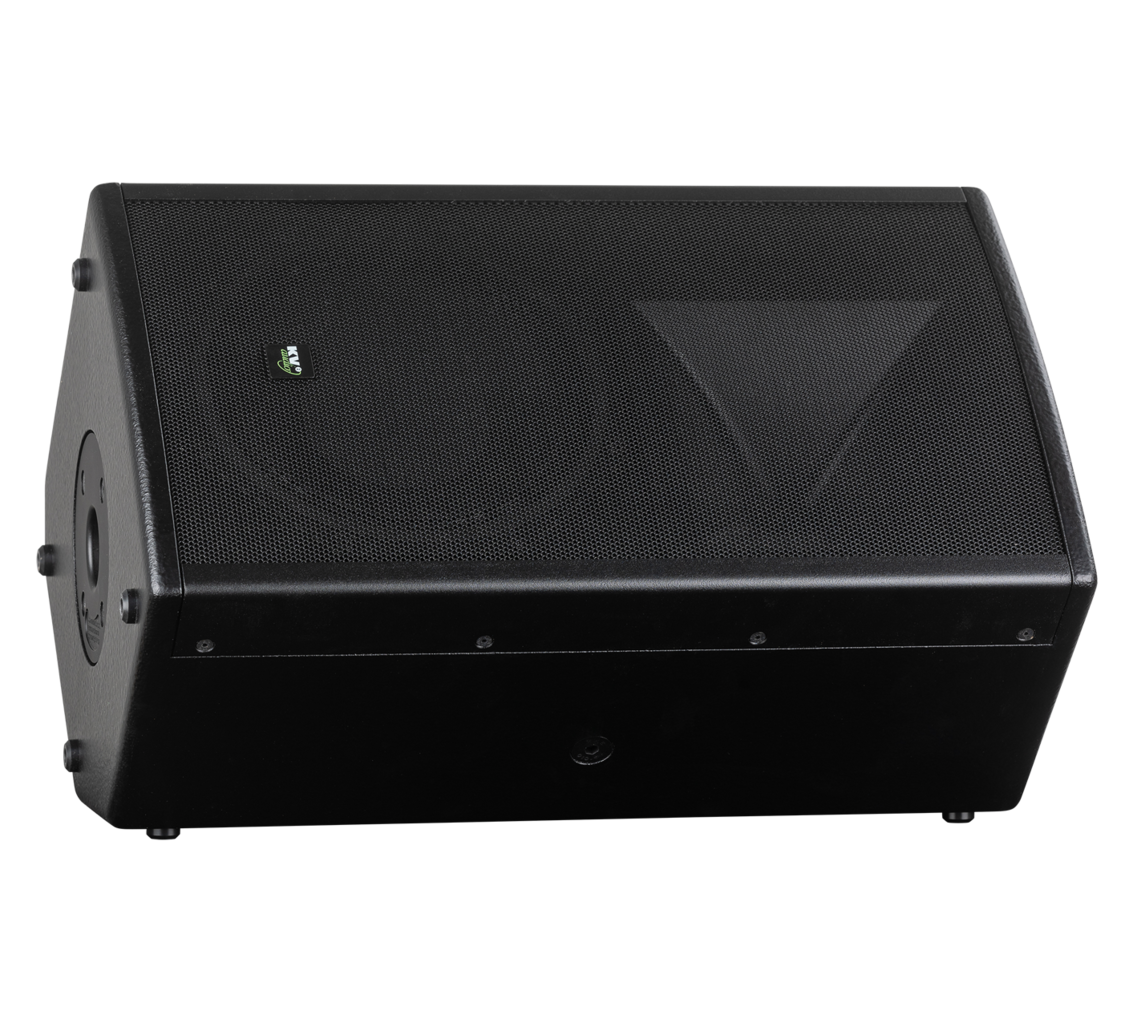

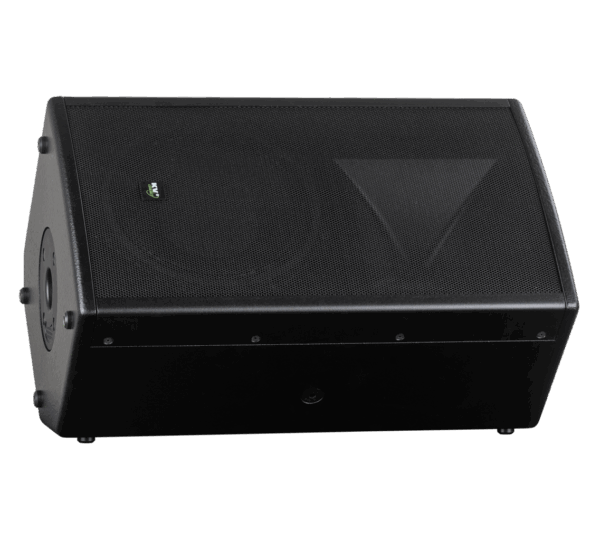

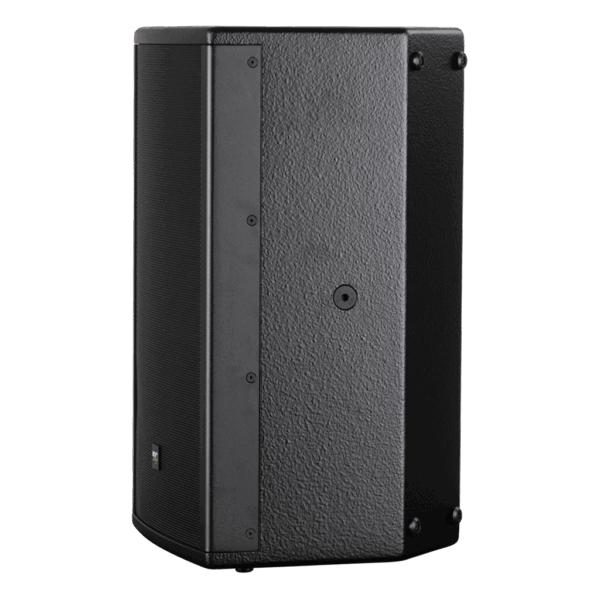

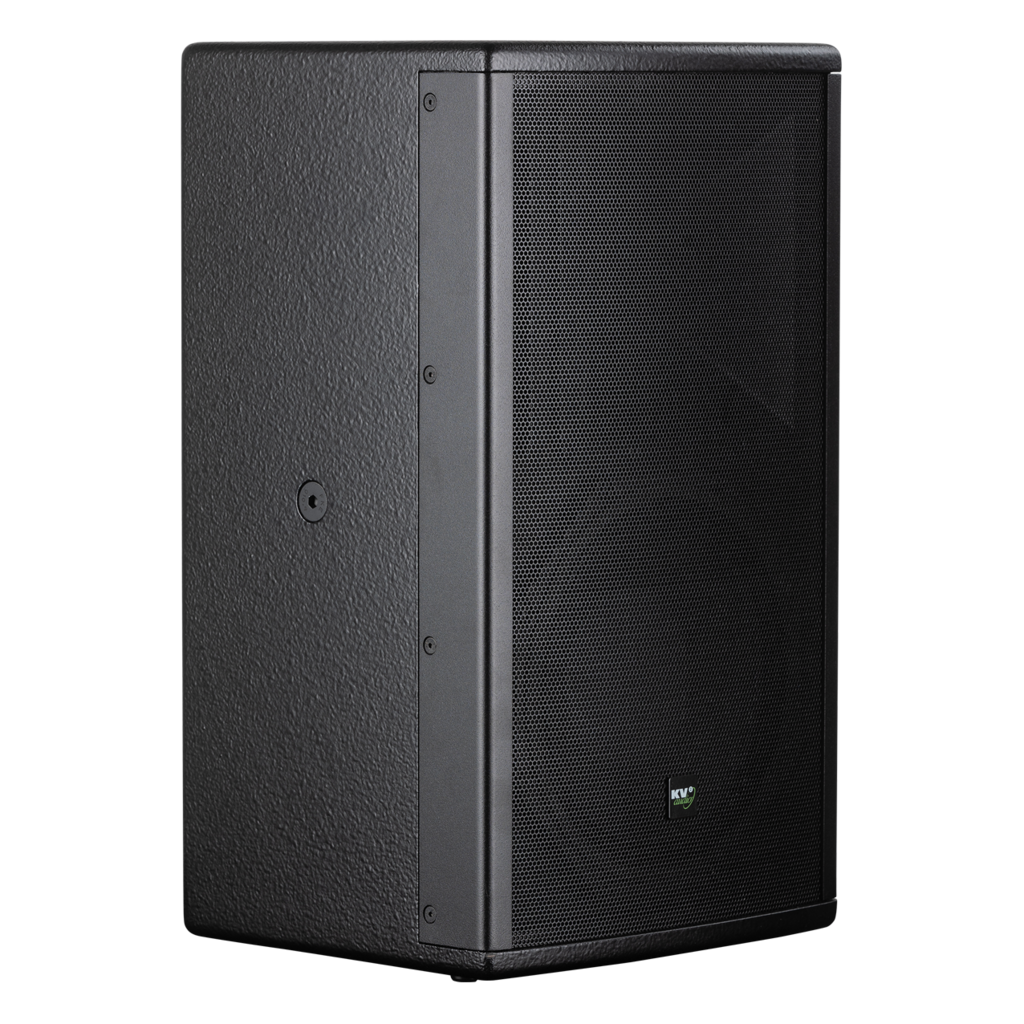

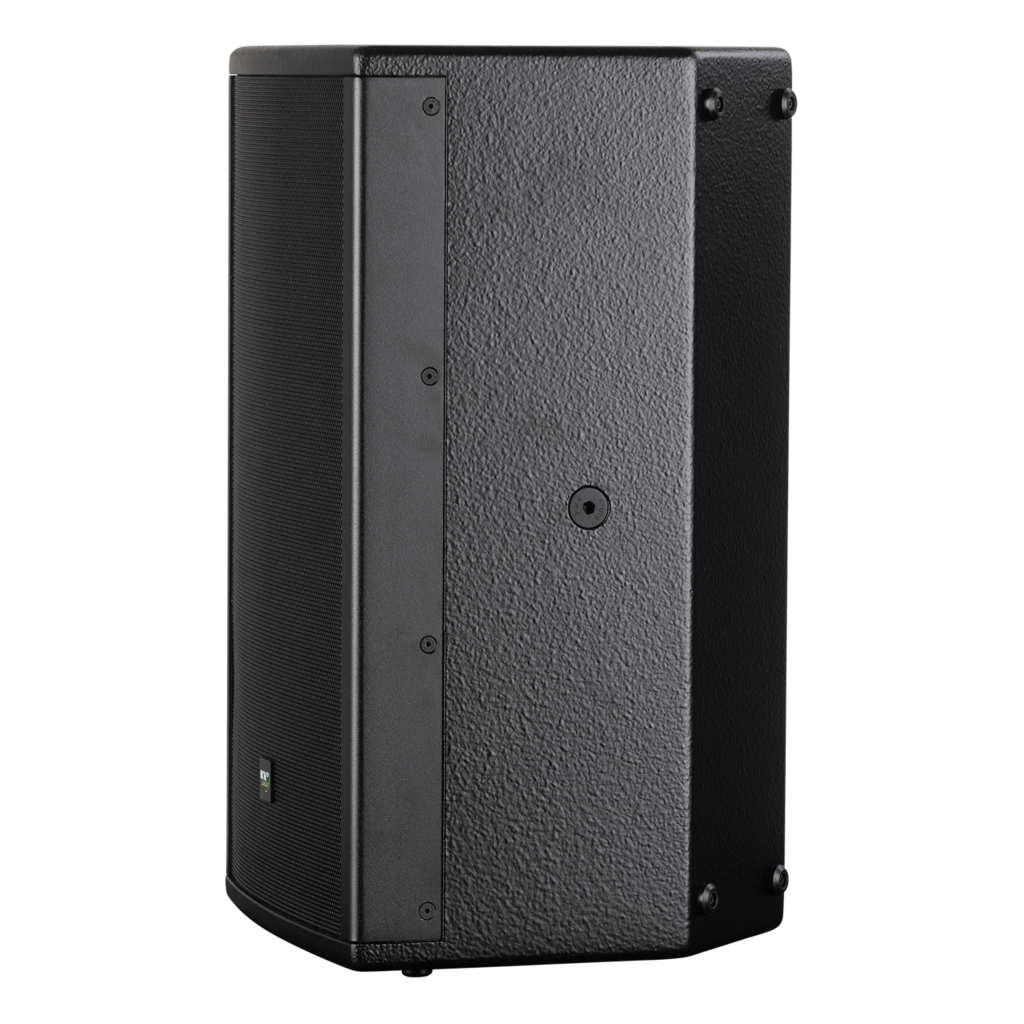

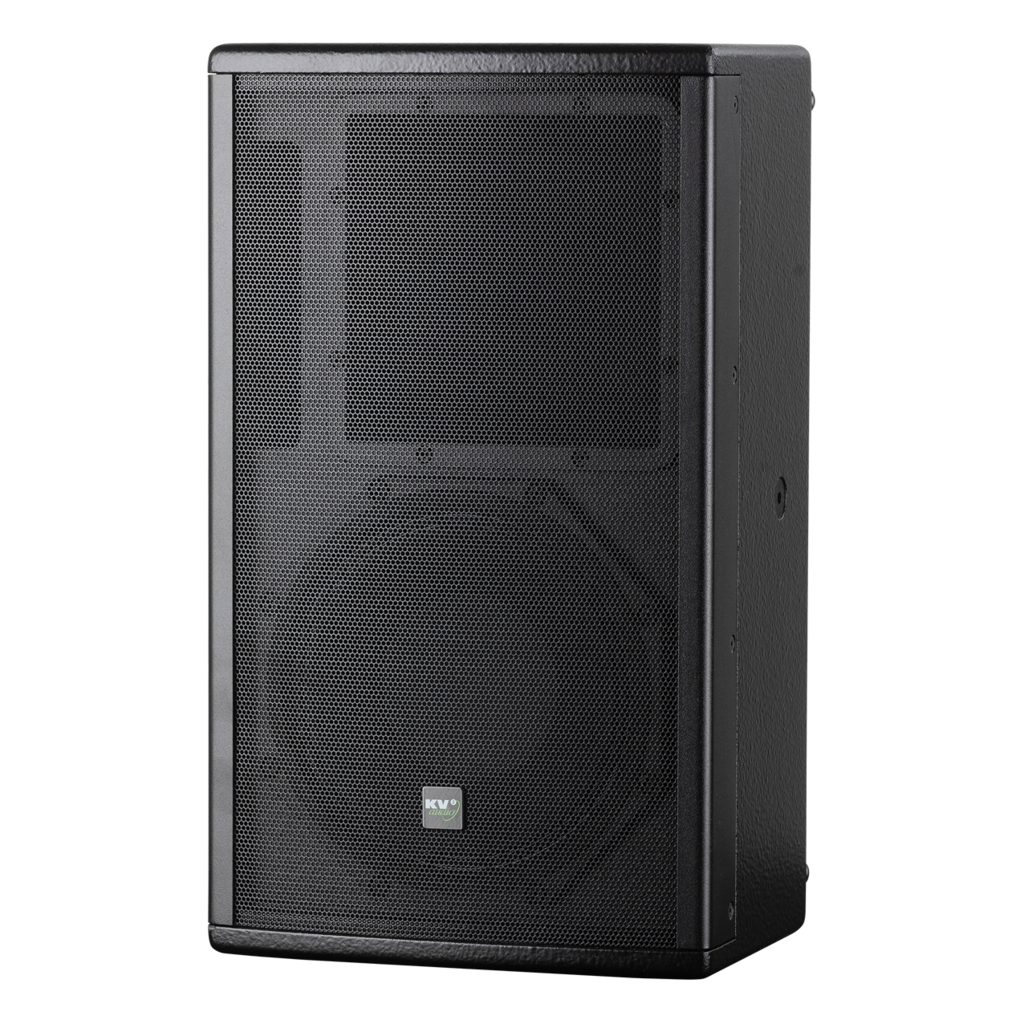

The ESD8 is a compact passive 2-way, high output full-range loudspeaker incorporating an 8" trans-coil woofer and a 1” compression driver coupled to a wide dispersion horn. Presented conservatively in a unique angled low-profile Baltic birch enclosure and designed to present exceptional speech and music definition, the ESD8 provides a smooth hi fidelity response and delivers a natural sound quality and level that is superior to many larger competing products. Ideal as a main system speaker or as a in-fill for larger systems, the flexible ESD8 can be applied quickly and efficiently on podiums, stands or suspended.
Technical characteristics:
Features:
- Professional Baltic birch construction with unique angles for flexible use
- Extremely hard-wearing textured plastic paint
- Compact enclosure allows discreet placement and application
- Wide dispersion 100 H x 100 V Horn
- KV2 Audio SLA technology passive crossover inc. thermal breaker protection
- 1”/ 1,75” Titanium diaphragm compression driver
- 8” Neodymium low mid woofer
System Acoustic Performance:
Max SPL Long-term: 121dB
Max SPL Peak: 127dB
-3dB Response: 80Hz to 20kHz
-10dB Response: 62Hz to 28kHz
Recommended Power: 275W
Sensitivity: 94dB
Impedance: 8Ω
Crossover Point: 2.2kHz
High Frequency Section:
Acoustic Design: Horn Loaded
High Horn Coverage Horizontal / Vertical: 100° x 100°
Rotatable Horn: Symmetric
Throat Exit Diameter / Diaphragm Size: 1" / 1.75"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
Protection: RMS Limiter
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Number of Drivers: 1
Woofer Size / Voice Coil Diameter / Design: 8" / 2" / Trans coil
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Protection: Thermal breaker - auto reset

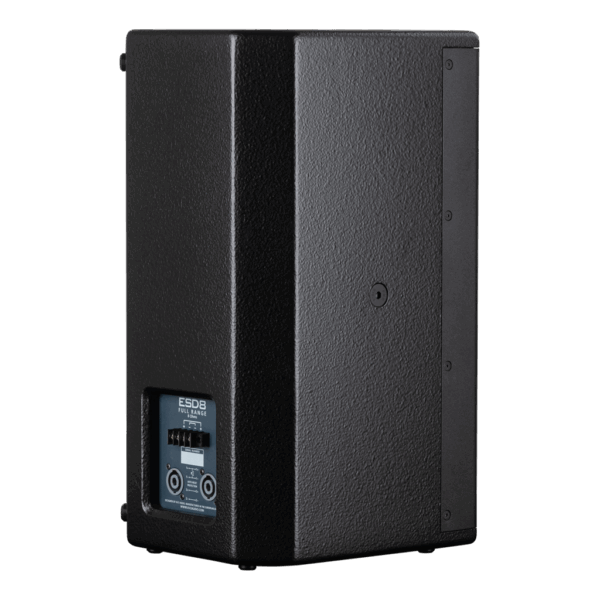

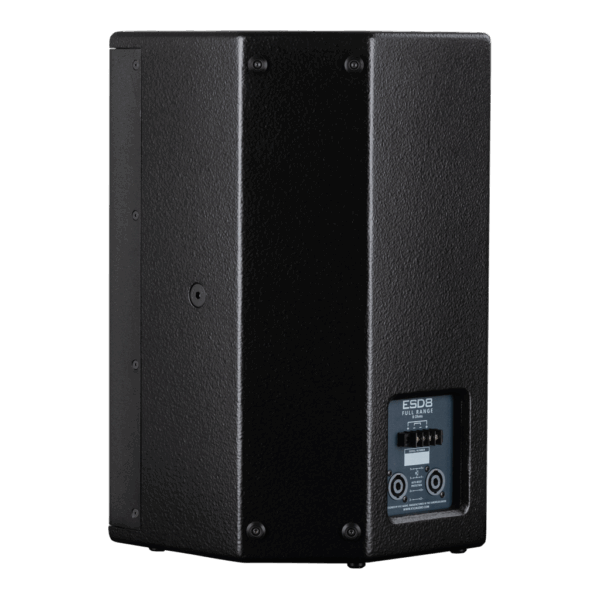

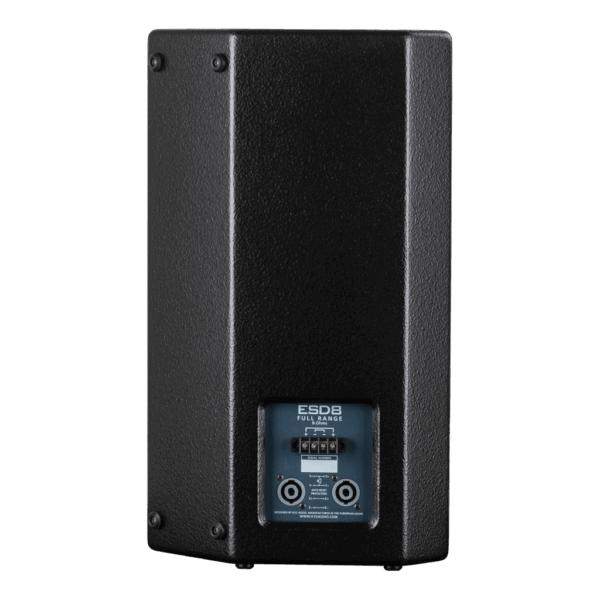

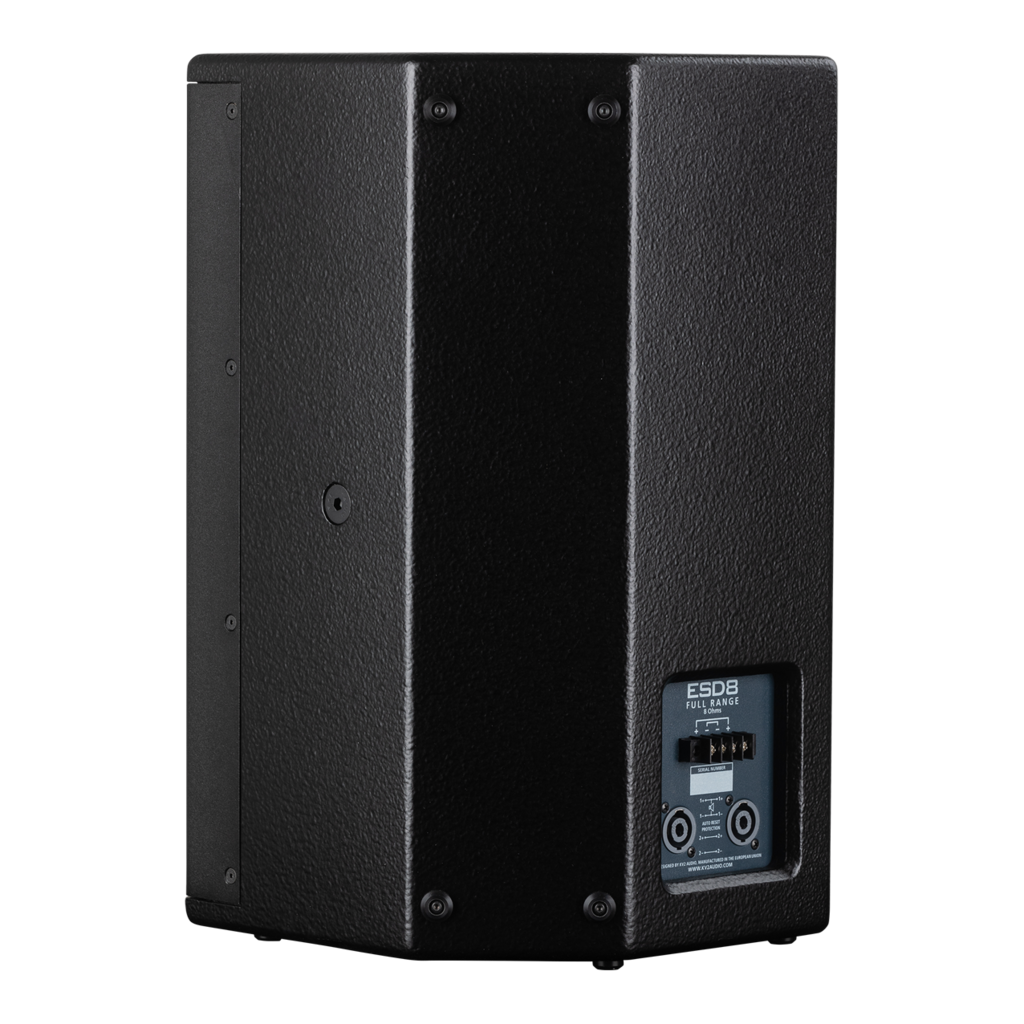

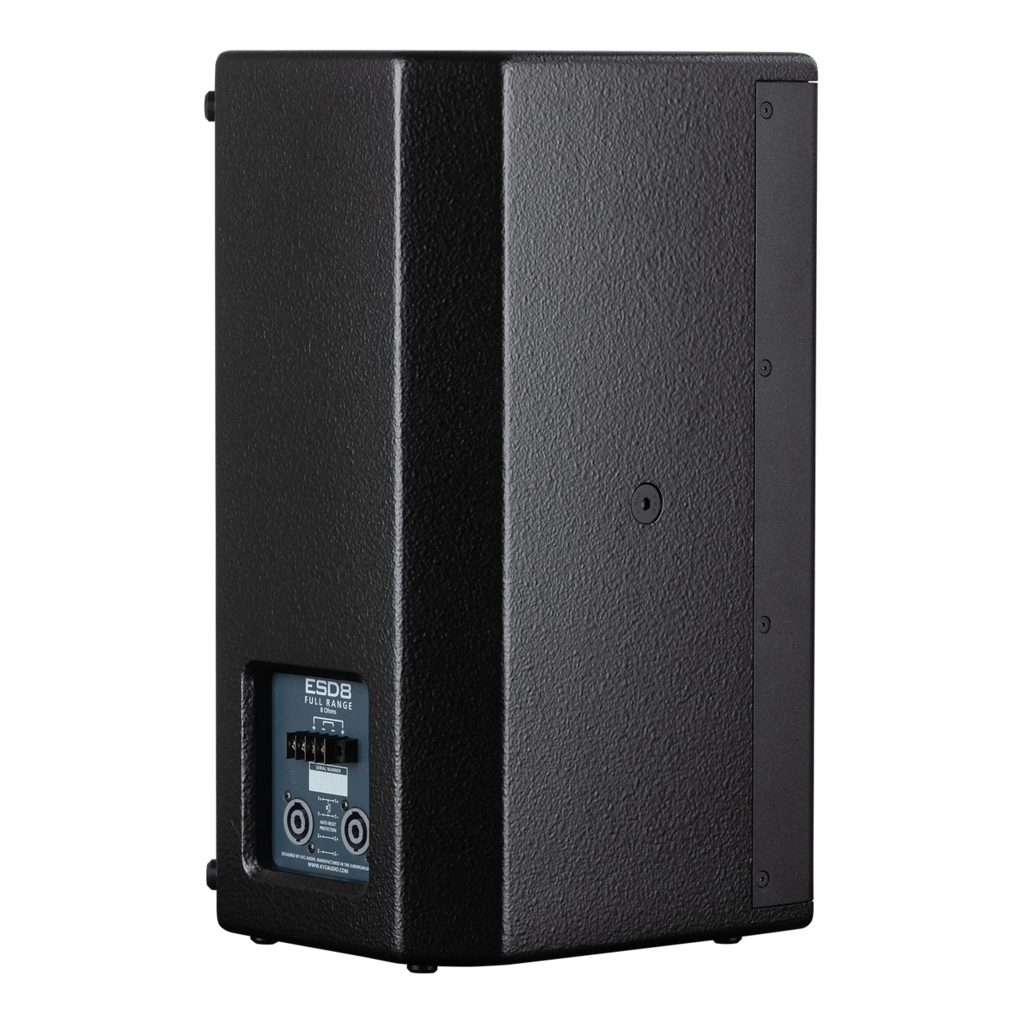

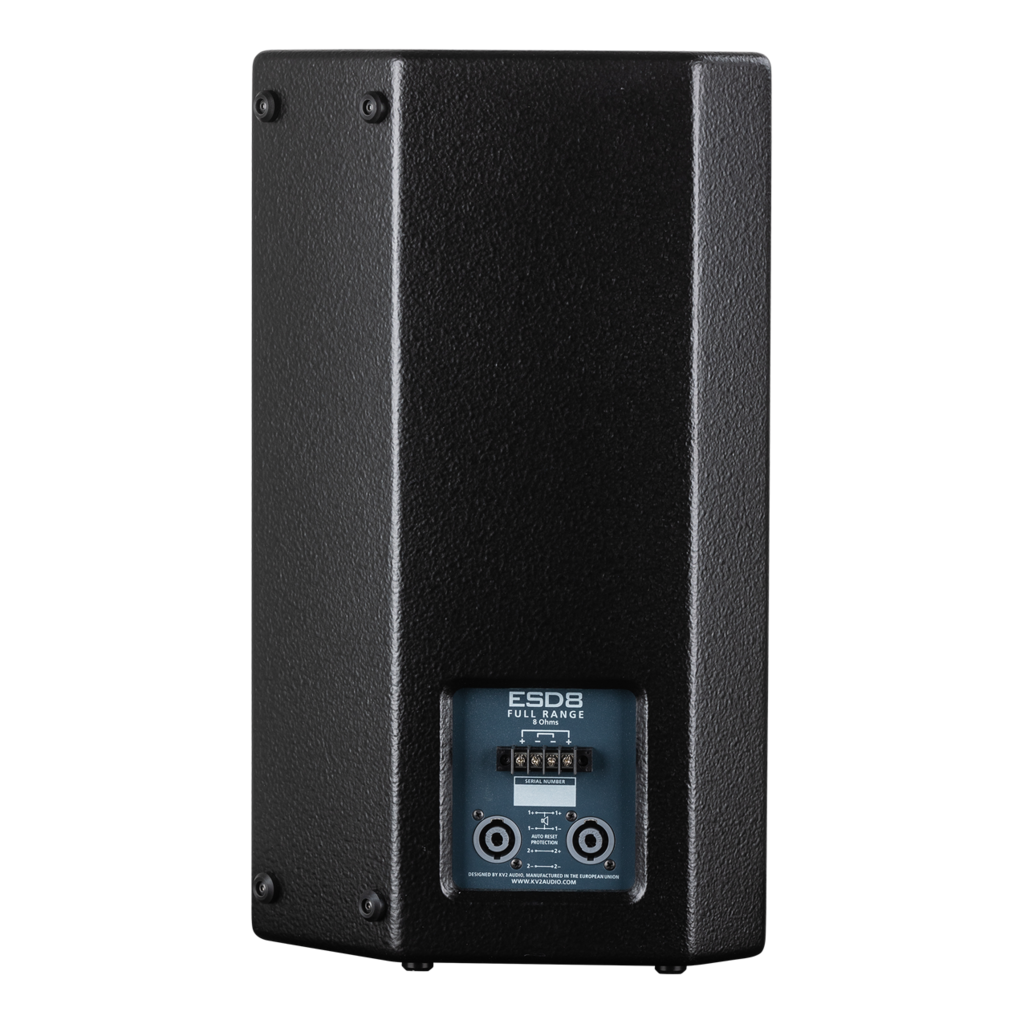

Speaker Input: 2x Neutrik Speakon®, Terminal Block
Cabinet:
Cabinet Material: Baltic birch

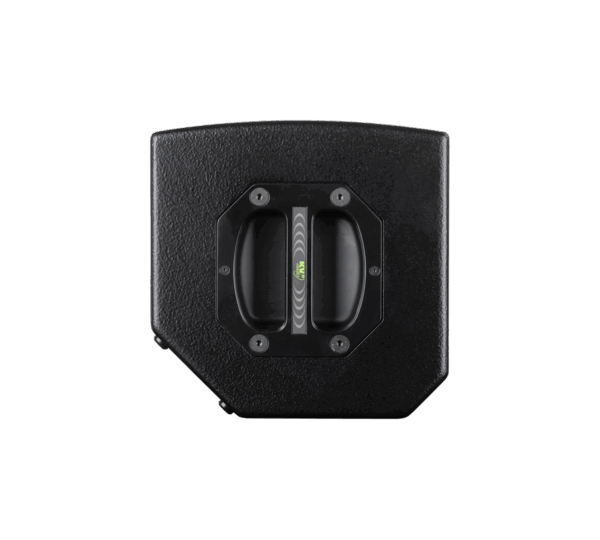

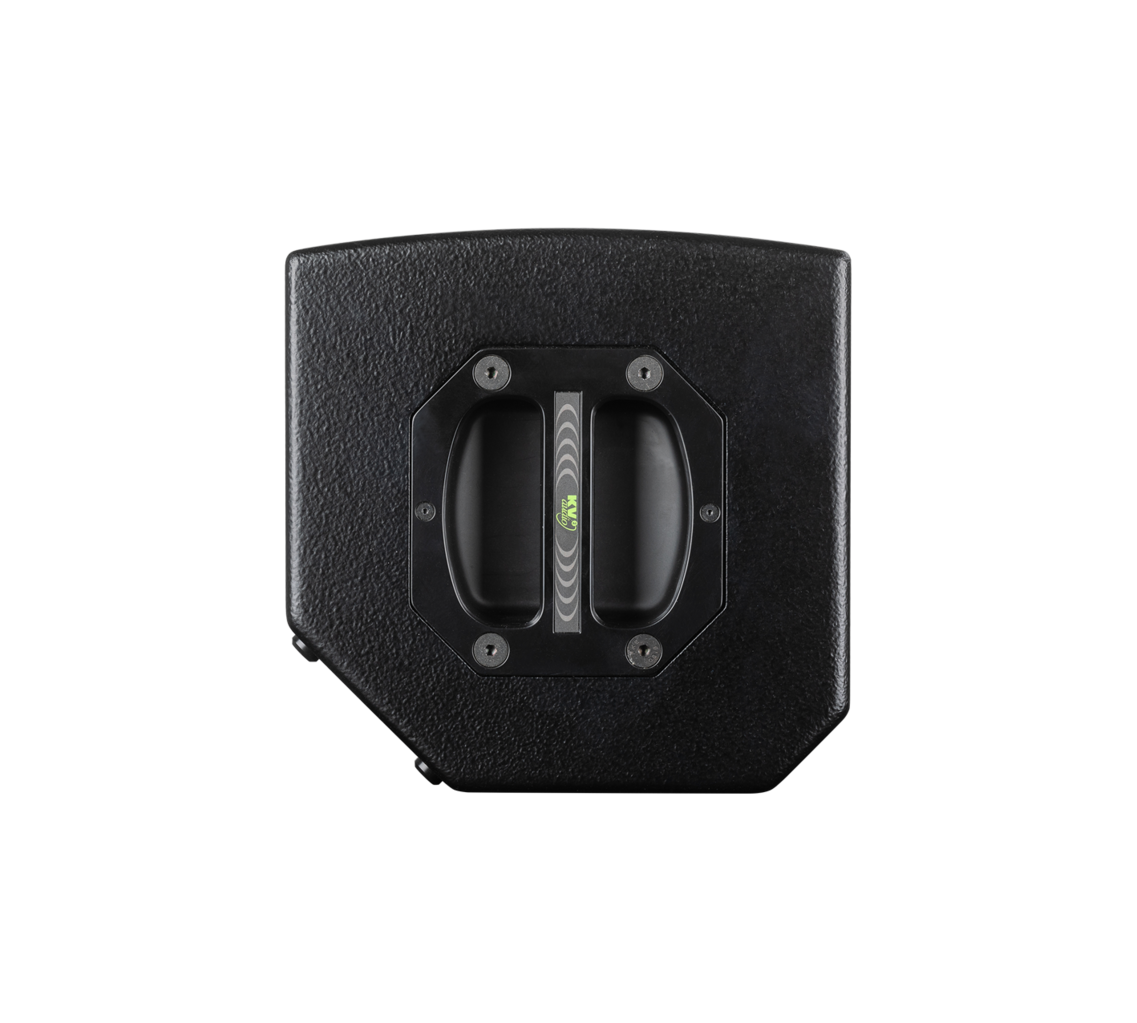

Handles 1
Color "Orange peeled" Matt Black or any RAL

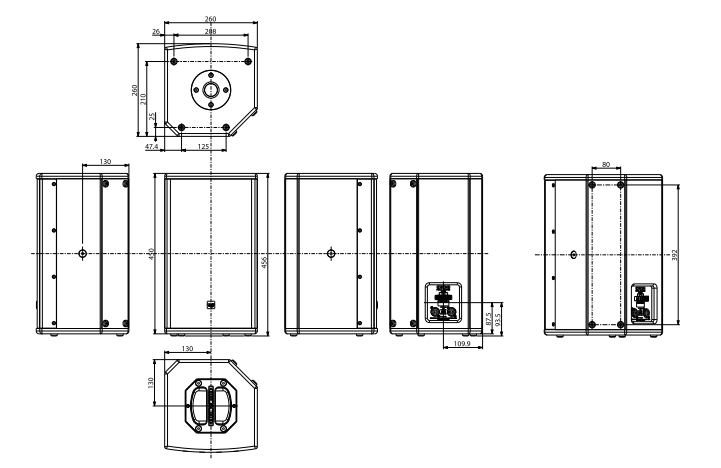

Physical Dimensions:
Height: 456 mm (17.95")
Width: 260 mm (10.23")
Depth: 260 mm (10.23")
Weight: 13 kg (28.6lbs)
Product code:
KVV 987 423
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Purpose designed as a discreet portable passive loudspeaker for speech and music content
● Corporate presentations and functions ● Full range performance with addition of subwoofers ● Infills ● Close monitoring ● Fixed installations
