Brand: KV2 Audio
Model: ESD10
Type: Passive 2 way speaker
Description:

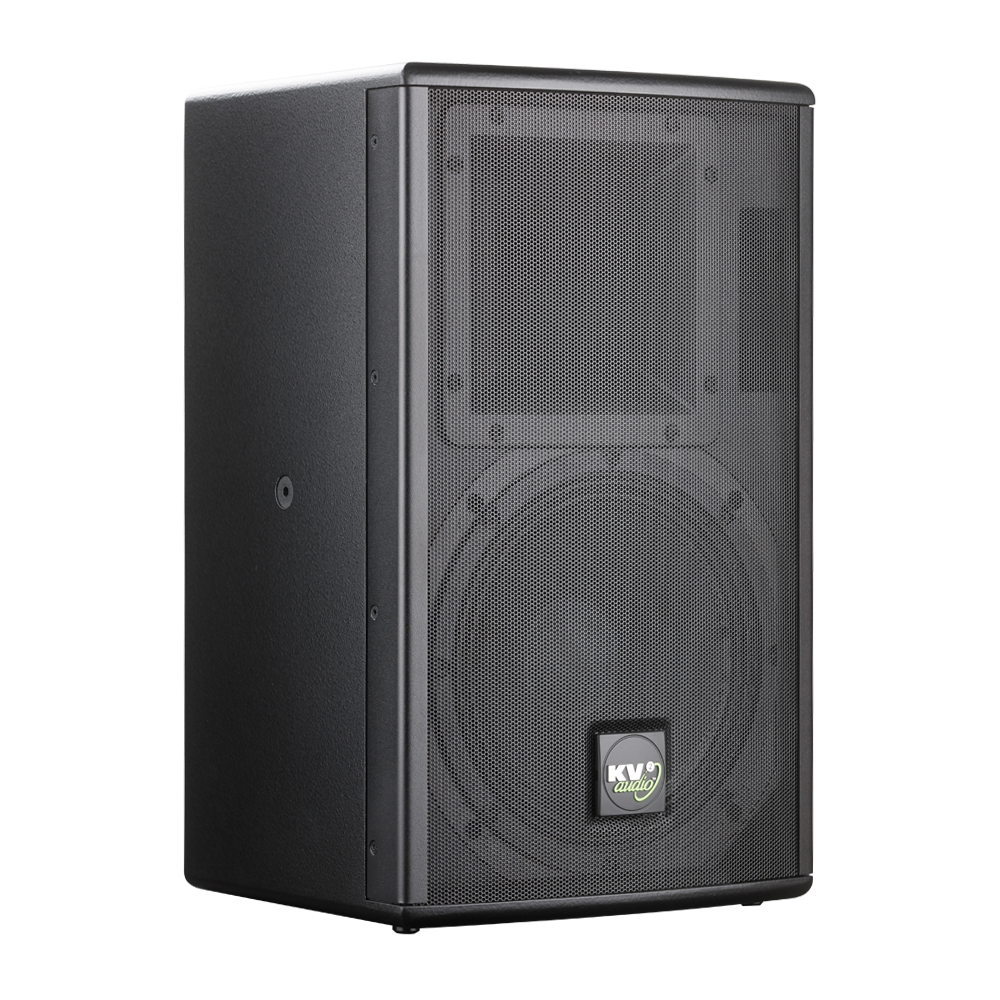

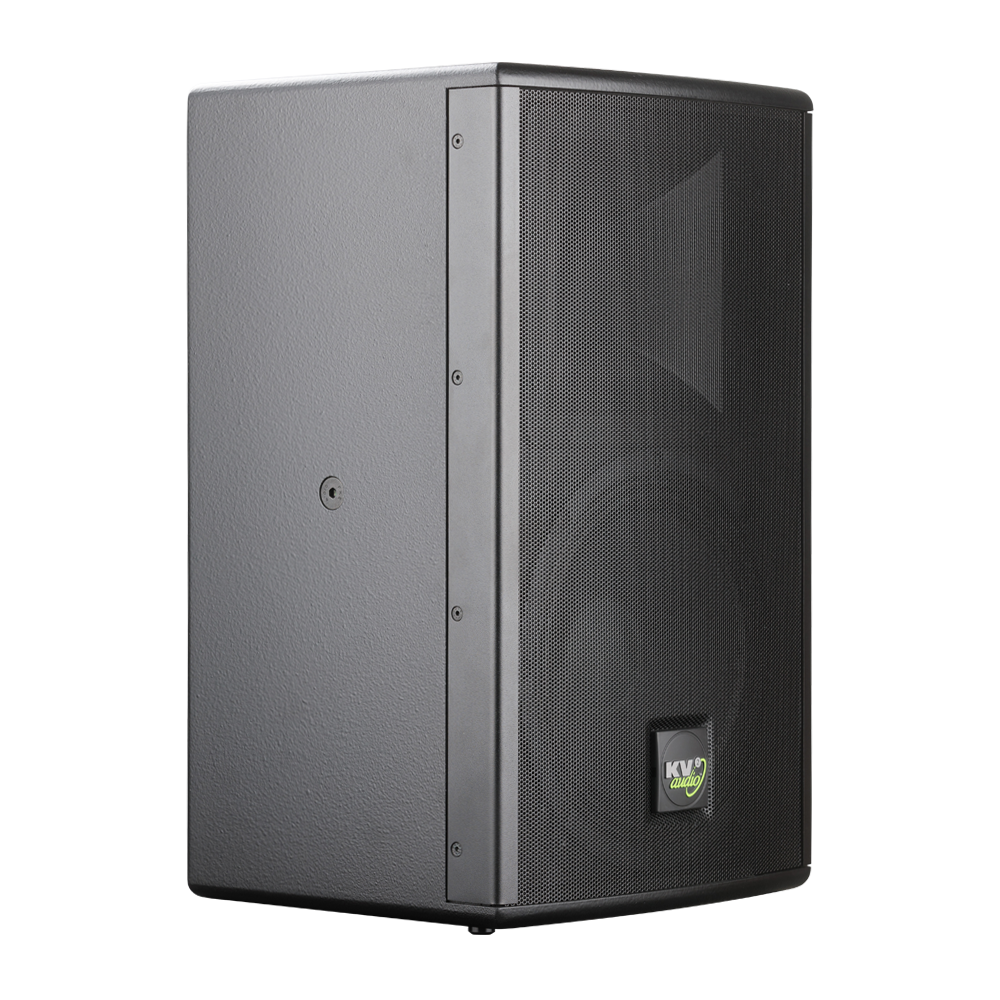

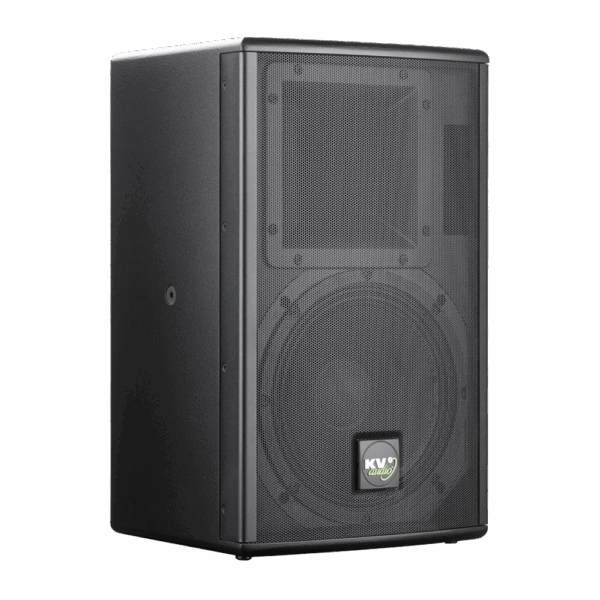

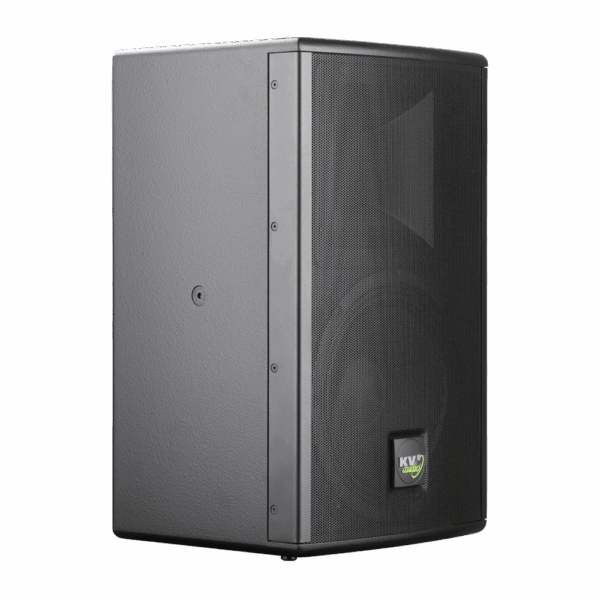

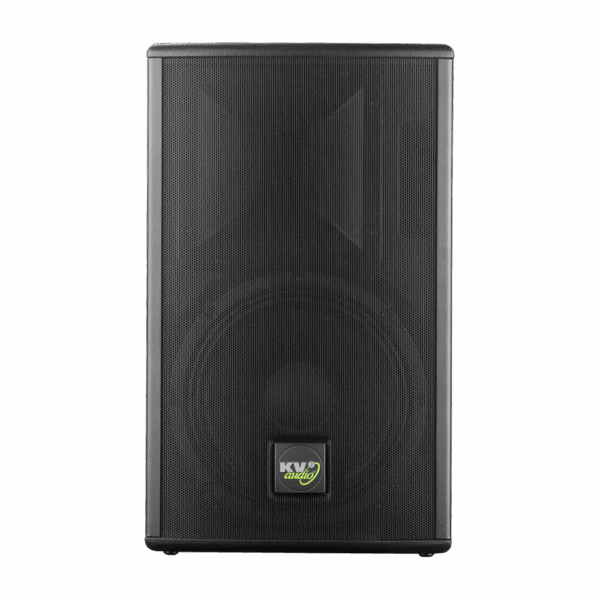

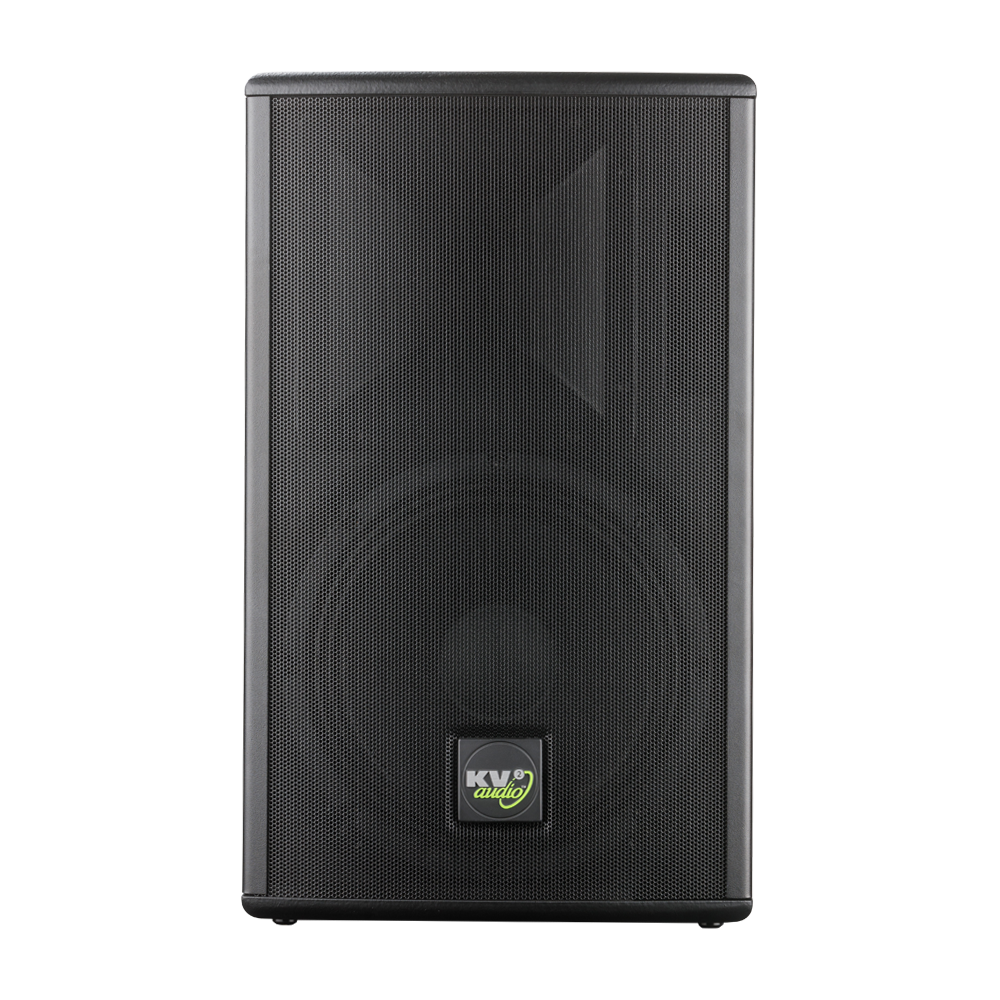

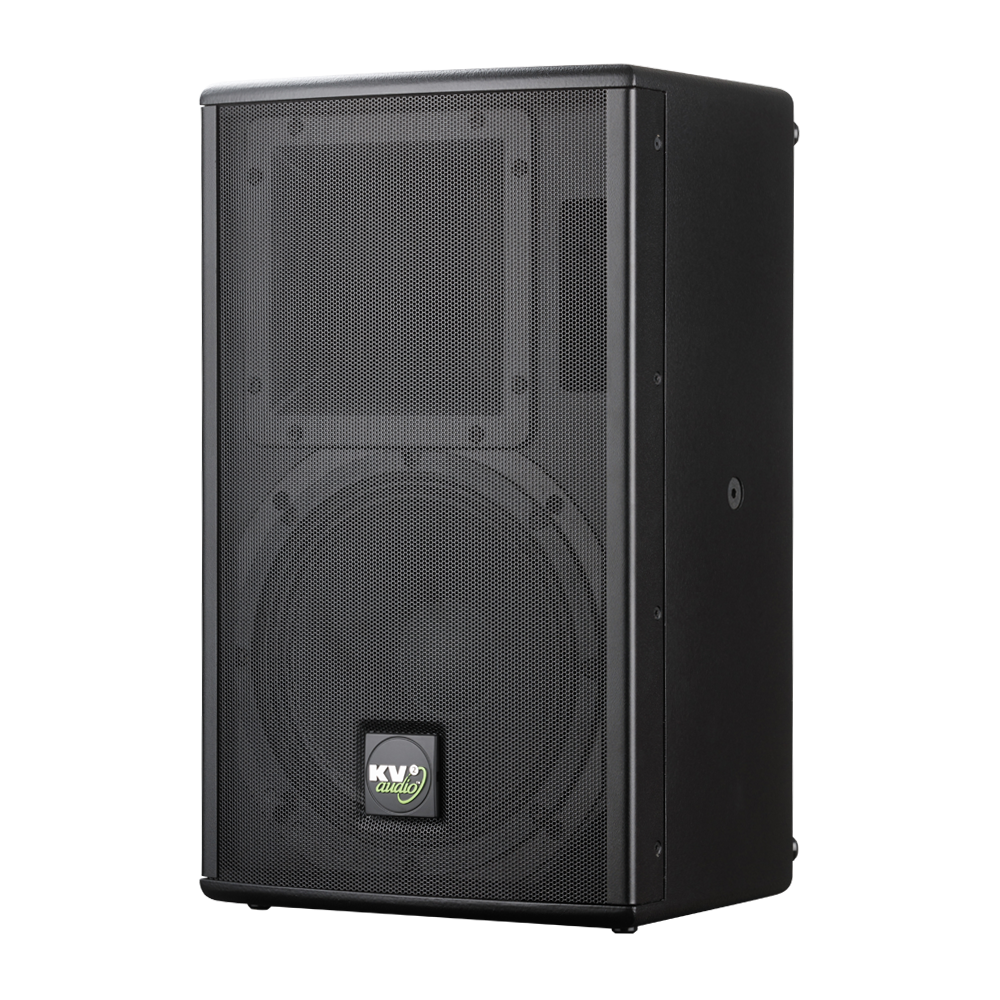

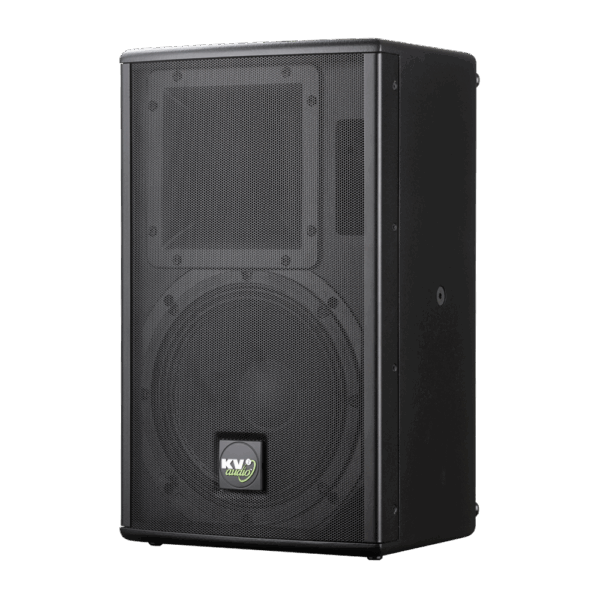

The ESD10 is a compact passive 2-way, high output, full-range loudspeaker incorporating a 10" trans-coil woofer and a wide dispersion rotatable horn. The ESD10 provides a smooth hi fidelity response and delivers sound quality and level that is superior to many larger competing products. Ideal as a main system speaker or as an fill-in for larger systems. The ESD10 is an all round affordable passive solution that simply exudes quality.
Technical characteristics:
Features:
- Professional, Baltic birch construction with wear resistant polymer coating
- 125dB sustained output, 128dB peak with very high dynamic range
- Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor or under balcony applications
- Rotatable wide dispersion 100° H x 80° V horn
- Revolutionary new passive delay line
- 1.75" (44 mm) diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnetic motor structure
- "10" woofer with Super Acoustic Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased linear frequency response
- Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points

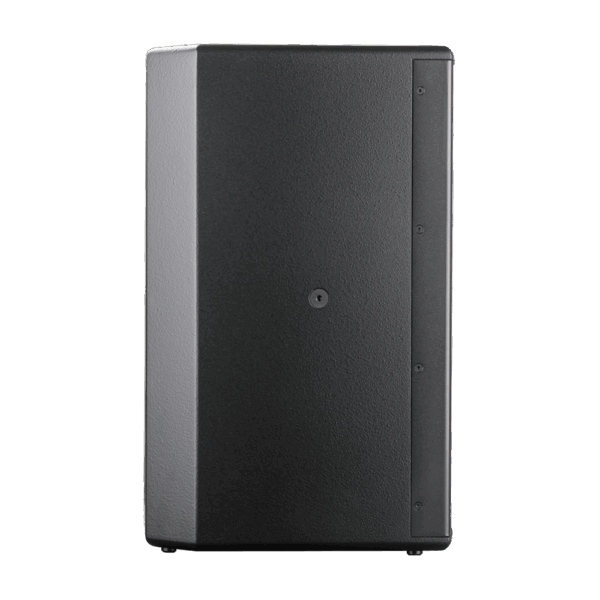

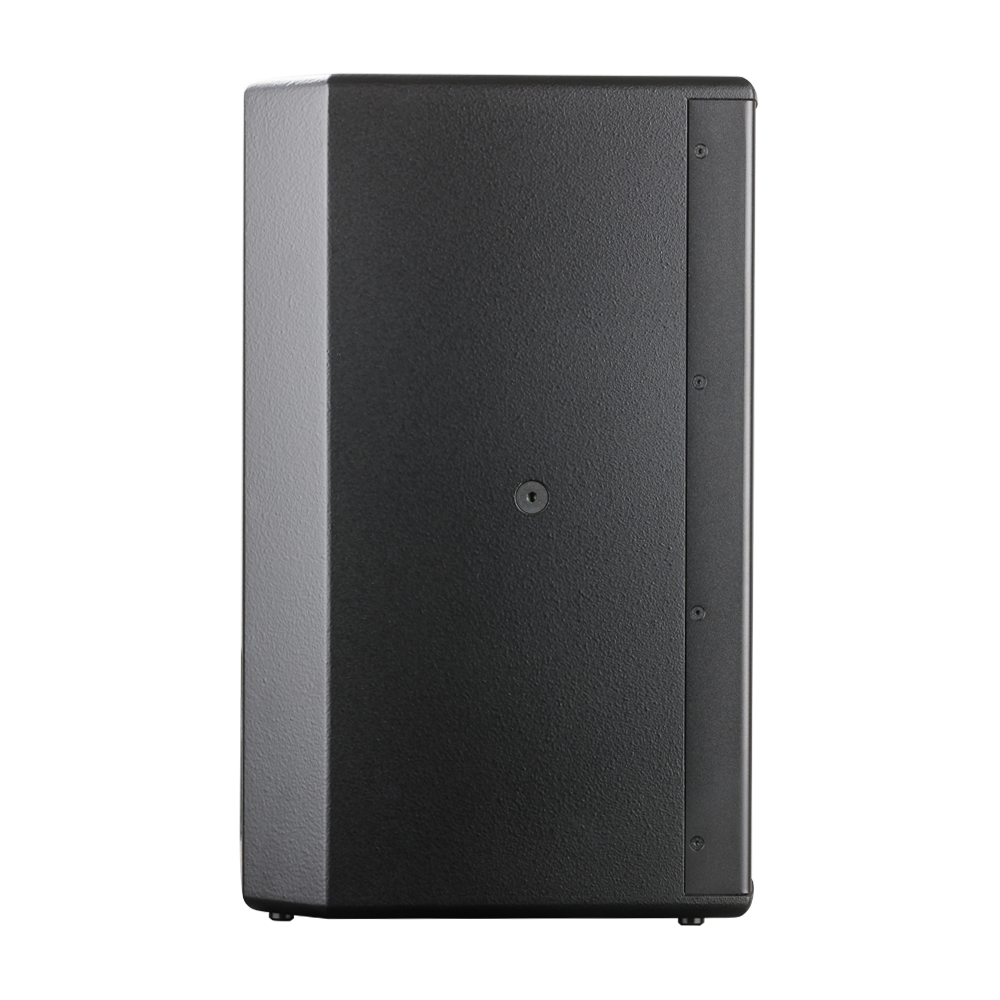

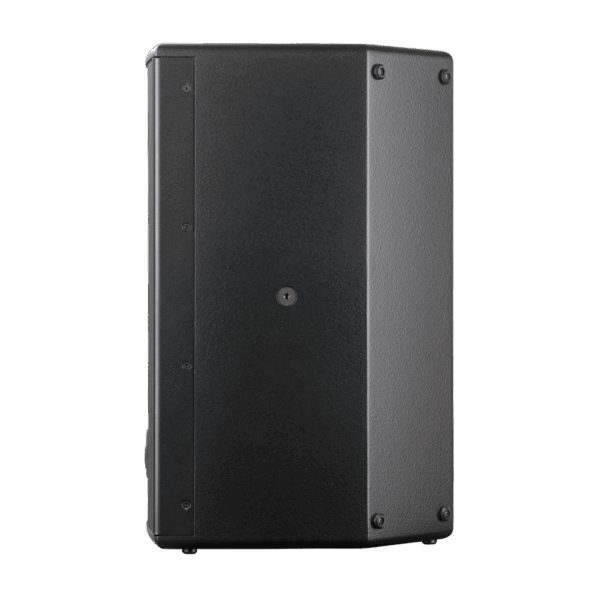

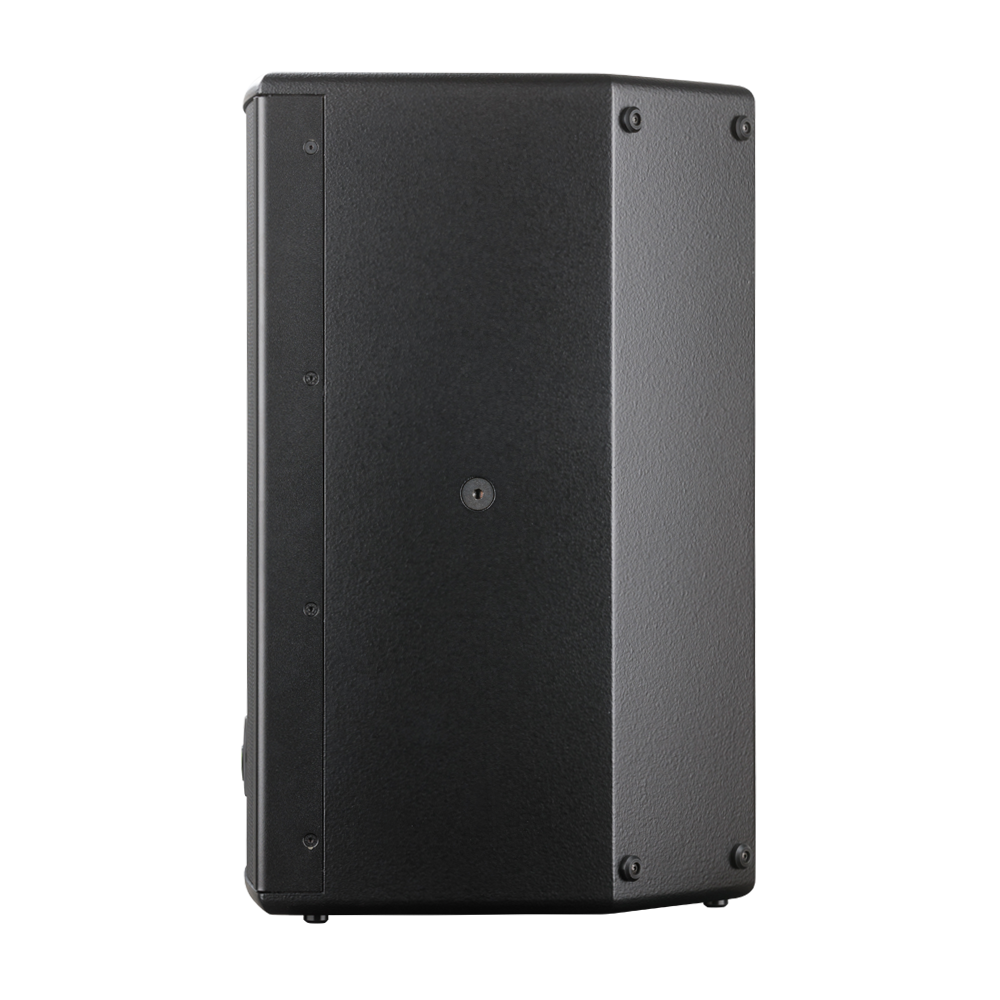

- Additional side and bottom M10 points for flexible bracket, rigging and installation options

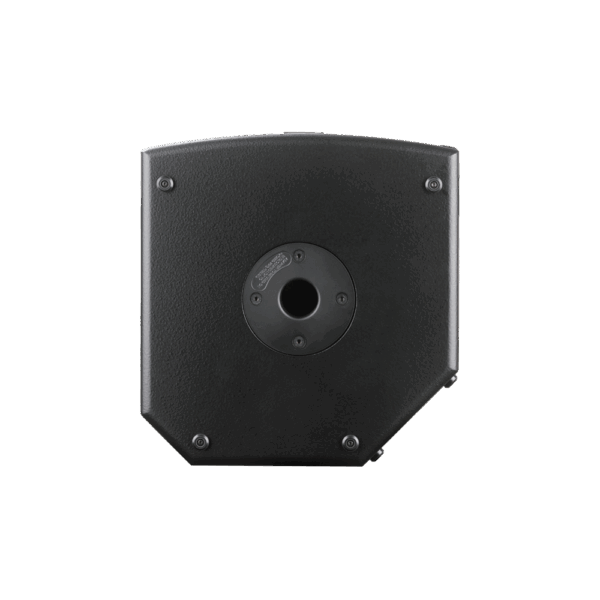

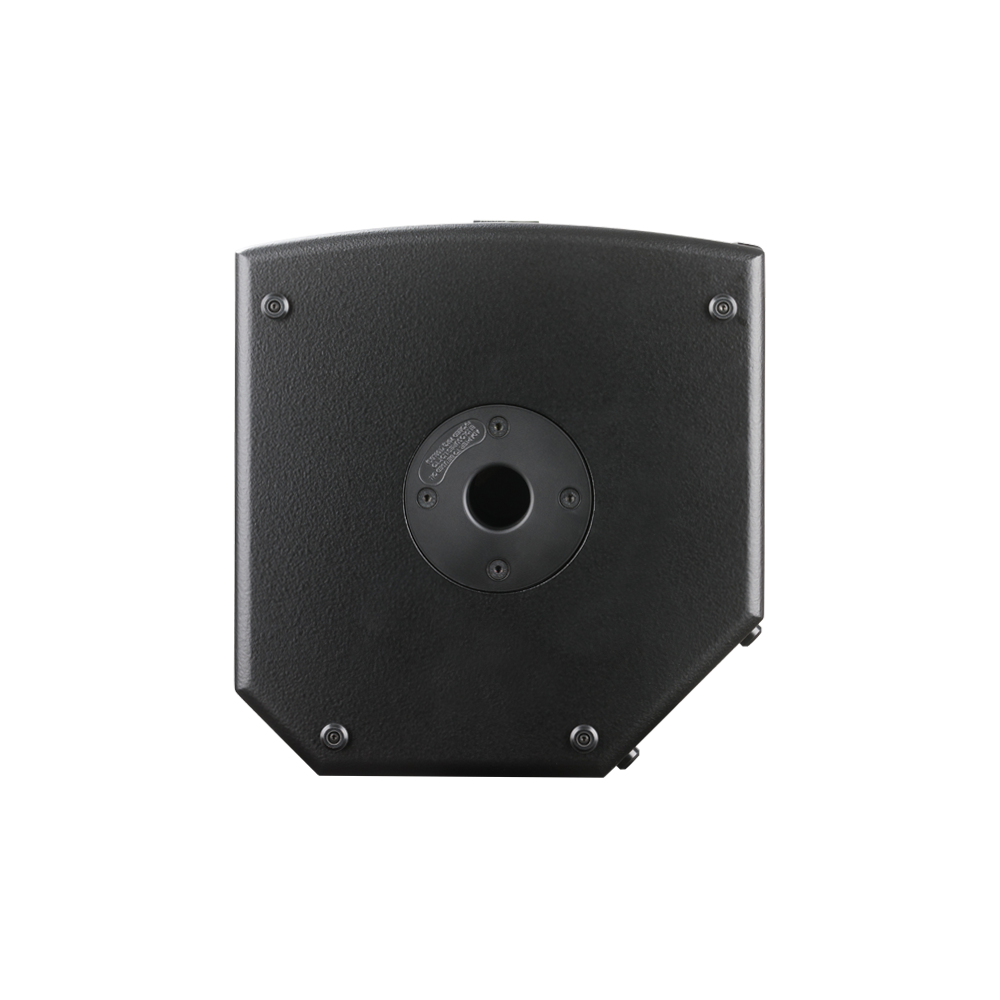

- "Top-hat" pole mount fitted at the base of the cabinet
System Acoustic Performance:
Max SPL Long-term: 125dB
Max SPL Peak: 131dB
-3dB Response: 65Hz to 20kHz
-10dB Response: 56Hz to 28kHz
Recommended Power: 500W
Sensitivity: 96dB
Impedance: 4Ω
Crossover Point: 1.8kHz
High Frequency Section:
Acoustic Design Horn Loaded
High Horn Coverage Horizontal / Vertical: 100° x 80°
Rotatable Horn: YES
Throat Exit Diameter / Diaphragm Size: 1" / 1.75"
Diaphragm Material: Nitride Titanium
Magnet Type: Neodymium
Protection: RMS Limiter
Low Frequency Section:
Acoustic Design: Front Loaded, Bass Reflex
Woofer Size / Voice Coil Diameter / Design: 10" / 2.5" / Trans Coil
Diaphragm Material: Epoxy Reinforced Cellulose
Magnet Type: Neodymium
Protection: RMS Limiter

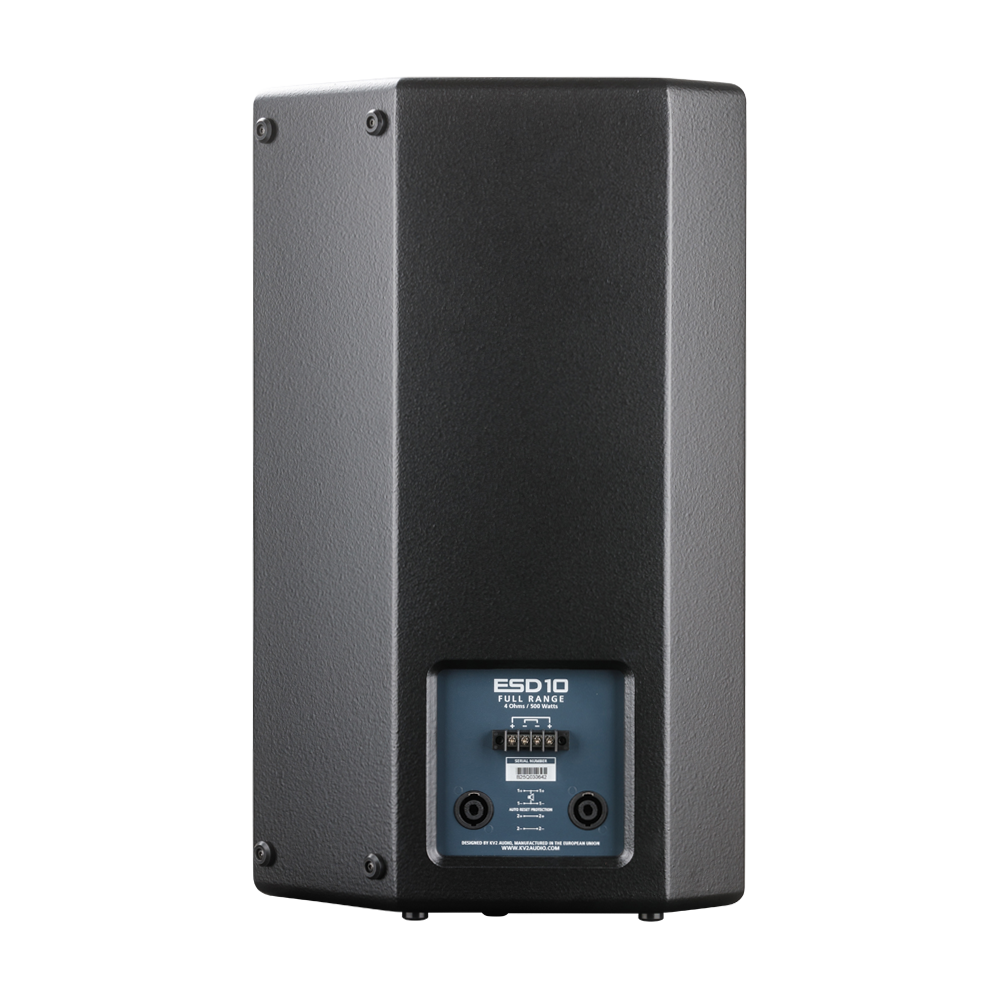

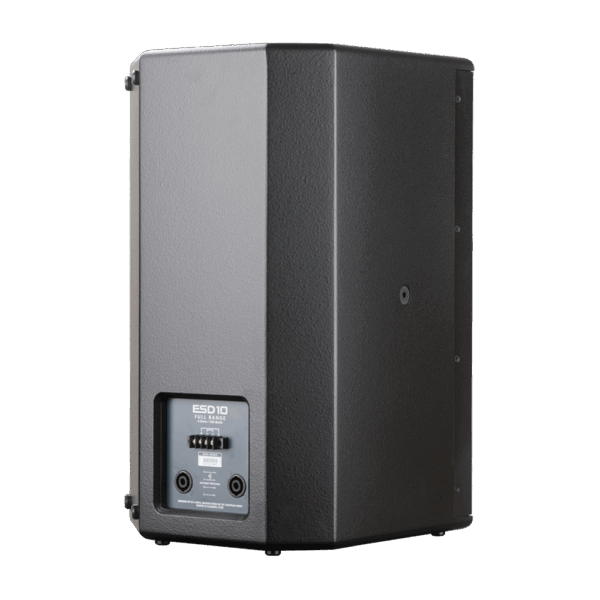

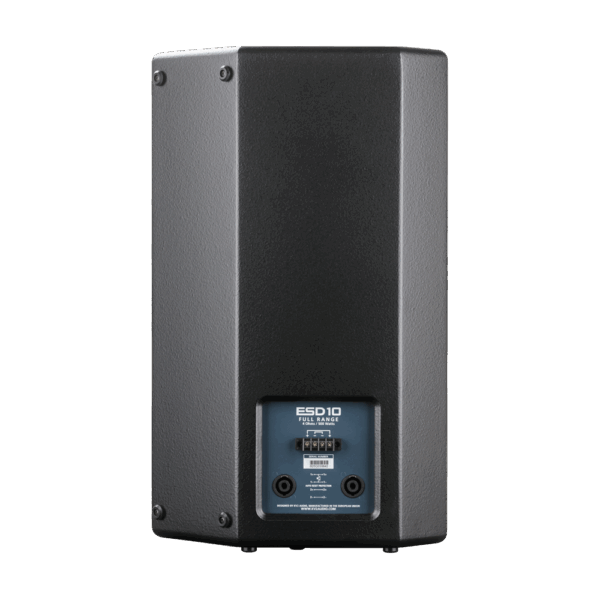

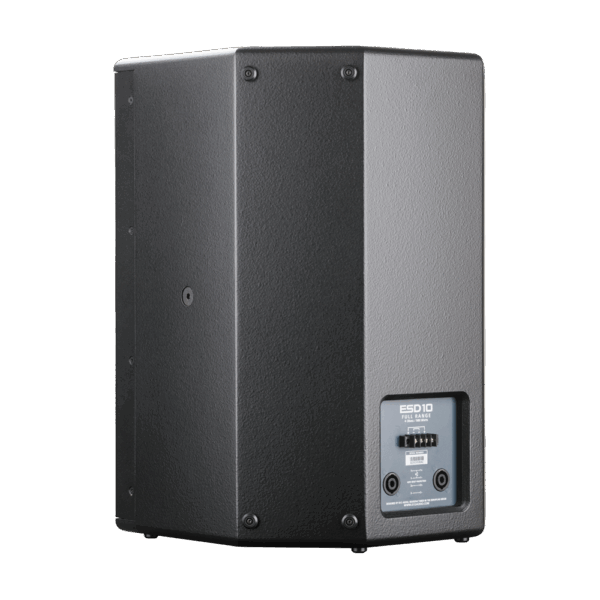

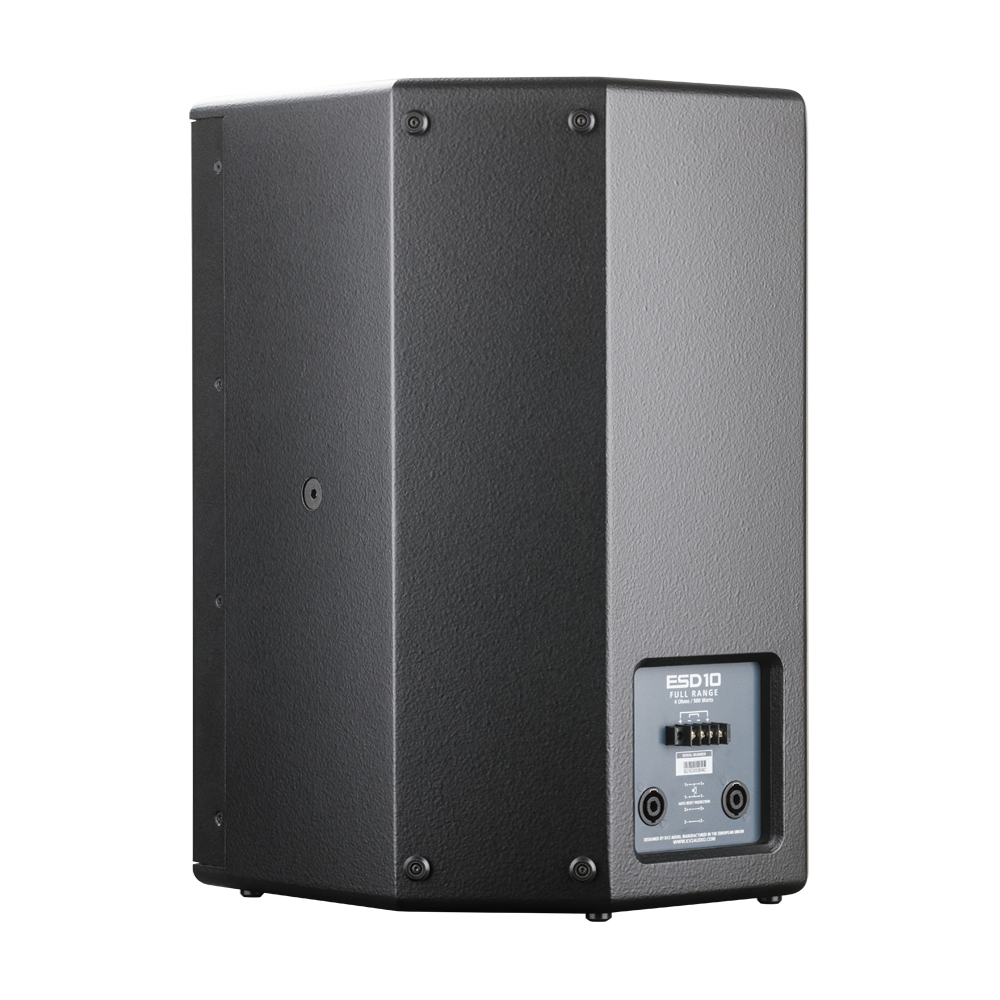

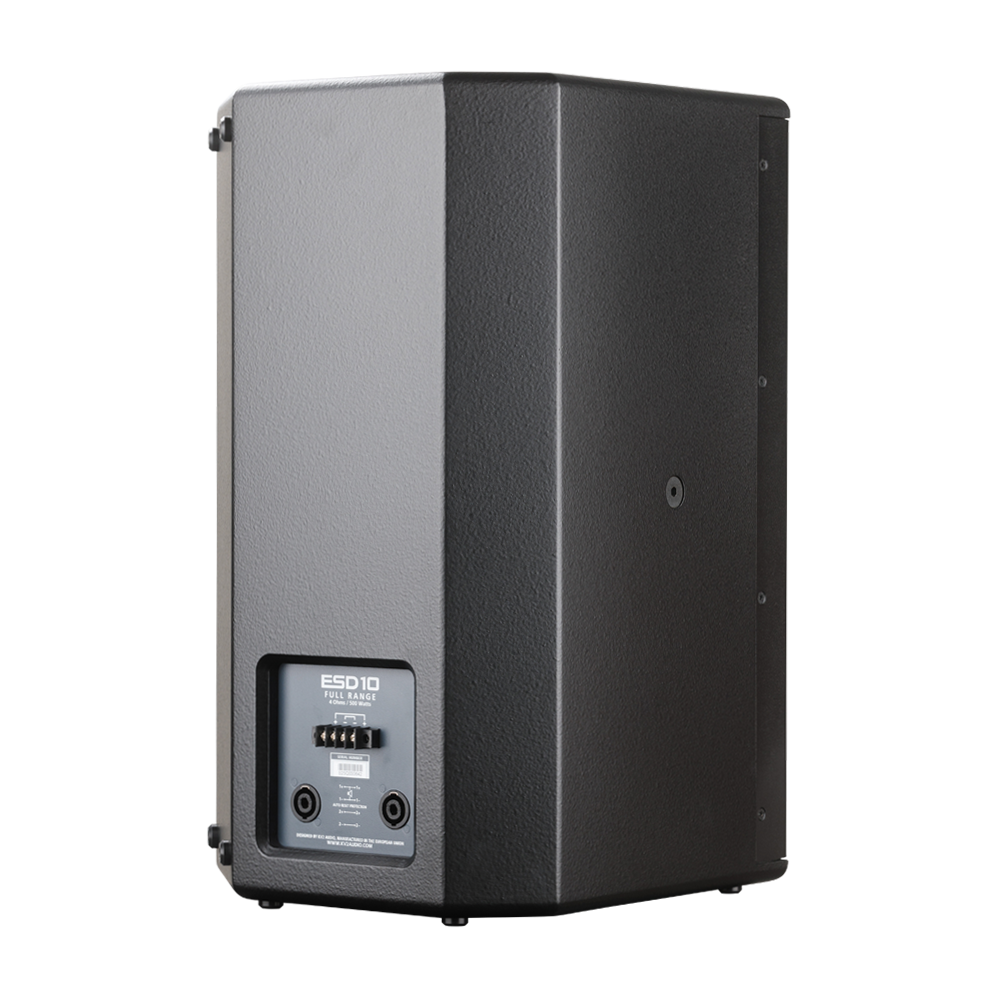

Speaker Input: 2x Neutrik Speakon®, Terminal Block
Cabinet:
Cabinet Material: Baltic birch
Handles 1
Pole Mount 35 mm
Color: "Orange peeled" Matt Black or any RAL
Physical Dimensions:
Height: 514 mm (20.32")
Width: 310 mm (12.20")
Depth: 324 mm (12.76")
Weight: 16.5 kg (36.38lbs)
Product code:
KVV 987 207 - ESD10
Technical Data Sheet can be viewed here
Official Product page can be viewed here
Application: Specifically designed as a passive loudspeaker for high quality, high output portable music playback and live performance in small areas
● Full range stand-alone solution or scalable to larger systems with subwoofers ● Large conference and small to medium performance venues ● Multi-purpose fixed installations ● Personal monitoring ● In-fill for larger main KV2 Audio systems or third party systems
