Brand: ChovA
Model: ChovACUSTIC PLUS
Type: Soundproofing panel
Note: The price is for one m² !!!
Description:Multilayer composite formed by two asymmetrical layers in thickness and density made of polyester leather thermally adhered to a high density viscoelastic sheet of 4mm. Excellent and versatile device for reducing the air noise transmission in a wide frequency range, thanks to:: - High density and elasticity (viscoelastic sheet) - High-porosity (polyester fiber).
Specifications:
Thickness (mm): 39 mm
Average weight (kg / m³): 7.35
Thermal conductivity (W / mK): 0.041 W / mK
Fire resistance: Self-extinguishing
Airborne noise attenuation index (Rw; dB): 55dB
Test LABEIN B0157 IN CT 34 II. Refer to the D01 system card
Dimensions (m): 5.5 x 1
m² / Pallet: 49.5 m²
Instalation:
1- Cut a ChovACUSTIC PLUS e sections taking into account the partition dimensions. To do this, use a cutter or a radial saw.
2- Apply only the contact adhesive ChovASTAR COLA AISLAMIENTOS to the wall with a short map roller or brush.
3- Let dry from 3 to 5 minutes.
4- Set the ChovACUSTIC® PLUS on the wall.
5- Repeat these steps, taking into account the sheets overlapping (2 cm.).
6- Install ChovASEAL adhesive sealing tape at all section joints to ensure a seal.
STORAGE: The material must be kept from weather and stored upright.
RECOMMENDED FOR...

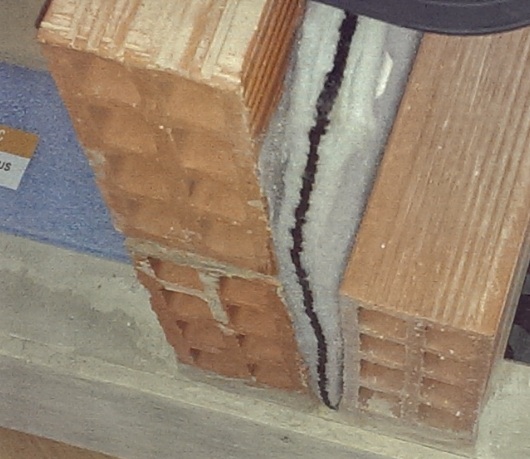

- Double brick walls, obtaining high acoustic insulation with light and thin walls.
- Restaurants, clubs and discos with high noise levels.
- machinery spaces and common parts of buildings.
