Brand: ChovA
Model: PLUS FIELTEX
Type: Insulation multilayer panels
Note: The price is for one square meter (m²)!. Sold only in rolls of 5.5m²!
Description:

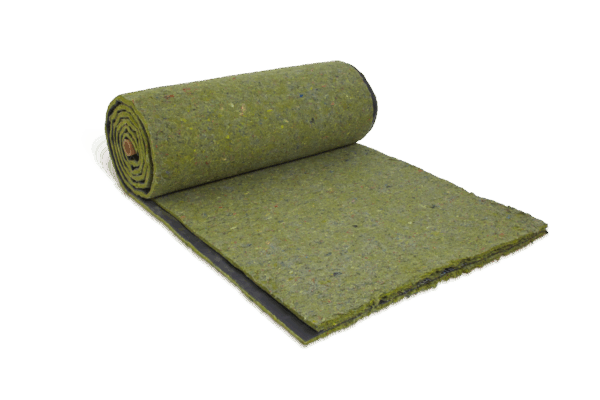

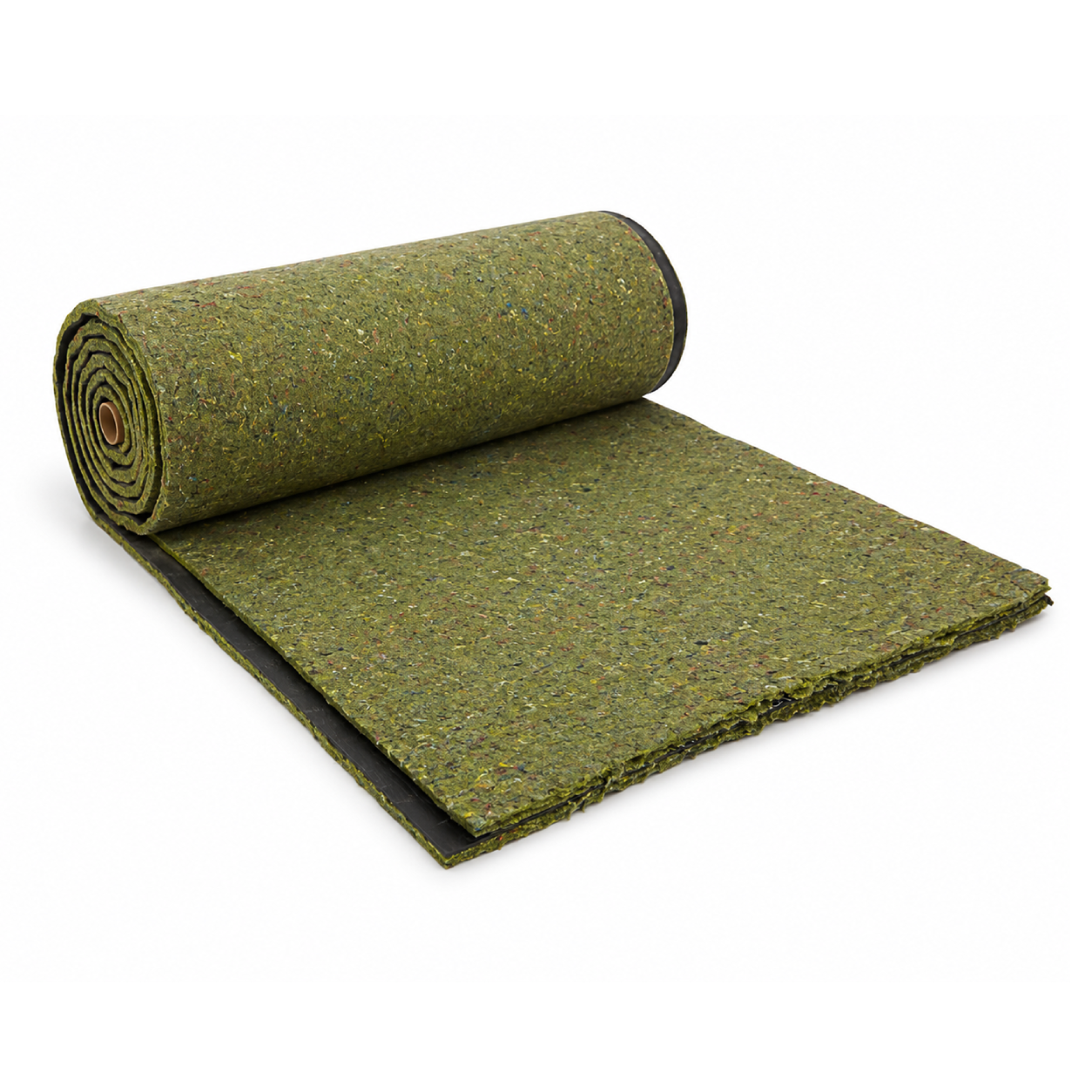

Multilayer composite made of two porous felt (16mm thickness) thermically bonded to a high density viscoelastic membrane of 4mm thickness.
Excellent and versatile device to reduce the transmission of airborne nooise in wide range of frequencies , due to:
- High density and elasticity of the viscoelastic membrane.
- High absorption coefficient of porous felt.
Technical parameters:
Thickness (mm): 36
Average weight (kg / m²): 8.4
Thermal conductivity (W / mK): 0.032
Reaction to fire: F
Acoustic adjustment for airborne noise (R; dB): 55dB
Dimensions (m): 5.5 x 1
m² / PALLET: 49.5
Installation:

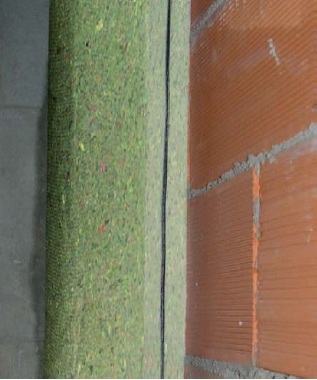

1. Cut a piece of ChovAcoustic, taking into account the dimensions of the wall using a knife.
2. Place the product on the wall. Make holes of the material with a drill and 8 mm punching, making 5 holes per square meter.
3. Insert the ChovAFIX 8 retaining pins using a hammer.
4. Repeat steps 1 through 3, taking into account the overlap of the product.
Application:
- Thermal and sound insulation in masonry walls between dwellings.
- High quality wall cladding in restaurants, hotels, cinemas, restaurants.
