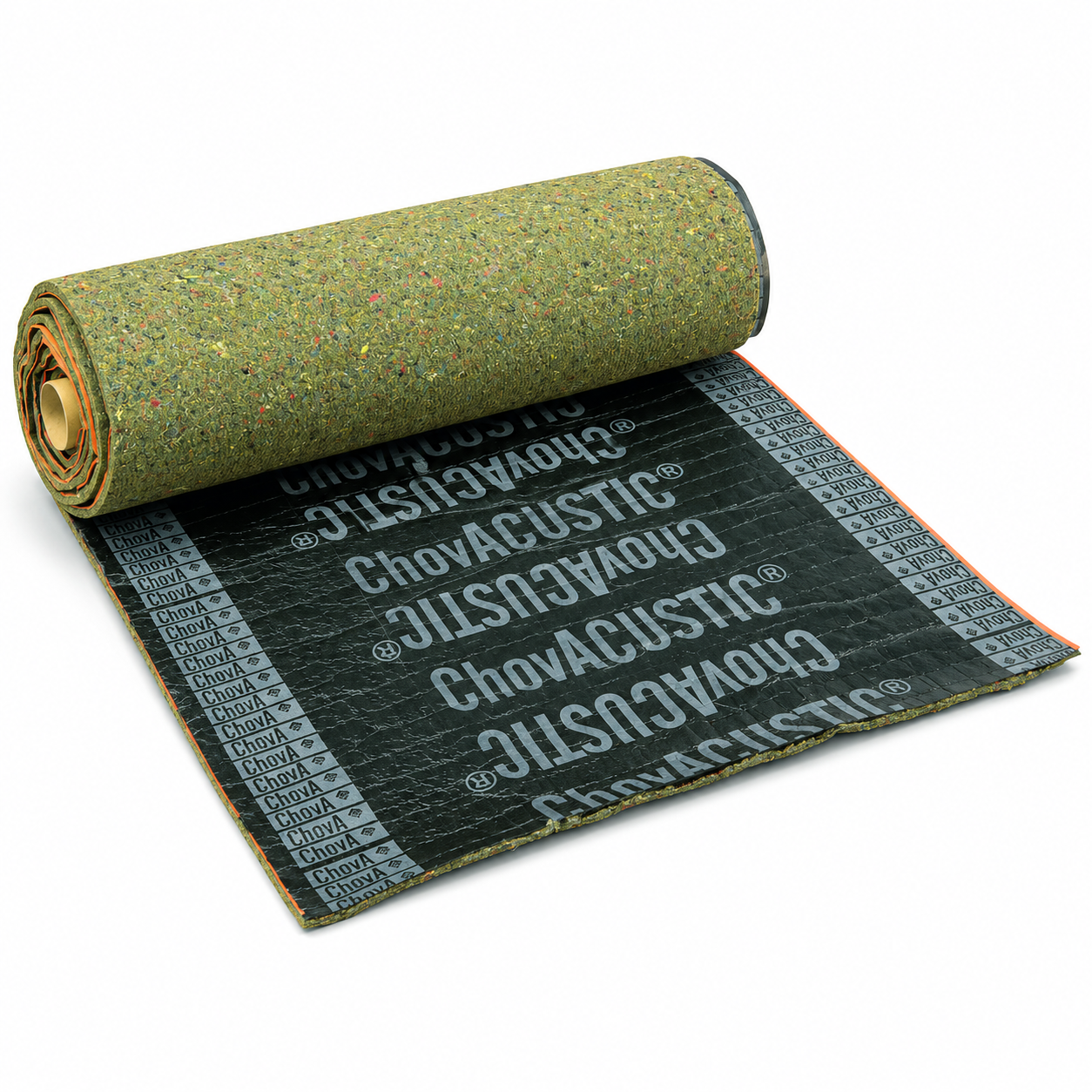

Brand: ChovAcoustic
Model: Fieltex 65
Type: Viscous-elastic membrane
IMPORTANT: THE PRICE OF THE PRODUCT IS FOR M2 !!!
Description:
16 mm multilayer composite material in testicular form thermally adhered to viscous-
Elastic membrane 4mm. An excellent and versatile product to reduce air-flow
Noise in a wide range of frequencies as a result of:
High density and elasticity (visco-elastic membrane)
High porosity (felt textile).
Technical Characteristics:
Thickness (mm): 20
Average weight (kg / m²): 7.4
Thermal conductivity (Wm / K): 0.032
Resilience: F
Sound insulation (Rw; db): 57db
Dimensions (M): 5.5 x 1
Pallet / m²: 66m²
STORAGE: Material should be kept away from bad weather and stored upright.
Instalation:
1- Cut a section of ChovACUSTIC® taking into account the partition dimension. To do this, use a cutter or a radial saw.
2- Support the ChovACUSTIC FIELTEX on the partition. Make holes on the material with a drill and 8mm. bits.
3- Making 5 holes per square metre.
4- Depth should be at least 4cm.
5- Introduce the fixing pins ChovAFIX 6 with a hammer aid.
6- Repeat these steps, taking into account the overlap of the sheets.
7- Put ChovASEAL adhesive sealing tape at all joints of the sections to ensure a seal.
Application:
-Acoustic insulation of water pipes.
- Acoustic treatment of places like bars, restaurants, nightclubs ...
- Strengthening sound insulation and traditional building materials of medians on a single brick wall.
- Solutions with reduced thickness in restoration activities.
- Machine rooms and common areas of buildings.
Advantages:
Easy mechanical laying of walls and ceilings.
Easy installation to downspouts with fixing brackets.
