Brand: Guil
Model: ABZ-53
Type: Clamp coupler
Description:

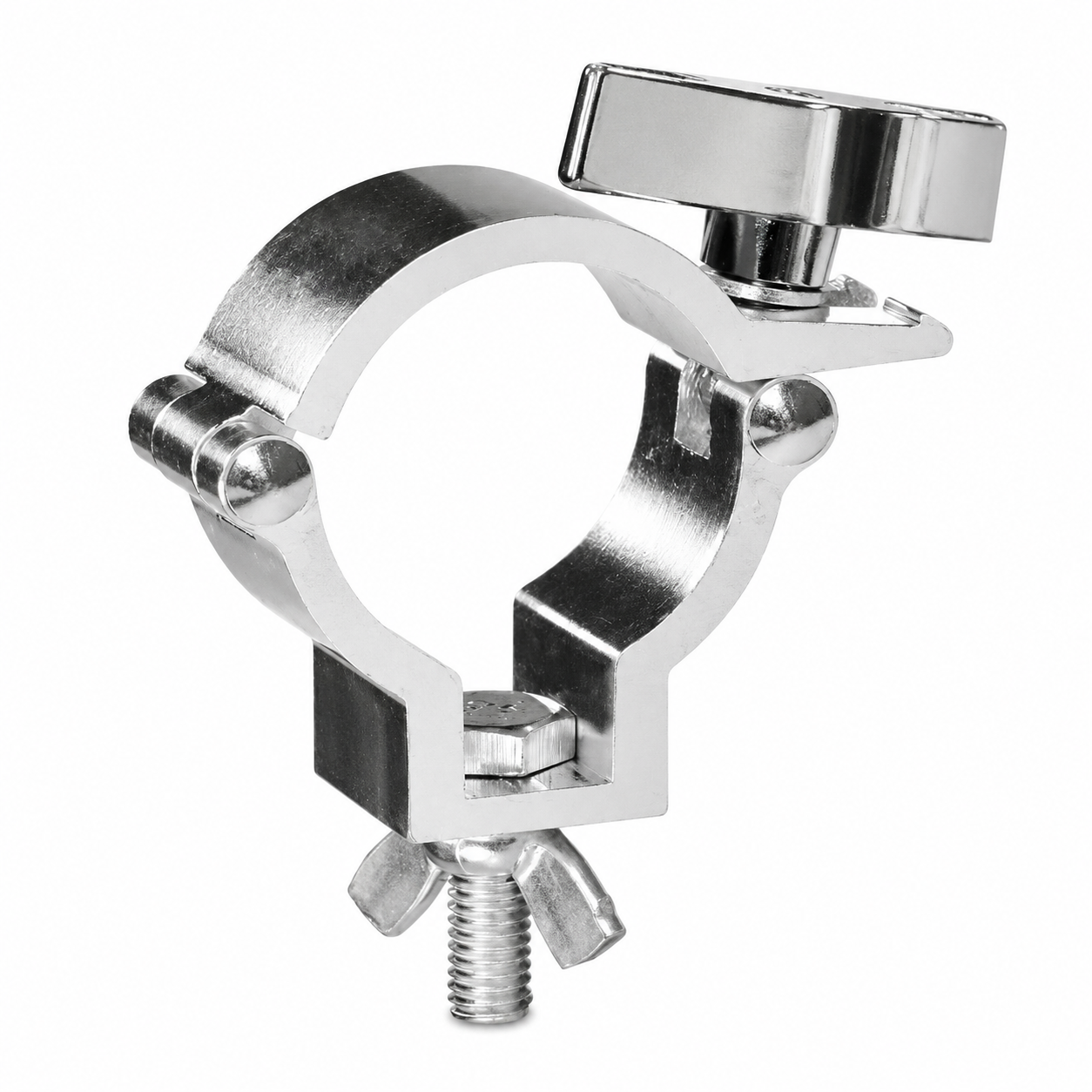

- Aluminium coupler with nut & bolt & ergonomic knob.
- Practical multi-purpose coupler that is used in various fields (construction, entertainment industry, theatre etc.).
- It combines strength and durability with a high level of safety.
- Designed to be used on tubes with an external diameter of 50 mm.
- It comes complete with bolt and wing nut to secure the load.
- Substituting the bolt and nut for an eye nut or a second clamp (converting it into a swivel coupler) it can be used for other functions. - Manufactured with high resistance extruded aluminium.
Technical characteristics:
Dimensions: 117 x 85 x 30 mm
Material: Aluminum
Color: Aluminum

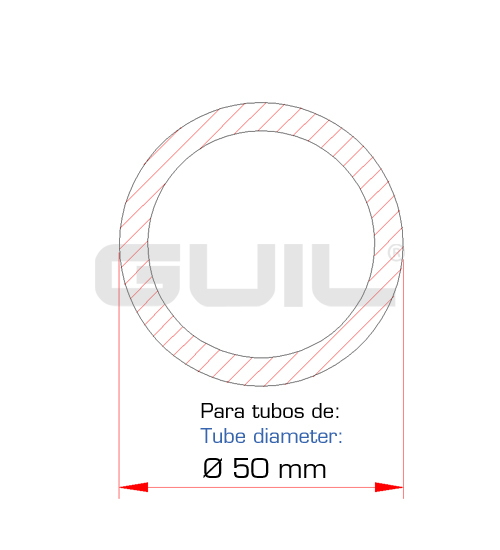

For pipes with outer diameter: 50mm
Maximum load capacity: 100kg
Weight: 0.21kg
Application: Construction, entertainment industry, theatre etc.
