Brand: Senor
Model: SE-SRC-M6-75
Type: accessory for fixing the ceiling

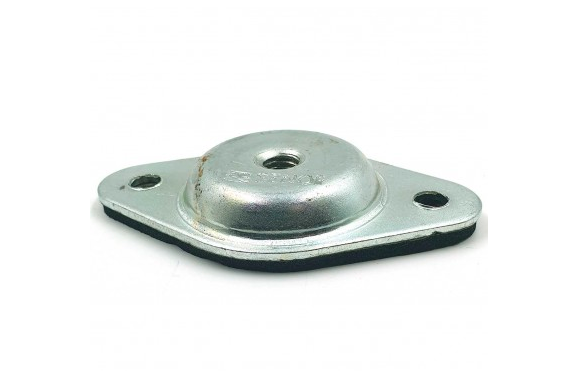

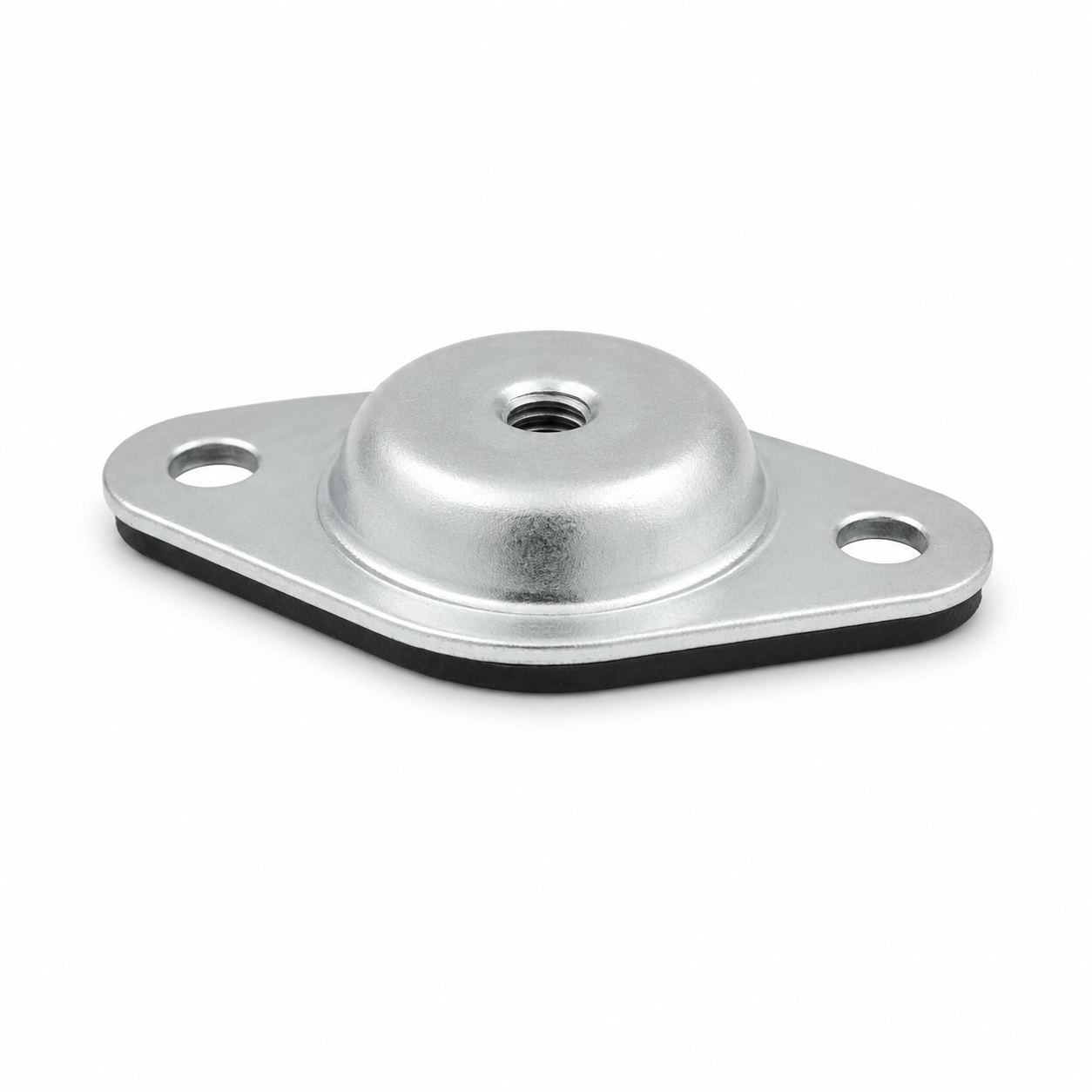

Description: This mounting accessory, designed and manufactured by SENOR, is made of 2 mm cold rolled steel DC04 with galvanized patinated coating. Its protruding part allows you to correct any irregularities. Unlike other mounting accessories, this plate has two mounting points, which provides more safety. Its main purpose is to hang gypsum ceiling systems and / or heavy objects from the ceiling, such as FCU or duct air supply systems. Can be used in wood, concrete or iron. This base plate is available with or without acoustic EPDM CR-130 rubber band on the back. Sold with M6 or M8 threaded hole.
Main advantages
Robust: 2 mm thick allows for greater security than other mounting accessories, which are usually 1 mm thick.
Both attachment points ensure more stable support.
Versatility: this product can be used in all surfaces: wood, concrete and iron.
Thanks to the EPDM CR-130 rubber band, greater settling on rough surfaces is achieved, as well as thermal improvement (as the metal is insulated from the hanging surface).
Technical characteristics:
Product description can be downloaded here!
Installation, application and detailed description can be downloaded here:
Material: For SR: cold rolled steel DC04, Rubber: EPDM CR-130 microcellular.
Number of holes: 3 pcs
Diameter of the holes: Ø 6.4 mm
Dimensions: 80 x 48 x 13 mm
Weight: 0.40 g
Number in one box: 75 pcs
Weight of one box: 3.40 kg
Application: Fastening of fan convector (FCU), air ducts, sound insulation systems from plasterboard to the ceiling, etc.
