Brand: Guil
Model: ADT-30

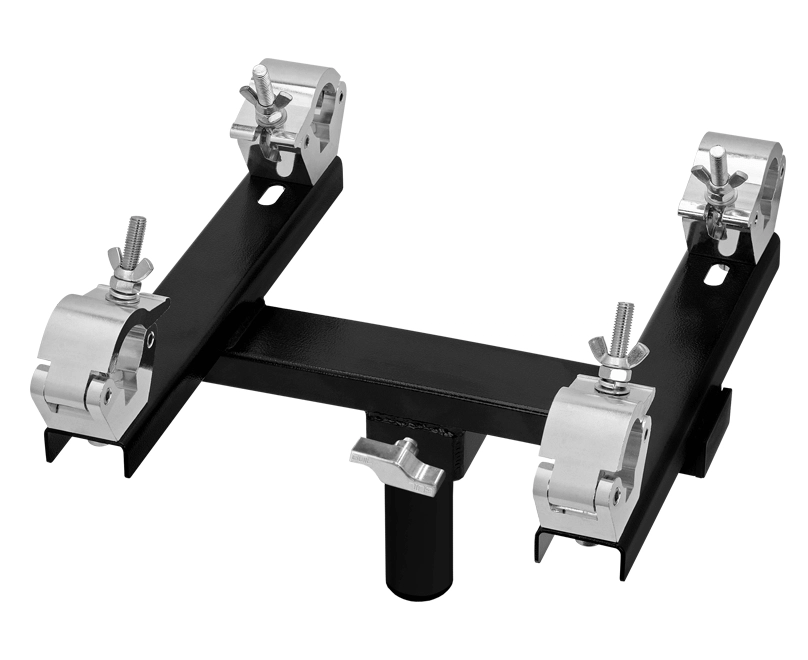

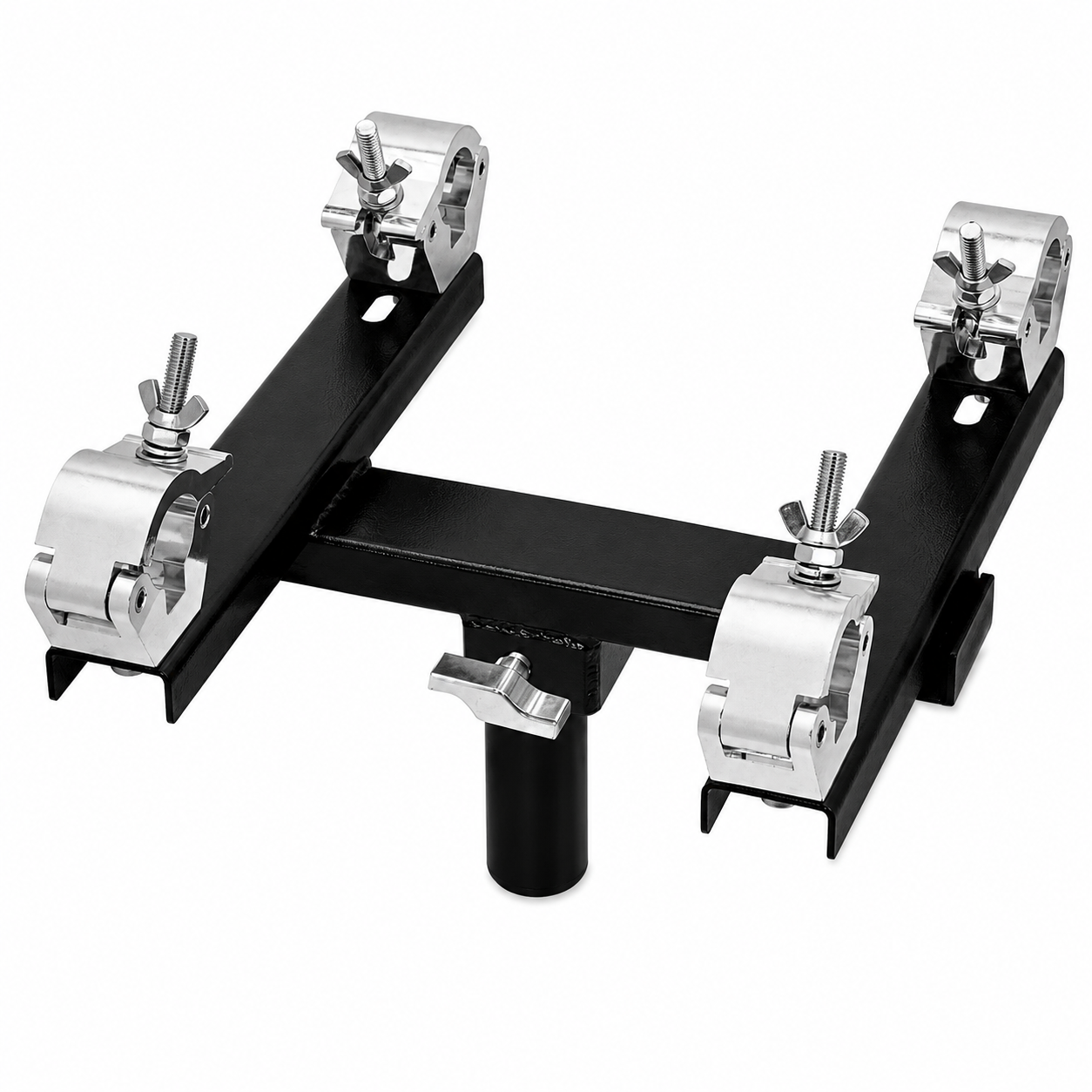

Type: ADJUSTABLE TRUSS ADAPTOR
Description:ADJUSTABLE TRUSS ADAPTOR FITTED WITH 4 ALUMINIUM COUPLERS & A Ø 35 mm SPIGOT. FOR TRUSS FROM 290 TO 400 mm

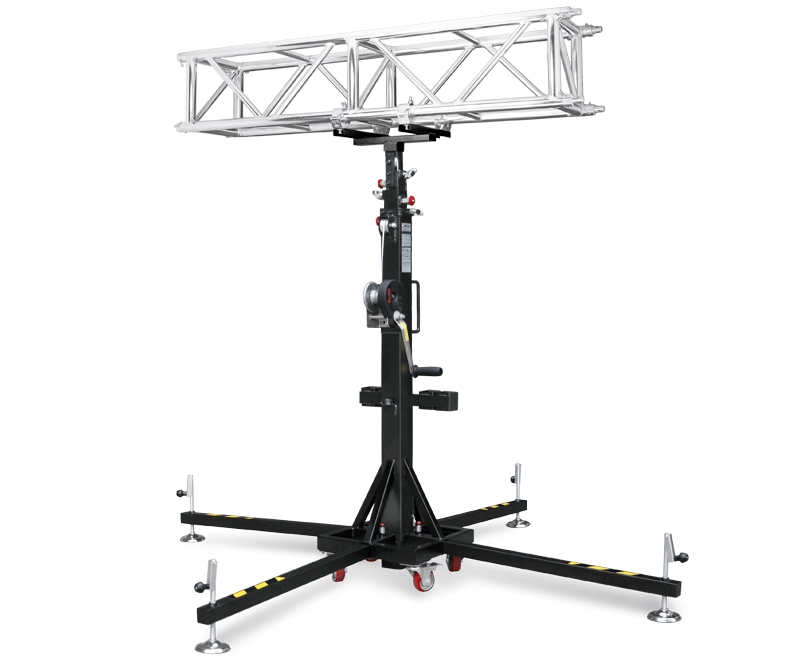

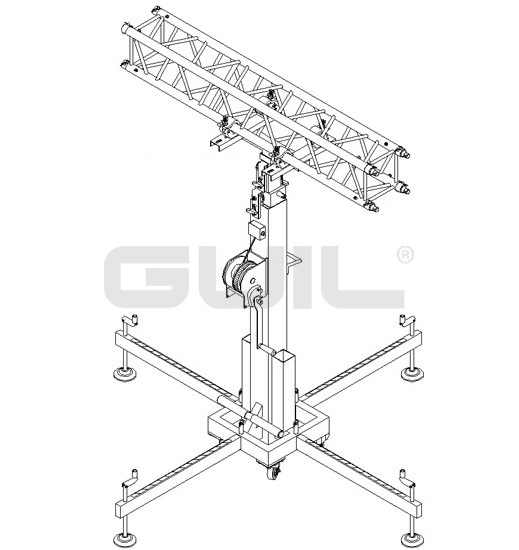

Adaptor to use truss in “T” arrangement.
Truss adaptor with a Ø 35 mm insertion tube.
Suitable for Ref. ELC-720, ELC-730, ELC-740, ELC-750 и ELC-760 towers.
Thanks to its adjustable system, just one adaptor can be used for different size trusses.

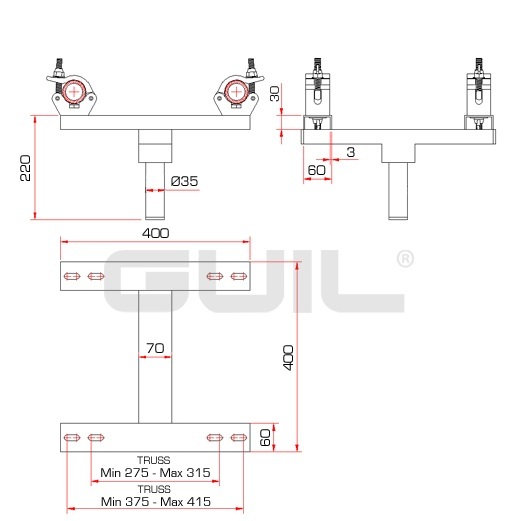

Designed for square trusses from 27.5 cm to 41.5 cm.

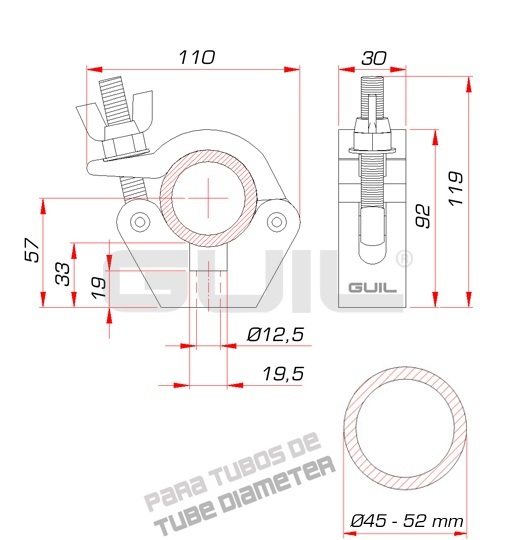

Base has a textured, black, anti-scratch finish and four aluminium clamps.
Technical characteristics:
Net Weight: 6.5 Kg
Adjustable: Yes
Insertion tube size: Ø35 mm
Application:for ELC lifting towers
