Brand: OEM
Model: Wireless
Type: Voting System
Description:
No Cabling is need for the wireless voting system. It's suitable for meetings without pre-assigned seating arrangements or for temporary systems. With its advanced technology, stability and reliability, HTDZ wireless voting system has been used successfully in many applications.
Technical Parameters:

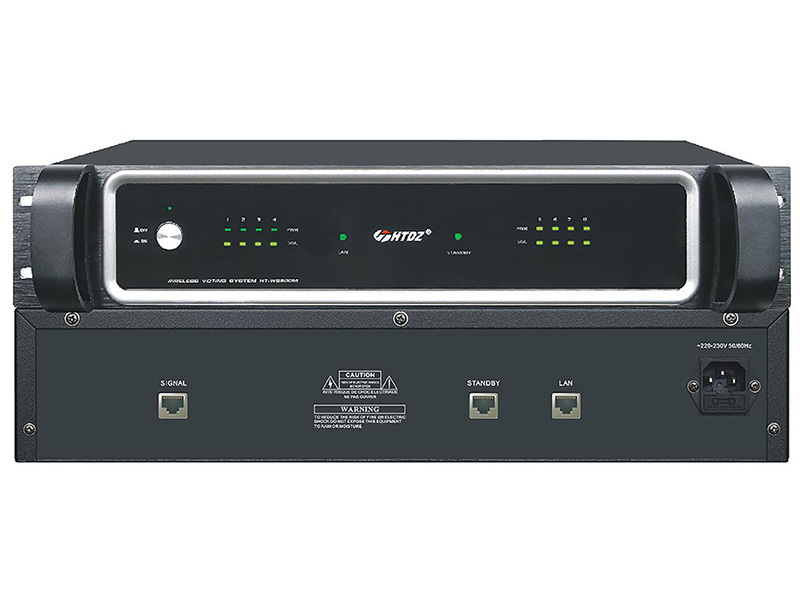

Wireless Voting Processor
The wireless voting processor is the core part of the voting system and is responsible for communication between the wireless devices and the control computer. It transmits the ballot command to the wireless devices; and feedback the results to the application software, which is converted into intuitive chart information by the application software.
Technical Parameter
Power supply: AC220V 50Hz-60Hz
Communication speed with PC: 115200bps
Communication speed with signal station: 1M bps
Consumption rate: 2W
Support Max. signal station: 8 pieces
Control interface: RJ45
Dimensions: 483x355x88mm, 2 U rack 19"
N.W: 5.8kg

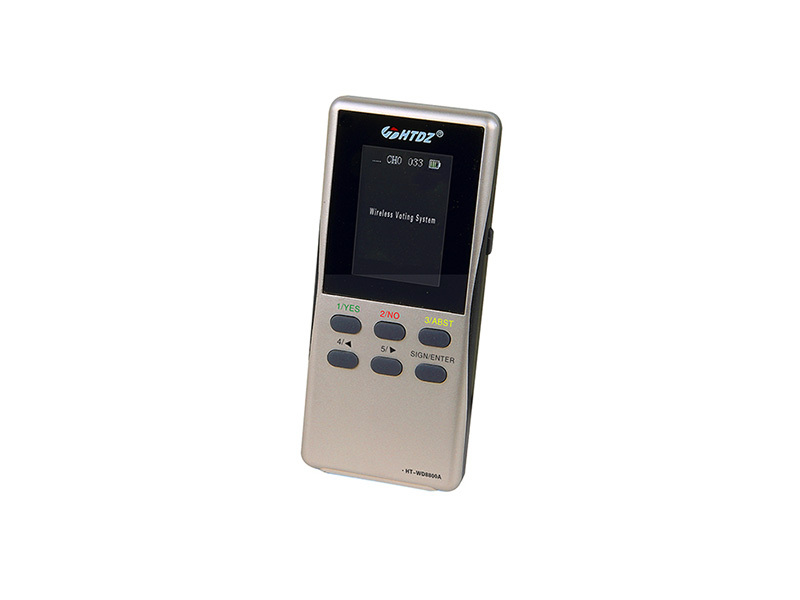

Wireless Voting Unit -32 units
The wireless voting unit is a basic equipment used by participants to participate in voting. With the wireless transceiver and management software, various types of ballot can be conducted.
The wireless voting unit integrates an LCD display to display information such as signal level, battery power and ballot status. The operation is simple and intuitive.
Technical Parameter
Power supply: DC 3.7V~4.2V 900mAh rechargeable lithium battery
Transmit consumption:10dBm+/-1dBm
Receiving sensitivity: -90dB
Consumption rate: 0.25W
Communication speed with signal station: 100K bps
Dimensions: 125x55x15mm
N.W: 90g with battery

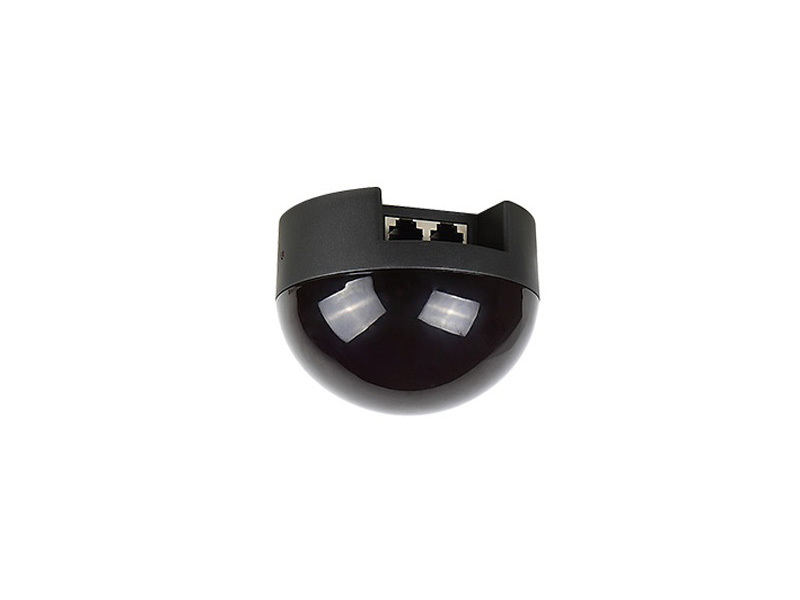

Wireless Voting Signal Station
The wireless signal station is the wireless data transceiver part of the wireless voting system and is responsible for data communication between the wireless devices and the processor.

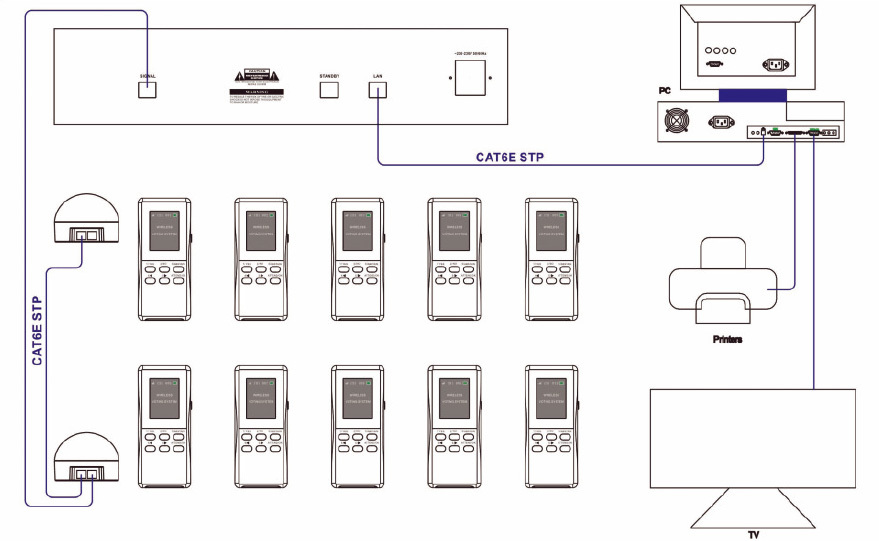

The wireless signal station is connected to processor through the Ethernet cable and installed at the ceiling of the conference site. The single transmitting and receiving radius is 100 meters, and multiple base stations can be connected by hand in hand, up to 8 stations can be cascaded.
Technical Parameter
Power supply: DC24V from processor
Consumption rate: 0.8W
Receiving sensitivity: -90dBM
Transmit consumption: 10dBm+/- 1dBm
Communication speed with processor: 1M bps
Communication speed with voting unit: 100K bps
MaxCommunication distance:100 meters
Connection interface: RJ45x2
Dimensions：cp98mm
N.W: 170g

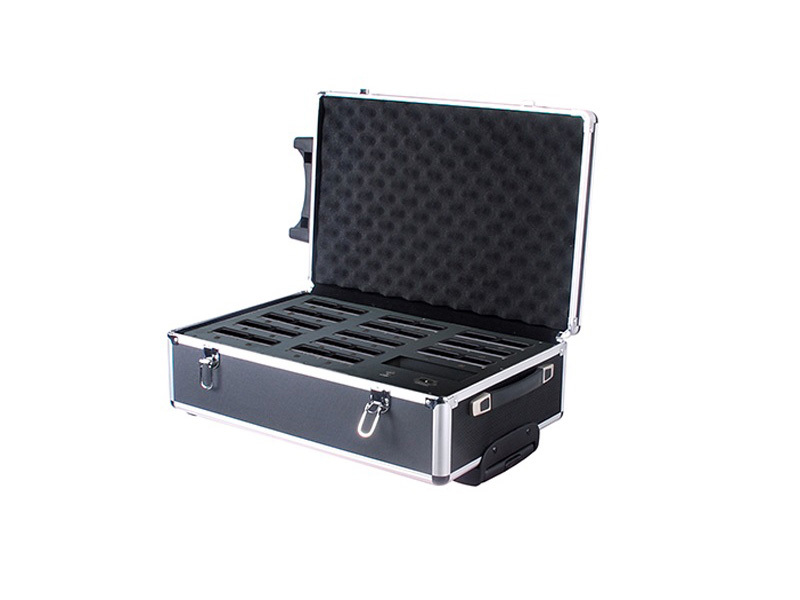

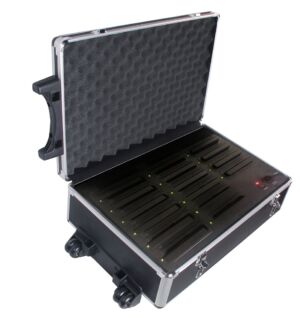

Wireless Voting System Battery Charger
Used for charging wireless voting units.
The charging electronics and a charging indicator LED are integrated in each voting unit.
The charging circuitry checks if a battery is present and controls the charging process receivers per charging.
Intelligent charging management electro circuit to protect the lithium battery.
Technical Parameter
Power supply: 110V-240V/50Hz~60Hz
Consumption Rating: 120W
Charge quantity: 32
Max charging current of each unit: 600mA
Charging time: About 4 hours
Charging status: Red LED flashing-Charging, LED off-Full Charged
Dimensions: 620x370x290mm
N.W: 10.5kg (without battery)
The Package includes:
- Wireless Voting Processor
- Wireless Voting Unit -32 pcs
- Wireless Voting Signal Station
- Wireless Voting System Battery Charger
- System software and User Manual
Application: Election events, Voting, Meetings. Voting systems also tend to be used in the case of entertainment events, test solutions, by political parties, television games and quizzes.
