Brand: SENOR

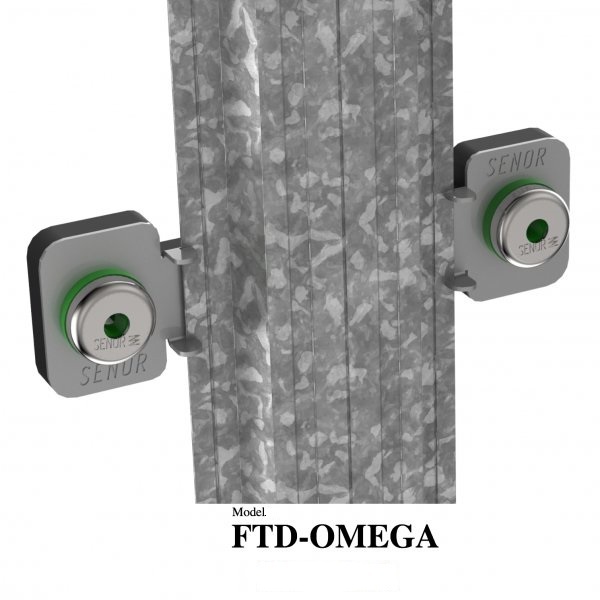

Model: FTD-OMEGA
Type:

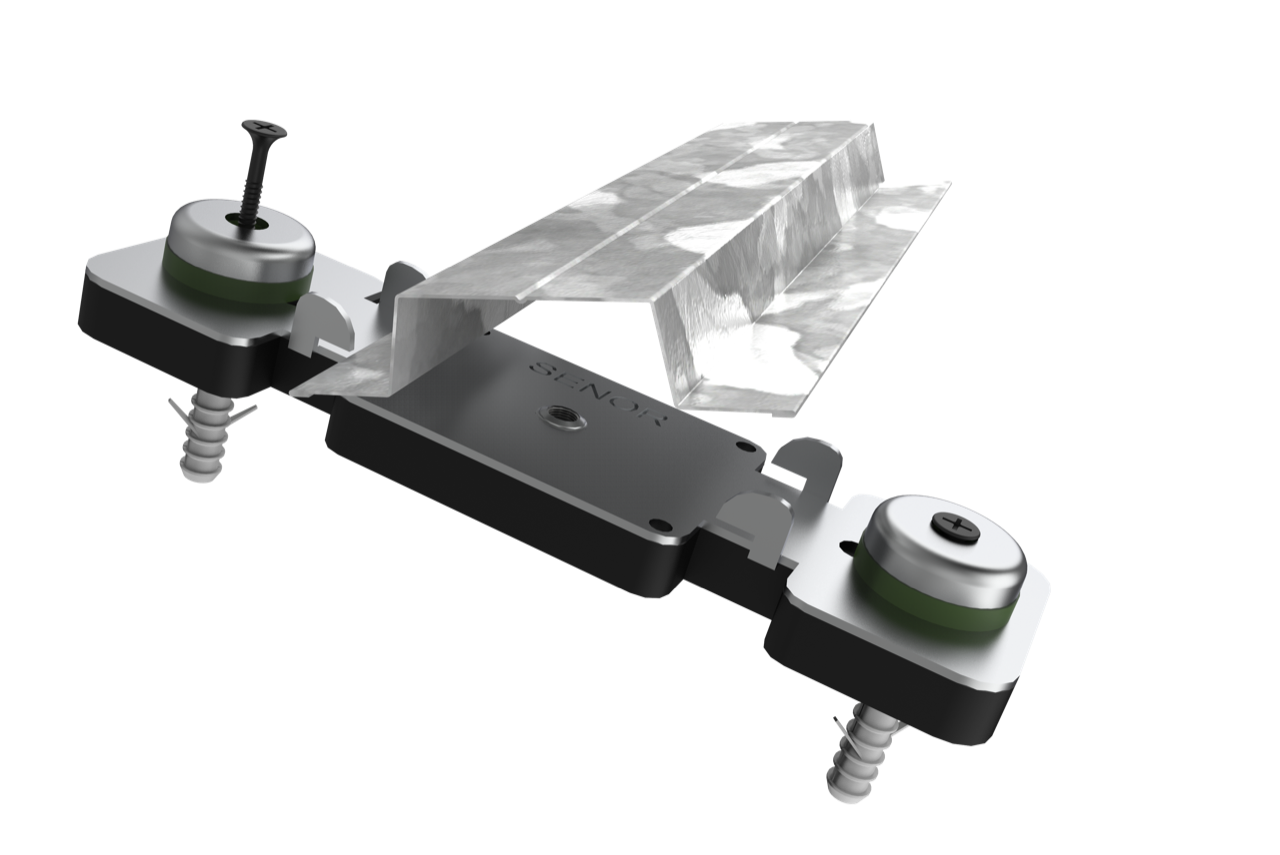

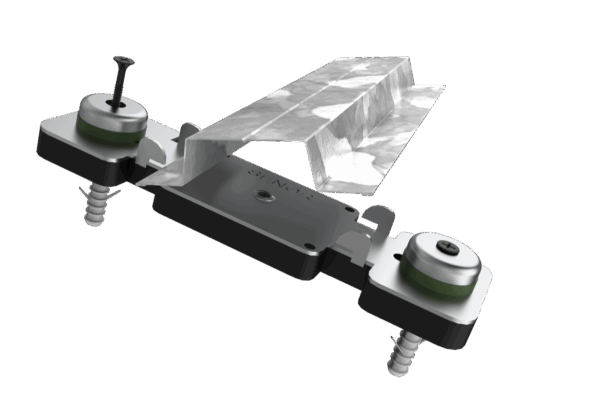

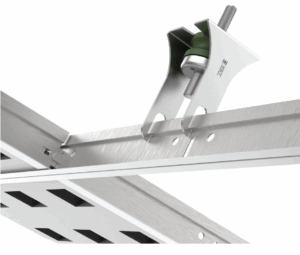

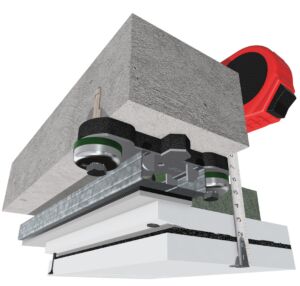

Description: They are last-generation wall fastenings with exclusive design for supporting false acoustic partition walls.

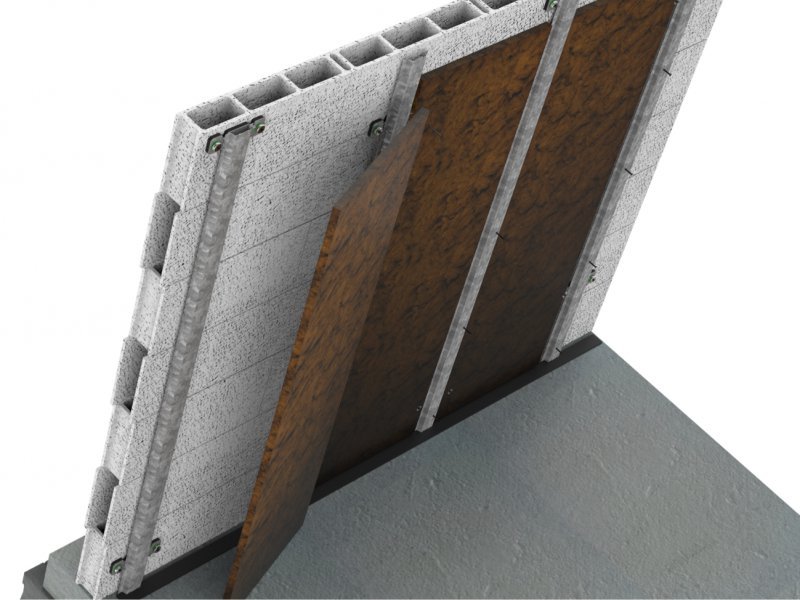

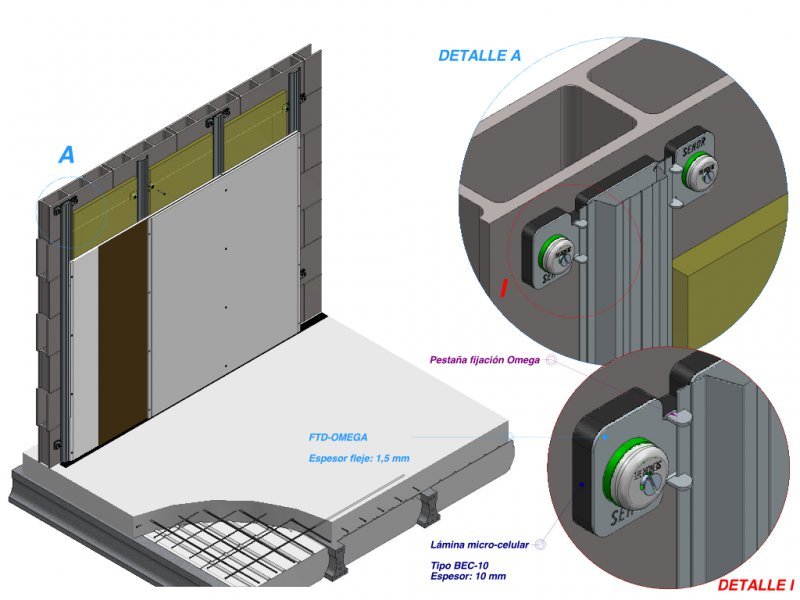

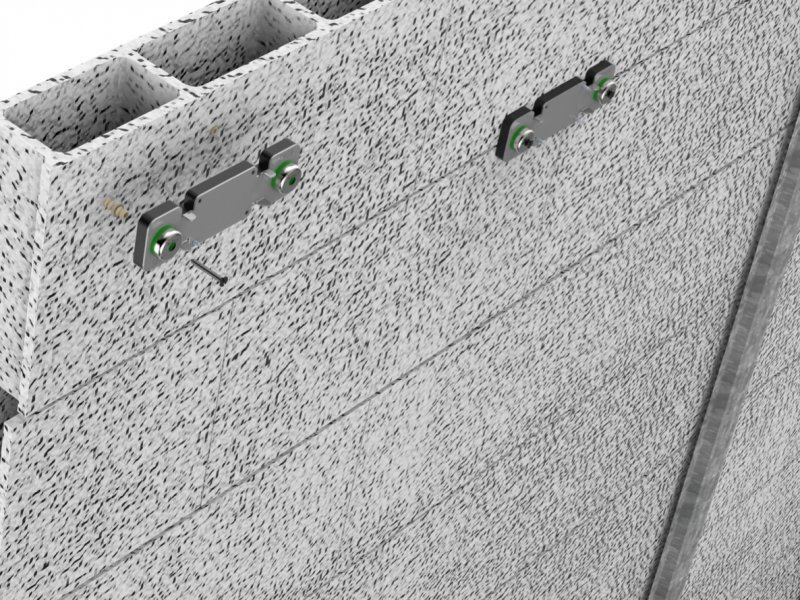

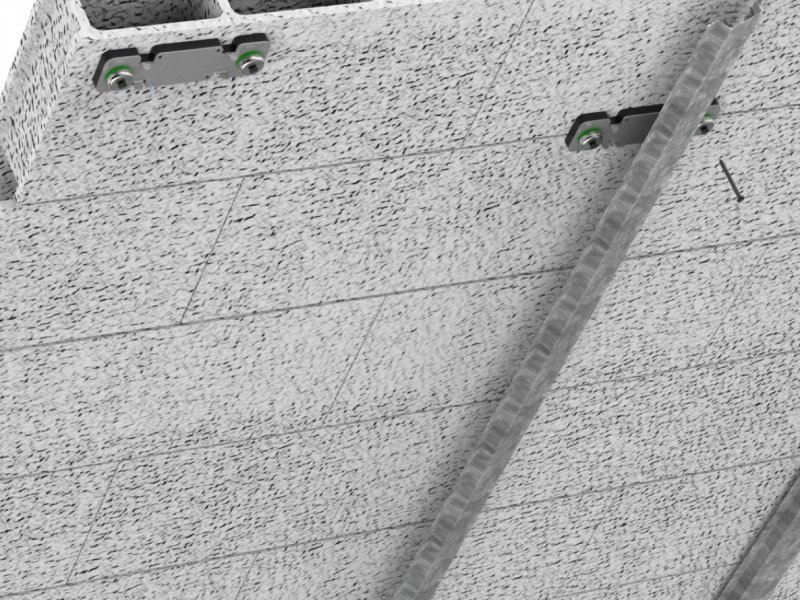

This New acoustic fastening allows isolating and separating an auxiliary self-supporting structure from the original wall, formed by OMEGA profile and, thus, eradicate the pollution caused by vibratory energy, to which it may be subjected, towards the original wall. Thus avoiding, the problem of induced noise to the rest of the edification Never seen before! It is used in areas with limited space.
Polymer "MEGOL-IA 30C-UG / UVI F084 / P1250SPE25" according to standard UNE EN 13964. This combination provides a higher damping factor in medium / high frequencies compared to standard polymers. Like: Polyurethane, Polyethylene, EPDM, etc ...
Technical Parameters:
Available colors of MEGOL; GREEN
Dynamic load capacity according to axial movement of compression or elongation:
COMPRESSION: Recommended for loads between 80N up to 500N as maximal load.
ELONGATION: Recommended for loads between 40N up to 250N as maximal load.

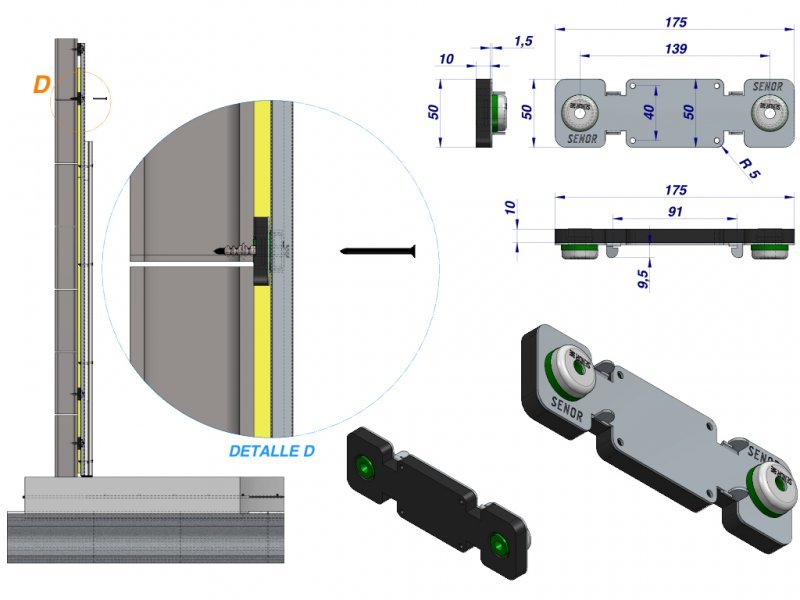

Profile: Omega

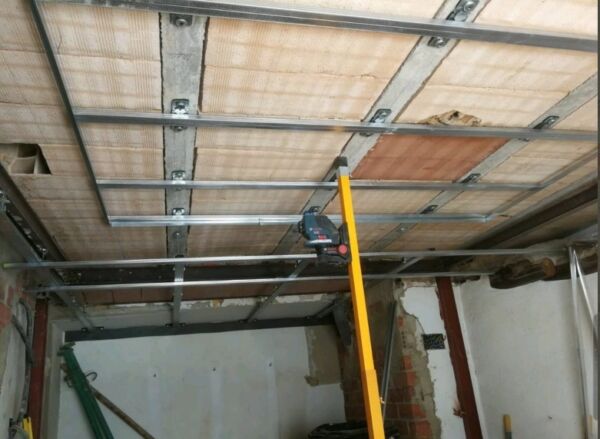

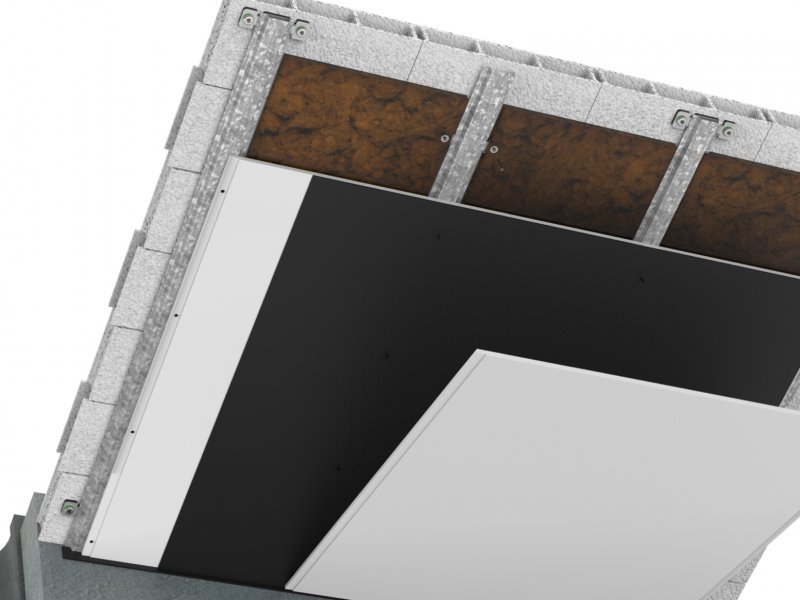

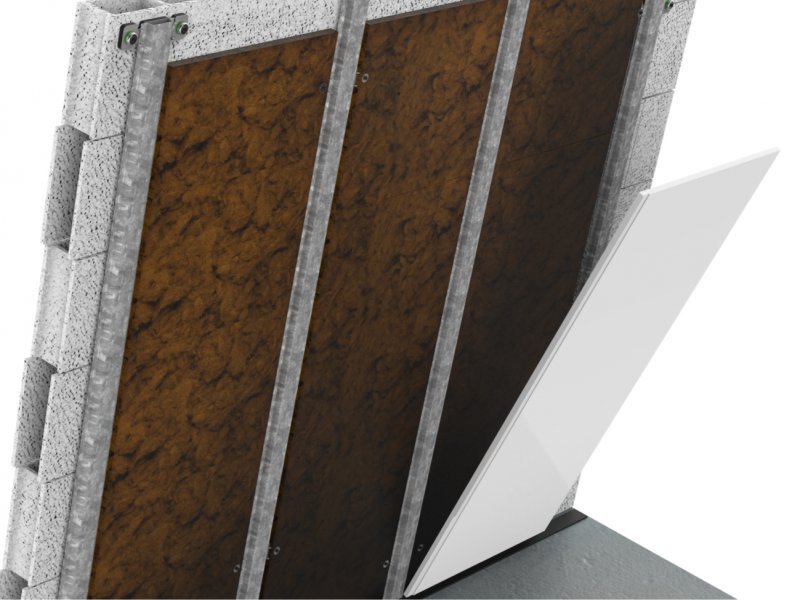

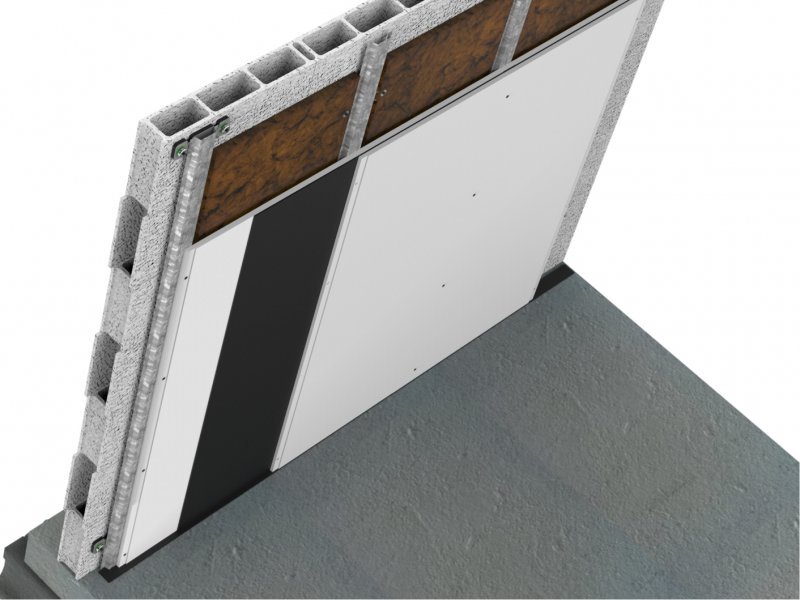

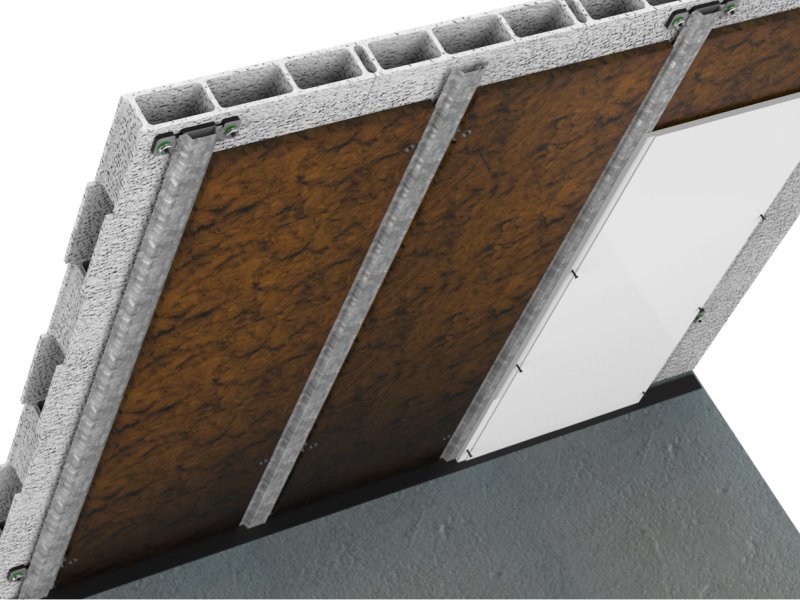

Application: Sound insulation of pre-wall cladding and ceiling systems.
