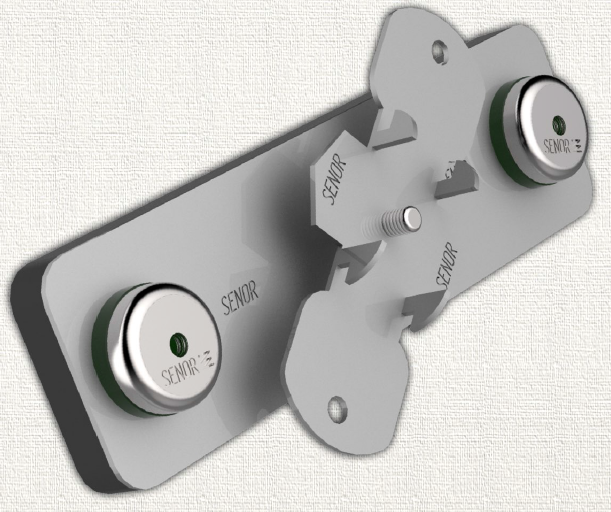

Brand: Senor
Model: FTD NIVEL 47

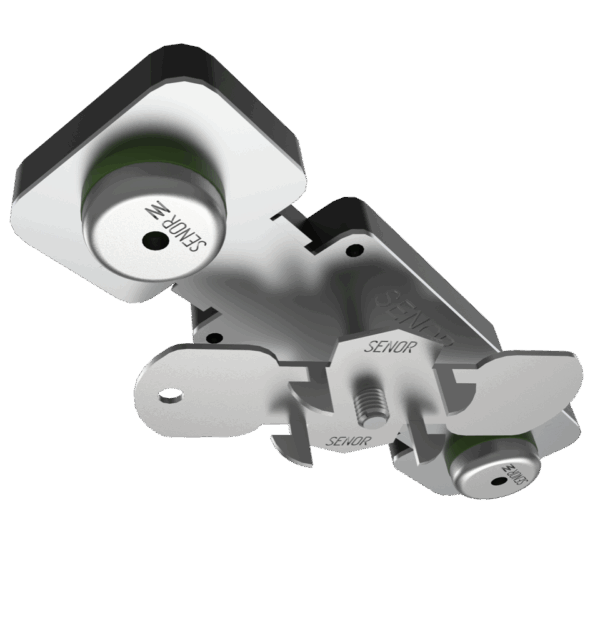

Type: Wall Hanger

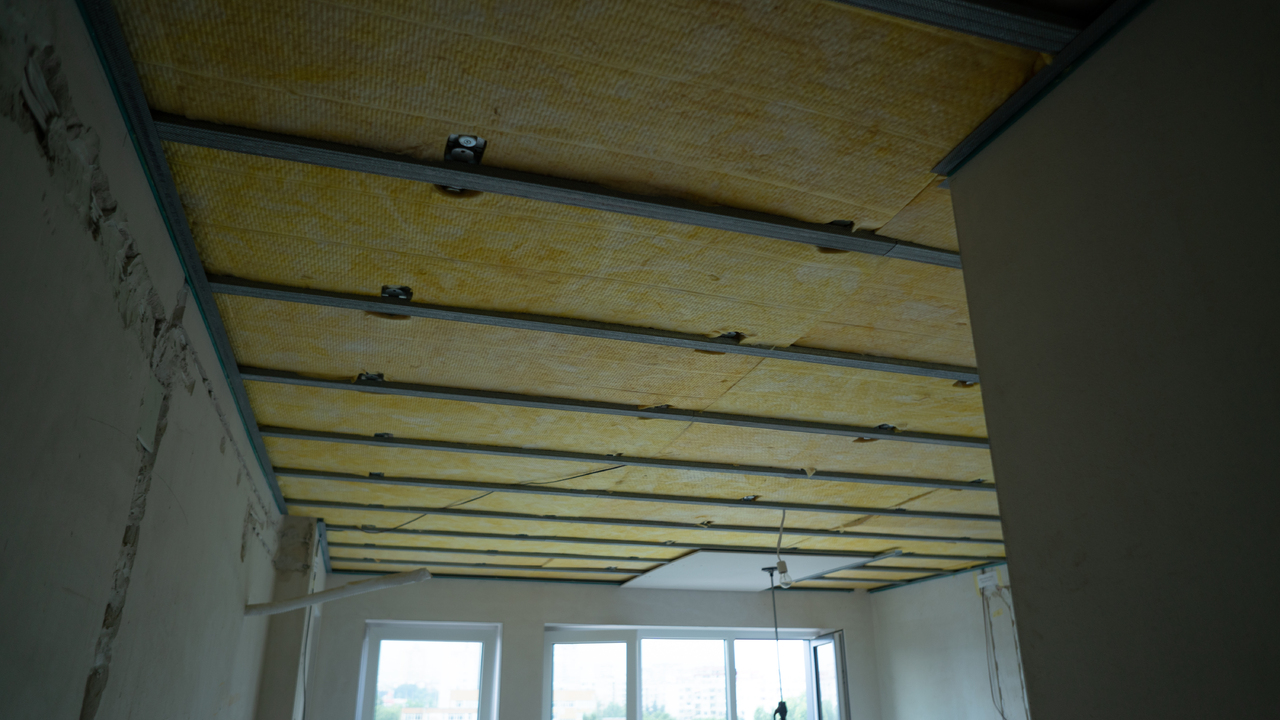

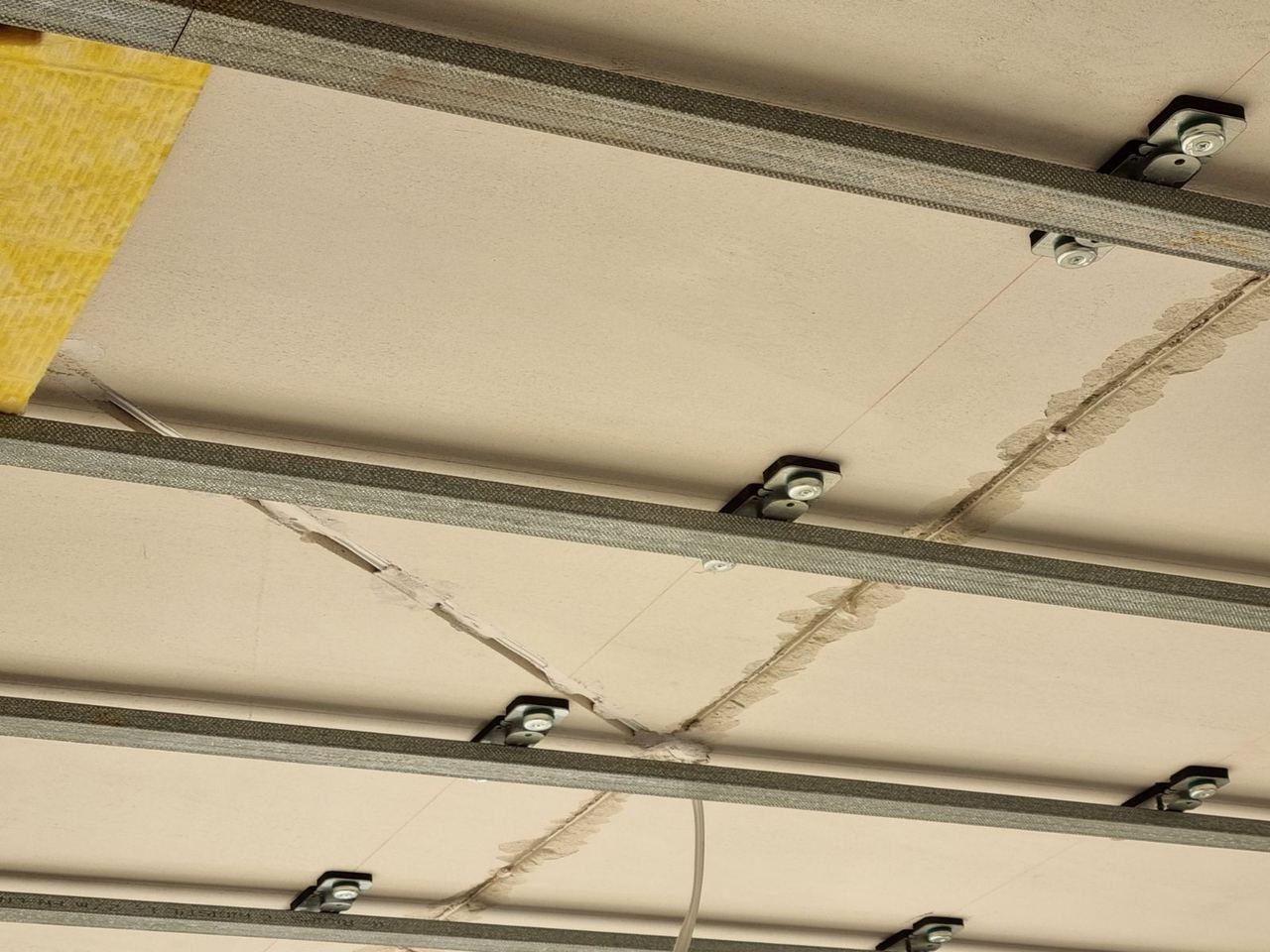

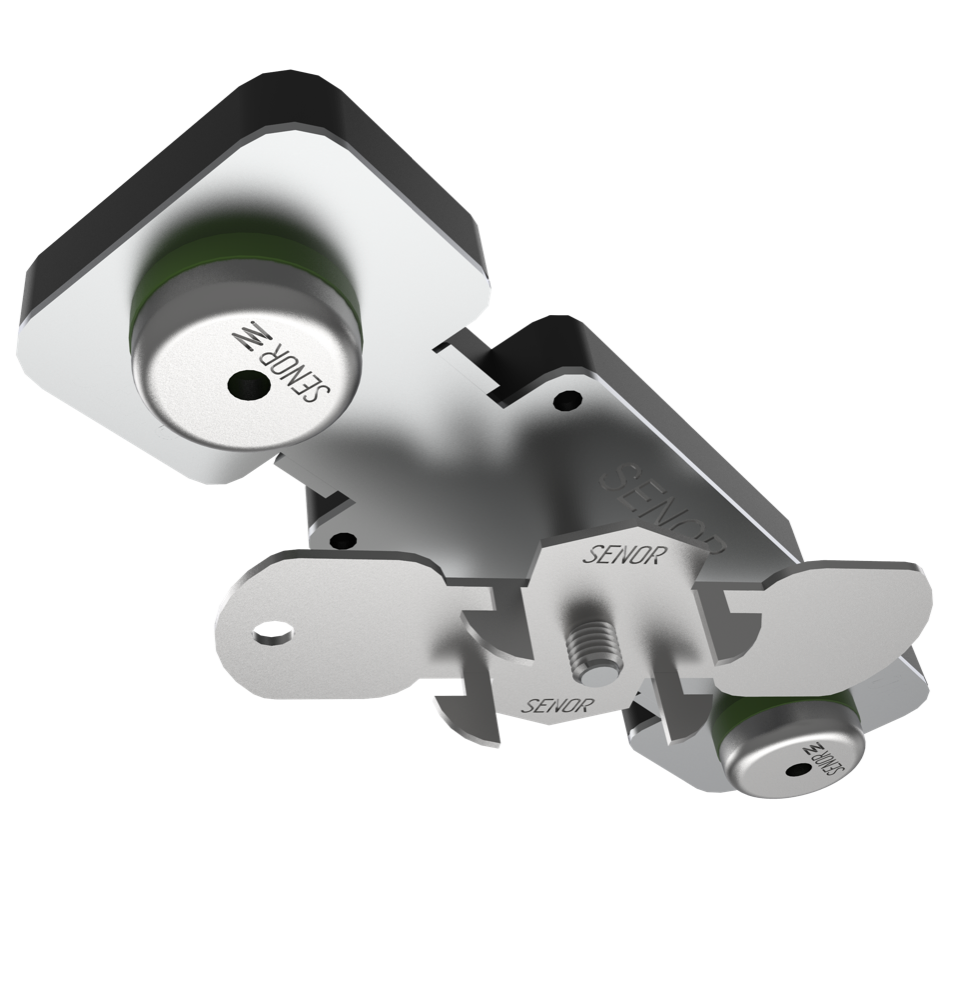

Description: Direct to wall damping system. Ours allows isolating and separating partition walls on ceilings in a minimum space. It has advantage of correcting the imperfections present in facings, providing quality and performance to the different finishings.
Technical parameters:
Instructions:

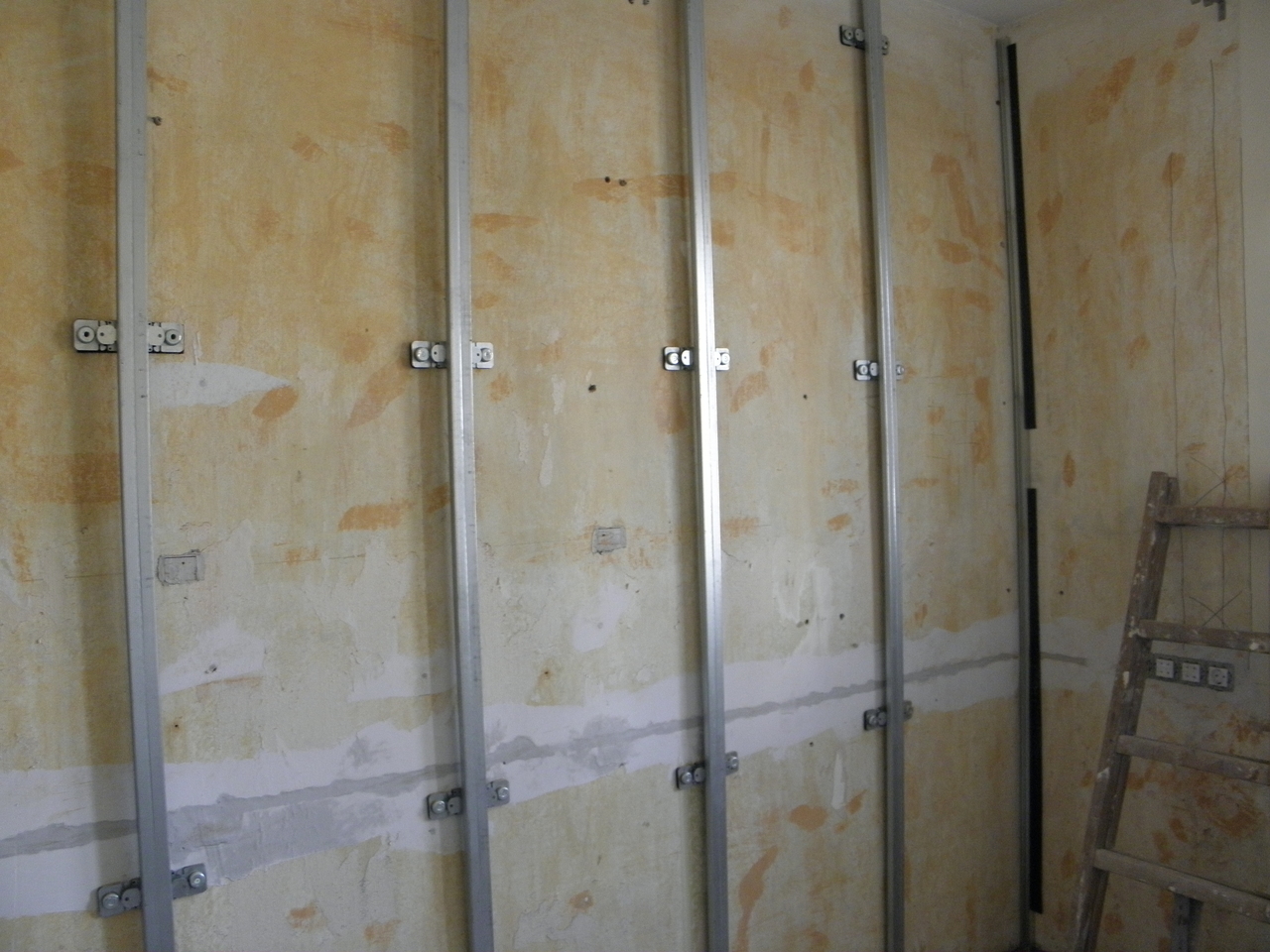

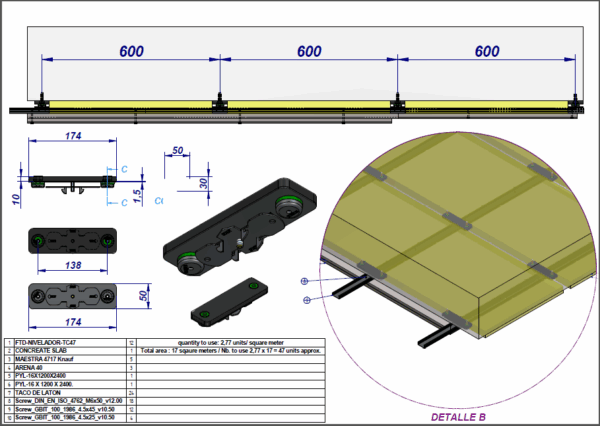

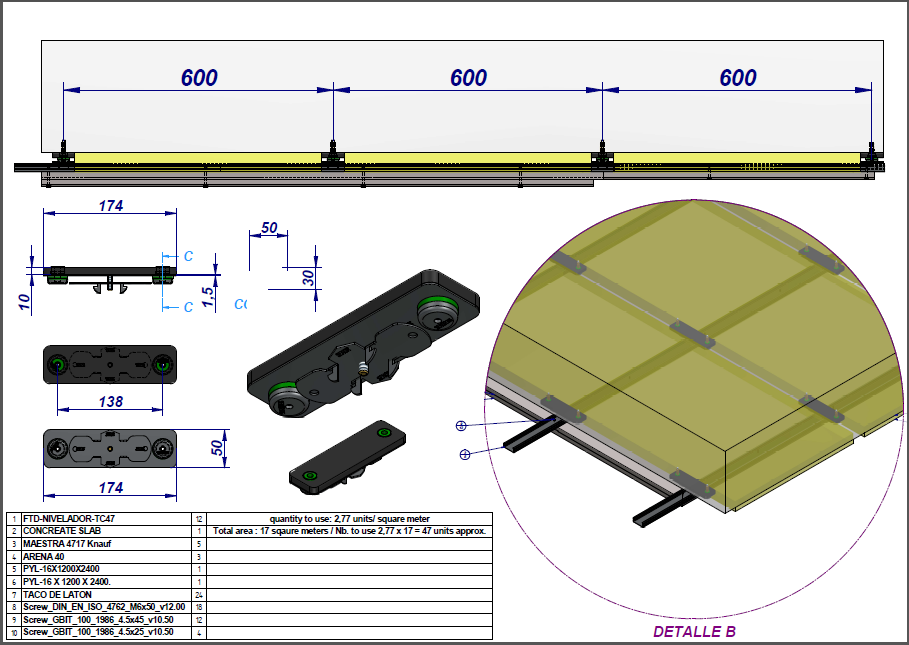

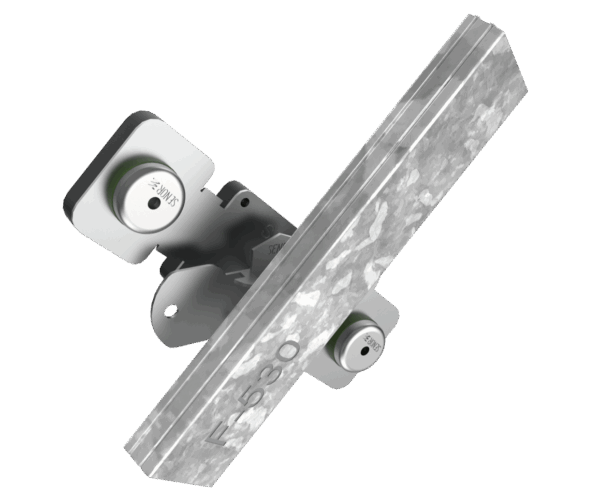

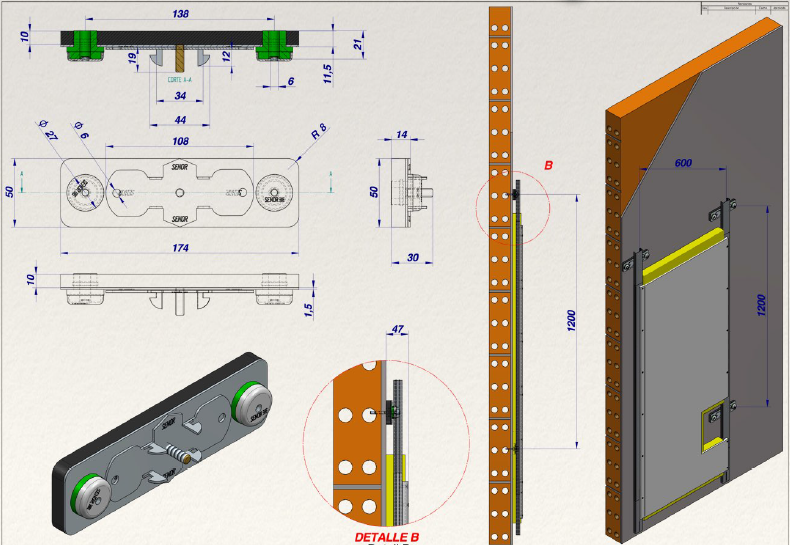

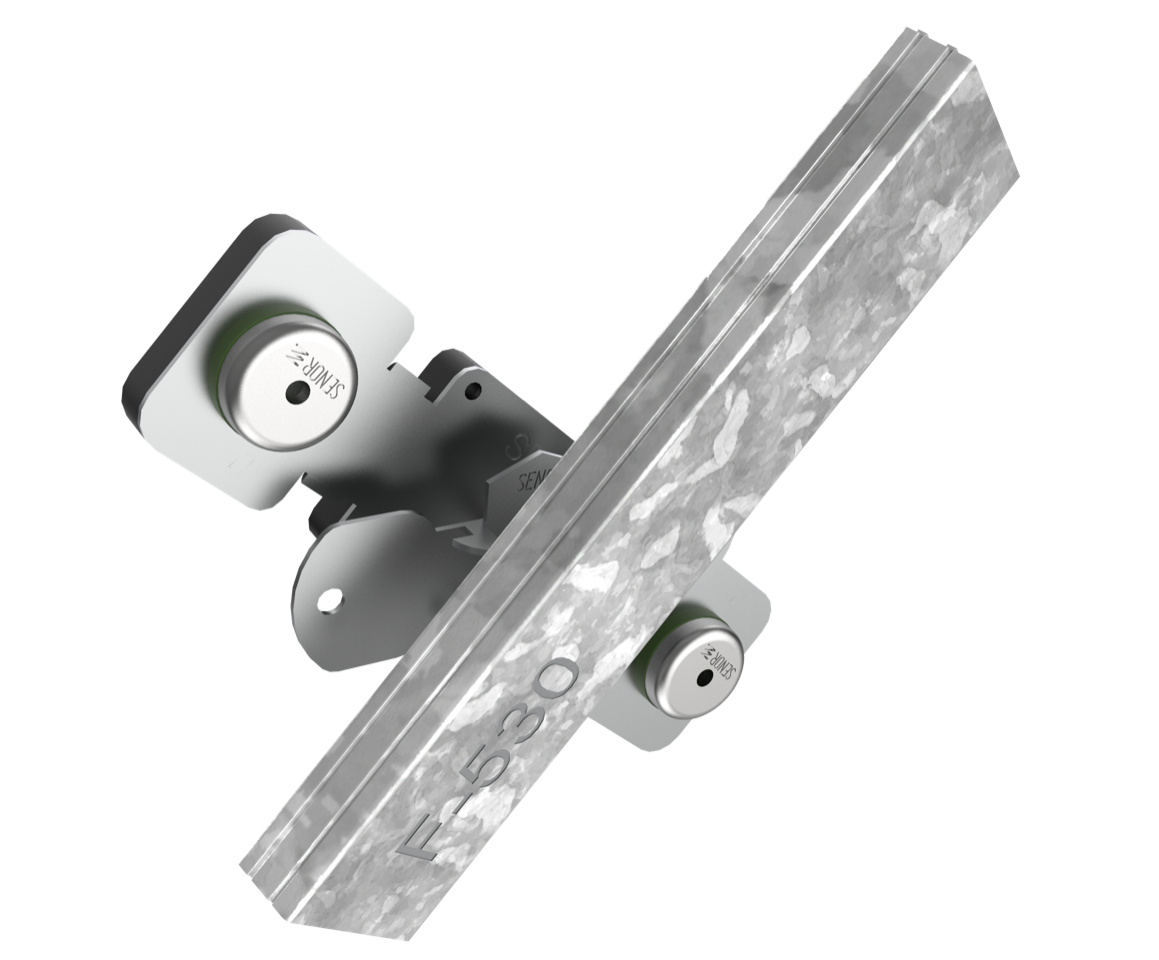

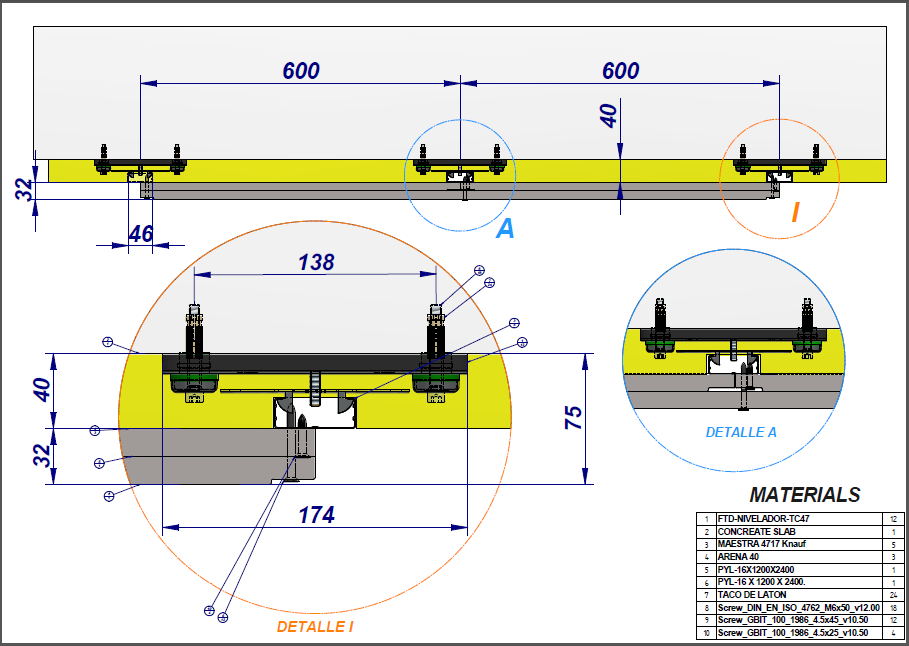

The profile TC-47 shall be placed every 0,6 meters.
In the longitudinal way of the profile, it shall be
placed 2 units.
Amount: 2 x 1,66 = 3,32 units per linear meter.
Example: To cover 10 linear meters of wall x 2,55
hight meters. I.e., 25,5 square meters, we need
33 units approximately.
Repercussion (m2)= 1,3 units.

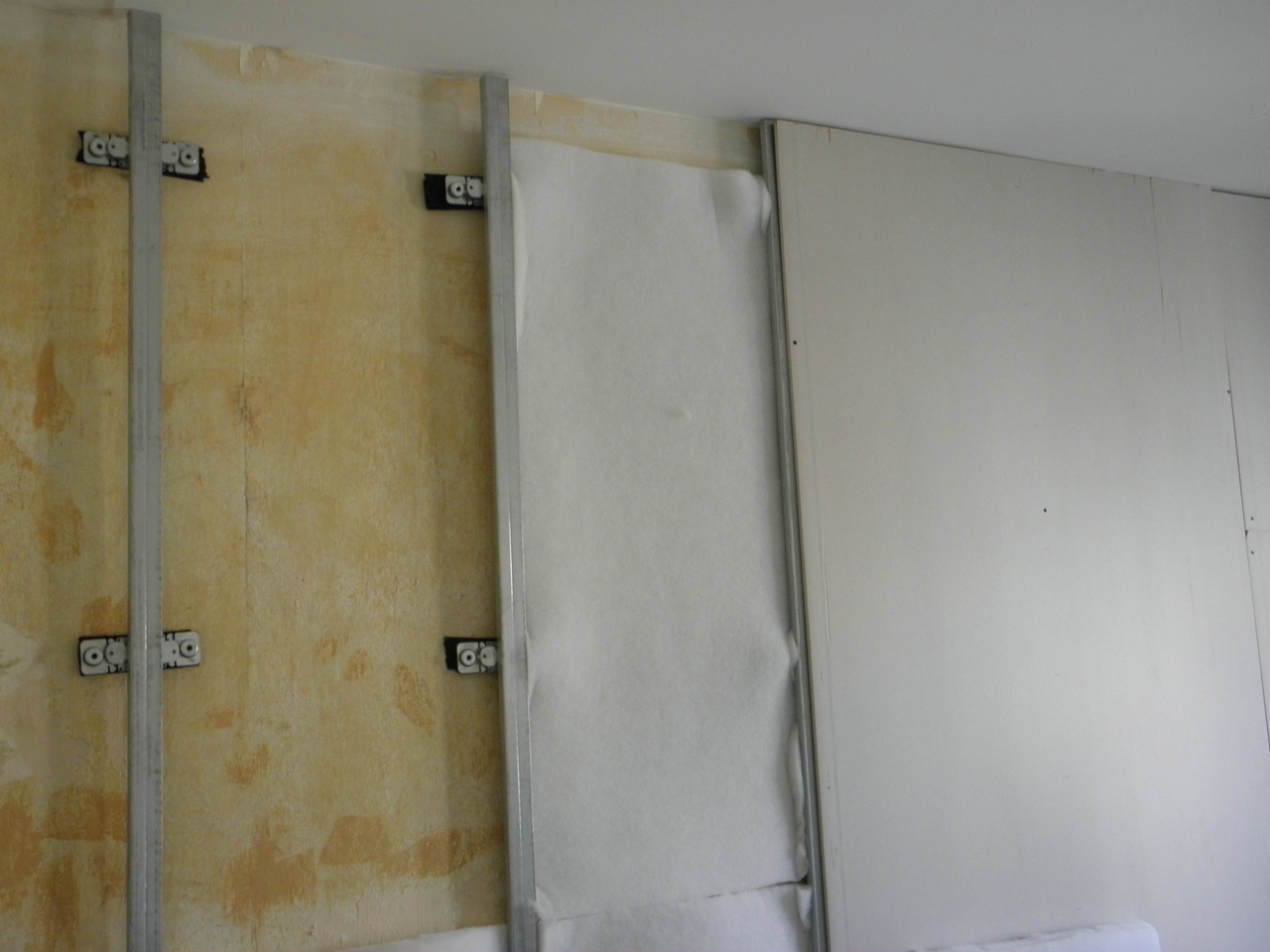

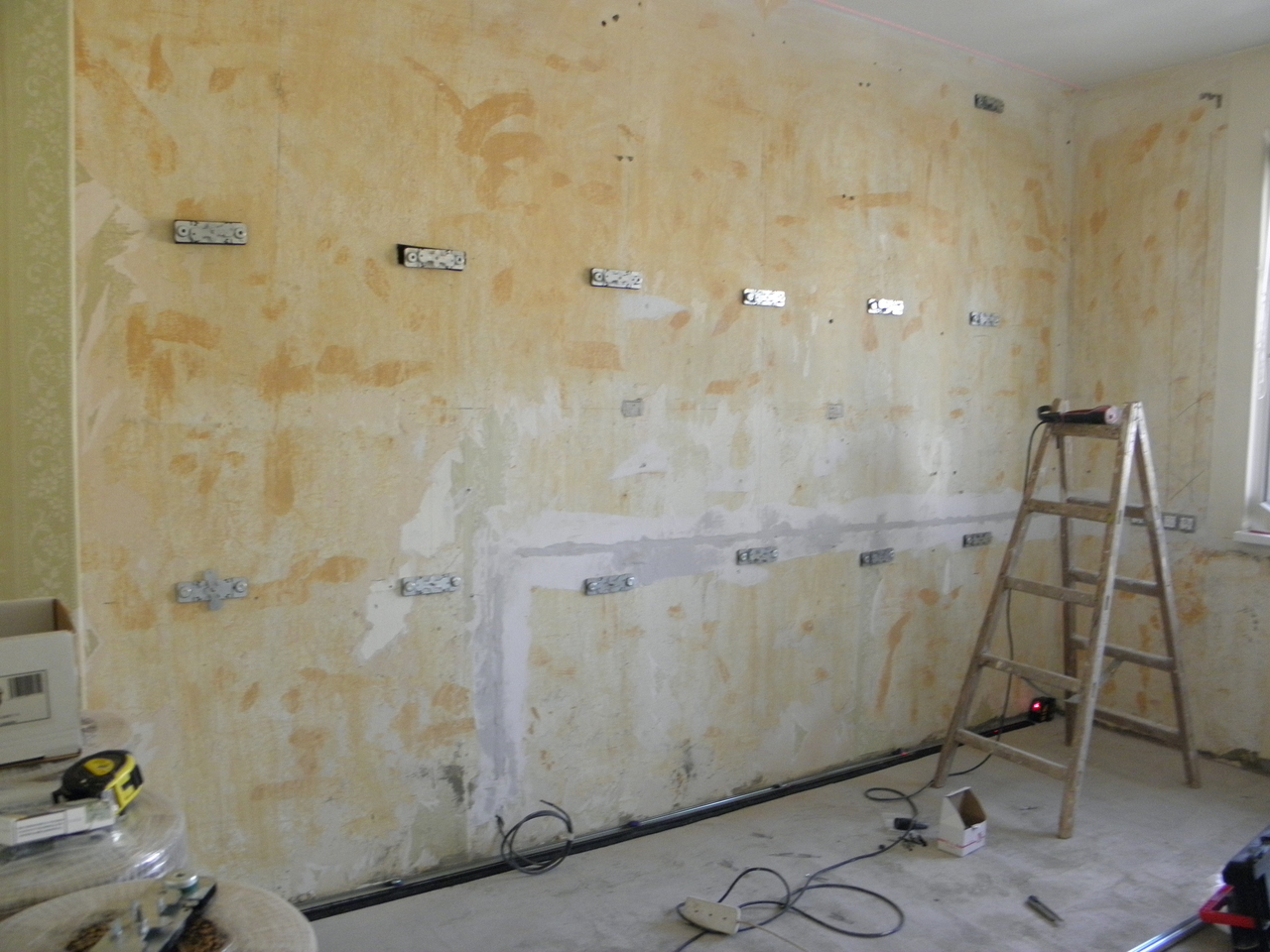

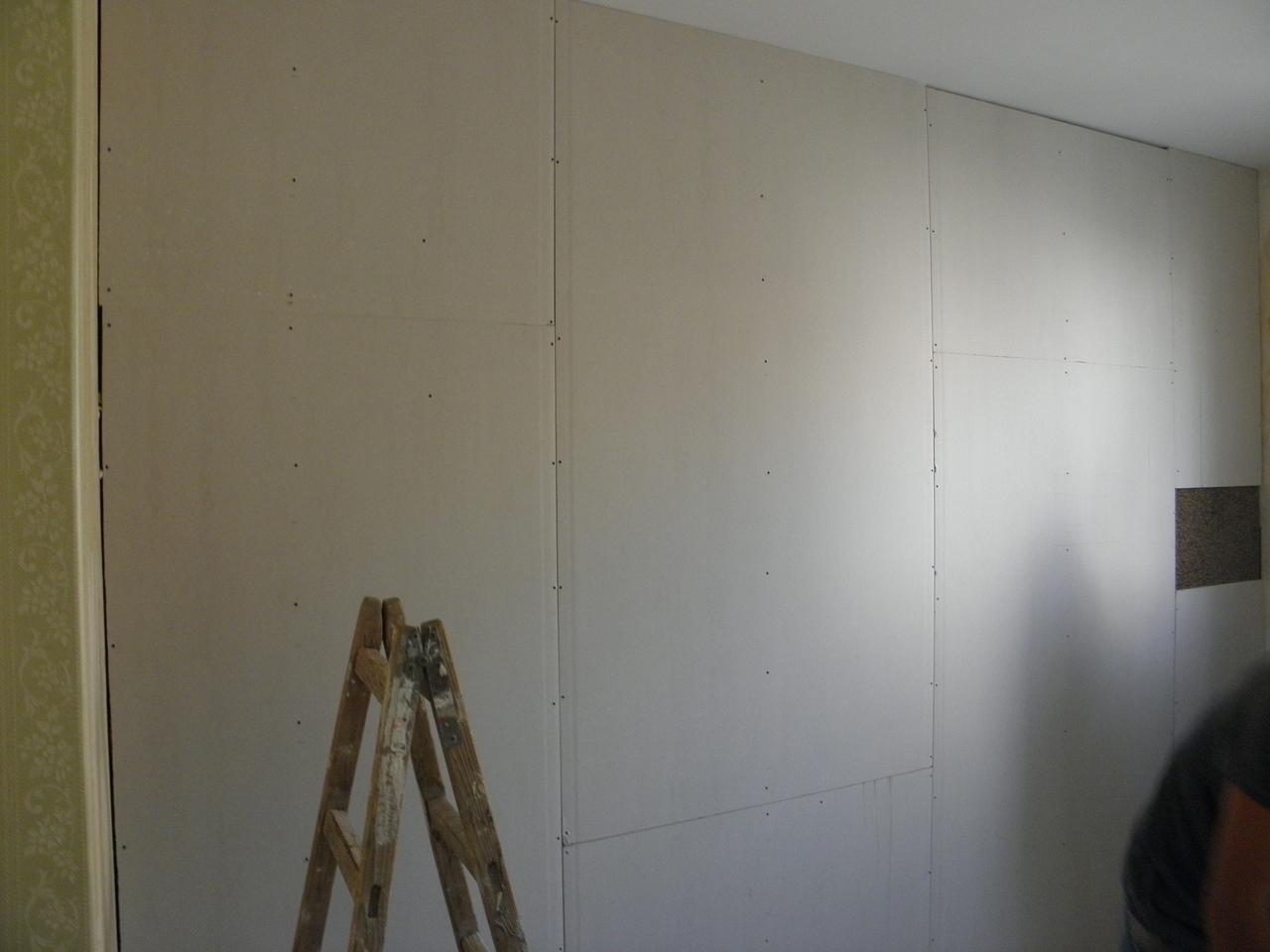

Application: Wall insulation.
