Brand: SENOR
Model: TAV-500/11 A
Type: Vibroinsulator
Description:

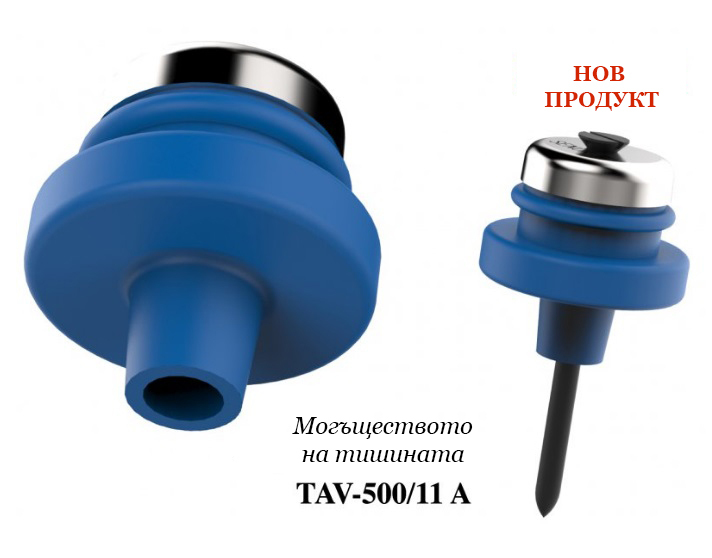

Last generation Vibroinsulator SENOR with an exclusive design for acoustic installations. Exclusively produced by SENOR. TAV-500/11 A is a product at an affordable price, which provides comfort and eliminates acoustic pollution.

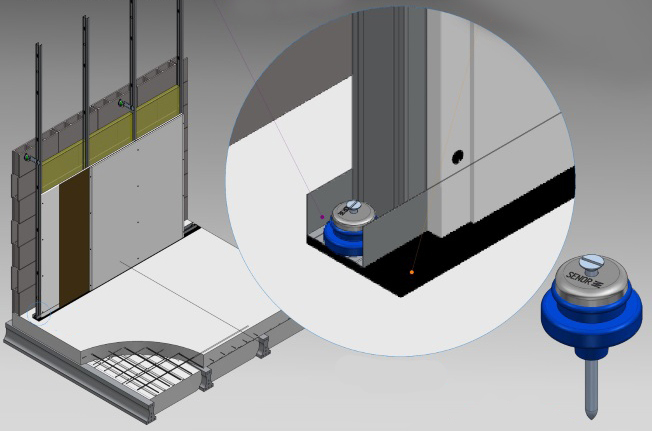

The metal part of the product is made of galvanized steel with 0.56 mm thickness and is composed from a vertical elements (studs) and horizontal elements (channels). The elastomeric isolator 500 TAV-11 is formed by high polymer "MEGOL IA 40 C UG / UVI AZUL FO85 / E P 1250SPE25", which is treated antioxidant.
The vibroinsulator TAV-500/11 A allows acoustic isolation between materials in the installation without losing its mechanical security.

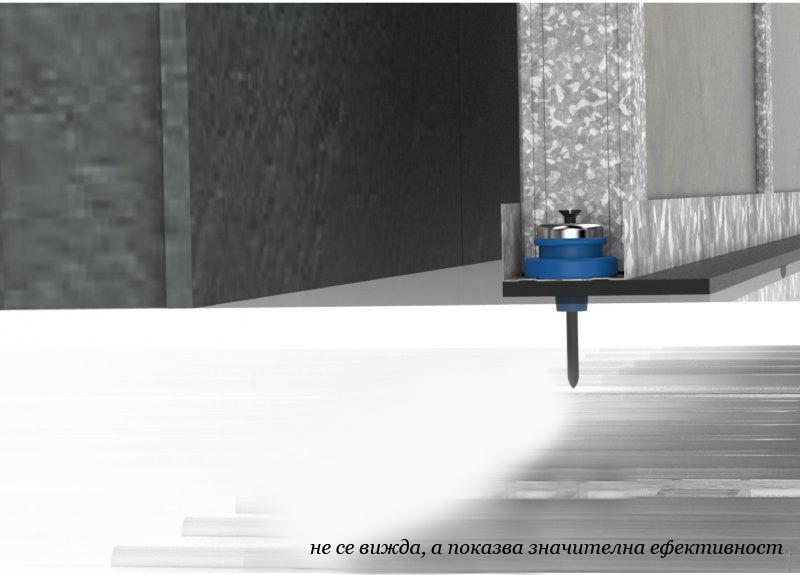

The shape of the cone guarantee that when pressed product is folded more strongly to the installation. Distinctive qualities are security, efficiency, easy installation.
Features:
The color of the anti-vibration material MEGOL is blue.
Composed of a high polymer treated antioxidant "MEGOL IA 40 C-UG / UVI F / 61 P1250SPE", a standard (UNE EN 13964).
Application:

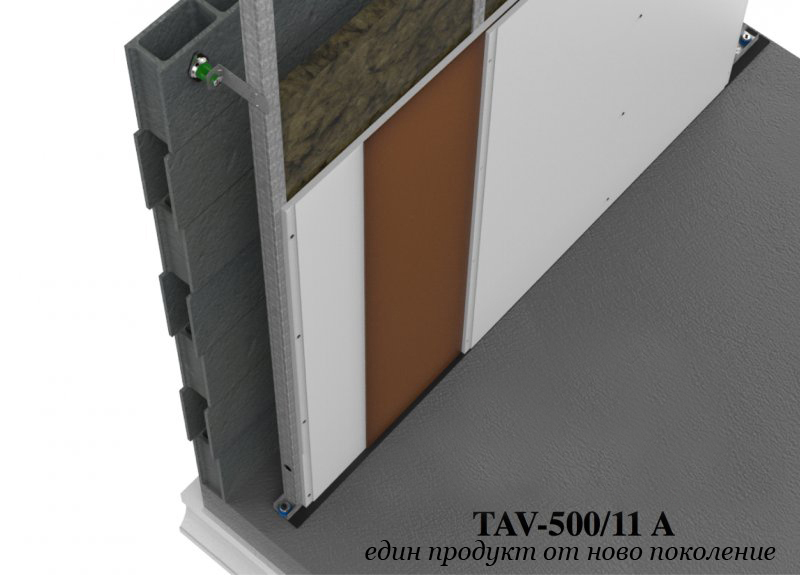

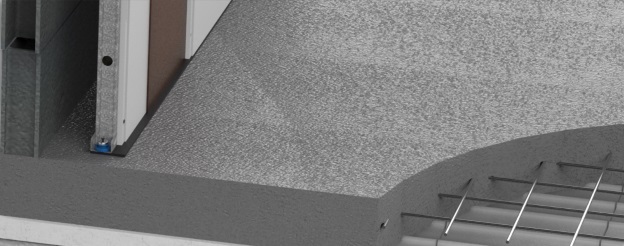

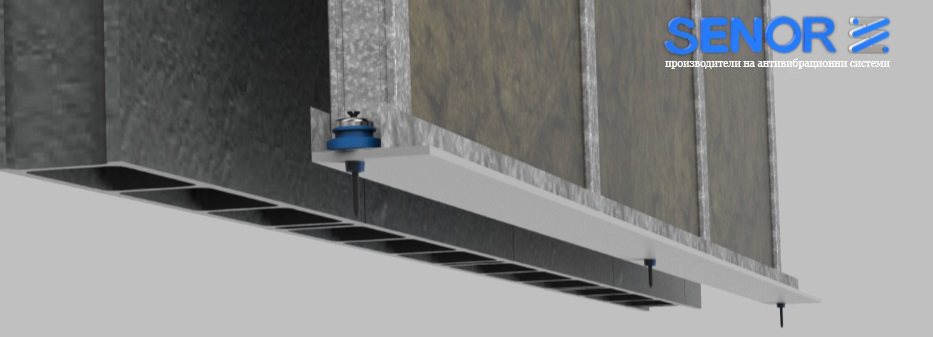

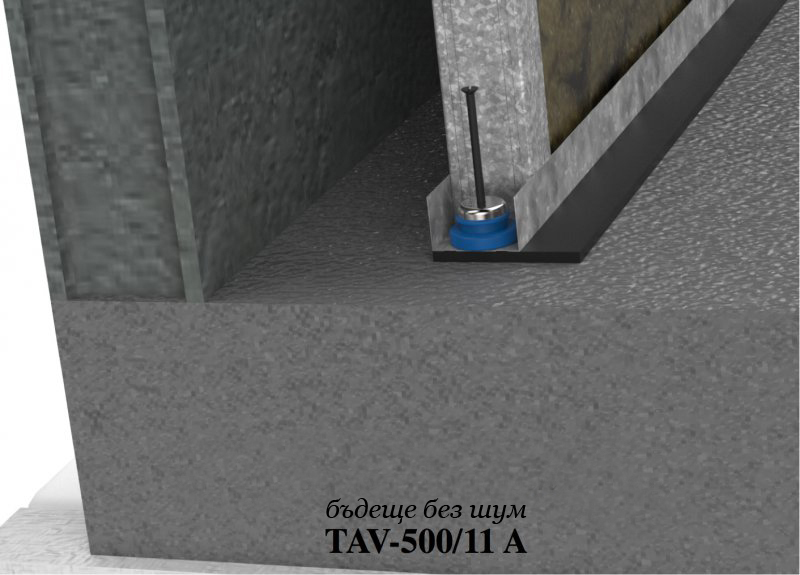

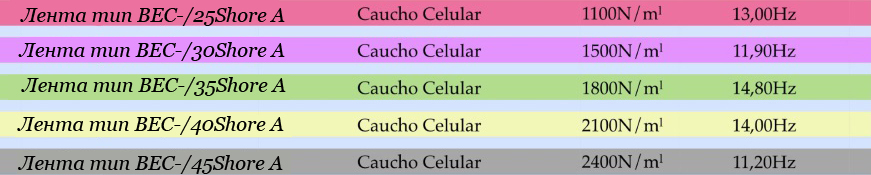

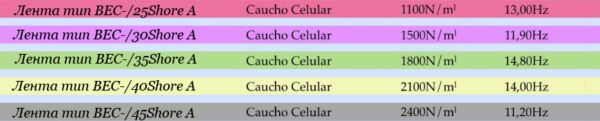

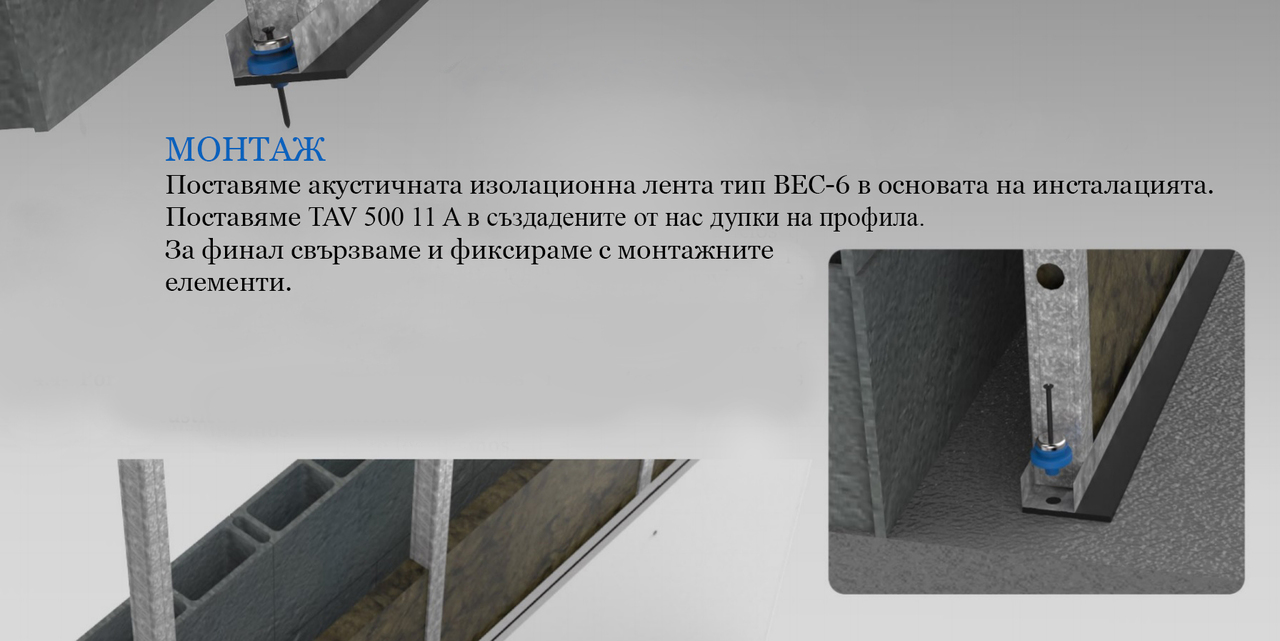

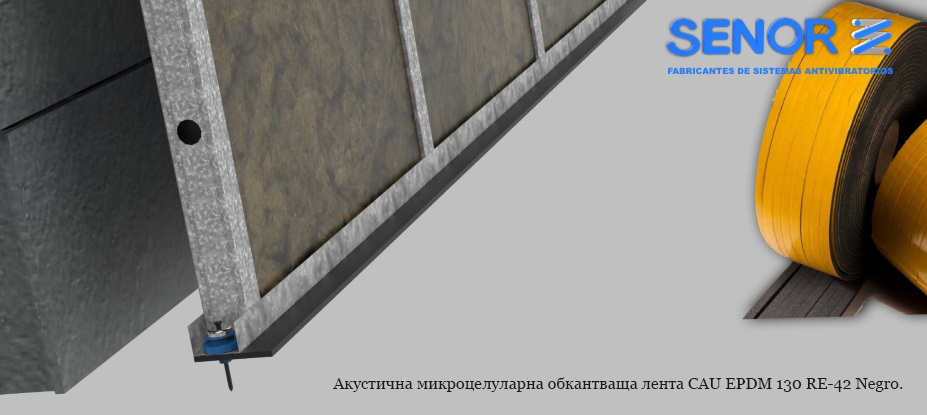

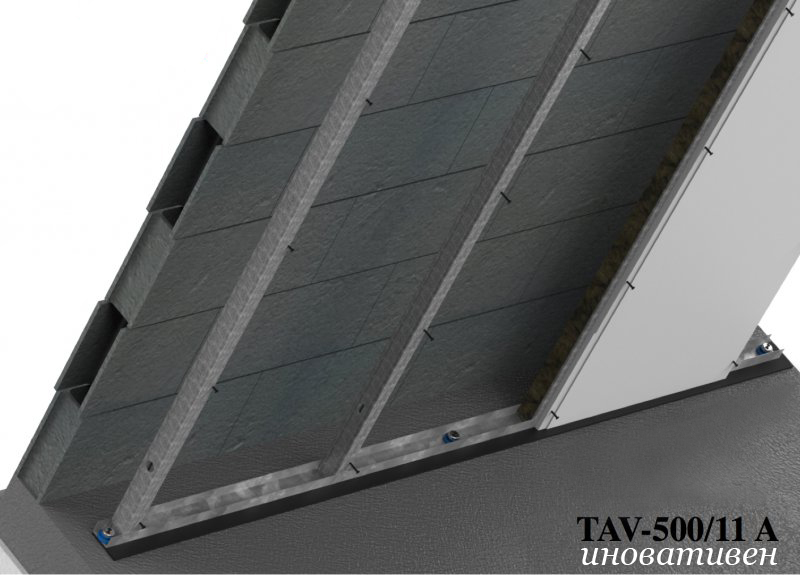

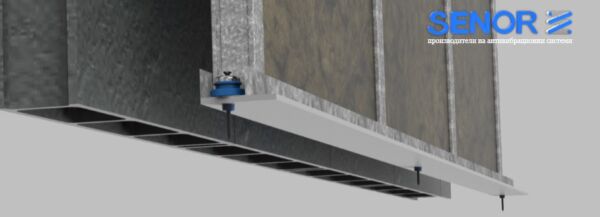

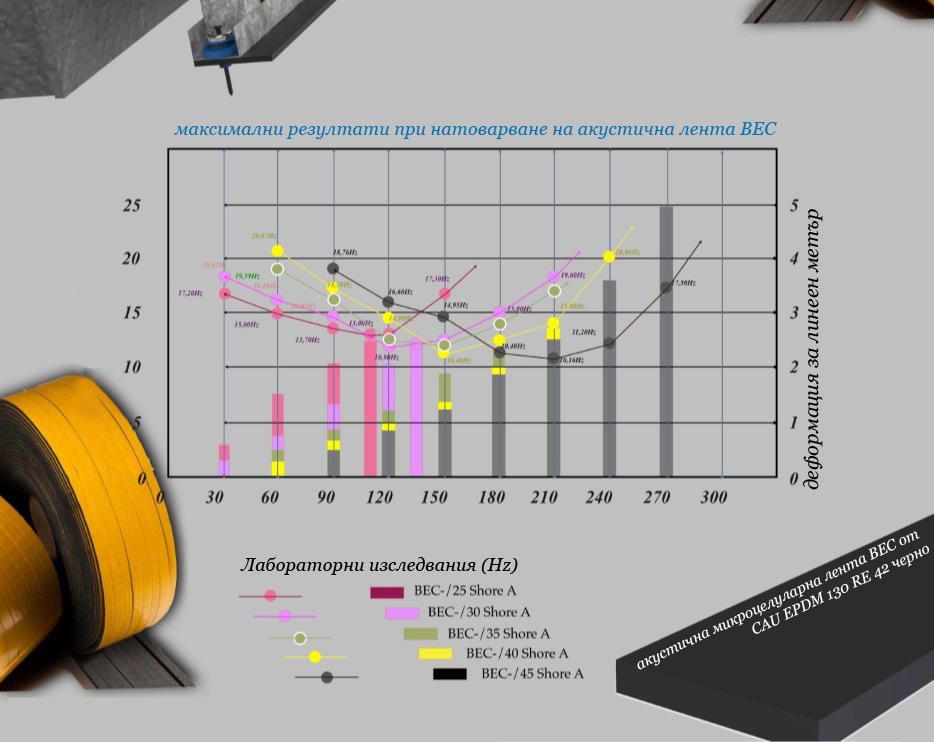

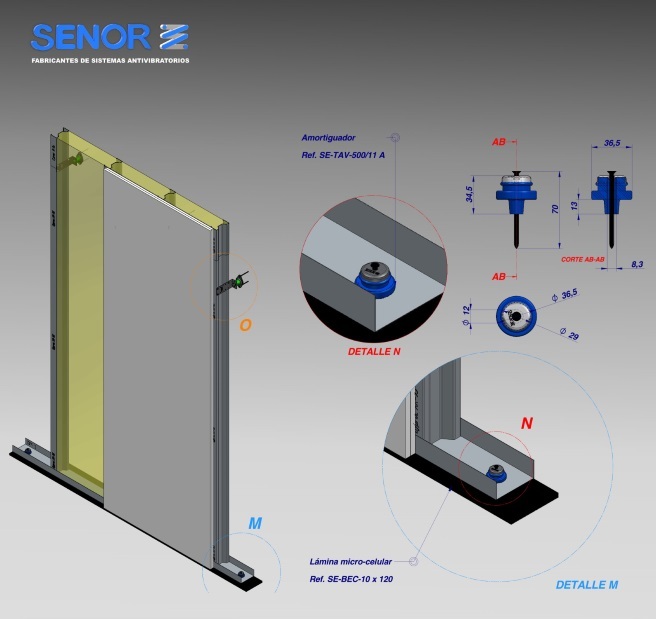

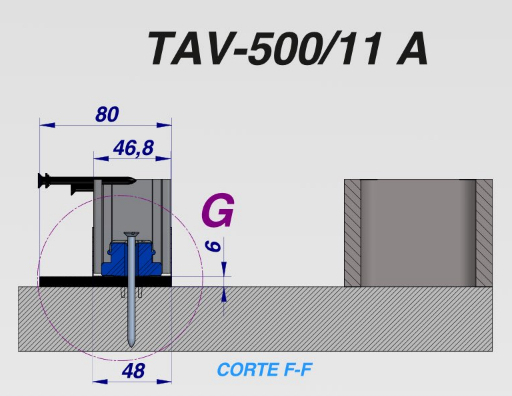

TAV-500/11 A is used for sound insulation of aluminum profiles, determining partitions and linings. Fixes and isolate structural aluminum profiles and skirting gypsum finishes.TAV-500/11 A is the elastic vibration isolators with maximum productivity, without doubt, to achieve completion should be combined with acoustic skirting tape of SENOR, type BEC or BEP and AMORIM.

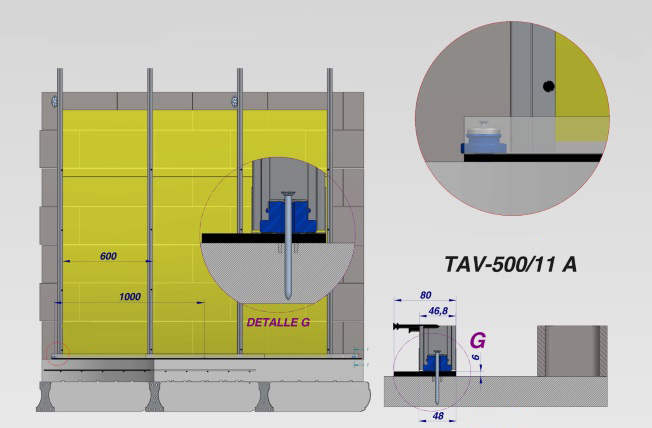

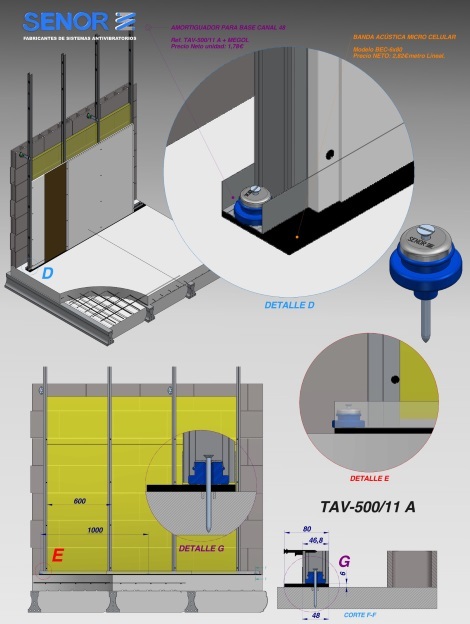

Recommended aluminum: CHANNEL 48/50 - 70-90 - 125 - 150 mm.

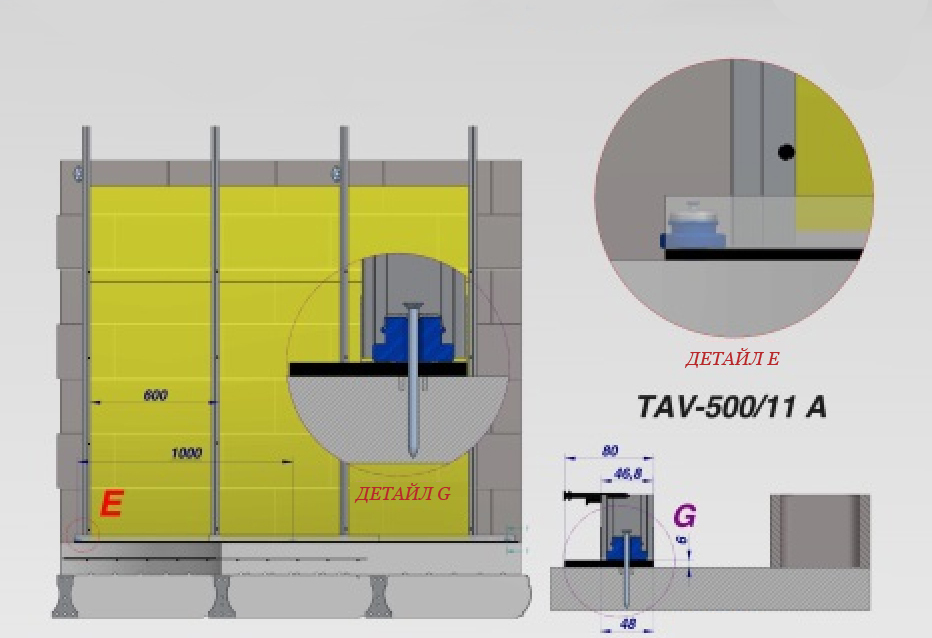

The tampon is placed over 80 cm.
