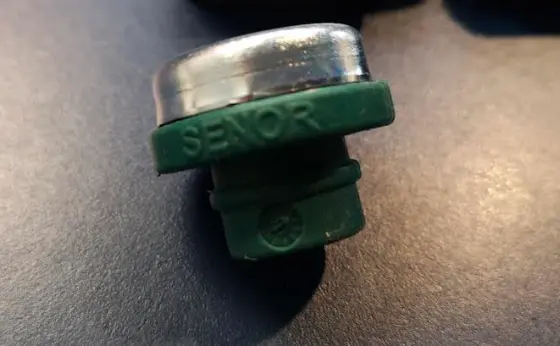

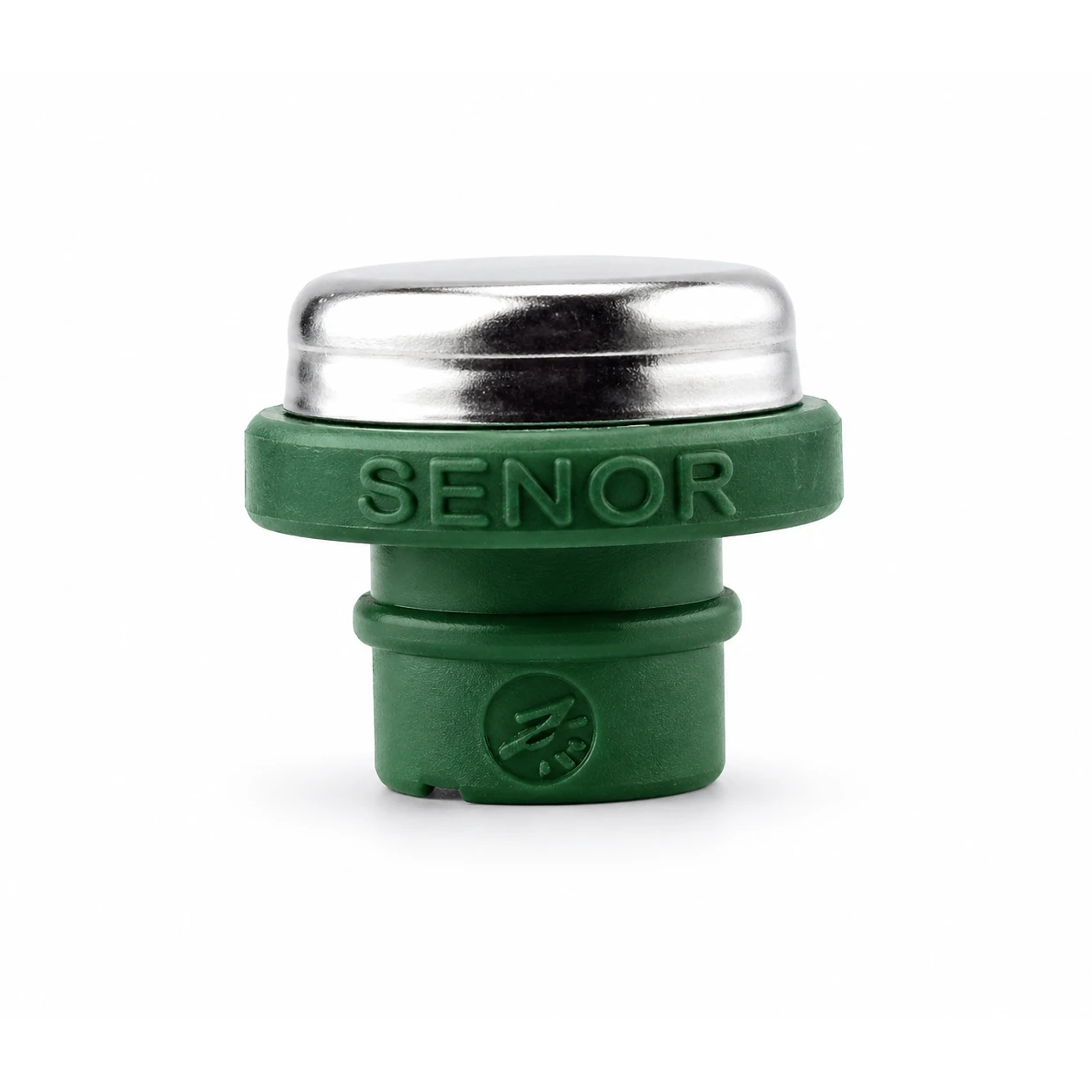

Model: SE-TAV 274 + CN
Type: Vibration Insulation Pad
Note: The indicated price is for 1 pc.
Description: Exclusively manufactured by SENOR. SE-TAV 274 + CN is an affordable product that provides peace of mind and eliminates acoustic pollution. The metal part of the product is made of galvanized steel with a density of 0.56 mm. The elastic insulator of SE-TAV 274 + CN is formed from high quality polymer "MEGOL IA 40 C UG / UVI AZUL FO85 / E P 1250SPE25", which is treated with antioxidants. The vibration isolator SE-TAV 274 + CN allows acoustic insulation between the materials in the installation without losing its mechanical safety. The ergonomic design is distinguished by its properties to insulate the fixing elements from the rest of the materials, achieving interruption of the phonic bridges and elimination of the vibro-mechanical transmission of waves to the floor. Distinctive features are security, efficiency, easy installation.
Features:
Loads between: 5 - 25 kg
Resonant frequency: 7 - 15 kHz
Dumping factor: high
The color of the MEGOL anti-vibration material is green.
Composed of high quality polymer, antioxidant-treated "MEGOL IA 40 C-UG / UVI F / 61 P1250SPE", standard (UNE EN 13964).
Application:
SE-TAV 274 + CN is used for acoustic insulation of aluminum profiles, determining partition walls and pre-wall cladding. Fixes and insulates structural aluminum profiles and edging gypsum plasterboards.
SE-TAV 274 + CN is an elastic vibration isolator with maximum performance, but without a doubt, to achieve completeness it is necessary to combine with SENOR acoustic edging tapes, type BEC or BEP.
Recommended aluminum profile: for UD profiles: Knauf 28/27 / 0.6, RIGISTIL 20/30 / 3600mm, ATENA UD 16/25/3000 / 0.6
The tampon is placed every 80 cm.
