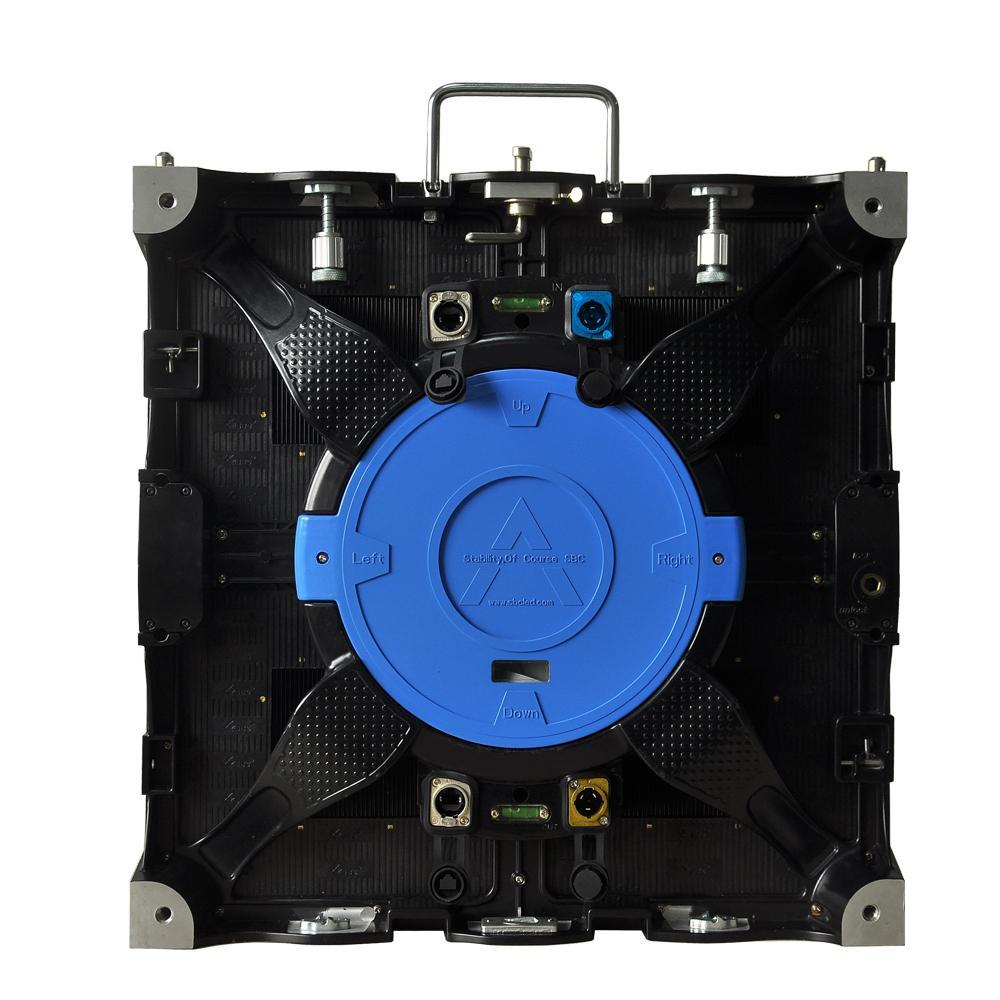

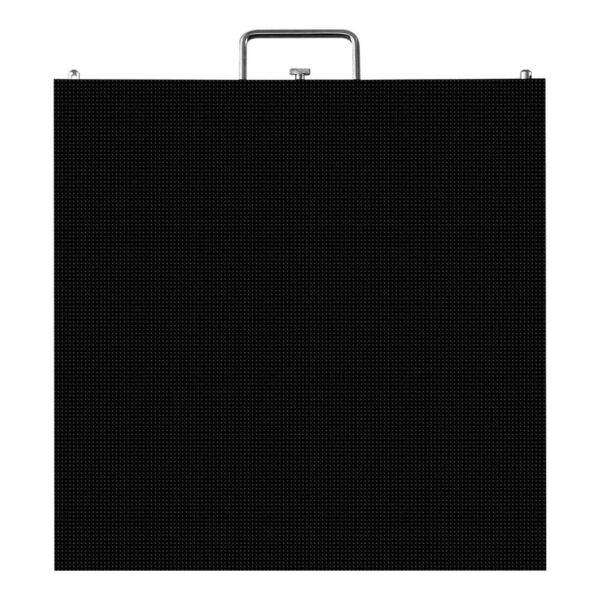

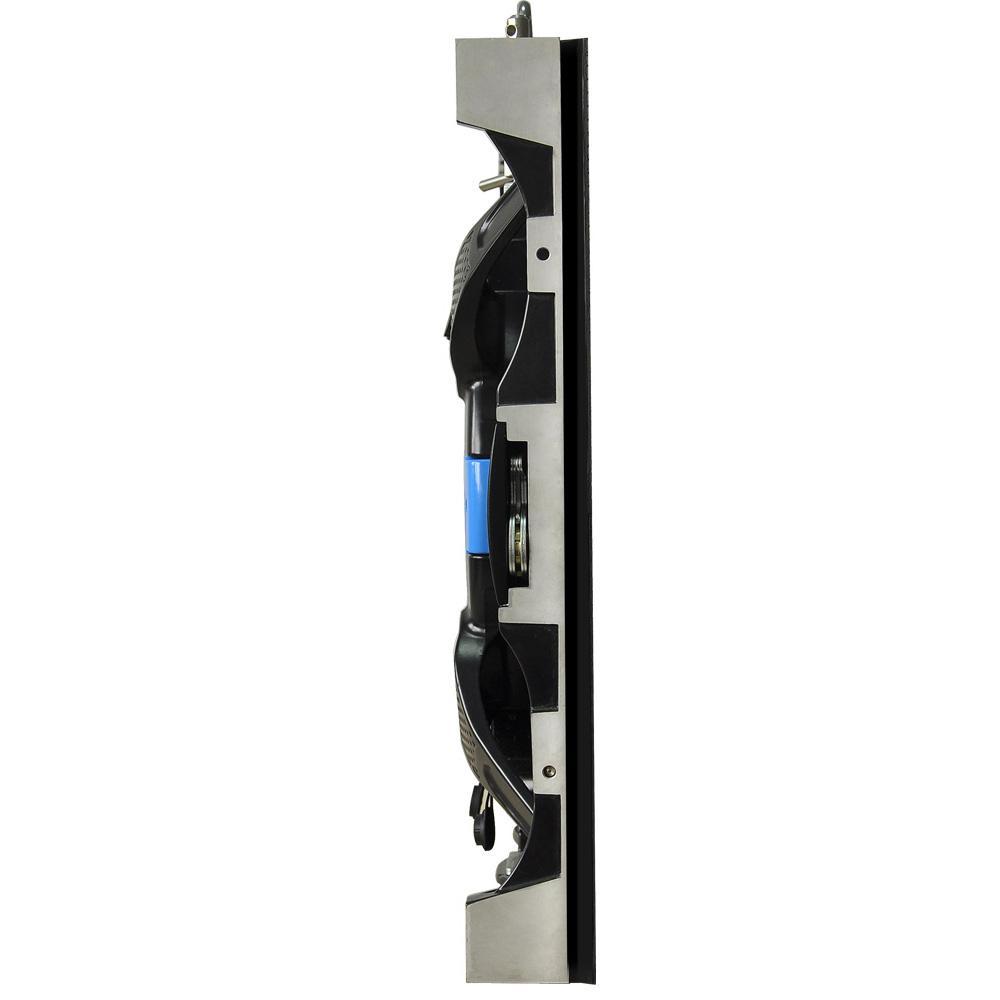

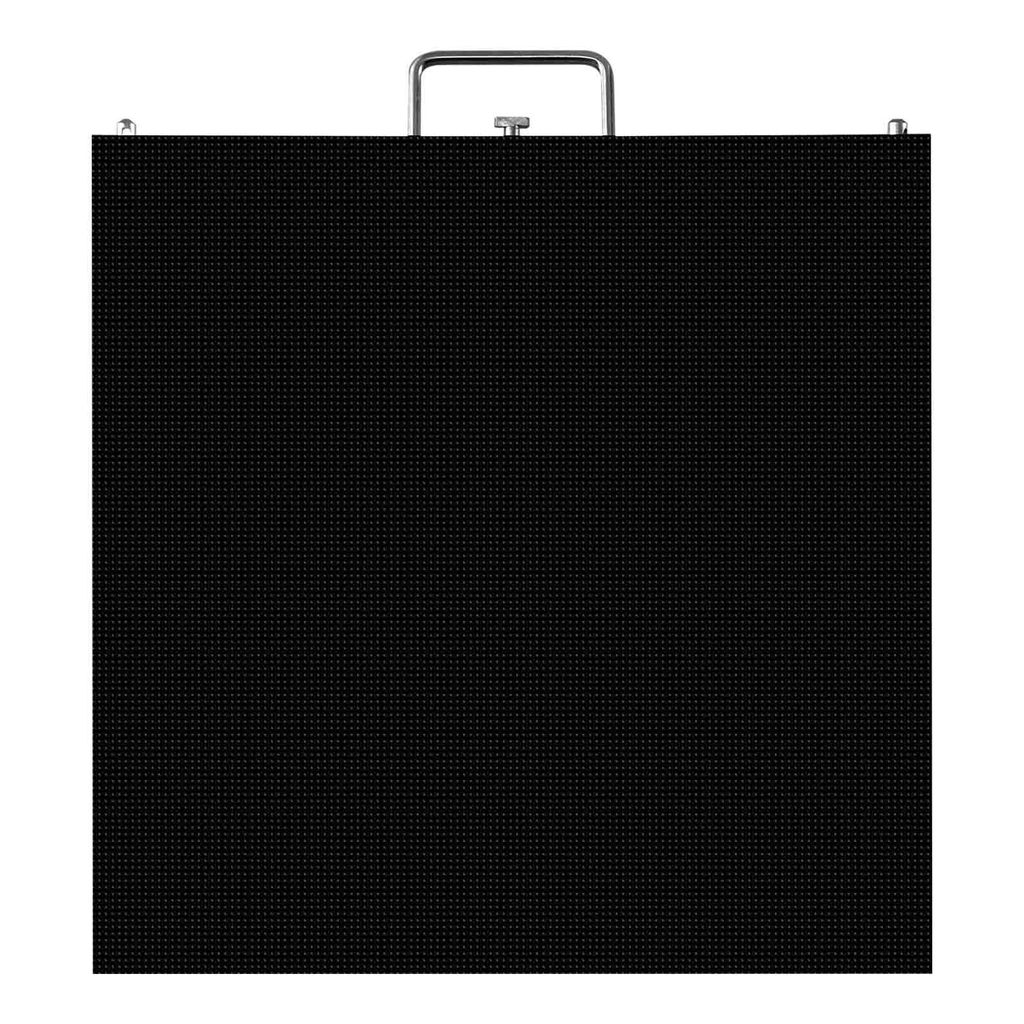

Brand: LED SPEKTAR
Model: P6.94
Type: Universal LED video panel
Description:
1.Perfrct design and elegant appearance. Curved handles facilitating the use of the panel.
2. The most popular Rental cabinet's dimensions: 500mmX500mmX65mm.
3. "Four legs" and "Four Hands" makes it easier installation, making use of tools unnecessary. Eight parts of the housing are eight handles that are fastened quickly and easily.
4. Made of cast-aluminum and with extreme precision.
5. Fast and efficient custom built: Level gauges There are curved at the rear of the cabinet, thanks to that very easily and accurately can determine the position of each office.
6. Heat dissipation: heat dissipation Built-chill option to automatically heat dissipation through air convection.
7. The user can use the office for suspended installations, fixed wall mount, roof and 120 ° curved installation.
8. High technology for calibration point by point on the display: a high refresh rate, high level of gray, more colors.
9. The patented technology of production competes multiple products of the same type of other companies. The offices work with no problem in -10 ℃ ~ +50 ℃. Cabinets are tested by SGS test.
10. Used for indoor and outdoor installation: IP65 front and rear, brightness 5000Nits.
11. "Self-clocking" function: it ensures that each office will use the same frequency in order to maintain the same color in each room.
12. lightweight: only 4.5 kg lyat- office, its weight is 2/3 of the weight of the products of the same type of other companies.
13. Approved EMC test
14. New technology for control of the shadows.
15. Without fans for quiet operation
16: Neutrik and data connectors for more stable connection.
Technical parameters:
Best viewing distance: ≥6m
Pixel Pitch: 6.94mm
Pixel resolution (Dots / ㎡): 20736Dots / ㎡
Composition of the LEDs: SMD3535 3-in-1
Size of the Cabinet: 500 * 500 * 65mm
Cabinet weight: 10 KG
Resolution of module: 72 * 36
Scanning method: 1 / 6S
Brightness (cd / ㎡): ≥5500cd / ㎡ regulate Software
Refresh rate (Hz): ≥1000Hz regulate Software
MTBF (H):> 10000H
Maximum current consumption (W / ㎡): 800W / m2
Average power consumption (W / ㎡): 320W / m2
Viewing angle: 120 ° horizontal, 120 ° vertical
Grey level / Color: 16.7M colors (Synchronized)
Color temperature: RGB brightness, 256 adjustable levels, adjustable color temperature
IP: IP65
Frequency of defects: Life expectancy (H):> 100000H
Operating voltage: AC220V ± 10% / AC110V ± 10% (Moshtnostta can be converted directly)
Operating temperature: -10 ℃ ~ + 50 ℃
Operating humidity: 10% RH ~ 90% RH
Storage temperature: -20 ℃ ~ + 70 ℃
Operating system: WIN 98/2000 / XP
PC display mode: 1280 * 1024
Control PC With DVI Graphic card: (PC recommended)
Video signal: RF / S-Video / RGB / RGBHV / YUV / YC / etc.
Distance effective control without repeater: Transmission with LAN cable within 100m
Multi-mode optical fiber ≦ 500m, mono-mode optical fiber ≦ 20km.
Application: Sport halls, theater, open area, Television shows, sports events, concerts, DJ parties.
