TMT 50 + MEGOL

TMT 50 + MEGOL

€10,70 / 20,93 лв.

Free delivery over 250 EUR (NOT APPLICABLE TO SOUNDPROOFING)

Warranty included!

Експертна консултация

Acoustic support for vibration and sound insulation of partition walls.

load between 2000N and 7000N
for channel U-shaped profile
unique leveling system

Brand: Senor

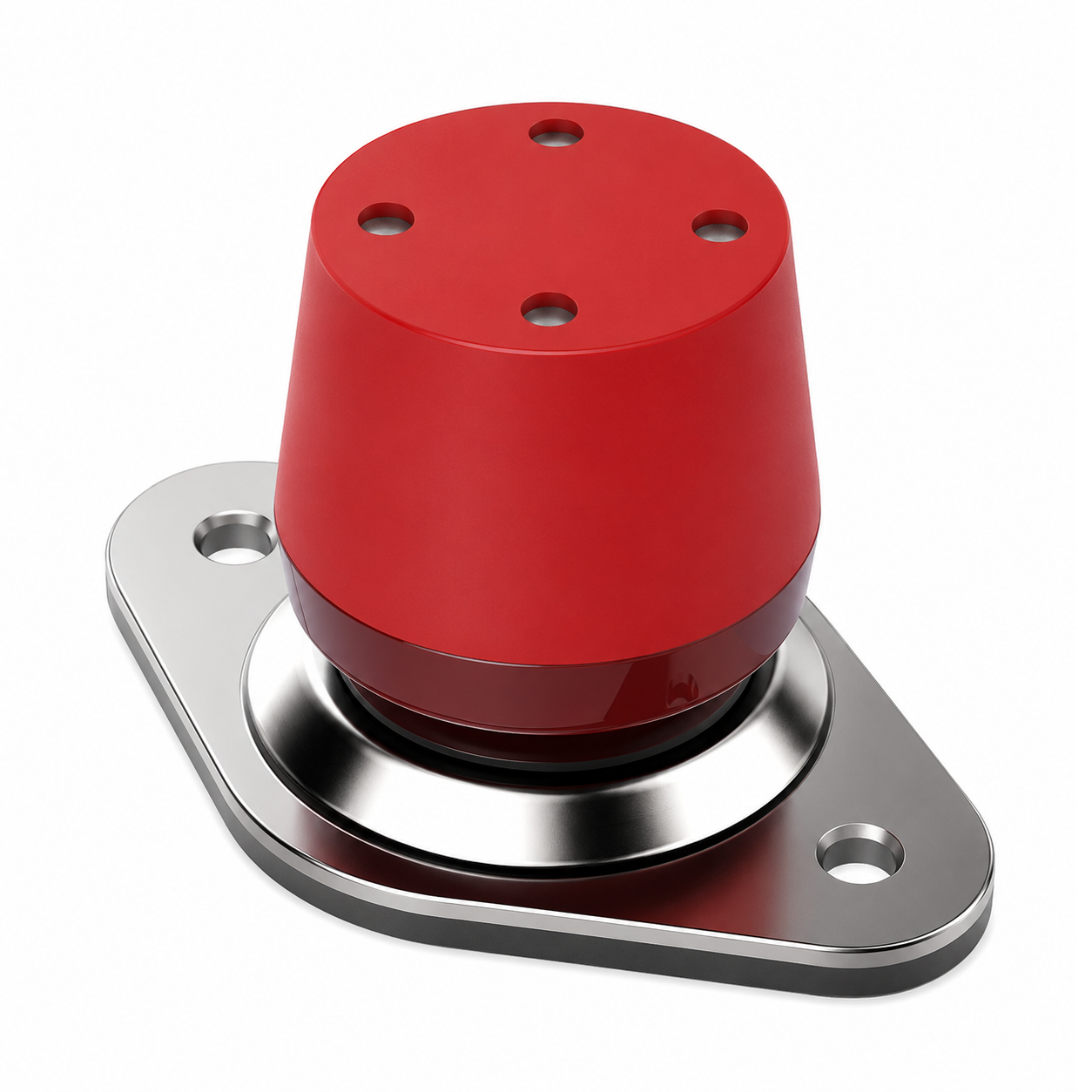

Model: TMT 50 + MEGOL

Type: Acoustic shock absorbers

Description:
A revolution in vibration insulation materials.
Elastic wall brackets.
Better results in vibration isolation and completeness of construction.
Shock absorbers of the latest generation with an exclusive SENOR design for the basis of partition walls or acoustic partition walls.
The TMT model is an acoustic support for fastening and insulation of structural profiles, which constitute acoustic partition walls made of plasterboard.
These profiles are made of galvanized steel with a thickness of 0.56 millimeters, consisting of vertical elements (frame of 48 mm) and horizontal (channel 50 mm).

Available colors of MEGOL: Red
The construction of the acoustic core is made of high quality polymer with anti-rust treatment "MEGOL IA 50 C-UG / UVI F / 61 P1250SPE", strictly manufactured according to the standard (UNE EN 13964).
The material in red is recommended for loads between 200N and 700N as a maximum load.
Recommended profile: CANAL 50 MM

For more information see: technical data sheet

These new series of dampers are designed to minimize the transmission of vibro-mechanical energy,structural vibrations or vibrations caused by shock or impact noise. Thanks to the ergonomicdesign, the product transforms vibro energy into heat energy, thanks to the designedinternal attenuation. In addition, it has optimal behavior in transition mode and in standby mode from 20 Hz.

The design of the acoustic core is made of high quality polymer with anti-rust treatment.

Technical characteristics:
Density: 1.21g / cm³ (ASTM D 792 method)
Hardness "15 sec": 53 Shore A (Method ASTM D 2240)
Extreme force: 21.8 KN / m (ASTM D 624 method)
Modulus of elasticity at 100% elongation: 2.0 MPa (Method ASTM D 638)
Modulus of elasticity at 300% elongation: 5.0 MPa (Method ASTM D 638)
Maximum tensile strength: 5.9MPa (Method ASTM D 638)
Elongation 100% breakthrough: 872% (Method ASTM D 638)
MFI (190 ° C, 49.5N): 15g / 10min (ASTM D 1238 method)

Fastening system

An MM screw is used to attach to the profile. This would allow a screw to be drilled into the metal sheet
with a thickness of 0.8 mm and enter the TMT-50-R.

Application: Partition walls and false partition walls.

Leveling system

The TMT-50 R damper has a unique height control device. Allows you to achieve
equal weight distribution of the partition wall while avoiding overload due to
construction imperfections. This optimizes the operation of the damper and achieves amazing results
in vibro-mechanical insulation.

Rated by professionals as the best acoustic holder for technical partition walls.
No chance of transmitting structural noise.

Application example (pictured)

Acoustic partition wall formed by a double gypsum board (15 +13). The supporting structure
to build the system is 48 mm wide (FRAME and CHANNEL). The height of the system is 2850 mm.
The division of the frames in the distance between the 2 axes is 600 mm. TMT-50 R dampers must be located
below the channel of 48 mm which is located between the frames.

Sandwich:

Drywall: 28mm
Density meter = 800 kg / m3
Total thickness: 15 + 13 = 28 mm
The total weight of the 2nd plasterboard = 800 x 28 = 22.4 kg / m2

Dimensions:
Height: 2.80 m
Calculation height: 60 m
Number of dampers: 98
Total weight per linear meter: 70 kg
Damper load: 42 kg

Application: Noise insulation systems for partition walls and pre-wall cladding.
