Brand: Guil
Model: ELC-710
Type: Stage lifts
Description:

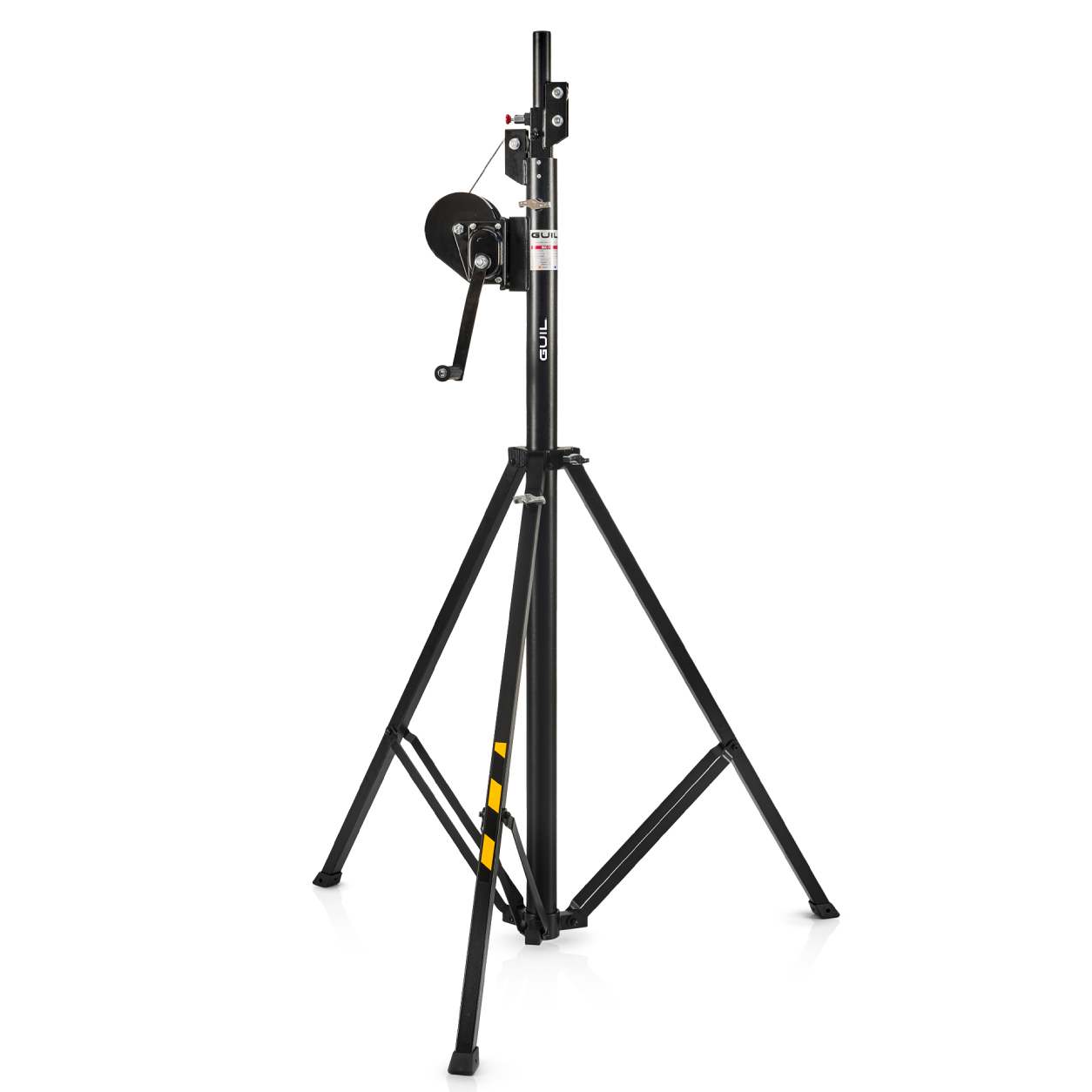

ELC-710 tower tower

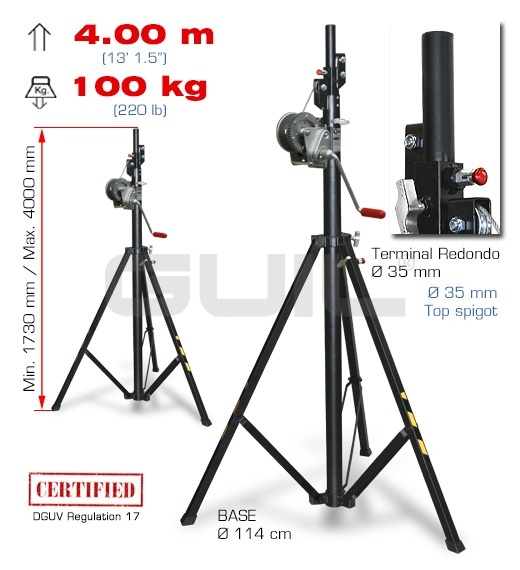

Compact telescopic lifting tower, specially designed for easy folding. It is certified for lifting loads up to 100 kg up to a maximum height of 4.00 meters and has a Ø 35 mm upper bolt.
Its easy-to-use and compact design, with its folding and adjustable base, makes the ELC-710Lift ideal for any kind of temporary event, both indoors and outdoors.

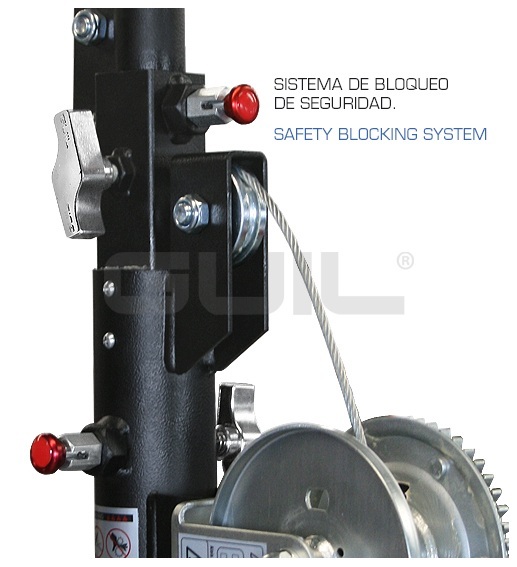

Security systems
The ELC-710 is equipped with two safety systems that guarantee maximum reliability and durability:
1.- It is equipped with a manual winch with an automatic brake system. Its automatic block system ensures that the load remains in position every time the handle is released.

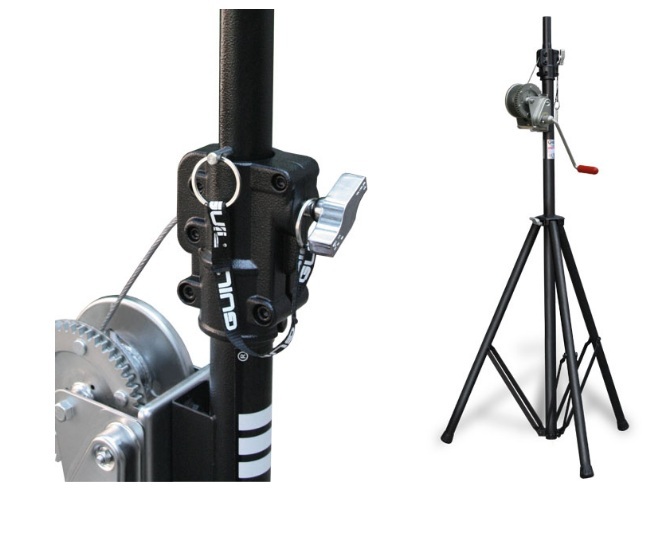

2.- Locking bolt.
The ELC-710 winding stand complies with current European safety standards.
Base section

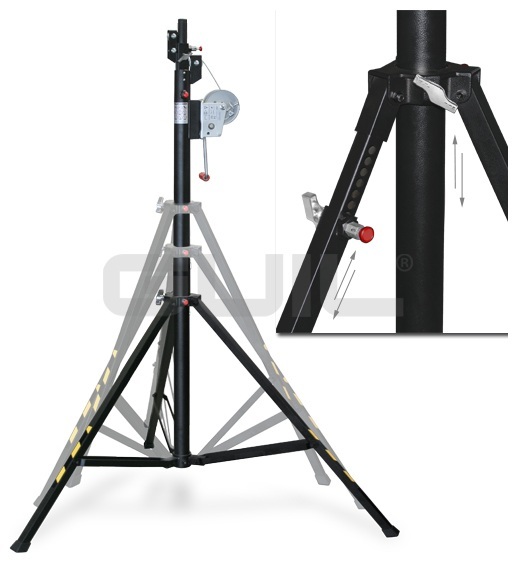

Compact base made of steel (S235 JRH, DIN EN 10219-1: 2006) with three legs (umbrella style) and fitted with rubber stoppers to prevent slipping and ensure perfect adjustment of the floor surface.
Its special design (no loose parts) offers technicians a quick and easy lift setup (no tools required).
Lifting process

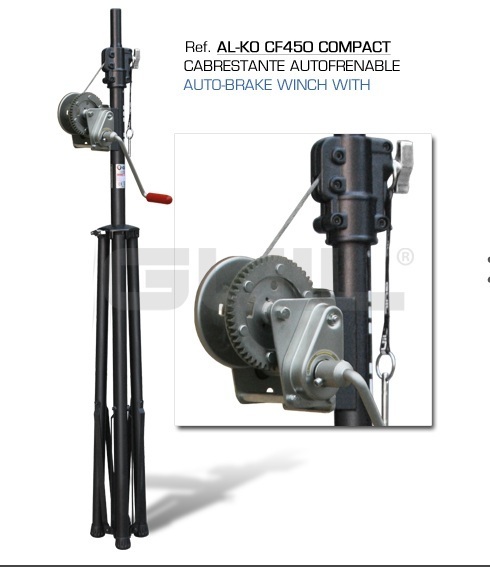

For a quick, safe and easy lifting process, the ELC-710 Lift is equipped with an AL-KO CF450 COMPACT manual winch with an automatic brake system that stops the load at the desired height when releasing the handle.
Transportation
It has a compact and lightweight design for easy handling, transportation and storage and can fit in small vehicles for maximum maneuverability.
This means that a technician can easily transport and use the ELC-710 elevator, saving time and increasing productivity.
maximum safety
The ELC-710 Lift meets the light, durability and maneuverability requirements required to lift heavy loads to ensure maximum safety and durability.
IMPORTANT: It should not be used as a towing device for lifting, supporting or transporting people.
Technical characteristics:
Maximum height: 4.00m
Maximum load: 100kg
Folded size: 0.150x0.310x1.650m
Net weight: 20.50kg

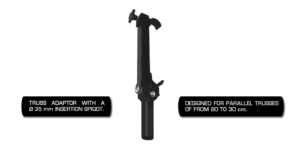

Adapters: Ø 35mm
Minimum load: 25kg
Working base: Ø 114 cm
Brake winch: 450 kg
Material: steel S 235 JRH
Color: black - epoxy paint
Standards: 206/42 / CE, DGUV Rule 115-002 DGUV Regulation 1,17,18
Application: Concerts, Exhibitions, Stage Farms, Rental for LED Light Effects, Rental Events and more.
