Brand: Guil
Model: ELC-700
Type: Stage lifts
Description:

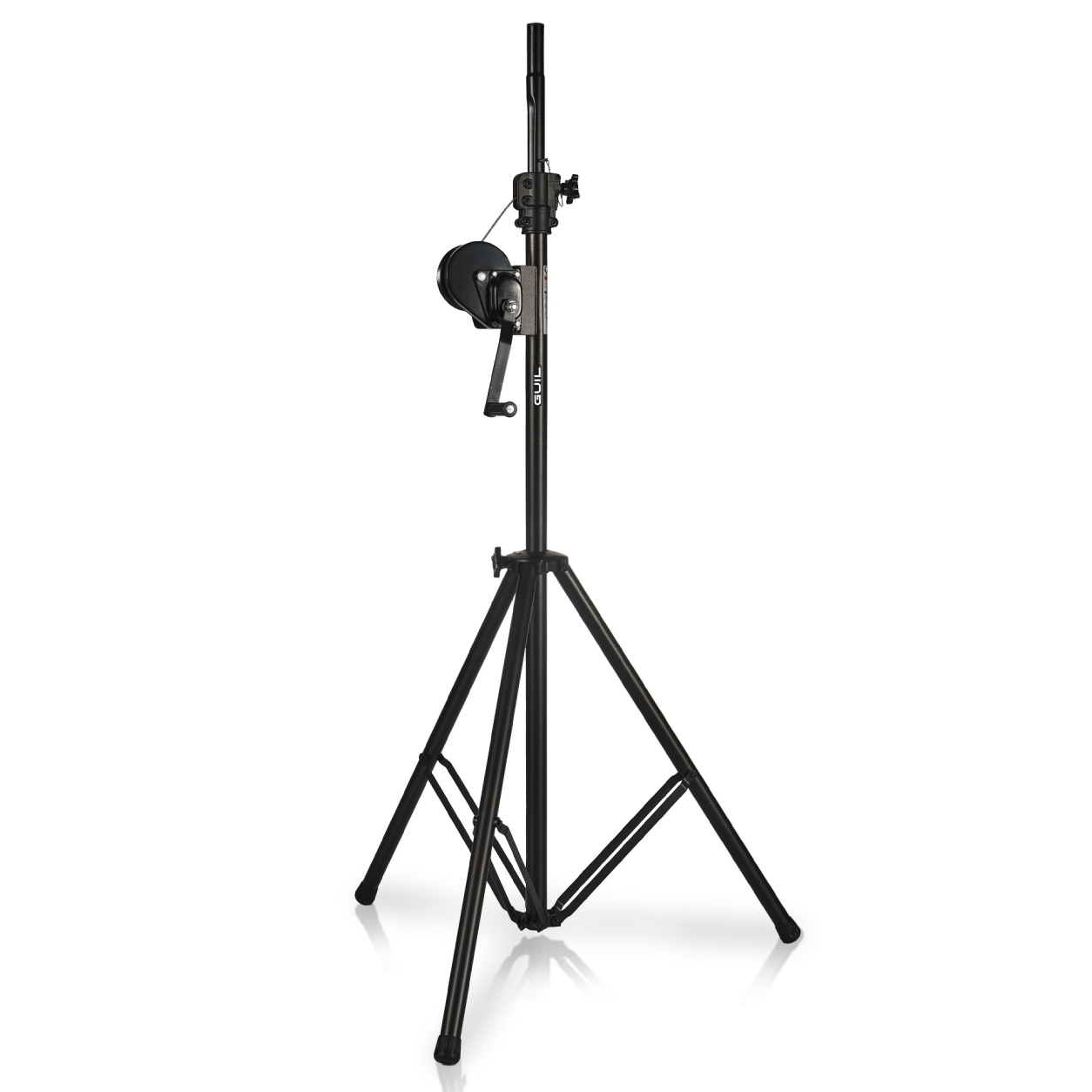

ELC-700 tower tower

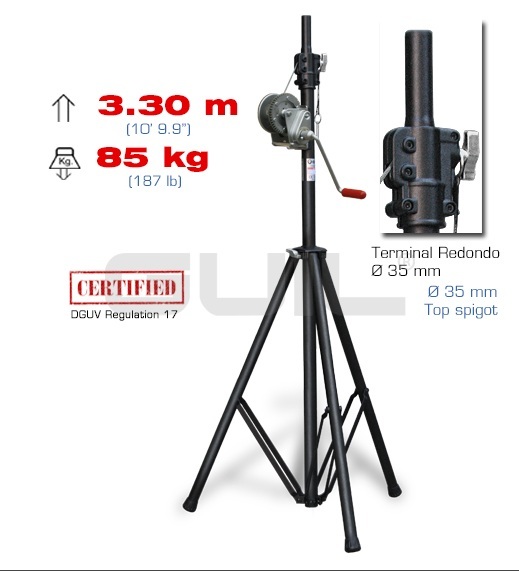

Compact telescopic lifting tower, specially designed for easy folding. It is certified for lifting loads up to 85 kg up to a maximum height of 3.30 meters and has a Ø 35 mm upper bolt.
Its easy-to-use and compact design, with its folding and adjustable base, makes the ELC-700 Lift ideal for any kind of temporary event, both indoors and outdoors.

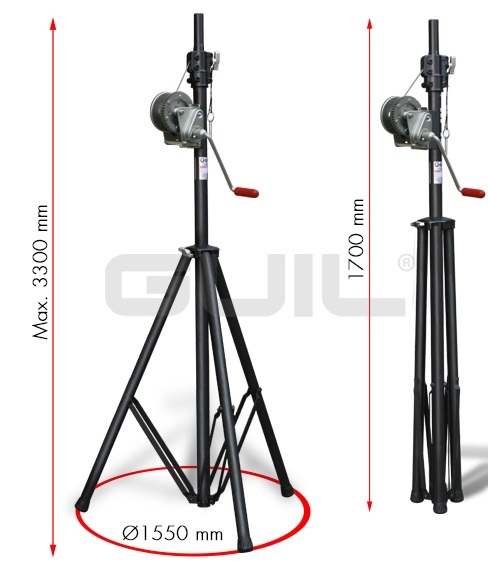

Folded dimensions:
* 260 x 320 x 1700 mm (with winch handle)
* 260 x 160 x 1700 mm (without winch handle)
Security systems
The ELC-700 is equipped with two safety systems that guarantee maximum reliability and durability:
1.- It is equipped with a manual winch with an automatic brake system. Its automatic block system ensures that the load remains in position every time the handle is released.

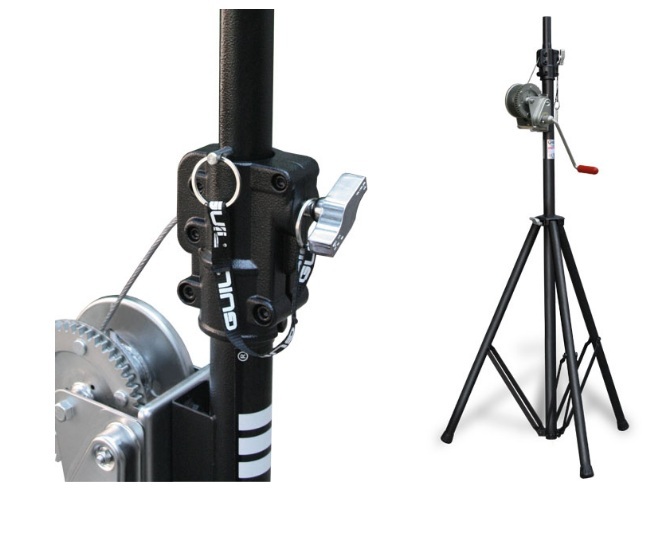

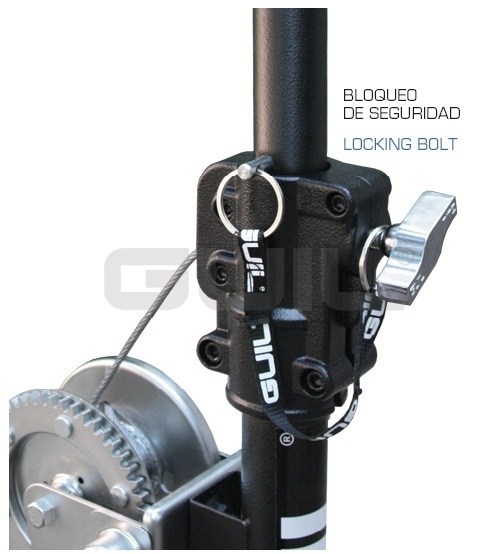

2.- Locking bolt.
The ELC-700 winding stand complies with current European safety standards.
Main section
Compact base made of steel (S235 JRH, DIN EN 10219-1: 2006) with three legs (umbrella style) and fitted with rubber stoppers to prevent slipping and ensure perfect adjustment of the floor surface.
Its special design (no loose parts) offers technicians a quick and easy lift setup (no tools required).
Lifting process

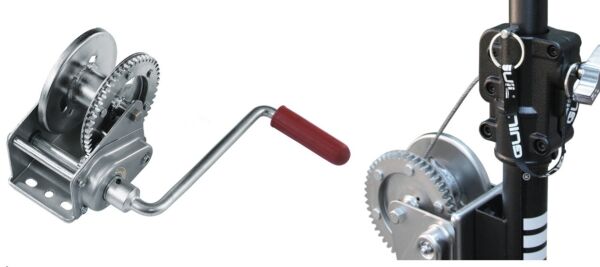

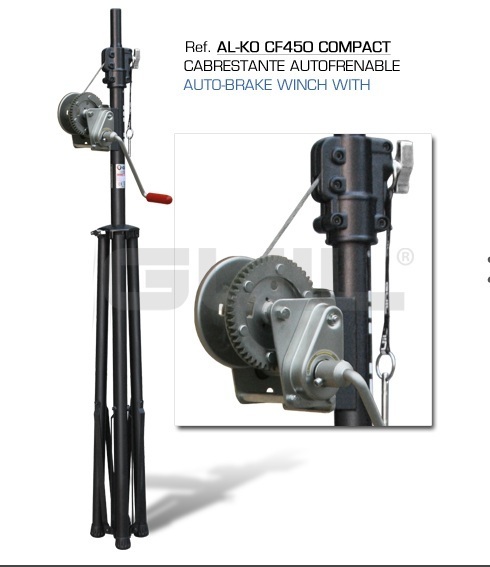

For a quick, safe and easy lifting process, the ELC-700 Lift is equipped with an AL-KO CF450 COMPACT manual winch with an automatic brake system that stops the load at the desired height when the handle is released.
Transportation
It has a compact and lightweight design for easy handling, transportation and storage and can fit in small vehicles for maximum maneuverability.
This means that a technician can easily transport and use the ELC-700 elevator, saving time and increasing productivity.
maximum safety
The ELC-700 Lift meets the light, durability and maneuverability requirements needed to lift heavy loads, ensuring maximum safety and durability.
IMPORTANT: It should not be used as a towing device for lifting, supporting or transporting people.
Technical characteristics:
Maximum height: 3.30m
Maximum load: 85kg
Folded size: 0.26x0.32x1.70m
Net weight: 12.80kg
Adapters: Ø 35mm
Minimum load: 25kg
Working base: Ø 155 cm
Brake winch: 450 kg
Material: steel S 235 JRH
Color: black - epoxy paint
Standards: 206/42 / CE, DGUV Rule 115-002 DGUV Regulation 1,17,18
Application: Concerts, Exhibitions, Stage Farms, Rental for LED Light Effects, Rental Events and more.
