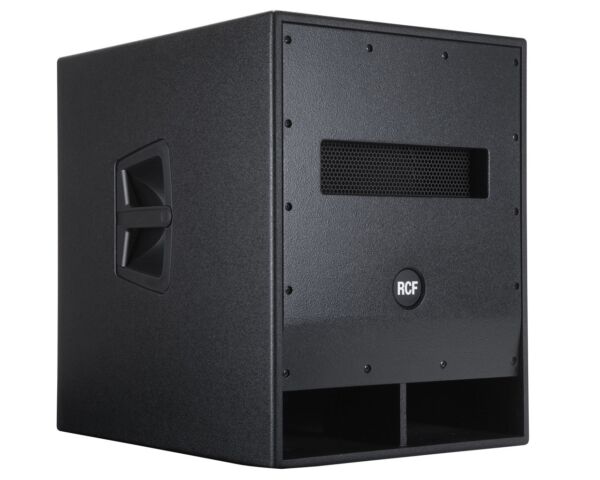

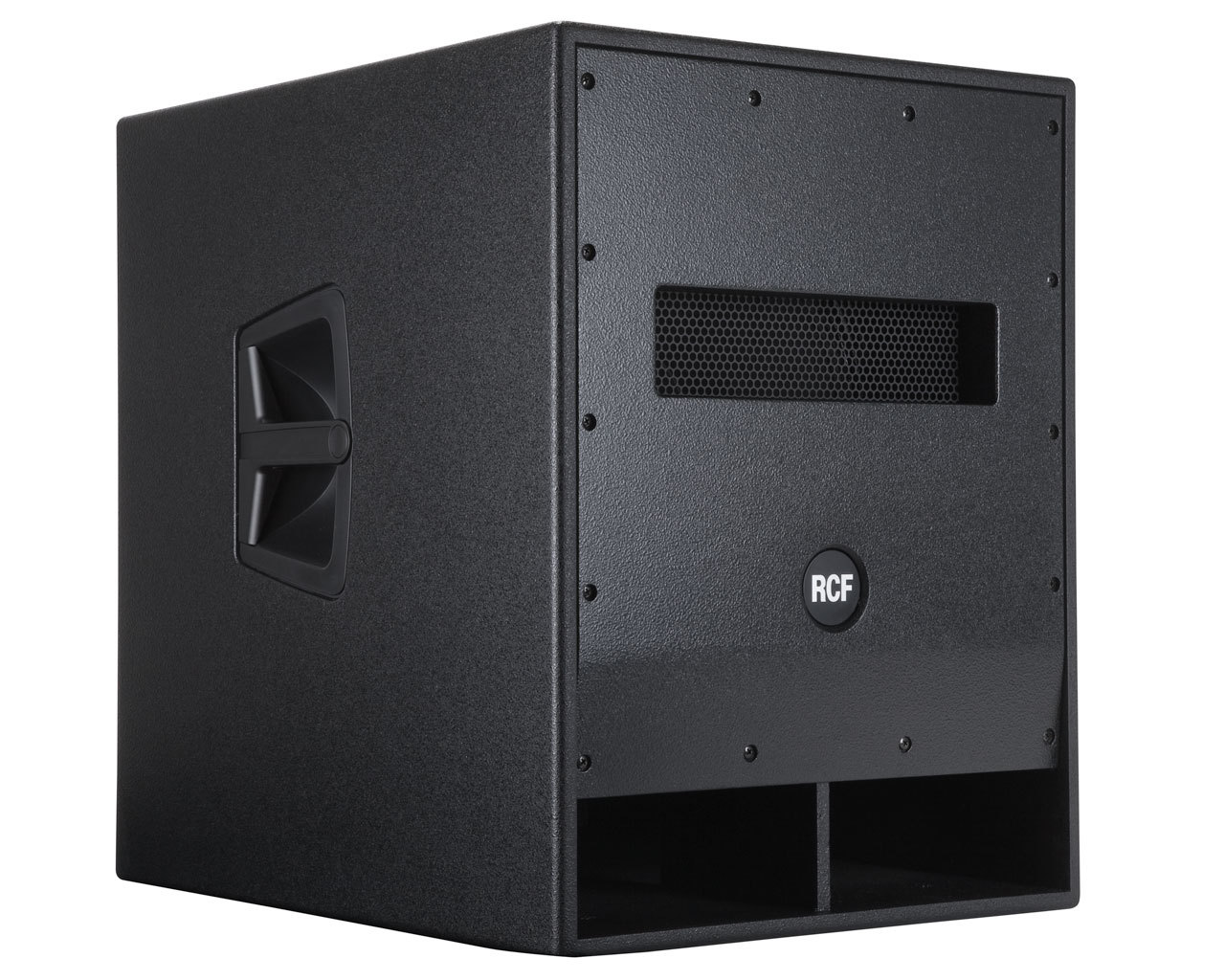

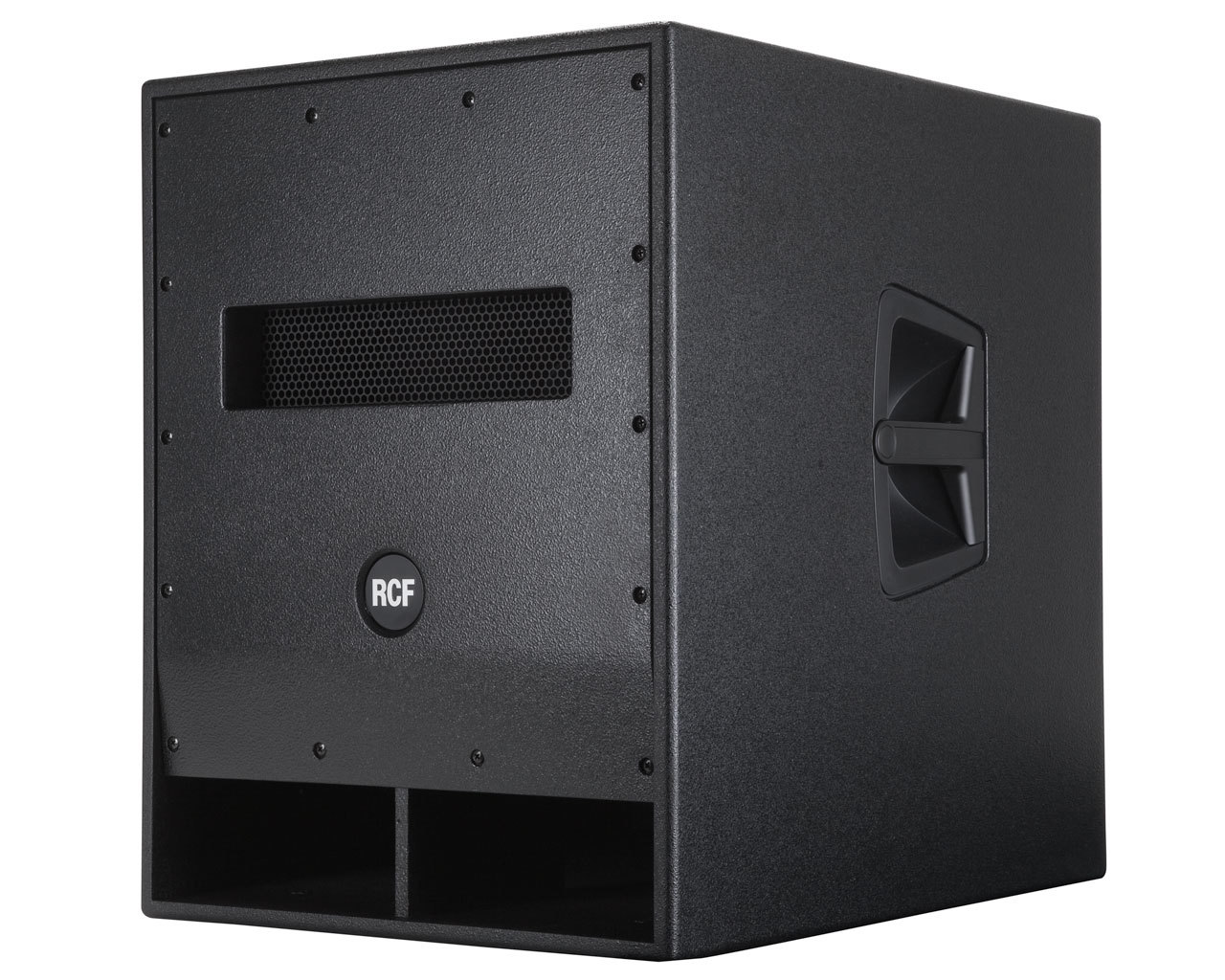

Brand: RCF
Model: SUB 718-AS
Type: Active Subwoofer 18 "
Description: The SUB 718-AS is a compact and powerful subwoofer. Thanks to its powerful 18 "woofer with 4" voice coil and 700W amplifier to SUB 718-AS is the ideal product for enhancing the productivity of low frequencies.
Characteristics:
1400 W Peak, 700 WRMS digital amplification
132db max SPL
18 "high power and low frequencies, 4" voice coil
Selector Xover, phase switch
Electronic equalization, soft limiter and protection
Stereo XLR / Jack combo input, Stereo XLR output
Acoustic characteristics
Frequency response -3db: 40 Hz ÷ Xover point Hz
Max SPL: 132 db
Woofer: 18 ", 4" voice coil

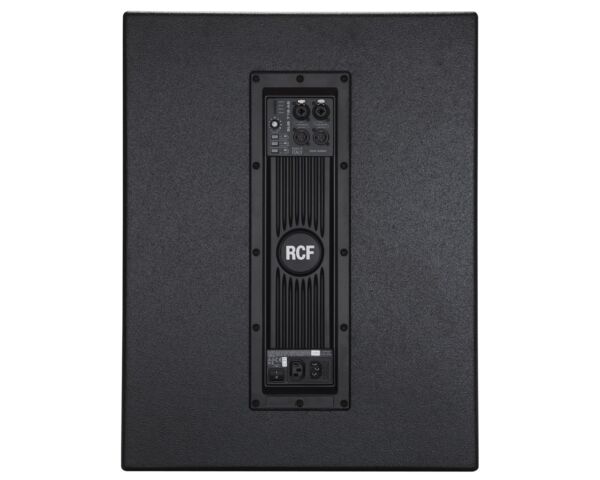

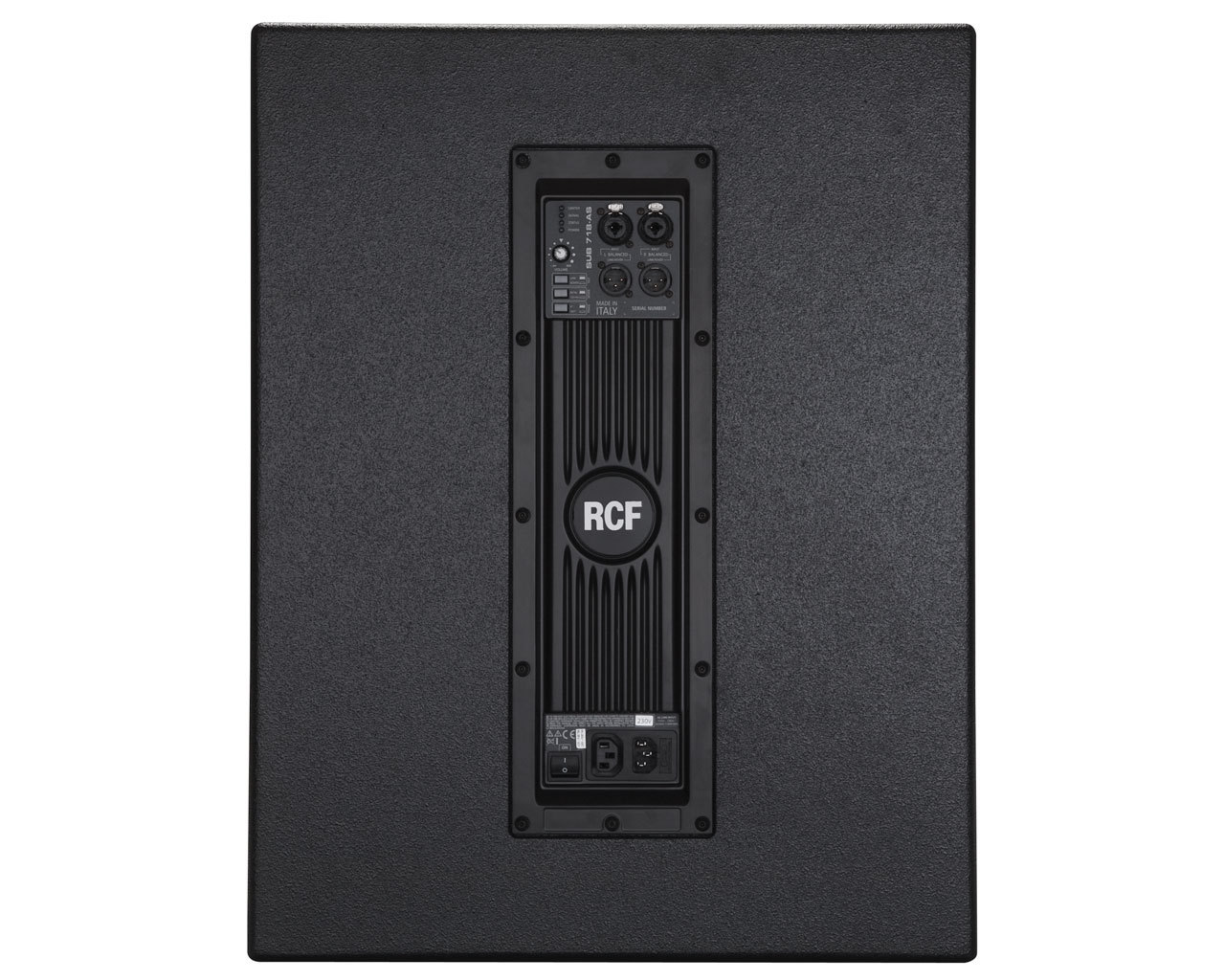

Input / Output Section
Input connectors: Combo Stereo Jack-XLR male
Output connectors: Combo stereo XLR female
CPU Section
Crossover frequency: 80-120 Hz
Locks: limiter
Limiter: Fast limiter, RMS limiter
Controls: Volume, phase, crossover switches
Specifications of the amplifier
Total power: 1400 W PEAK
Low frequencies: 1400 W PEAK
Total power: 700 W RMS
Low frequencies: 700 W RMS
Physical characteristics
Height: 650mm
Width: 504mm
Depth: 650mm
Weight: 40.4 kg
