Brand: GUIL
Model: TM440
Type: stage deck
Note: The legs are not included in the price !!!
Description:

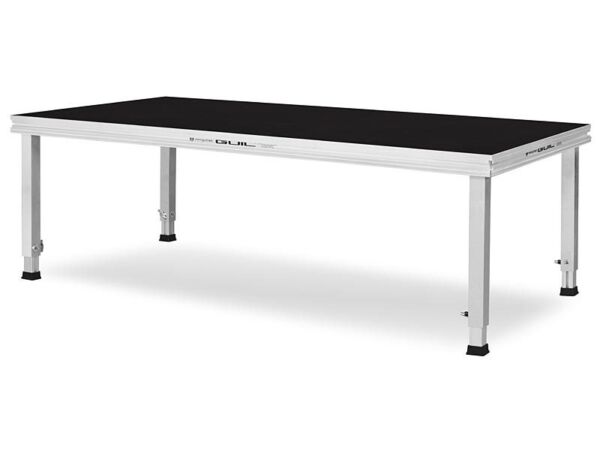

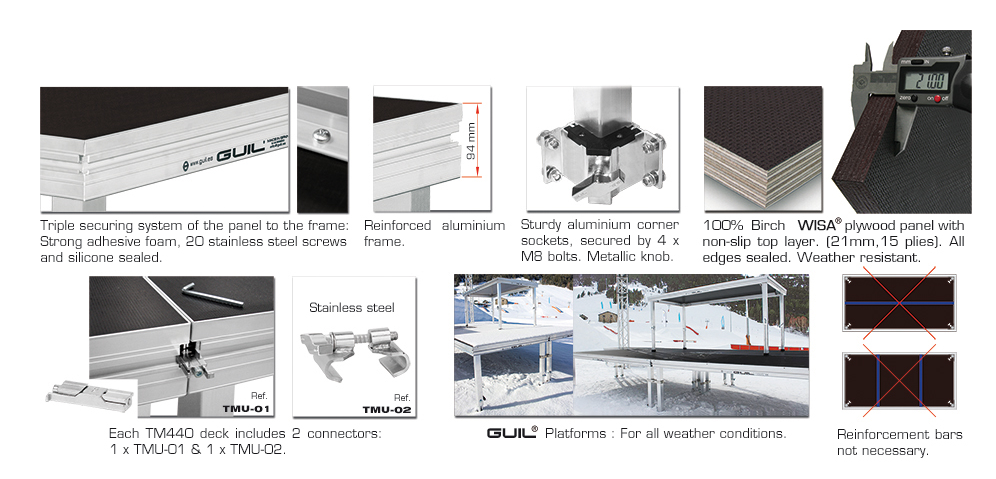

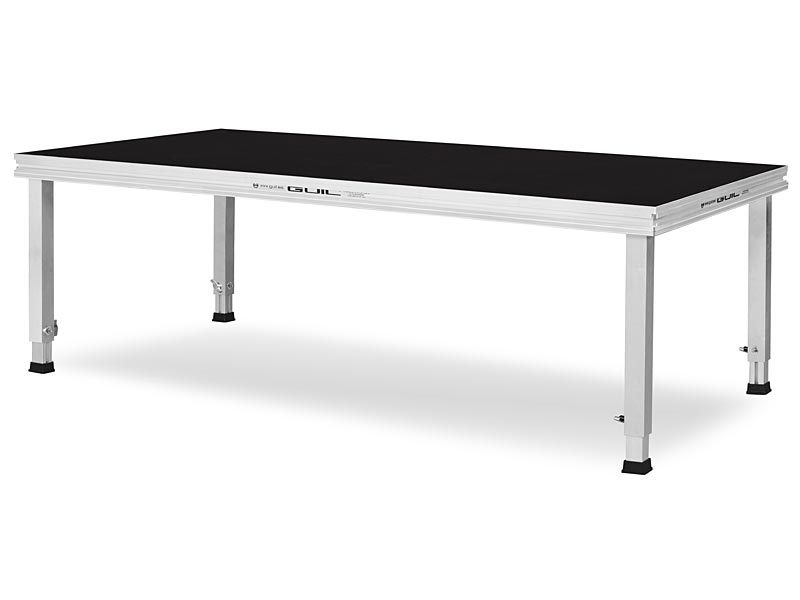

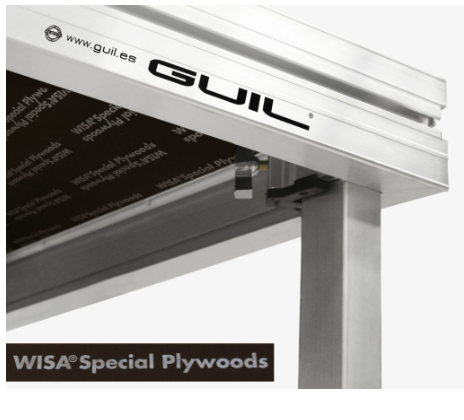

Heavy-duty modular deck with treatments for water and fire resistance and certified for a load capacity of 1000 kg/m2 (2x1m: 2000 kg Uniformly distributed). The TM440 deck is weather resistant and is made from a sturdy extruded aluminium frame and a non-slip, 21 mm thick (15 plies) 100% birch phenolic plywood panel (from the brand WISA®) with sealed edges. 2 metallic connectors included: 1 x TMU-01 & 1 x TMU-02.
TM440 decks offer the best solution for any kind of event, from small performance ensembles to large stages with the possibility of multiple configurations for permanent (indoors) and temporary installations (podiums, concerts, theatres, exhibitions, music halls, conservatoires, television studios, catwalks, tiered audience seating, band risers etc.).
Thanks to their weather resistant 100% birch panel and their aluminium framework, TM440 decks are suitable for both indoor and outdoor events. These features make GUIL decks the best option for those applications which require a high load capacity and a quick and easy set-up and disassembly.
Technical specification:
Size: 2000x1000mm
Maximum load: 1000kg / m² (2x1m: 2000kg evenly distributed)
Panel: 100% birch multiplex 15 layers, thickness 21 mm
Panel Properties: Weatherproof for outdoor use,fire resistant
Surface: Non-slip coated with phenolic resin
Frame: Aluminum (EN-AW 6082 T6)

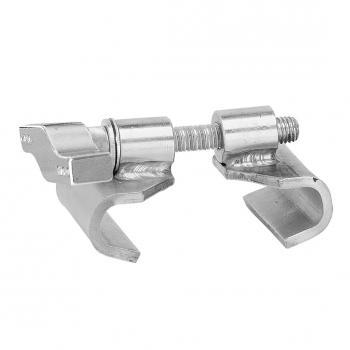

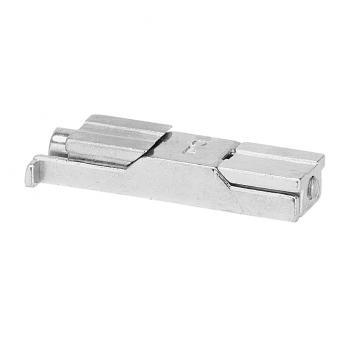

Included connectors: 1 x TMU-01 & 1 x TMU-02

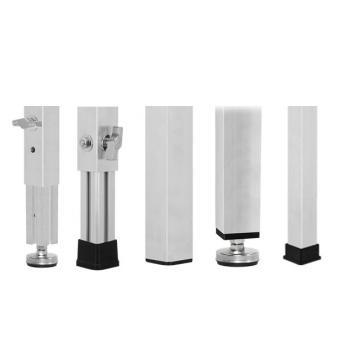

To be used with legs: external square profile 50 x 50 mm (must be ordered separately)
Weight (net): 42kg
Application: podiums, concerts, theaters, exhibitions, music halls, concert halls, fashion podiums, step-by-step audience listening, choirs, musical groups, etc.
