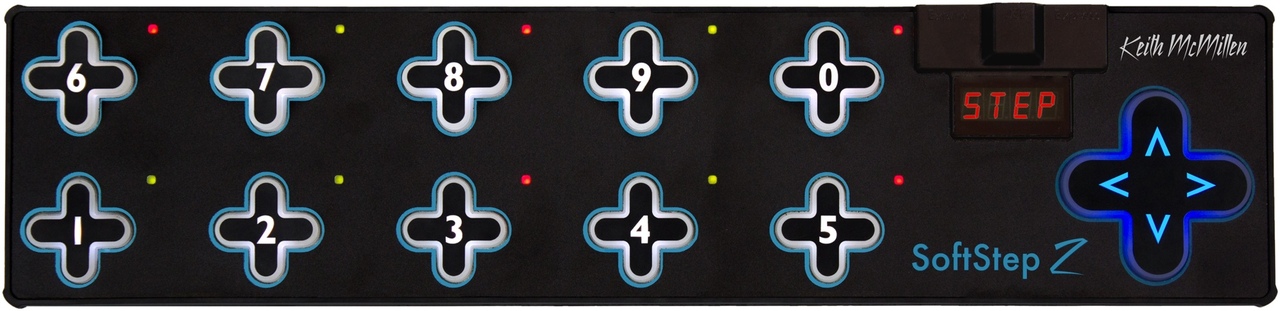

Brand: Keith McMillen
Model: SOFTSTEP
Type: MIDI foot controller
Description:
Brilliantly Backlit
SoftStep 2 provides visual feedback from backlit keys, LED indicators, and an alphanumeric display.
Smart Fabric
Complete gestural control. A Smart Fabric layer under each key detects foot position and pressure in real time.
Road Proof
Durable by design. Softstep 2 has been tested to survive spills, 2-story falls onto concrete, and being run over by a car.
Lightweight, powerful, and highly programmable foot controller that could replace pedals and sliders.
Technical Specifications:
Controllers
•10 keys with pressure and location (X/Y) sensitivity
•1 navigation pad with pressure and location sensitivity
LEDs / Display
•10 bi-color (red/green) LEDs
•4 character alpha-numeric display
Dimensions
450mm x 105mm x 24mm
17.7in x 4.1in x 0.94
Weight
1.3lbs (0.59kg)
Connections
•USB connector
•Mini-USB connector
Power Source
•USB bus power
•USB power supply (not included)
Power Consumption
SoftStep 1 hardware: ~105mA max draw @ 5V
SoftStep 2 hardware: ~ 140mA max draw @ 5V
Included Accessories
USB cable (5m, USB 2.0)
Data Transmitted
•Class-compliant MIDI over USB
•MIDI over 5-pin DIN (via KMI Expander)
System Requirements (Mac) (Software Editor)
Mac OS 10.5 or later
Intel Core 2 Duo processor or greater
50MB free hard disk space
System Requirements (Windows) (Software Editor)
Windows 7 or greater
Intel Core 2 Duo processor or greater
50MB free hard disk space
