Brand: CNLINKO
Model: YT-RG45-JSX-02-001
Type: RG45 signal connector
Note: The indicated price is for 1 pc

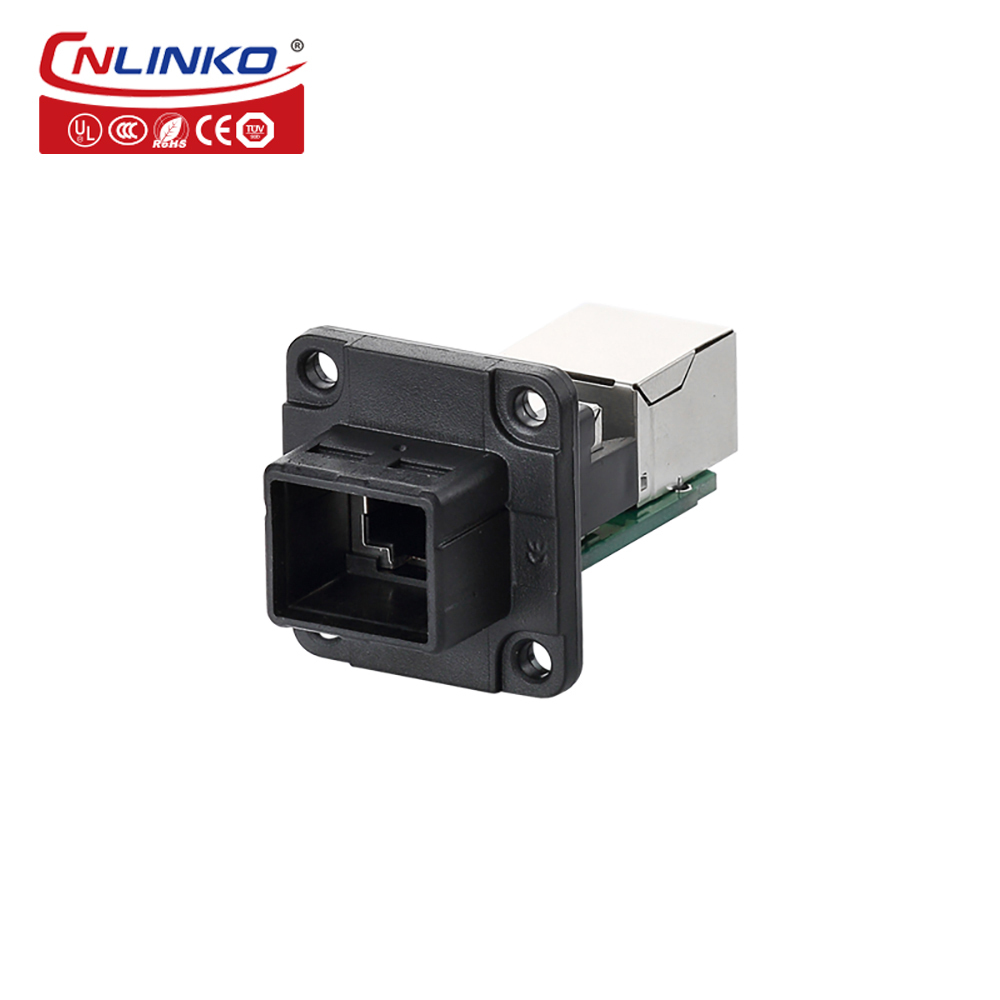

Description: YT-RG45-JSX-02-001 is a female rectangular RJ45 socket with dual Ethernet ports for signaling applications. Holds 26-24 AWG cable. Rated for 1000V and 1.5 A. Used for industrial Ethernet in audio equipment, stage equipment, DMX lighting and other network applications.
- Plastic housing
- Complies with D3 level or Cat3e standard of EIA568B and ISO / IEC11801
- Compatible with Cat5e
- Data transfer speed 10GB / s
- A robust connectivity system provides a solution for broadband data transmission in harsh environments.
- ISO / IEC11801
- Includes cap
- CE & CCC approval
Technical characteristics:
Operating voltage: 1000V
Number of contacts: 8
Rated current: 1.5A
Conductor size: 26-24 AWG
Diameter range: 5.5-7 mm
Contact resistance: <30mOhm
Insulation resistance:> 500 MО
Cable connection method: Solder
Connection method: Push-pull
Certification: UL, CE, CCC, ISO9001
Degree of protection: IP65 / 67 when assembled
Operating temperature: -40 ℃ -80 ℃
Durability:> 500 times

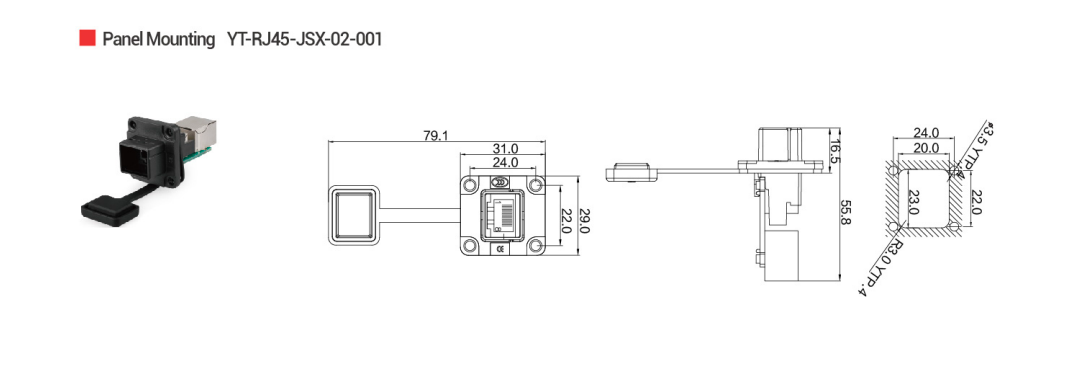

Dimensions: 31 mm x 29 mm x 55 mm
Weight: 0.100 g
Application: Audio and video equipment, DMX lighting, communication equipment, etc.
