Brand: CNLINKO
Model: YT-RG45-CPE-10-002
Type: Signal connector RG45 male

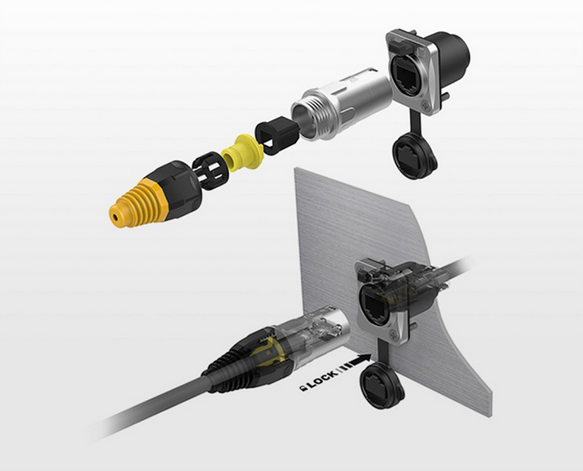

Description: YT-RG45-CPE-10-002 is a male RG45 signal connector that provides signal transmission in harsh environments. The cable diameter range is Ø5.5mm ≈ Ø7mm. The connection between the connector and the contact part is made by locking. This connector has one of the strongest degrees of protection IP67. They are widely used in industrial Ethernet for audio equipment, devices running on the DMX protocol, industrial and external network connections, stage equipment and more.
- Data transfer 10 gbit / s
- Complies with D3 level or Cat3e standard of EIA568B and ISO / IEC11801
- Compatible with Cat5e
- Provides a strong connection, shockproof
- High frequency noise resistance and protection against electromagnetic interference, high pressure and corrosion
- Resistant to UV waves and temperatures up to 80 °
- IP67 protection
Technical characteristics:
Product series: YT-24-RG45
Interface type: RG45
Compatible with signal connector: YT-RJ45-JSX-16-001-female
Input current (A): 1.5A
Data transfer: 10 gbit / s
Cable range / diameter, range /: Ø5.5mm ≈ Ø7mm
Cable specification: 0.15mm-0.2mm / 26-24AWG
Contact resistance: ≤30mΩ
Insulation resistance:> 500MΩ
Peak voltage (AC.V): 1000V
Contact diameter x number: 8pins
Installation: soldering and crimping
Type: male
Protection: IP67
Operating temperature: -40 ° C ~ 80 ° C
Combustion level prevention / flammability rating: UL94-V0
Weight: 0.030g
Length: 71 mm
Diameter: 22.5 mm

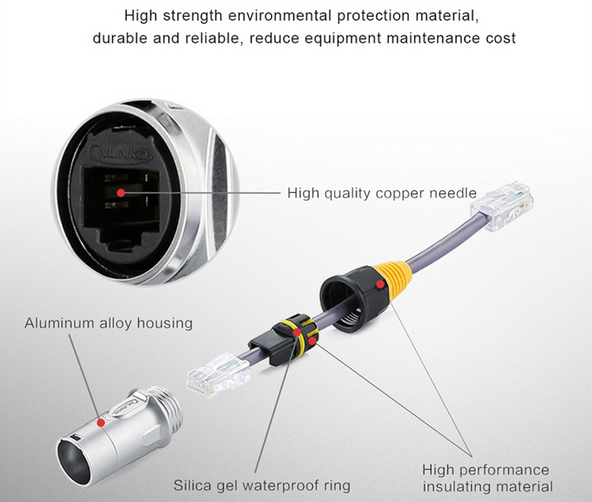

Material:
Insulation parts: High-performance engineering plastic
Metal part: zinc alloy (pearl hard chrome)
Contact pin: Copper alloy
Waterproof ring: Silicon gel

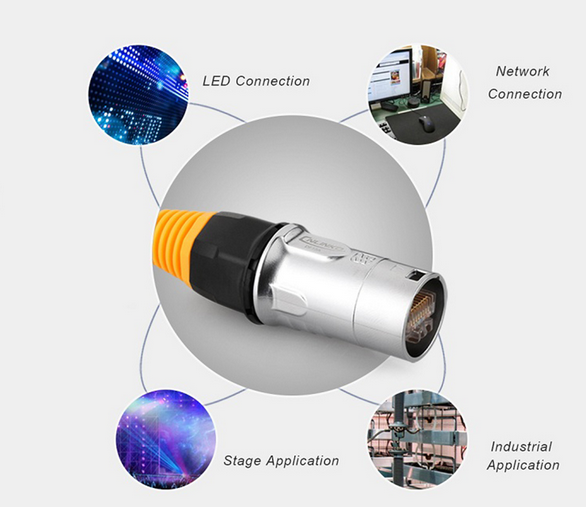

Application: Network connection, LED screens, stage equipment, DMX lighting, etc.
