Brand: CNLINKO
Model: BD-24-C/RG45/015/PE-43-001
Type: Signal connector RG 45/IP67 type female
Description:
- RJ45 cable connector suitable for fast and secure data connection.
- The BD series are newly developed products from the Streamline Style series of CNLINKO.
- The socket is suitable for cable Ø 5.5 - Ø7mm.
- Direct locking provides a more stable connection, more convenient operation and a more durable service life.
- Secure installation contact for network transmission in industrial environments with a length of 65 mm.
- The maximum rated power for the plug is max. 1.5 amps.
- Max. The operating voltage from the socket is 42 volts.
Technical characteristics:
Product series: BD24
Interface type: RG45
Compatible with signal connector: BD-24-C/RG45015/PE-43-001 - male
Input current (A): 1.5A
Rated voltage: 125V AC
Transfer rate: CAT3-CAT6
Cable range / diameter, range /: Ø5.5mm≈6.5mm, applicable OD range
Cable specification:0.15mm-0.2mm/26-24AWG
Contact diameter x number: 8pins
Insertion force: 4.5N maximum
Connection method: button lock /easy lock
Contact type: female socket type
Protection: IP67 (The product meets IP67 protection when assembled), no leaks for 1 hour in 1.5m underwater test
Test results with anti-corrosion salt spray: PH 6.5-7.2, NaCL, 5% 48H
Vibration: Frequency 5-200Hz, Amplitude - 5mm, speed 10m / sec, 0.10us no instantaneous circuit break
Operating temperature: -40 ° C ~ 80 ° C
Humidity: ≤85%
Certificate: ROHS according to EN62321-1, CE, ISO9001, TUV / CCC / UL
Contact resistance: ≤30mΩ
Combustion level prevention/flammability rating: UL94-V0
Weight: 0.35g

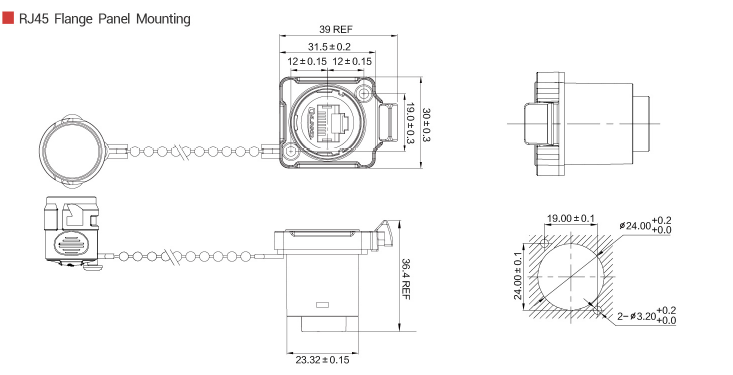

Dimensions:
Length: 38.8 mm
Width: 30mm
Height: 23.3mm
Material:
Insulated parts: High performance engineering plastics (Polybutylene terephthalate (PBT)
Metal part: zinc alloy (pearl hard chrome)
Contact pin: Copper alloy
Waterproof ring: Silicon gel
Application: Solar energy equipment, Multimedia installation, Digital signs, LED external display, System integrator, Industrial and medical equipment, Control communication data box, Design of devices, industrial robots, etc.
