Brand: Shure
Model: BLX14E/B98H/C-K3E
Type: Wireless microphone system
Description:

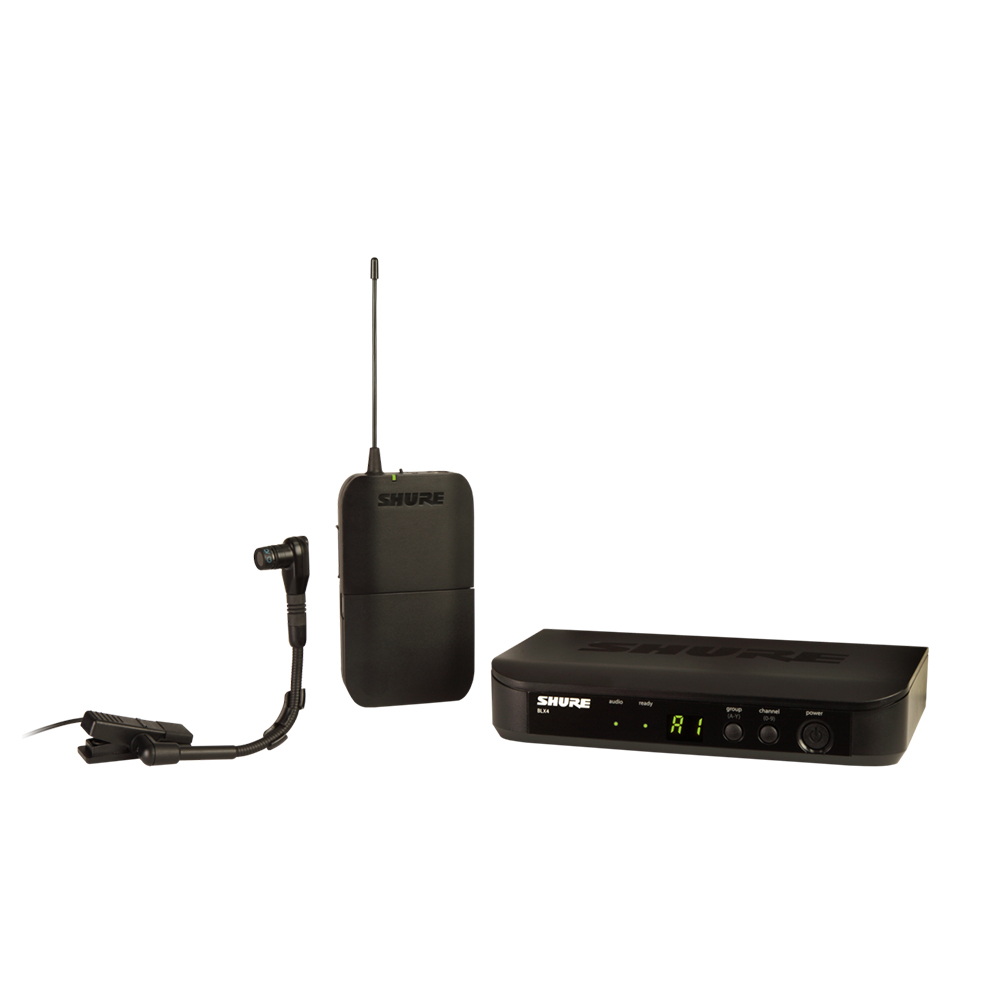

Shure BLX14 / B98 - BETA instrumental series, UHF wireless system with pocket transmitter and BLX1 Beta98 microphone - Clip 3 systems in parallel, Quick Scan feature a choice of free frequencies, condensers microphone clip Beta 98 H / C 20 - 20.000 Hz cardioid , receiver with plastic housing, built-in antennas, XLR and jack outputs. Portable suitcase kit model 95E16526, supply kit, model PS23E.
Technical specifications:

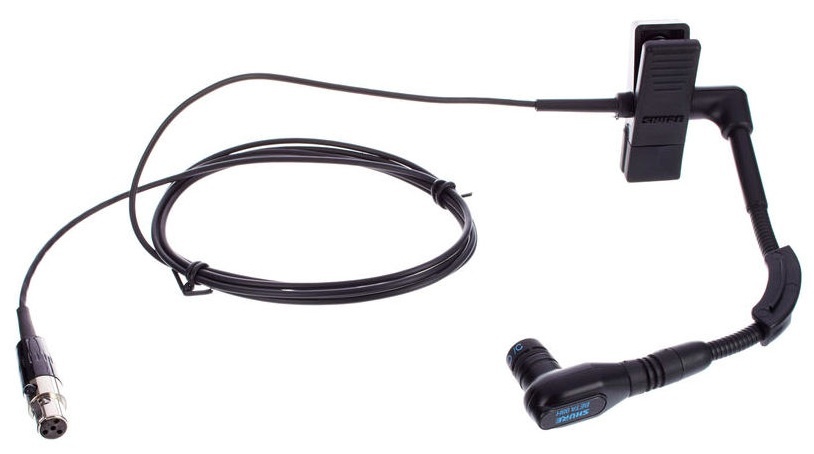

C CLIP-ON GOOSENECK MICROPHONE
Beta 98 H / C include transformer-free preamp circuit that improves the linearity over the entire frequency range.
High volume level before fiidbek and excellent noise protection.
High maximum sound pressure level (SPL) enables the system to cope with the extreme demands of brass, woodwind and percussion instruments.
Beta 98H / C includes 3 m flexible cable with attached preamplifier (XLR connection).
Tailored frequency for natural sound reproduction.
Compact, lightweight design. Optimum adjustments and fixed positioning.
Compatible system bandwidth (up to): 12
Selectable frequencies: 150
Automatic settings: QuickScan - is a group with the most relevant frequencies and sets best frequency.
Included Antennas: BLX4, BLX88: Vatreshen, BLX4R
Case: only BLX4.
Display transmitter: LED
Display of the receiver: BLX4, BLX88: LED, BLX4R. LCD with high resolution
Battery life: 2AA, to 14h
Environment: Requires acoustic environment
Working range: 91 m (actual range depends on the adoption of RF signal reflection of sound and noise)
Available frequencies between 524-865 MHz
Sound range: 50-15,000 Hz (depending on the type of microphone)
RF transmitter power output: 10 mW (varies by region)
Output connector: XLR and 1/4 "(6.3 mm) unbalanced
Maximum audio output: -27 dBV (XLR, mic level), -13 dBV (1/4 ")
Battery life: 14 hours
Dynamic range: 100 dB A-weighted
Distortion: 0.5% THD (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating temperature: -18 ° C (0 ° F) - 50 ° C (122 ° F)

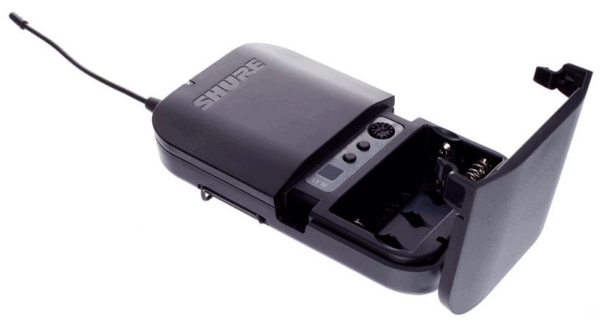

Power requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
BLX88: 12-18 V DC 320 mA, powered by an external power source.
BLX4 receiver
Output impedance:
- XLR connector 200 Ω
- 6.35 mm (1/4 ") connector: 50 Ω
Output sound level: ± 33 kHz deviation with 1 kHz tone:
- XLR connector -27 dBV (in 100 kΩ load)
- 6.35 mm (1/4 ") connector -13 dBV (in 100 kΩ load)
RF Sensitivity: 105 dBm for 12 dBb SINAD
Dimensions: 40 mm X 188 mm X 103 mm
Weight: 241 grams
Housing: ABS
Power supply: 12-15 V DC @ 160 mA, external power source
Application: Instrumental wireless system.
