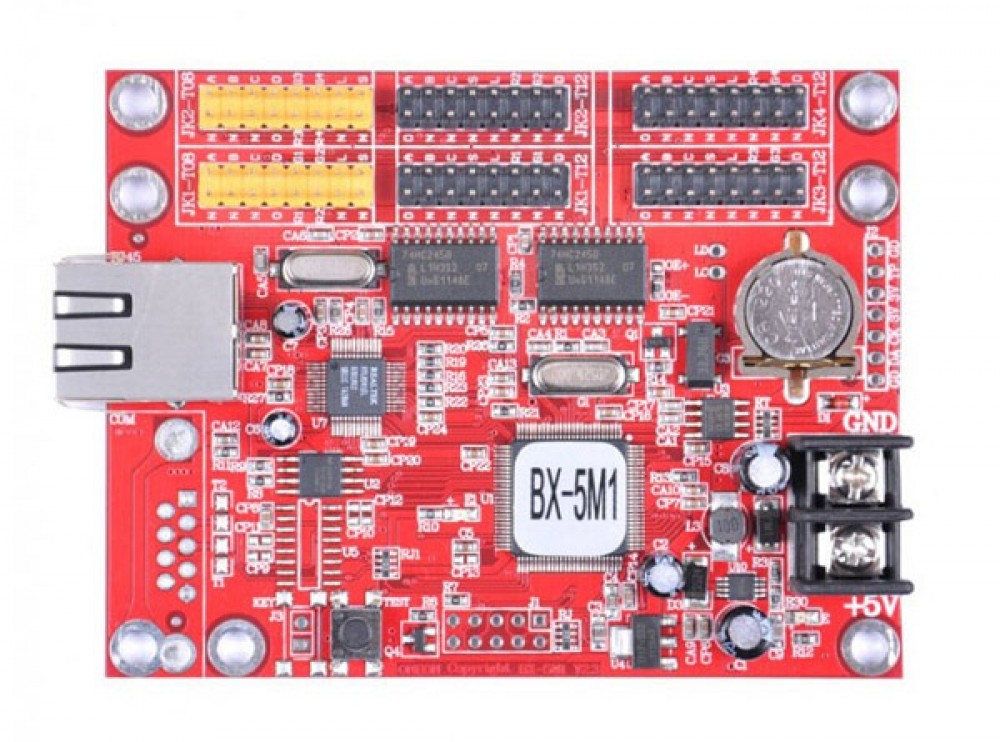

Brand: Onbon
Model: BX-5M1
Type: Control Card
Description:
High cost performance, Support large screen, on‐board 100M Ethernet Interface, MAC bindings Mechanism, Ethernet auto‐connection. 3.5V‐ 6.5V wide voltage range. ‐40°C~80°C wide working temperature. Support PC direct connection/cross‐Ethernet connection/cross‐internet connection, support firmware update online
Technical Parameters:
Product status: The latest 5th generation products, put into market on March 28,2012.
Control area: Single color32K: 2048 * 16 /1024 * 32/ 672 * 48/ 512 * 64
Dual color16K: 1024 * 16/512 * 32/336 * 48/256 * 64
Memory storage: 2MByte
Screen types: All types of single and double color LEDs
Software function: Screens cluster management / multi-program / multi-areas display / multi-languages
Type: Normal / Shared program
Program quantity: Support 128 programs, 24 areas for each program
Area type: Image / text / animation / lunar calendar / digital clock / analogue clock
/ timer / temperature / temperature & humidity
Frame mode: Most advanced colorful / magic frame frame / Area frame
Background: Support text / image back ground / animation background
Time mode: Analog clock / timing and counting down timer (support multi-groups)
Communication mode: 100M ethernet / RS232 / RS485, standard 100M ethernet
Interface: 2 nose T8 and 4 nose T12
Sensors supported: Temperature / Humidity
Remote control: remote control program / lock screen / brightness adjustment / power on / off / screen test
Bright regulation: 16 degrees brightness, manual and auto-timing adjustment / remote control
Power on / off mode: Auto-timing on / off / remote control
Voltage: 5V (3.5V ~ 6.5Vwide Voltage)
Maximum power: ≤1.8W
Temperature: -40 ° C ~ 80 ° C
Secondary development: Provide the DLL and corresponding demos
LedshowTW2012 software
