Brand: SENOR
Model: FTD OMEGA ULTRA
Type: Wall and ceiling mount
Description:

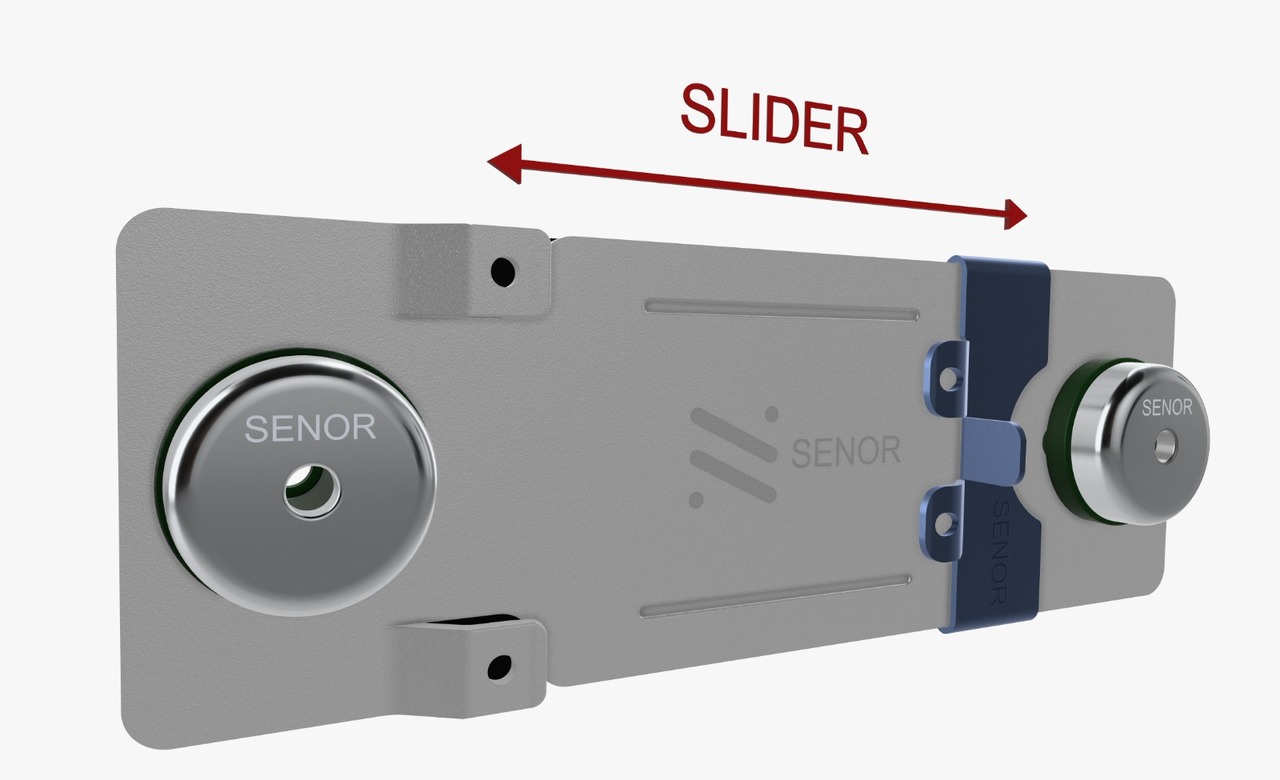

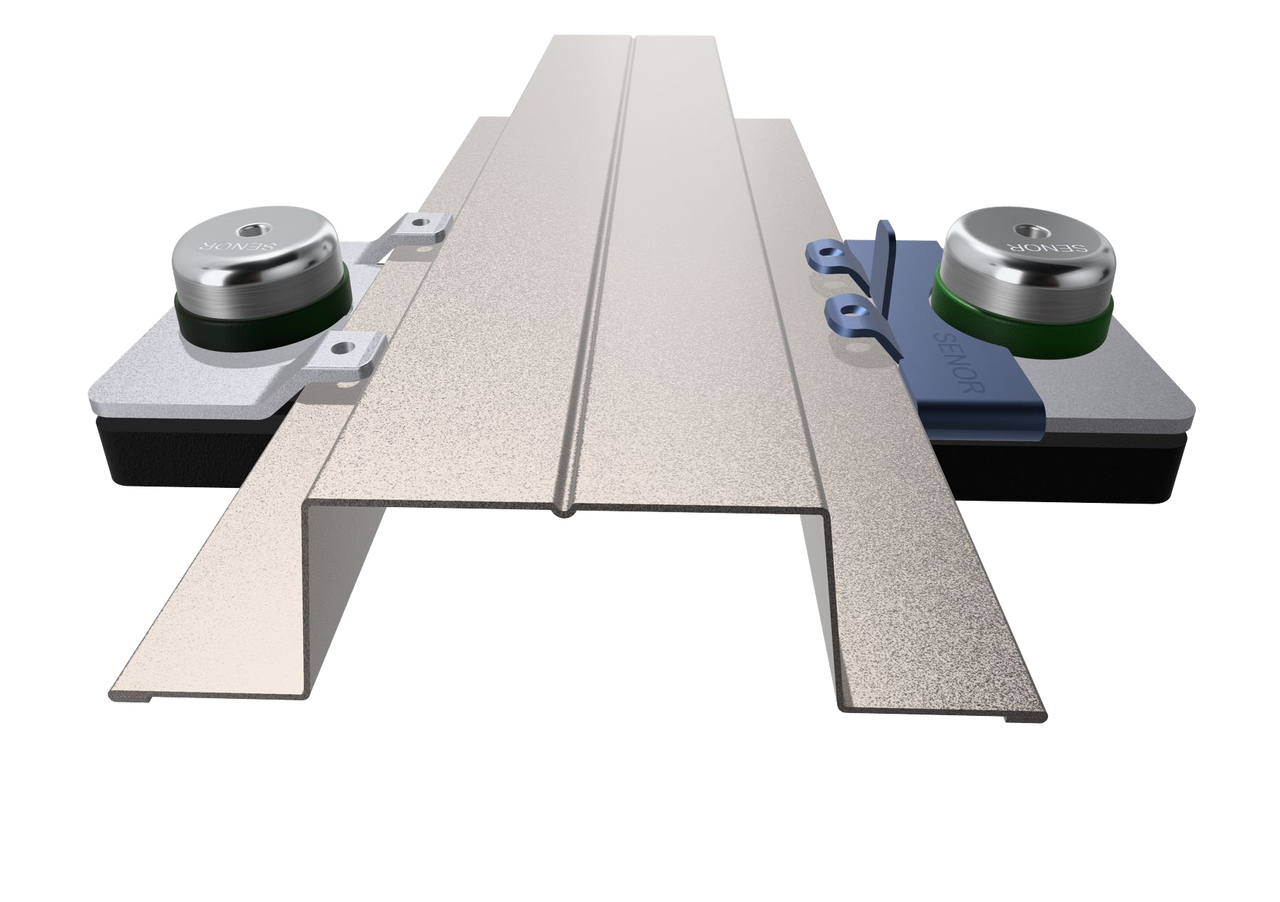

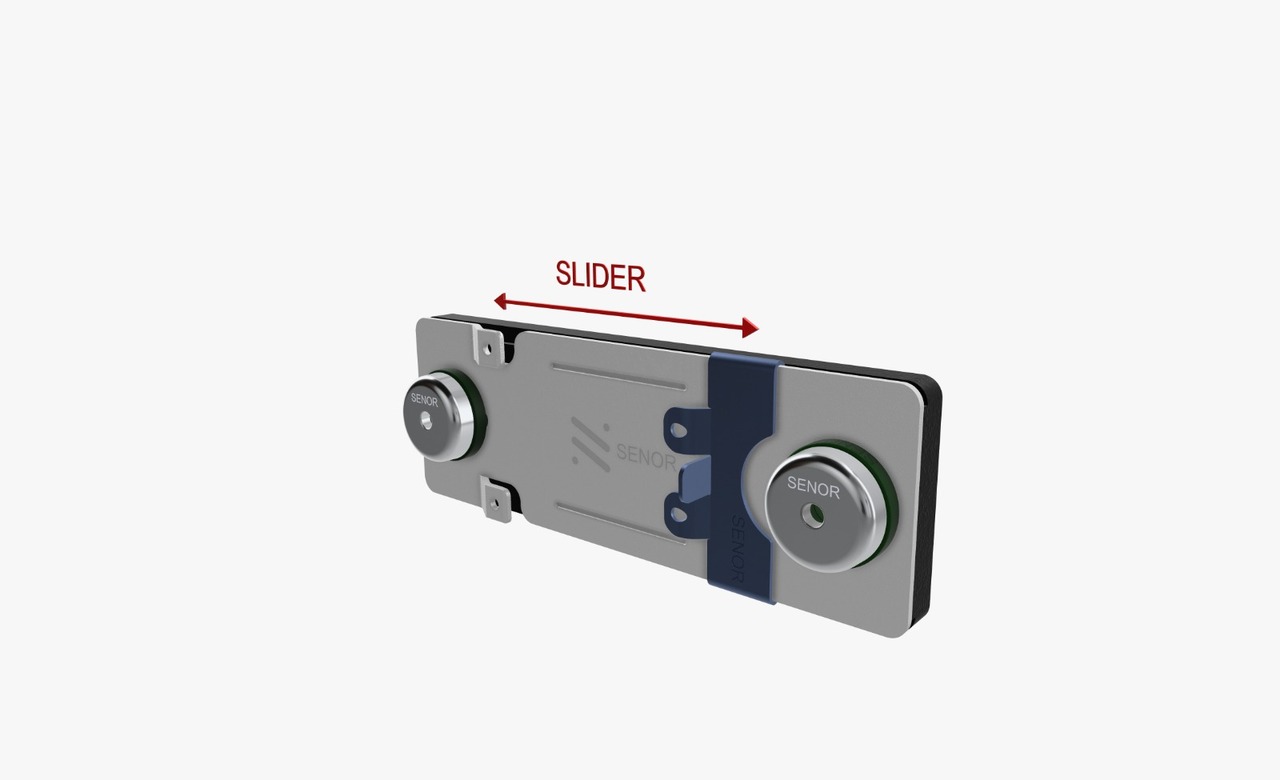

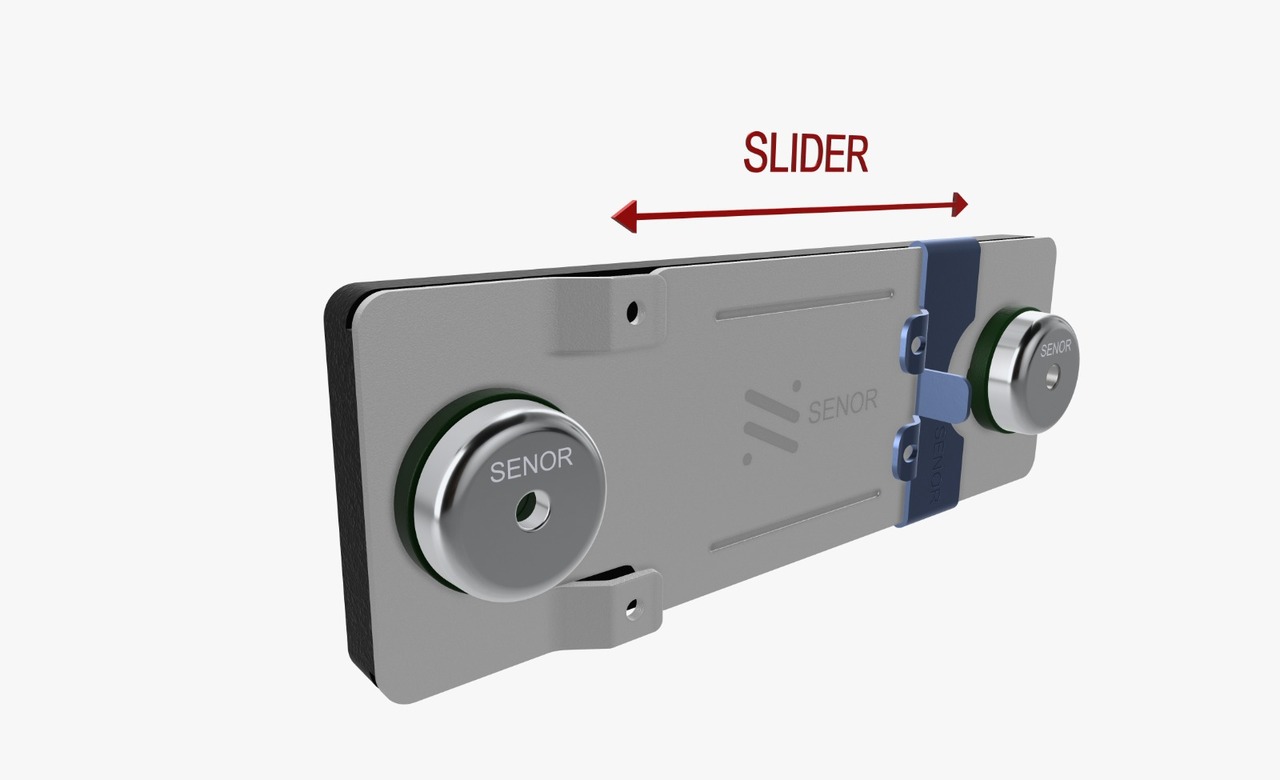

FTD OMEGA ULTRA is the slimmest mount on the market, for which profile length is no longer a problem. Available for every OMEGA profile (from 20mm to 90mm). The locking device ensures grip to the channel. With an innovative design that has the latest generation technology for isolating vibrations and acoustic pollution, which is a current and future solution for soundproofing small spaces. Using it, acoustic ceilings and linings are built with minimal effort, achieving a laboratory-tested acoustic improvement of airborne noise of more than 12 dB.
Material:
Polymer "KRAIBURG-TPE - TC4/GPN" in accordance with standard UNE-EN ISO 10846. This type of polymer has a better damping result compared to other rubbers such as polyurethane, polystyrene, EPDM, etc. High level of sound insulation in frequencies (Hz).
Acoustic panel made of CAU EPDM CR-130 RE 42. Color: Black. Provides a high level of sound insulation at low/mid frequencies.
Technical :
Density: 1,100 g/cm³
Hardness 39º +- 5º ShoreA
Extreme force: 14 KN/m
Load range: 3-25 kgcharacteristics
Size: 60 x 175 x 25

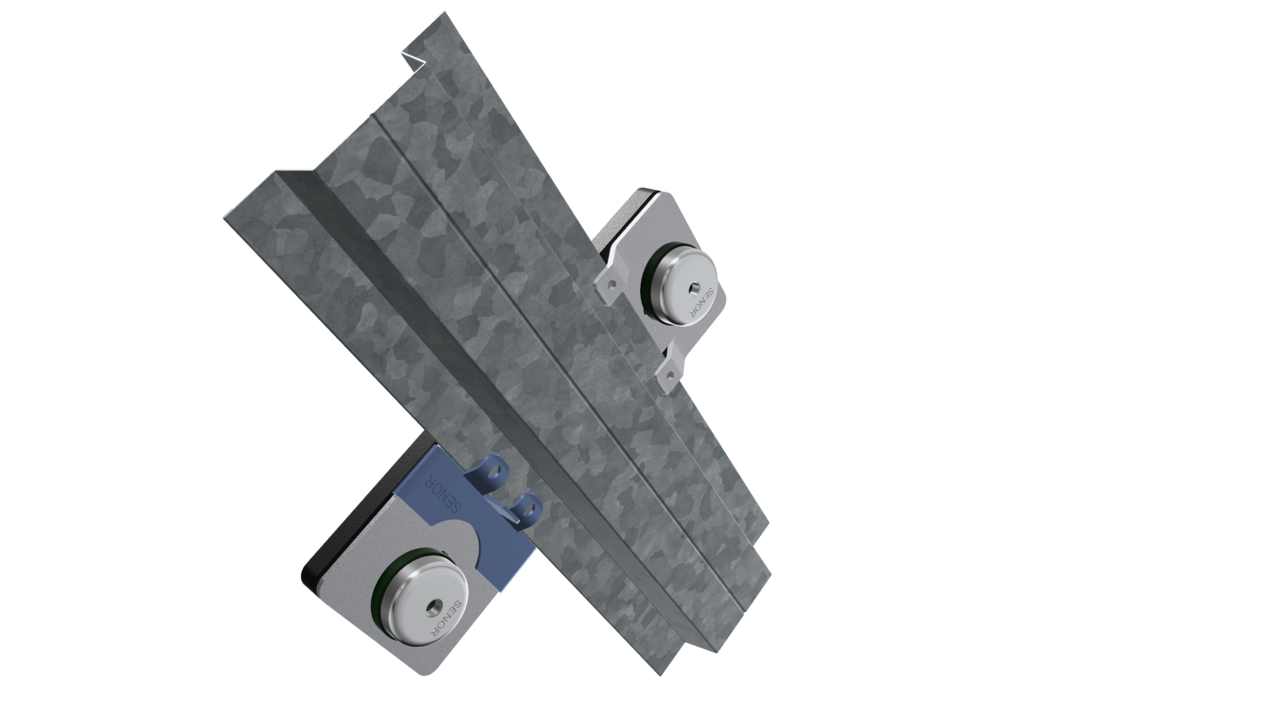

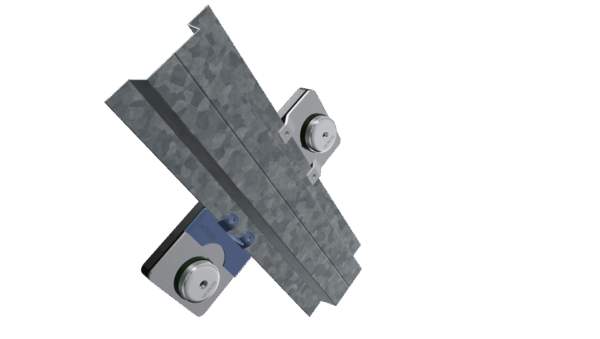

Application: Sound insulation of Pre-wall cladding and ceiling systems.
