Brand: HB-LASER

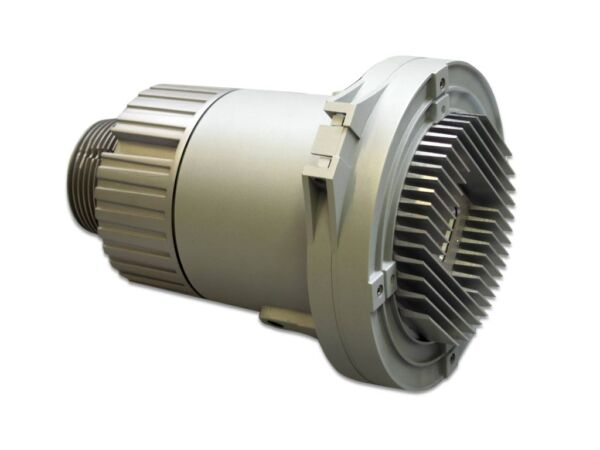

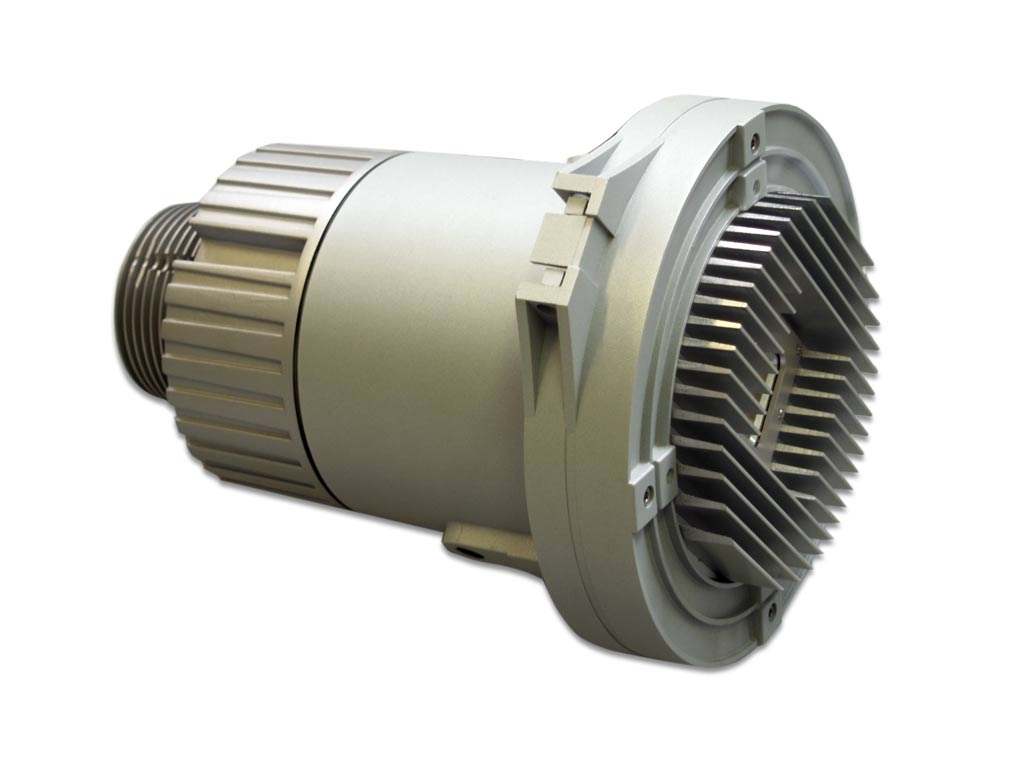

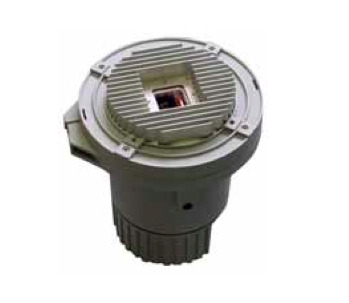

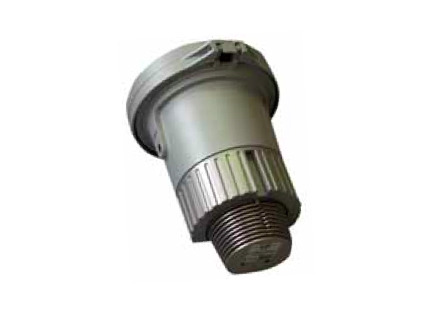

Model: Architect IP67 RGB, 3.5 W
Type: Powerful waterproof laser for outdoor installation
Description: The design of Architect IP67 is converted into a standard architectural lighting. With its small footprint fits into any type of environment. Special attention is paid to the ability to work without support. The laser has a passive cooling, air-conditioned body with self-cleaning anti-reflective windscreen, does not contain mechanical wearing parts. Architect IP67 using the same technique series LightCube, but offers very stable, compact and IP67 waterproof housing that is specifically designed for use in outdoor installations. Passive cooling with active heating. Temperature range from - 20 ° to 40 °. With an emphasis on maximum power in the minimum size and independence from temporal changes. The laser is ideal for any outdoor installations that require reliability and functionality. Ease of maintenance and operation of the laser ensure low running costs and ease of use. The laser can be adapted to your specific project or event. Equipped with the proven DPSS / diode laser technology mounted in a unique world-class, robust IP67 aluminum housing for outdoor conditions with many other advantages that ensure reliable system performance in all weather conditions.
DPSS / diode white light laser system.
Air cooling.
Beam with a diameter of 2.0 mm
Deviation of 0.8 mrad.
2,5 W whitelight indicated, usually> 3.1 W, maximum output power: 3,5 W
at 637 ± 5 Nm wavelength of the visible spectrum than 500 MW, typically> 600 MW,
at 532 ± 1 Nm wavelength of the visible spectrum 1,200 MW, typically> 1,500 MW,
at 450 ± 5 Nm wavelength of the visible spectrum of 800 MW, typically> 1,000 MW,
modulation 30 KHz, Apollo Supermicro scanning system with 2 x CT 6210 galvanometer scanner 3 mm hole
Scan angle: 80 °
60 kpps
Safely scan
Shutter mechanism 90-240 VAC
Maximum power consumption
Active beam control
ILDA-standard connection signal

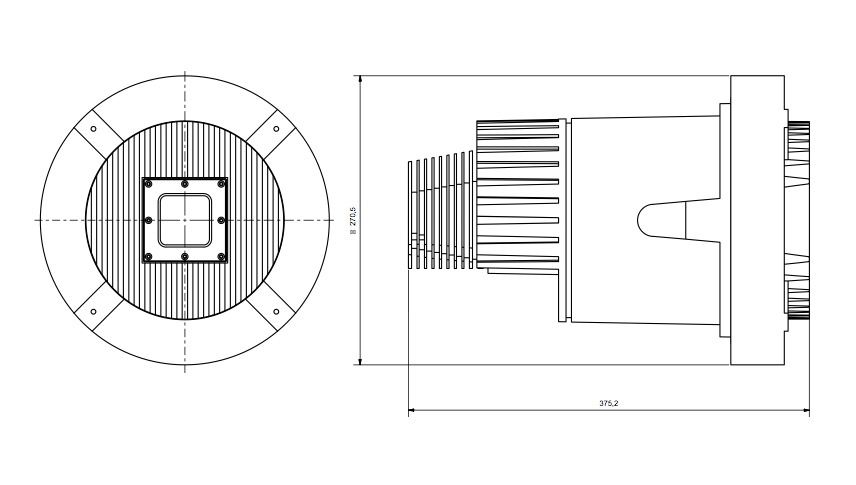

Dimensions: diameter x length - 270 x 375 mm
Maintenance free
Warranty: 2 years
RGB: 1,5W-3,5W
Single Color: 1W-5W
0,8 mrad
Weight: 15 kg
Application: Architect IP67 is designed for extreme outdoor use, such as in water fountains or graphic projector for building illumination.
