Brand: CR TEC
Model: RGB SCAN 7 (620 mW)
Type: Animation RGB laser
Description and function of the laser:

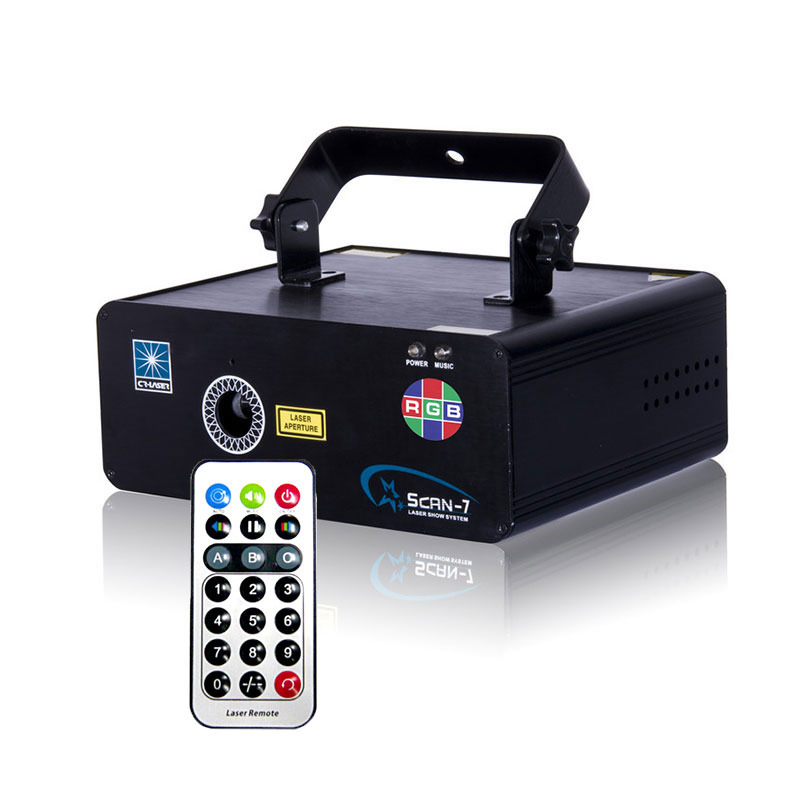

Professional quality animated RGB laser clubs and mobile DJ and 4 built shows multiple animations rays, graphics, etc. Combining three powerful lasers (red, green and blue) with high-speed scanners Scan-7 RGB 620mW produces a rainbow of colors and stunning effects, animation, antennas and others. It uses new '' multi-thread "of SCM control technique that allows the laser fantastic models, and can control up to 17 DMX channels. One of the nicest features is the free wireless remote control. There are more than 80 templates that include animated models, numbers, networks, waves, wheels, points and can be manipulated in a swirling, point, stretch and zoom movements via DMX protocol.
Specifications:
Voltage: AC 100-240V 50Hz / 60Hz
Mix power: 620mW
Power Red Laser: 120mw
Blue laser power: 400mW
Green laser power: 100mW
Wavelength red laser: 638nm
Wavelength blue laser: 455nm
Wavelength green laser: 532nm
Scanner: High 25Kpss
Monitor: LCD monitor control
Advantages: Smart and easy navigation control system of the digital control panel by pressing. Built-in automatic control.
Control modes: 4 modes Auto Play, Auto Show, SOUND Active, DMX MODE, Master / Slave, Remote control, XY corrections and output size by DMX.
DMX channels: 17 channels
Rated power: 50W

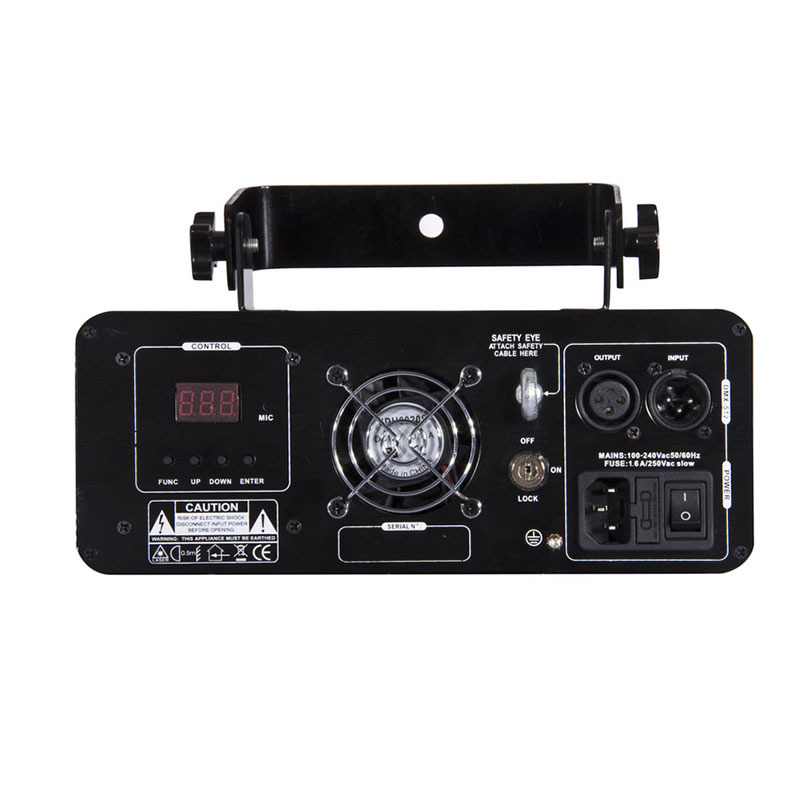

Interface: 3 pcs. XLR Male / female for DMX link
Standard Laser Safety: EN 60825-1 2007
Safety class: Class 3B
Operating environment: 10-40 °
Dimensions: 204x250x100mm
Weight: 2.5 kg
Application: Mobile DJ, bars, clubs and rental.
