Brand: Guil
Model: PTA5-D 50 x 50
Type: Stage deck / telescopic legs

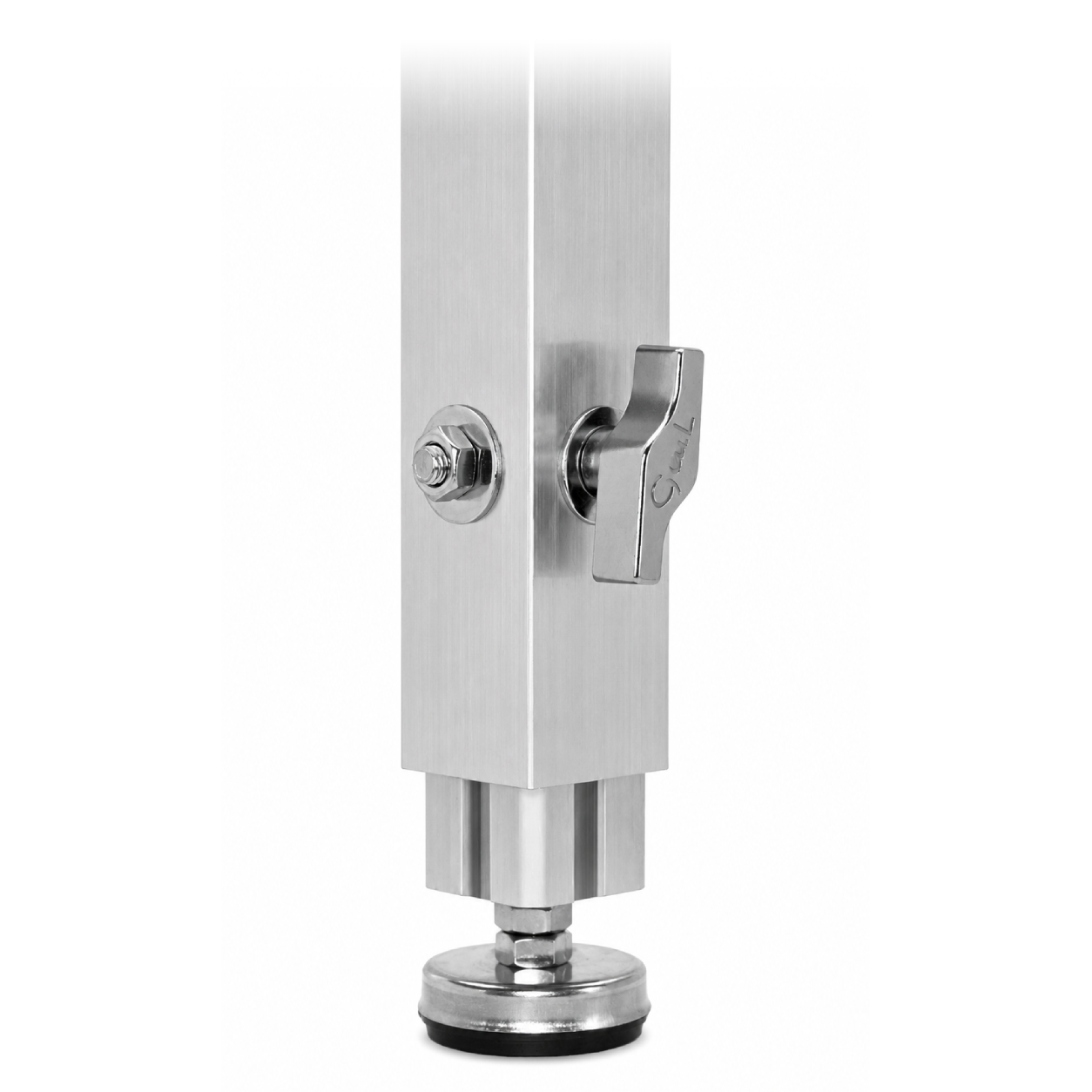

Description:Telescopic legs with an external square profile of 50 x 50 mm, manufactured with extruded aluminium adjustable using a metallic pressure knob and stainless steel leveller.Its telescopic system allows different heights with just one set of legs (adjustable millimetre by millimetre) and ensures a perfectly levelled stage when setting up on uneven surfaces (ramps, stairs, outdoor terrain, etc.)The leg height is blocked with a double locking system. Once the desired height is achieved the leg is secured with a metallic pressure knob, then, as an added safety measure legs are blocked with a nut and bolt, firmly locking the legs in position.Finer height regulation is made using the adjustable stainless steel M12 leveller.The legs come with a special rubber injected, non-marring, non-skid foot pad ensuring a perfect grip to any surface and prevents damage to delicate flooring (parquet, laminate, etc.).
TM440, TM440XL & TM300 Decks have a quick and easy leg attachment method. The legs are fitted into the aluminium leg sockets by tightening the internal pressure piece with a metallic pressure knob (ergonomic design) which holds the legs firmly in place.
IMPORTANT:
From Ref. PTA5-D/70-120 & higher:
For every 4 telescopic legs ordered 1 stainless steel leg-to-leg clamp connector Ref. TMU-04 is included
Telescopic legs with special heights can be made to order; contact our sales distributor for more information.
Note: GUIL also manufactures other types of 50 x 50 mm legs; ask for the price of the legs that best fit your requirements:
– Fixed height legs (ref. PTA5-F)
– Fixed height legs with leveller (ref. PTA5-N)
– Telescopic legs (ref. PTA5-T)
– Telescopic legs with a locking pin and leveller (ref. PTA5-P)
Technical characteristics:
Weight: 1.80kg
Application: Scenes, podiums, outdoor stage constructions, etc.
