Brand: CNLINKO
Model:YF-24-J03SX-04-001

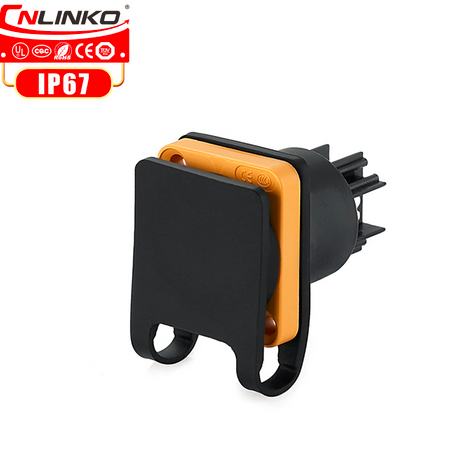

Type: PowerCon power supply 3-pin industrial connector
Description: CNLINKO series YF-24 connectors have a unique connection system that is easy to operate and maintain. The color coding of the input / output connectors eliminates incorrect connection. They are widely used in audio-video equipment and power systems.
Main characteristics:
- Sealed against dust and fluid
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Technical characteristics:
Contact tip: socket
Connector type: Powercon connector
For coupling part with: YF-24-J03SX-04-001 Contact Tip / Plug
Number of pins: 3 pcs
Connection mode: Lock
Cable specification: 2.5mm²≈ 4mm² / 12-14AWG
Contact resistance: <3mΩ
Contact diameter × number: Ф2.0 × 3
Diameter range: Ф8.00-12mm

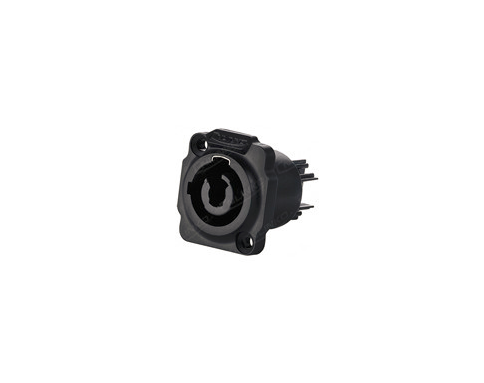

M / F plug / socket: female socket
Rated current: 20A
Operating voltage (AC.V.rms): 500V
Insulation resistance: > 500MΩ
Durability: > 500 times
Dialectric endurance voltage test (AC.V) 1 minute: 2500V
Operating temperature: -40 ° C ～ 80 ° C
Temperature rise: 20A contact temperature below 30 ° C, 25A below 40 ° C, 30A below 50 ° C
Degree of protection: IP65/67
Flammability rating: UL94-V0
Materials:
Assembling wire: solder and locking screw
Housing, insulation parts: High-performance engineering plastic
Contact pin: Copper alloy(gold-plated)
Hardware: Zinc alloy (pearl hard chrome)
Waterproof circuit: Silicon gel
Certificates: ISO9001 / CE / ROHS / UL / CUL / TUV
Number in one box: 5 pcs
Application: audio-video equipment and power systems, stage equipment, medical equipment, servers, solar equipment, ship equipment, electrical equipment, vehicle equipment, communication equipment, heavy machinery and others.
